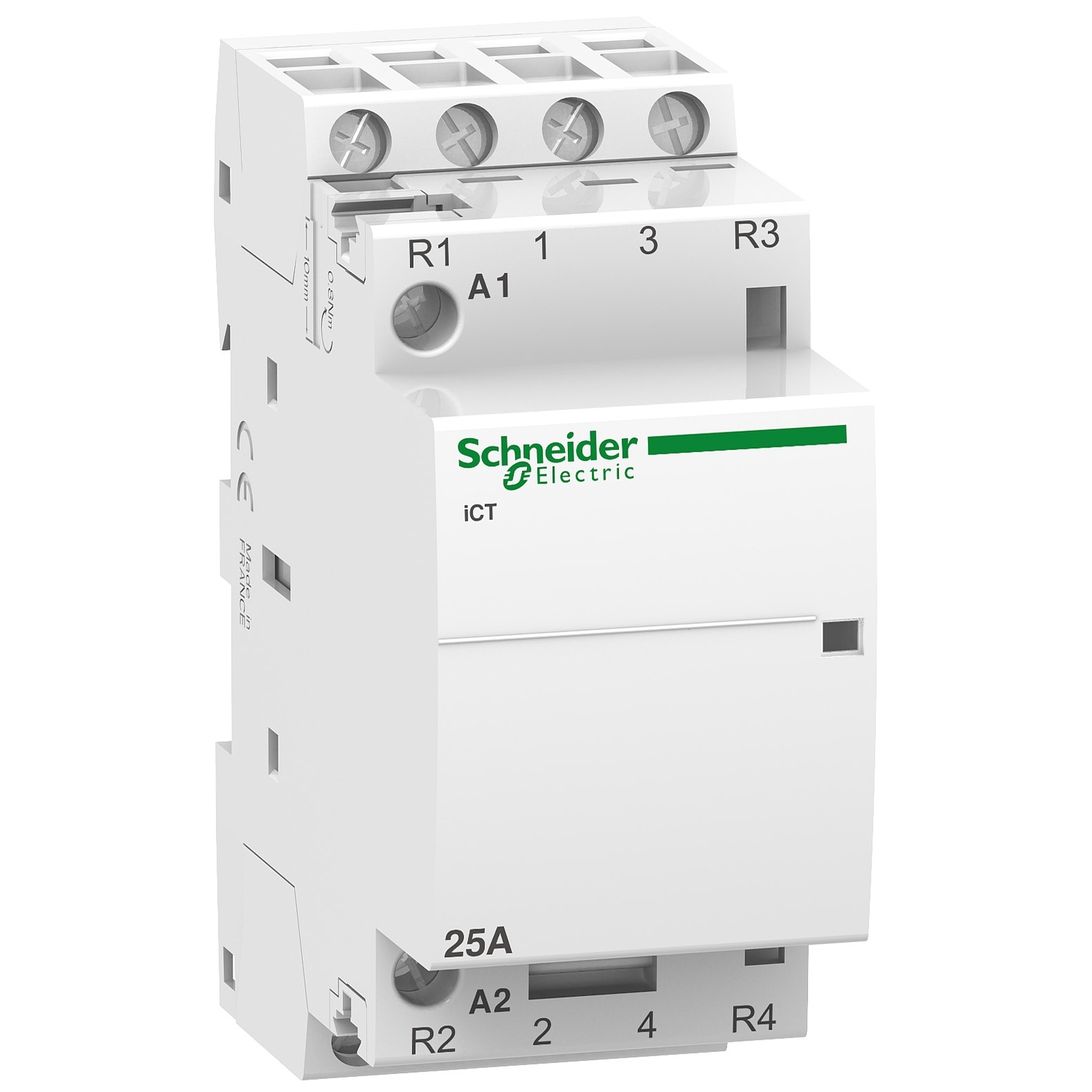

Picture of Acti9, ICT 25A 2NO 2NC 220...240V 50Hz contactor
SKU:

A9C20838

Acti9, ICT 25A 2NO 2NC 220...240V 50Hz contactor

$93.83
Available for Shipping : 24-Nov-2024
Product Selector
Acti9, ICT 25A 2NO 2NC 220...240V 50Hz contactor
  • Compatible with all the Acti9 control auxiliaries, for lighting, heating, and ventilation control
  • Could be used for control circuits and remote switching small motors such as fans, mixers
  • Compliant to IEC 61095 standard
  • Mechanical contact position indicator
  • Clip-on system for electrical and mechanical connections between contactors up to 25A and their auxiliaries
  • Low noise and large circuit labeling area
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iCT is a modular contactor. It is a 4P remote control device with 2 normally open contacts and 2 normally close contacts. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Products specifications

Attribute name Attribute value
Main
Device short name iCT
Device application motor-heating-lighting
[Ie] rated operational current 8.5 A AC-7B, 25 A AC-7A
Control type remote control
Range Acti9
Range of product iCT
Poles description 4P
Pole contact composition 2 NO + 2 NC
Product name Acti9 iCT
Product or component type contactor
Network type AC
[Uc] control circuit voltage 220...240 V AC 50 Hz
Complementary
Product compatibility iACTs, iACTp, iATEt, iACTc
Tightening torque power circuit: 0.8-0.8 N.m, control circuit: 0.8-0.8 N.m
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code iCT
Mechanical durability 1000000 cycles
Electrical durability 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3, 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1, 30000 cycles IEC/EN 61095 50 Hz AC-7C, 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B, 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A
Mounting mode clip-on
Control signal type maintained
Hold-in power consumption in VA 4.6-4.6 VA
Switching frequency 100 switching operations/day
Height 81 mm
Connections - terminals control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible, control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid, power circuit: tunnel type terminals1 cable(s) 1.5-6 mm² rigid, power circuit: tunnel type terminals1 cable(s) 1-4 mm² flexible, control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid
[Ue] rated operational voltage 400 V AC 50 Hz
Maximum power 1.6 W at 400 V AC
Depth 60 mm
Market segment residential, small commercial
Width 36 mm
Local signalling action indicator
Inrush power in VA 34 VA
[Ui] rated insulation voltage 500 V AC 50/60 Hz
9 mm pitches 4
Mounting support 35 mm symmetrical DIN rail
Network frequency 50 Hz
Environment
Heat dissipation 1.6-1.6 W at 50/60 Hz
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Pollution degree 2
Noise level 30 dB
IP degree of protection IP20
Tropicalisation 2 conforming to IEC 1095, 2 conforming to EN 61095, 2 conforming to EN 60947-4-1
Ambient air temperature for operation -5-60 °C
Operating altitude 2000 m
Standards IEC/EN 61095
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.2 cm
Package 1 Width 1.1 cm
Package 1 Length 12.2 cm
Package 1 Weight 236 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 11.5 cm
Package 2 Width 12.5 cm
Package 2 Length 25 cm
Package 2 Weight 1.495 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 9.485 kg
