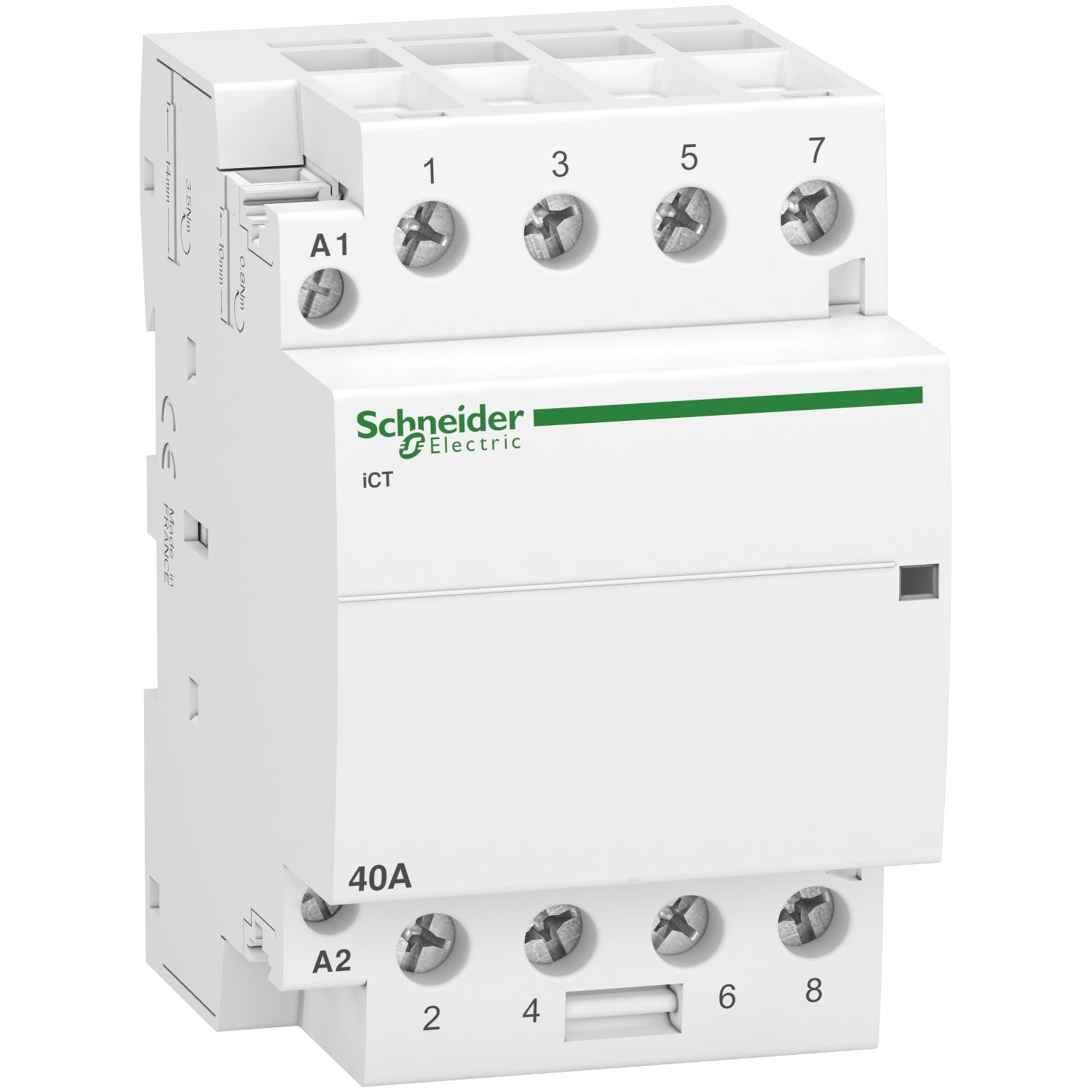

Picture of Acti9, Contactor iCT - 4 poles - 4 NO - 40 A - 220..240 V AC
SKU:

A9C20844

Acti9, Contactor iCT - 4 poles - 4 NO - 40 A - 220..240 V AC

$163.98
Product Selector
Acti9, Contactor iCT - 4 poles - 4 NO - 40 A - 220..240 V AC
  • Compatible with all the Acti9 control auxiliaries, for lighting, heating, and ventilation control
  • Could be used for control circuits and remote switching small motors such as fans, mixers
  • Compliant to IEC 61095 standard
  • Mechanical contact position indicator
  • Low noise and large circuit labeling area
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Products specifications

Attribute nameAttribute value
Main
Device short nameiCT
Device applicationmotor-heating-lighting
[Ie] rated operational current15 A AC-7B, 40 A AC-7A
Control typeremote control
RangeActi9
Range of productiCT
Poles description4P
Pole contact composition4 NO
Product nameActi9 iCT
Product or component typecontactor
Network typeAC
[Uc] control circuit voltage220...240 V AC 50 Hz
Complementary
Product compatibilityiACTs, iACTc, iATEt, iACTp
Tightening torquepower circuit: 3.5-3.5 N.m, control circuit: 0.8-0.8 N.m
Colourwhite
[Uimp] rated impulse withstand voltage4 kV
Compatibility codeiCT
Mechanical durability1000000 cycles
Electrical durability30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3, 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1, 30000 cycles IEC/EN 61095 50 Hz AC-7C, 30000 cycles IEC/EN 61095 15 A 50 Hz AC-7B, 100000 cycles IEC/EN 61095 40 A 50 Hz AC-7A
Mounting modeclip-on
Control signal typemaintained
Hold-in power consumption in VA6.5-6.5 VA
Switching frequency100 switching operations/day
Height85 mm
Connections - terminalscontrol circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible, power circuit: tunnel type terminals1 cable(s) 6-25 mm² rigid, power circuit: tunnel type terminals1 cable(s) 6-16 mm² flexible, control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid, control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid
[Ue] rated operational voltage400 V AC 50 Hz
Maximum power2.1 W at 400 V AC
Depth60 mm
Market segmentsmall commercial, residential
Width54 mm
Local signallingaction indicator
Inrush power in VA53 VA
[Ui] rated insulation voltage500 V AC 50/60 Hz
9 mm pitches6
Mounting support35 mm symmetrical DIN rail
Network frequency50 Hz
Environment
Heat dissipation2.1-2.1 W at 50/60 Hz
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-70 °C
Pollution degree2
Noise level30 dB
IP degree of protectionIP20
Tropicalisation2 conforming to IEC 1095, 2 conforming to EN 61095, 2 conforming to EN 60947-4-1
Ambient air temperature for operation-5-60 °C
Operating altitude2000 m
StandardsIEC/EN 61095
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.000 cm
Package 1 Width6.000 cm
Package 1 Length12.000 cm
Package 1 Weight358.000 g
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height11.500 cm
Package 2 Width12.500 cm
Package 2 Length25.000 cm
Package 2 Weight1.512 kg
Unit Type of Package 33
Number of Units in Package 324
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight9.516 kg
Unit Type of Package 44
Number of Units in Package 4192
Package 4 Height75.000 cm
Package 4 Width60.000 cm
Package 4 Length80.000 cm
Package 4 Weight88.904 kg

Related products

Picture of Acti9, Spacer, Acti9, set of 5, 9 mm pitch, white

Acti9, Spacer, Acti9, set of 5, 9 mm pitch, white

A9A27062
$5.22
View Detail
Picture of Acti9, iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface

Acti9, iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface

A9C15924
$137.00
View Detail
Picture of Acti9, double control input auxiliary iACTc 230...240 V AC

Acti9, double control input auxiliary iACTc 230...240 V AC

A9C18308
$195.47
View Detail
Picture of Acti9, Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC

Acti9, Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC

A9C15914
$94.38
View Detail

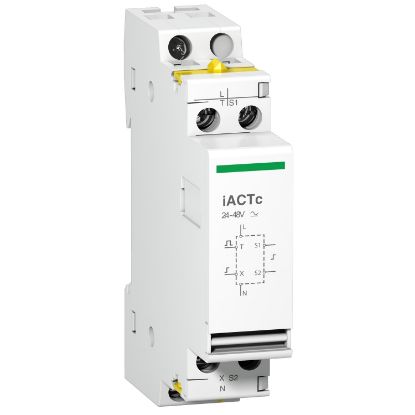

Picture of Acti9, double control input auxiliary iACTc 24…48 V AC
