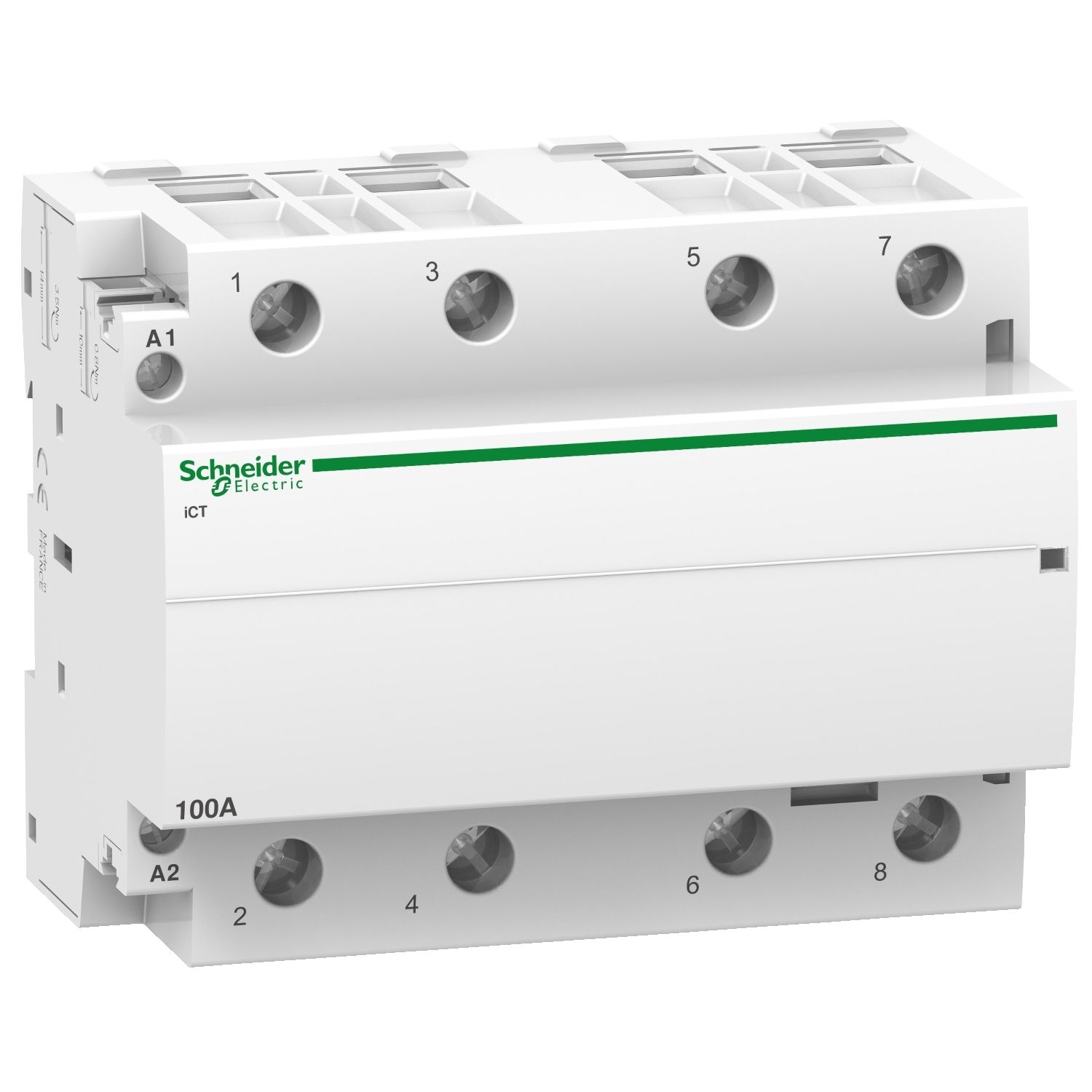

Picture of Acti9, ICT 100A 4NO 220...240V 50Hz contactor
SKU:

A9C20884

Acti9, ICT 100A 4NO 220...240V 50Hz contactor

$442.49
Available for Shipping : 10-Dec-2024
Product Selector
Acti9, ICT 100A 4NO 220...240V 50Hz contactor
  • Compatible with all the Acti9 control auxiliaries, for heating and ventilation control
  • Could be used for control circuits and remote switching small motors such as fans, mixers
  • Compliant to IEC 61095 and UTE C 61-481 standards
  • Mechanical contact position indicator
  • Low noise and large circuit labeling area
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contact. The In rated current is 100A for AC-7a. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for HVAC system applications. This product is compliant with EN/IEC 61095 standard. Electrical endurance goes up to 30000 cycles for AC-7A. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 12 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 108mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Products specifications

Attribute name Attribute value
Main
Device short name iCT
Device application heating-low inductive load
[Ie] rated operational current 100 A AC-7A
Control type remote control
Range Acti9
Range of product iCT
Poles description 4P
Pole contact composition 4 NO
Utilisation category AC-1 conforming to IEC 60947-4-1, AC-7A conforming to UTE C 61-481, AC-7A conforming to IEC 61095, AC-7A conforming to EN 61095, AC-1 conforming to EN 60947-4-1
Product name Acti9 iCT
Product or component type contactor
Network type AC
[Uc] control circuit voltage 220...240 V AC 50 Hz
Complementary
Product compatibility iACTc, iATEt, iACTs, iACTp
Tightening torque control circuit: 0.8-0.8 N.m A1 / A2, power circuit: 3.5-3.5 N.m
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code iCT
Electrical durability 30000 cycles IEC 61095 400 V AC 50 Hz AC-7A, 30000 cycles UTE C 61-481 400 V 6 A AC 50 Hz AC-7A, 30000 cycles EN 61095 400 V 16 A AC 50 Hz AC-7A
Mounting mode clip-on
Control signal type maintained
Hold-in power consumption in VA 13-13 VA
Switching frequency 100 switching operations/day
Height 85 mm
Connections - terminals power circuit: tunnel type terminals1 cable(s) 6-35 mm² solid or flexible, control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible, control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid, control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid
[Ue] rated operational voltage 400 V AC 50 Hz
Maximum power AC-7A: 4.2 W at 400 V AC 50 Hz
Depth 60 mm
Market segment residential, small commercial
Width 108 mm
Local signalling action indicator
Inrush power in VA 106 VA
[Ui] rated insulation voltage 500 V AC 50 Hz
9 mm pitches 12
Mounting support 35 mm symmetrical DIN rail
Network frequency 50 Hz
Environment
Heat dissipation 4.2-4.2 W at 50/60 Hz
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Pollution degree 2
Noise level 30 dB
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation 2 conforming to EN 60947-4-1
Ambient air temperature for operation -5-60 °C
Operating altitude 2000 m
Standards UTE C 61-481, IEC 61095, EN 61095
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.800 cm
Package 1 Width 8.800 cm
Package 1 Length 10.900 cm
Package 1 Weight 621.000 g
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 8.300 cm
Package 2 Width 9.800 cm
Package 2 Length 23.200 cm
Package 2 Weight 1.304 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.919 kg
