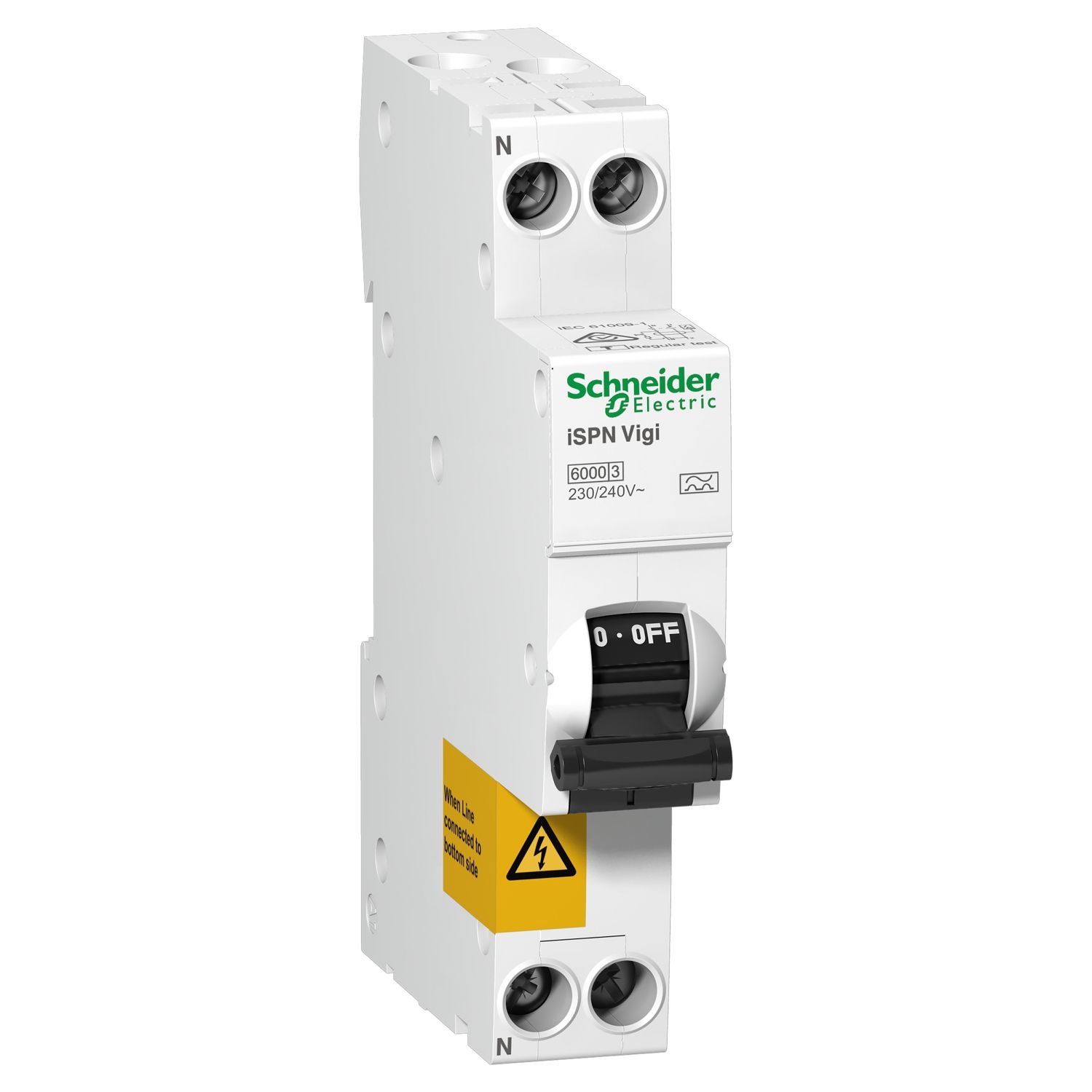

Picture of Residual current breaker with overcurrent protection (RCBO), Acti9 iSPN Vigi, 1P + N, 6A, 10mA, A type, 6000A
SKU:

A9D40606

Residual current breaker with overcurrent protection (RCBO), Acti9 iSPN Vigi, 1P + N, 6A, 10mA, A type, 6000A

$94.10
Residual current breaker with overcurrent protection (RCBO), Acti9 iSPN Vigi, 1P + N, 6A, 10mA, A type, 6000A
  • Protection of persons against electric shock by direct contact
  • Combine short-circuit and overload currents protection
  • One module width - Ideal for retrofit where space is limited
  • Trip free locking device (lockable ‘ON’ or ‘OFF’ position)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This iSPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 6A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 10mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according 0 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. A push-test button T is positioned on the front of the device for testing that product is operational. This product is compliant with AS/NZS 61009.1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC/240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 55°C. The storage temperature is from -25°C to 70°C.

Products specifications

Attribute nameAttribute value
Main
Breaking capacity6000 A Icn at 230/240 V AC 50 Hz
RangeActi9
Curve codeC
Poles description1P + N
Circuit breaker applicationdistribution
Product nameiSPN Vigi
Product or component typeresidual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity10 mA
[In] rated current6 A at 30 °C
Complementary
Tightening torque2-2 N.m downstream, 2-2 N.m upstream
Colourwhite
[Uimp] rated impulse withstand voltage4 kV
Mechanical durability20000 cycles
Suitability for isolationyes
Electrical durability10000 cycles
Mounting modeclip-on
Control typetoggle
Wire stripping length13 mm for upstream connection, 11 mm for downstream connection
Connections - terminalstunnel type terminal (downstream) 1-10 mm² flexible, tunnel type terminal (upstream) 1-16 mm² flexible, tunnel type terminal (downstream) 1-10 mm² rigid, tunnel type terminal (upstream) 1-16 mm² rigid
Comb busbar and distribution block compatibilityYES
Earth-leakage protection classtype A
Locking options descriptionON/OFF locking facilities
Earth-leakage protectionintegrated
Number of protected poles1
[Icw] rated short-time withstand currentIcw: 500 A during 8/20 µs impulse withstand
Residual current tripping technologyvoltage dependent
Height93 mm
[Ue] rated operational voltage230/240 V AC 50 Hz
Trip unit technologythermal-magnetic
Depth70 mm
Width18 mm
Neutral positionleft
Local signallingON/OFF indication
[Ui] rated insulation voltage400 V AC 50 Hz
Earth-leakage protection time delayinstantaneous
Net weight136 g
Limitation class3
Magnetic tripping limit5...10 x In
9 mm pitches2
Network typeAC
Mounting supportDIN rail
Contact position indicatoryes
Network frequency50 Hz
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-25-70 °C
IP degree of protectionIP20
Tropicalisation2
Ambient air temperature for operation-25-55 °C
StandardsIEC 61009-2-2, AS/NZS 61009.1
