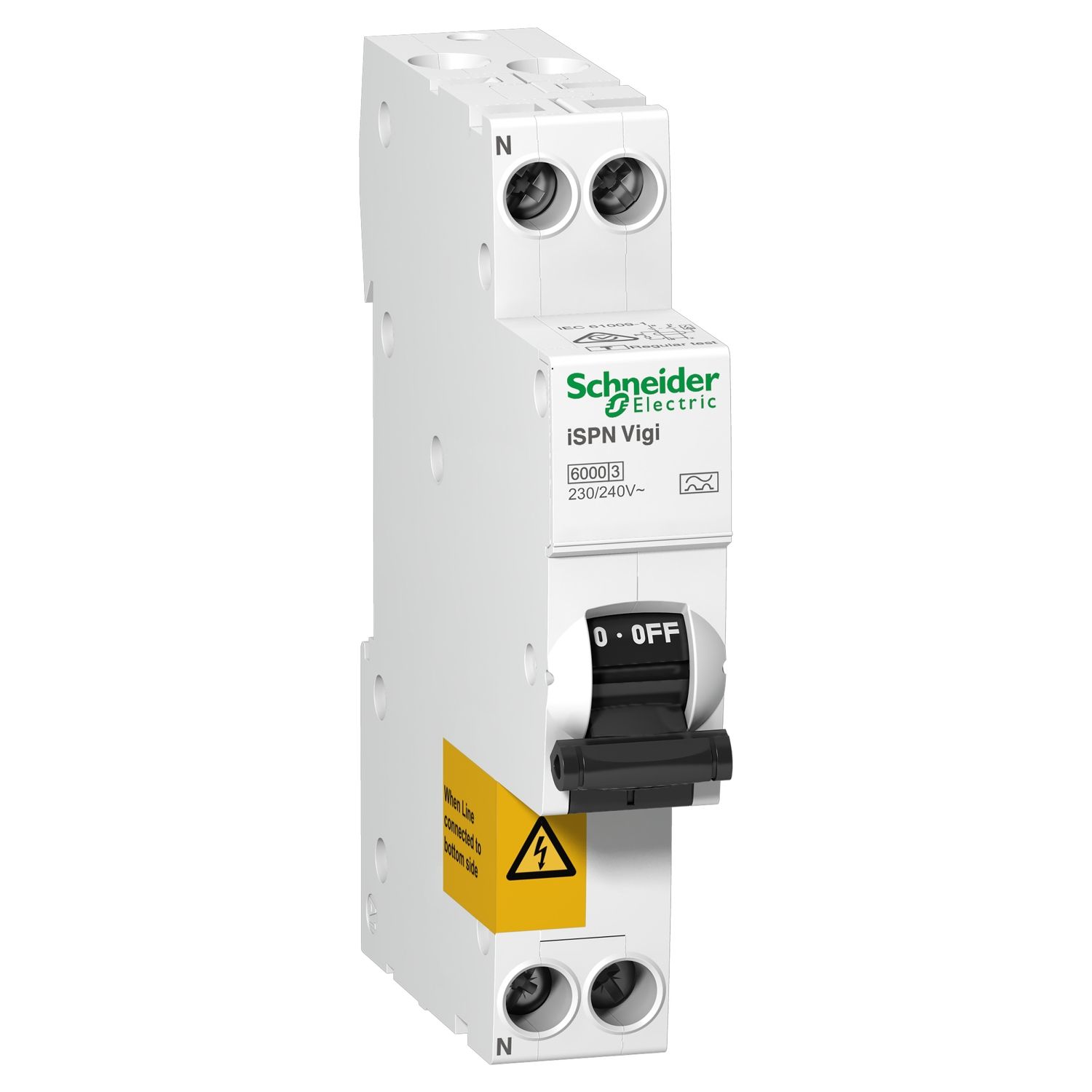

Picture of Residual current breaker with overcurrent protection (RCBO), Acti9 iSPN Vigi, 1P + N, 32A, 10mA, A type, 6000A
SKU:

A9D40632

Residual current breaker with overcurrent protection (RCBO), Acti9 iSPN Vigi, 1P + N, 32A, 10mA, A type, 6000A

$94.10
Available for Shipping : 24-Nov-2024
Residual current breaker with overcurrent protection (RCBO), Acti9 iSPN Vigi, 1P + N, 32A, 10mA, A type, 6000A
  • Protection of persons against electric shock by direct contact
  • Combine short-circuit and overload currents protection
  • One module width - Ideal for retrofit where space is limited
  • Trip free locking device (lockable ‘ON’ or ‘OFF’ position)
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This iSPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 32A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 10mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according 0 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. A push-test button T is positioned on the front of the device for testing that product is operational. This product is compliant with AS/NZS 61009.1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC/240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 55°C. The storage temperature is from -25°C to 70°C.

Products specifications

Attribute name Attribute value
Main
Breaking capacity 6000 A Icn at 230/240 V AC 50 Hz
Range Acti9
Curve code C
Poles description 1P + N
Circuit breaker application distribution
Product name iSPN Vigi
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 10 mA
[In] rated current 32 A at 30 °C
Complementary
Tightening torque 2-2 N.m downstream, 2-2 N.m upstream
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Mechanical durability 20000 cycles
Suitability for isolation yes
Electrical durability 10000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length 13 mm for upstream connection, 11 mm for downstream connection
Connections - terminals tunnel type terminal (downstream) 1-10 mm² flexible, tunnel type terminal (upstream) 1-16 mm² flexible, tunnel type terminal (downstream) 1-10 mm² rigid, tunnel type terminal (upstream) 1-16 mm² rigid
Comb busbar and distribution block compatibility YES
Earth-leakage protection class type A
Locking options description ON/OFF locking facilities
Earth-leakage protection integrated
Number of protected poles 1
[Icw] rated short-time withstand current Icw: 500 A during 8/20 µs impulse withstand
Residual current tripping technology voltage dependent
Height 93 mm
[Ue] rated operational voltage 230/240 V AC 50 Hz
Trip unit technology thermal-magnetic
Depth 70 mm
Width 18 mm
Neutral position left
Local signalling ON/OFF indication
[Ui] rated insulation voltage 400 V AC 50 Hz
Earth-leakage protection time delay instantaneous
Net weight 136 g
Limitation class 3
Magnetic tripping limit 5...10 x In
9 mm pitches 2
Network type AC
Mounting support DIN rail
Contact position indicator yes
Network frequency 50 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -25-70 °C
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-55 °C
Standards IEC 61009-2-2, AS/NZS 61009.1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.8 cm
Package 1 Width 7.2 cm
Package 1 Length 9.25 cm
Package 1 Weight 141 g
