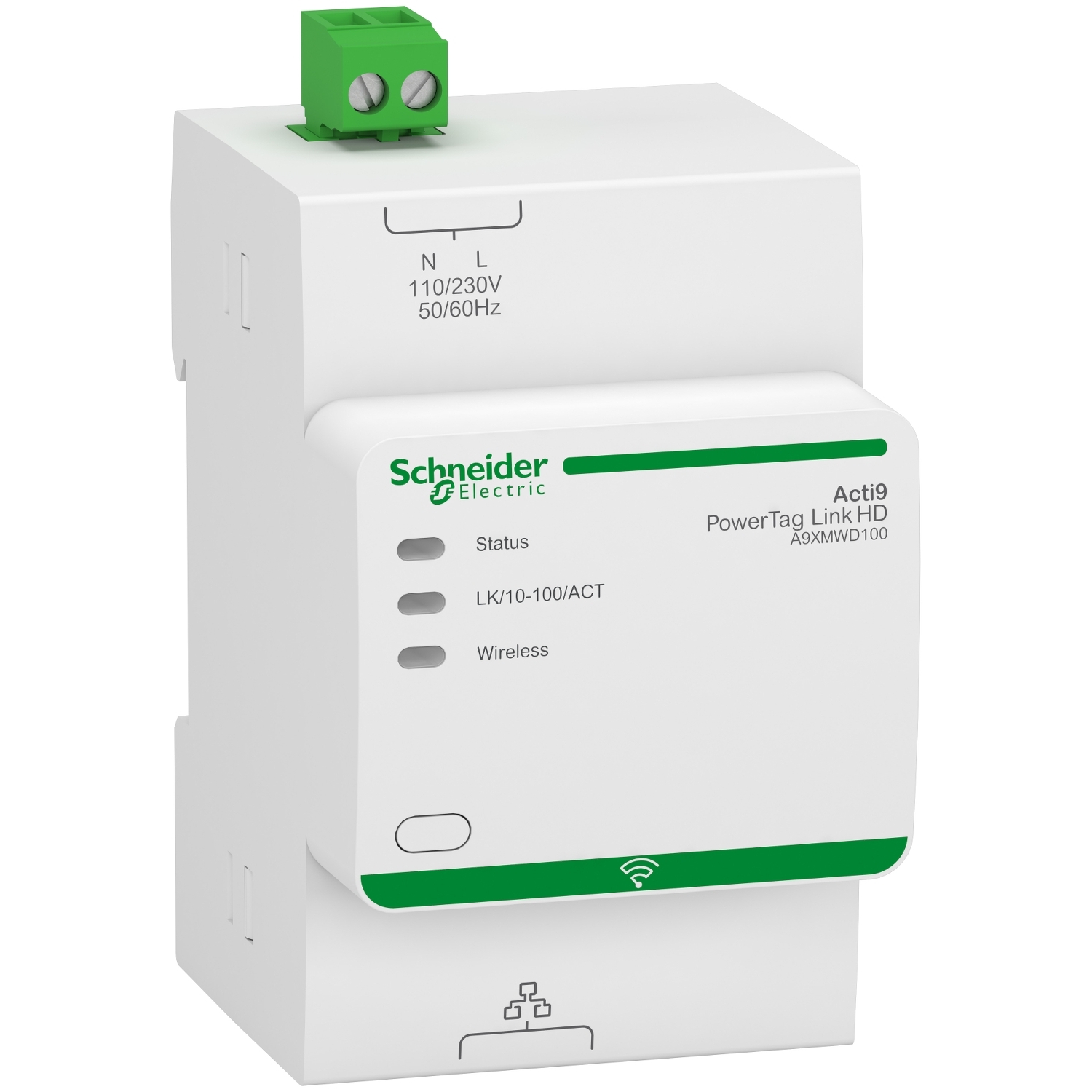

Picture of Acti9 PowerTag Link HD - Wireless to Modbus TCP/IP Concentrator
SKU:

A9XMWD100

Acti9 PowerTag Link HD - Wireless to Modbus TCP/IP Concentrator

Old price: $702.90 INC GST
$597.46 INC GST
Available for Shipping : 26-Jan-2026
Product Selector
Acti9 PowerTag Link HD - Wireless to Modbus TCP/IP Concentrator
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
User guide
Declaration of conformity
Circularity Profile
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti 9 PowerTag Link HD is a Wireless to Modbus TCP/IP Concentrator smart communication module. It has to be associated with a PowerTag wireless-communication energy sensor to provide circuit monitoring and diagnosis down to load level. The number of HW-interfaces industrial Ethernet is 1. Number of HW-interfaces Wireless is 1. The voltage power supply is 110VAC to 230VAC. The operating frequency is 50Hz or 60Hz. It is a screw connection. The degree of protection is IP20 or IP40 for modular enclosure. The pollution degree is 2. It complies with RoHS directive. The dimensions are (W) 54mm x (H) 85mm x (D) 67.5mm. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 61131-2 standard.

Products specifications

Attribute name Attribute value
Main
Web server BMS controller compatible, embedded web page
Device short name PowerTag Link HD
Device application load alarming, improved load monitoring E, U, I, P, Pf, basic energy metering E
Web services web page
Maximum supply current 2 A
Connectivity to devices wireless energy sensor
Transmission support medium radio frequency 2.4-2.4835 GHz PowerTag 100
Range Acti9
Connected auxiliaries up to 100 wireless devices
Communication service web server, Ethernet Modbus TCP/IP server
Product name Acti9 PowerTag Link HD
Product or component type smart communication module
[Us] rated supply voltage 110...230 V AC +/- 15 %
Complementary
Colour white (RAL 9003)
Compatibility code Acti9 PowerTag Link HD
Application specific I/O pulse totalising counter
Local signalling Ethernet status (LAN ST): 1 LED (green, orange and red), product status: 1 LED (green, orange and red)
Commissioning interface ECOREACH, web page
Immunity to microbreaks 10 ms
Height 85 mm
9 mm pitches 6 useful
Depth 67.5 mm
Overvoltage category III
Width 54 mm
Location of connection upstream
Power consumption in VA 5 VA
Mounting position horizontal/vertical on DIN rail
Net weight 133 g
Range compatibility Acti 9 PowerTag wireless energy sensor
Reset factory reset on front face
Environment
Relative humidity 93-93 % at 40-40 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 2
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation 2
Ambient air temperature for operation -25-60 °C
Operating altitude 0...2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.200 cm
Package 1 Width 6.800 cm
Package 1 Length 11.300 cm
Package 1 Weight 187.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.880 kg
