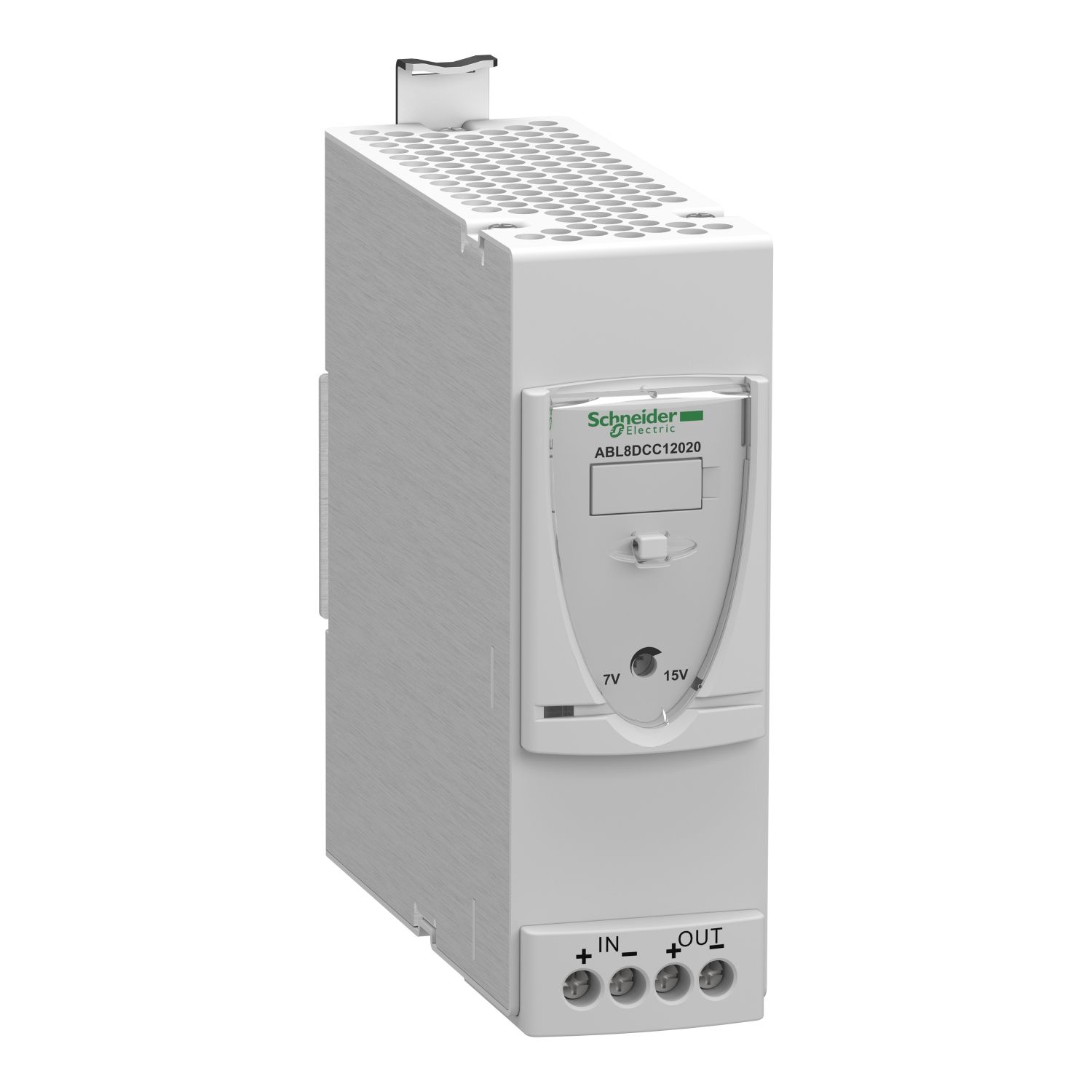

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

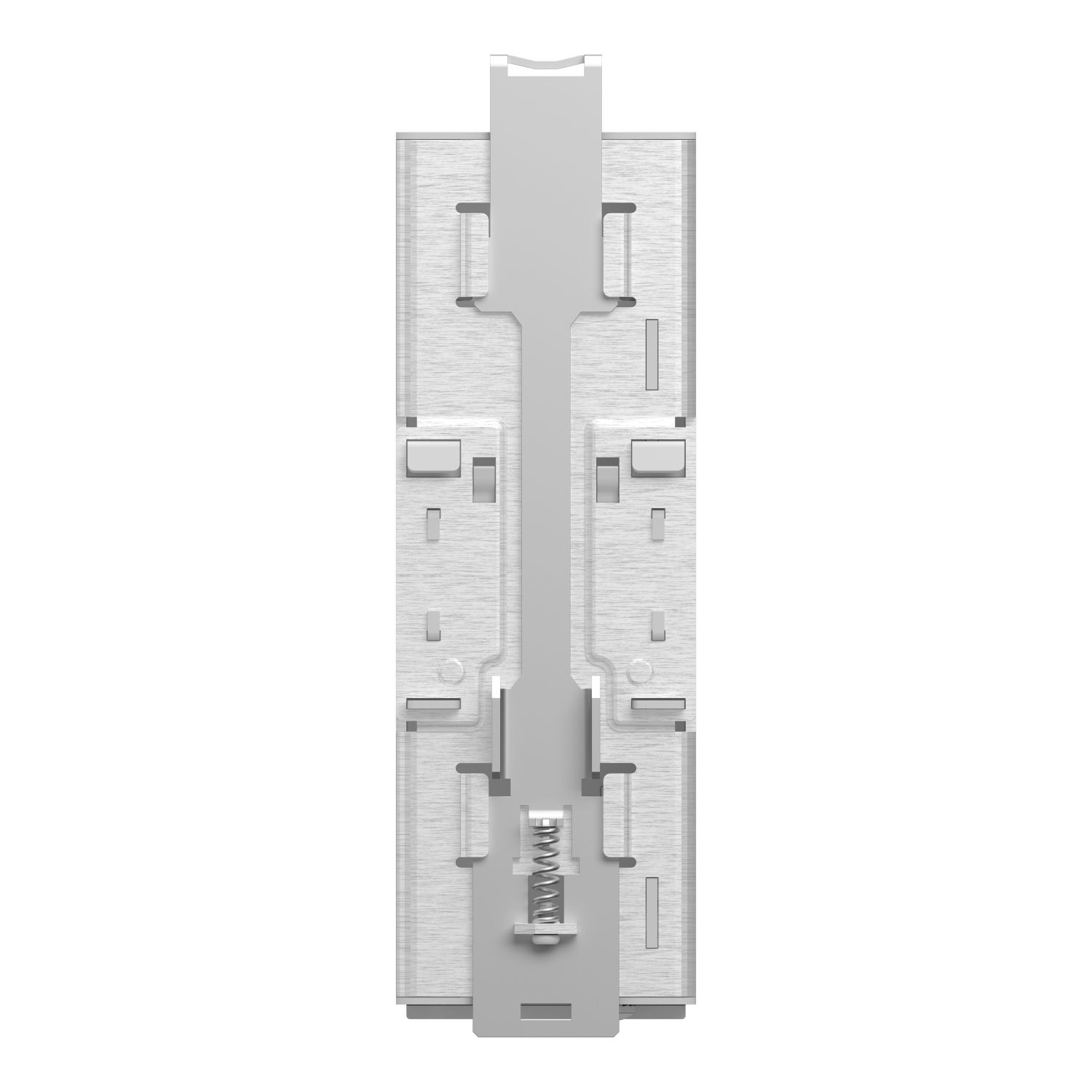

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

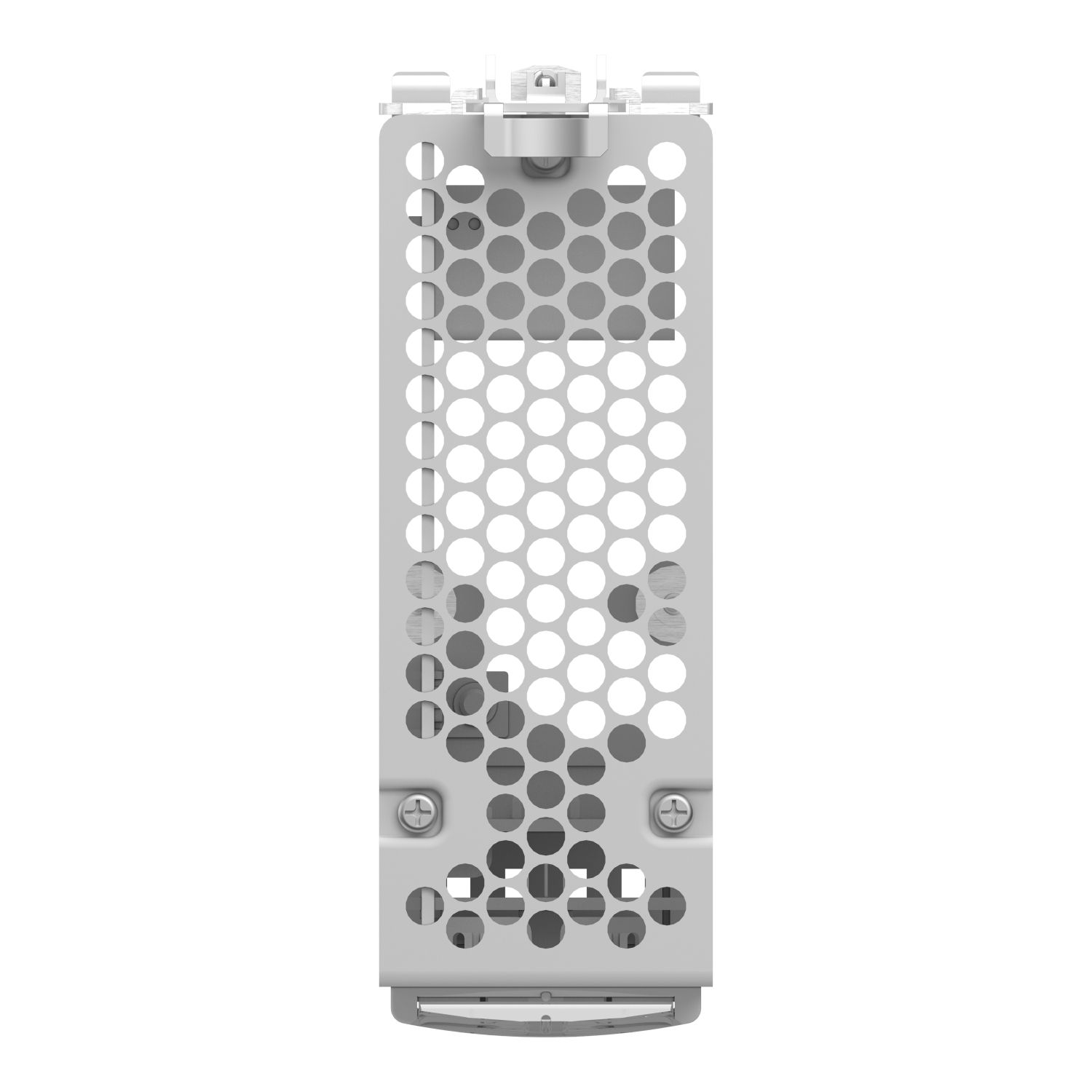

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

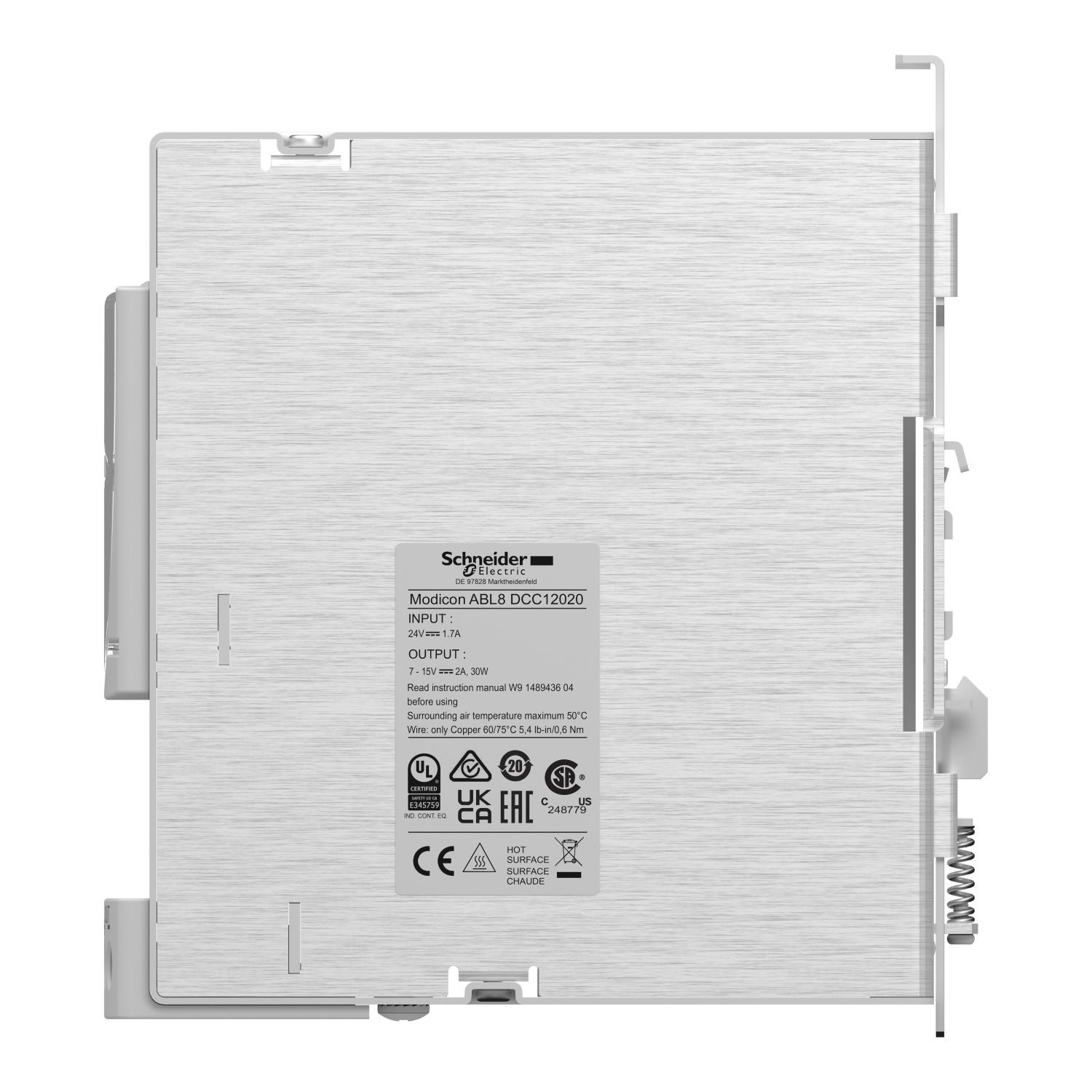

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

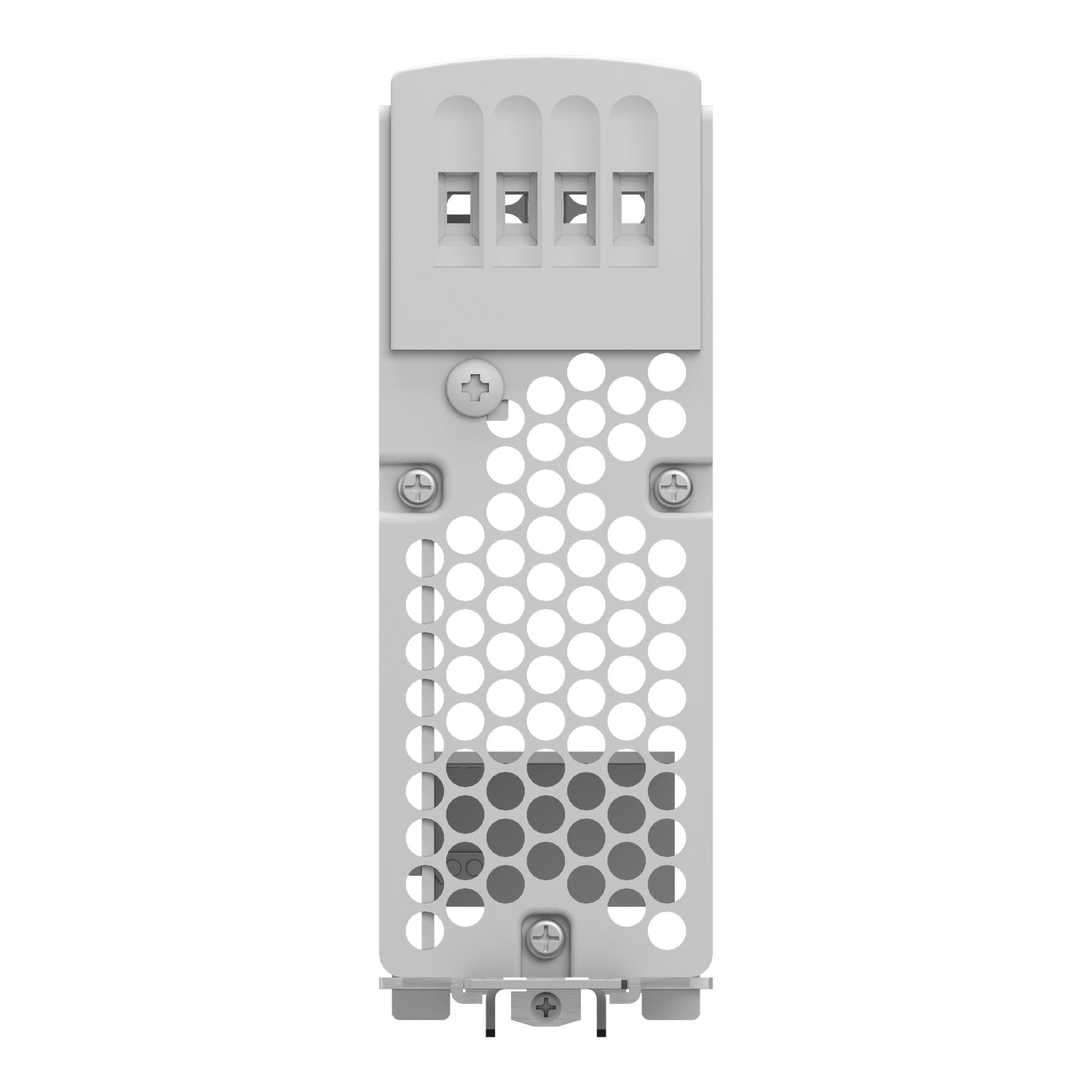

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

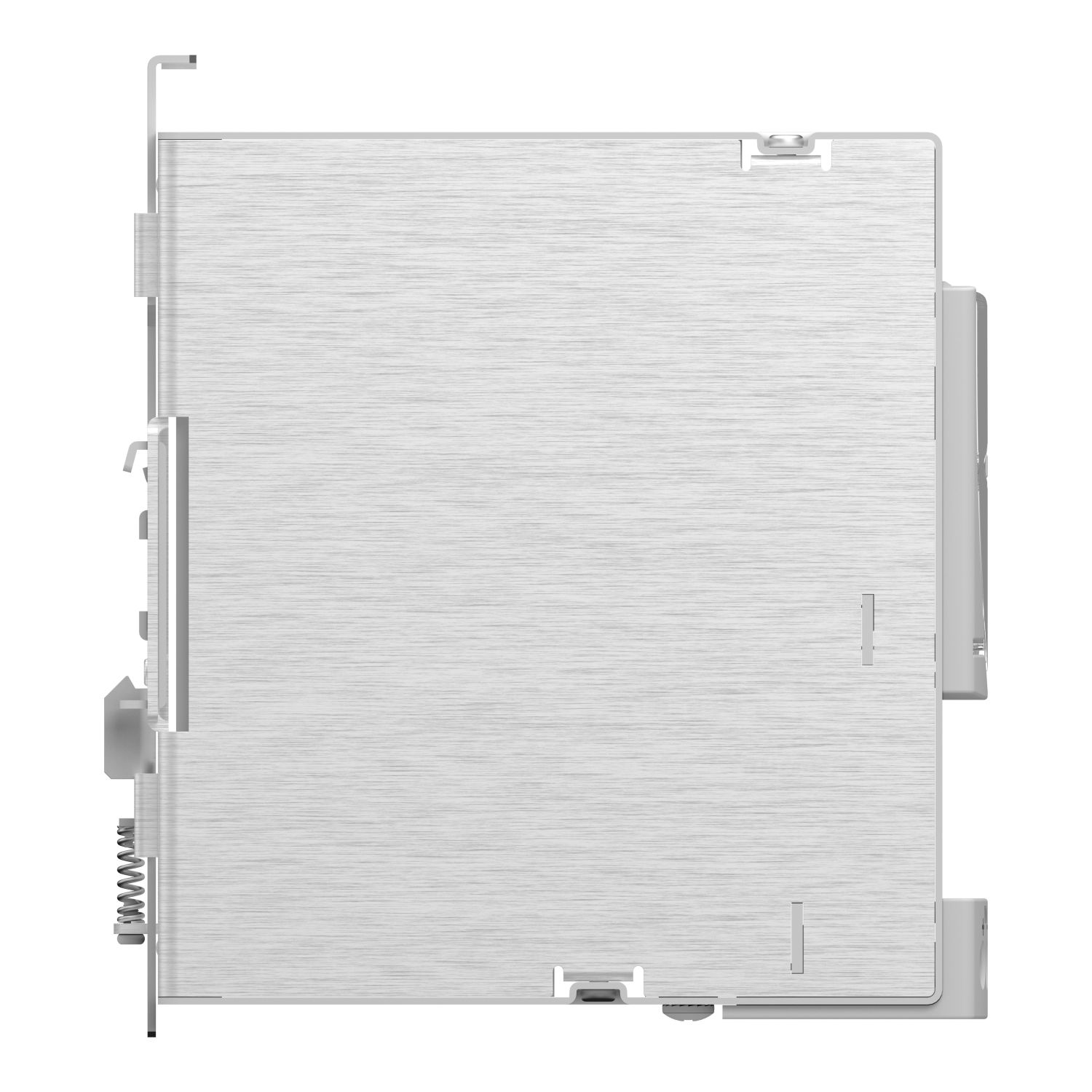

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

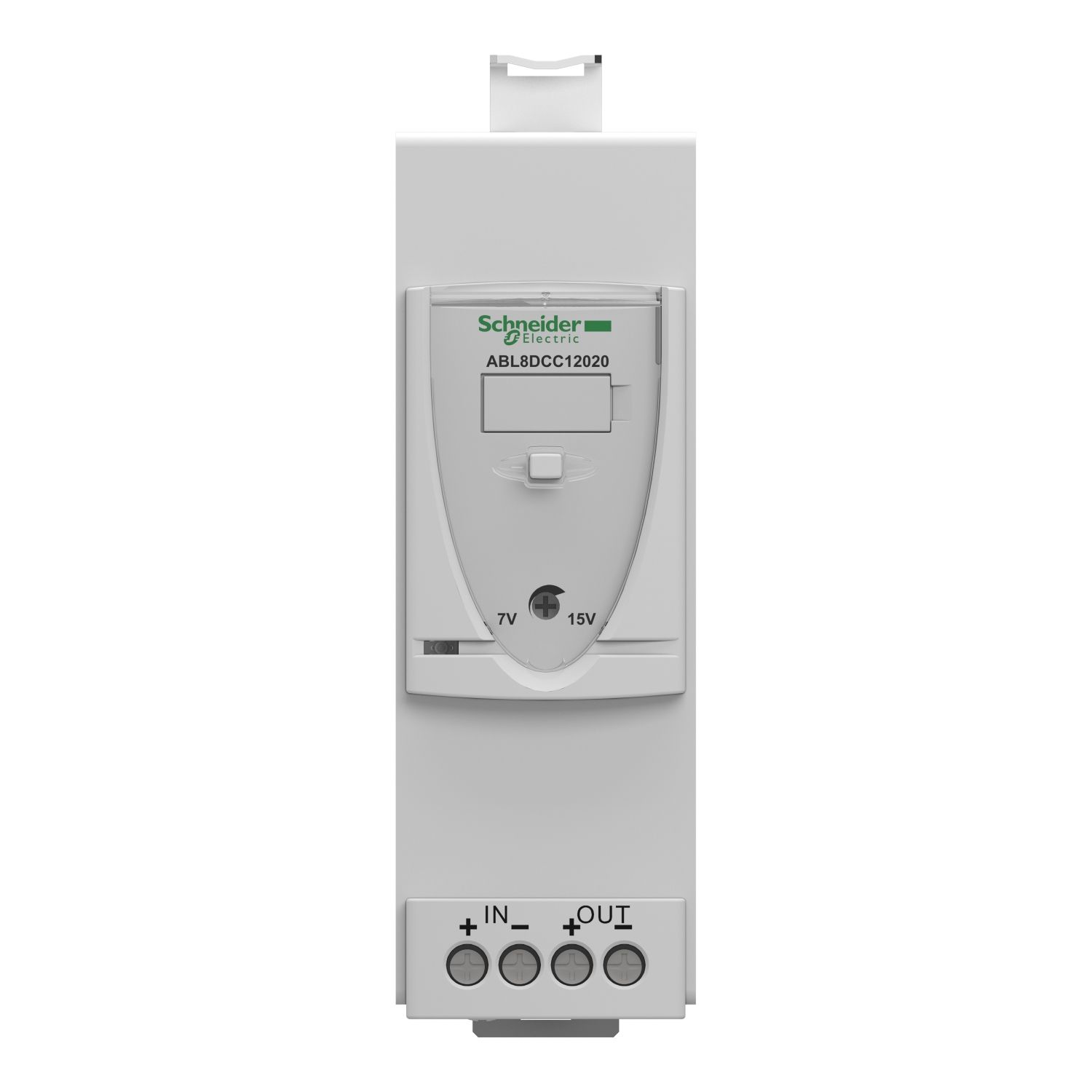

Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS
Picture of Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS
SKU:

ABL8DCC12020

Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS

$385.99
Available for Shipping : 25-Nov-2024
Phaseo ABL7 ABL8, Converter module 24 W, 24..28.8 V DC, 12 V DC, 2 A, for regulated SMPS
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Brochure
Instruction sheet
Declaration of conformity
Product environmental
CAD
Product Page Link
Product Data Sheet
This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute name Attribute value
Main
Input voltage 24...28.8 V DC
Rated power in W 24 W
Output voltage 12 V DC
Range of product Phaseo Universal
Power supply output current 2 A
Product or component type converter module
Complementary
Input protection type against reverse polarity
Compatibility code ABL8D
Name of test emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2, conducted/radiated emissions conforming to EN 55022 class B, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3
Power dissipation in W 4 W
Line and load regulation 1...3 %
Fixing mode by clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal
Input voltage limits 22...30 V
Residual ripple <= 100 mV
Operating altitude 2000 m
Local signalling 1 LED (green) for output voltage (> 6 V)
Output voltage limits 7...15 V
Output protection type against short-circuits, protection technology: automatic reset, against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset, against overload, protection technology: automatic reset
Connections - terminals for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
Net weight 0.3 kg
Efficiency 82 %
Environment
Relative humidity 0-95 % during storage, 0-90 % during operation
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
MTBF reliability 1583182 H at 24 V DC with UTE C80-810 calculation method
Ambient air temperature for operation -25-60 °C
Dielectric strength 500 V between output and ground, 500 V between input and output, 500 V between input and ground
Overvoltage category class 3
Vibration resistance 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
Environmental characteristic safety conforming to IEC 61204, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3, EMC conforming to EN 50081-1
Product certifications UL, cCSAus, EAC, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 14.5 cm
Package 1 Length 16.5 cm
Package 1 Weight 601.0 g
Unit Type of Package 2 2
Number of Units in Package 2 11
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.071 kg
Unit Type of Package 3 3
Number of Units in Package 3 88
Package 3 Height 75.0 cm
Package 3 Width 40.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 77.888 kg

Related products

Picture of legend holder IEC

legend holder IEC

LAD90
$3.14
View Detail
