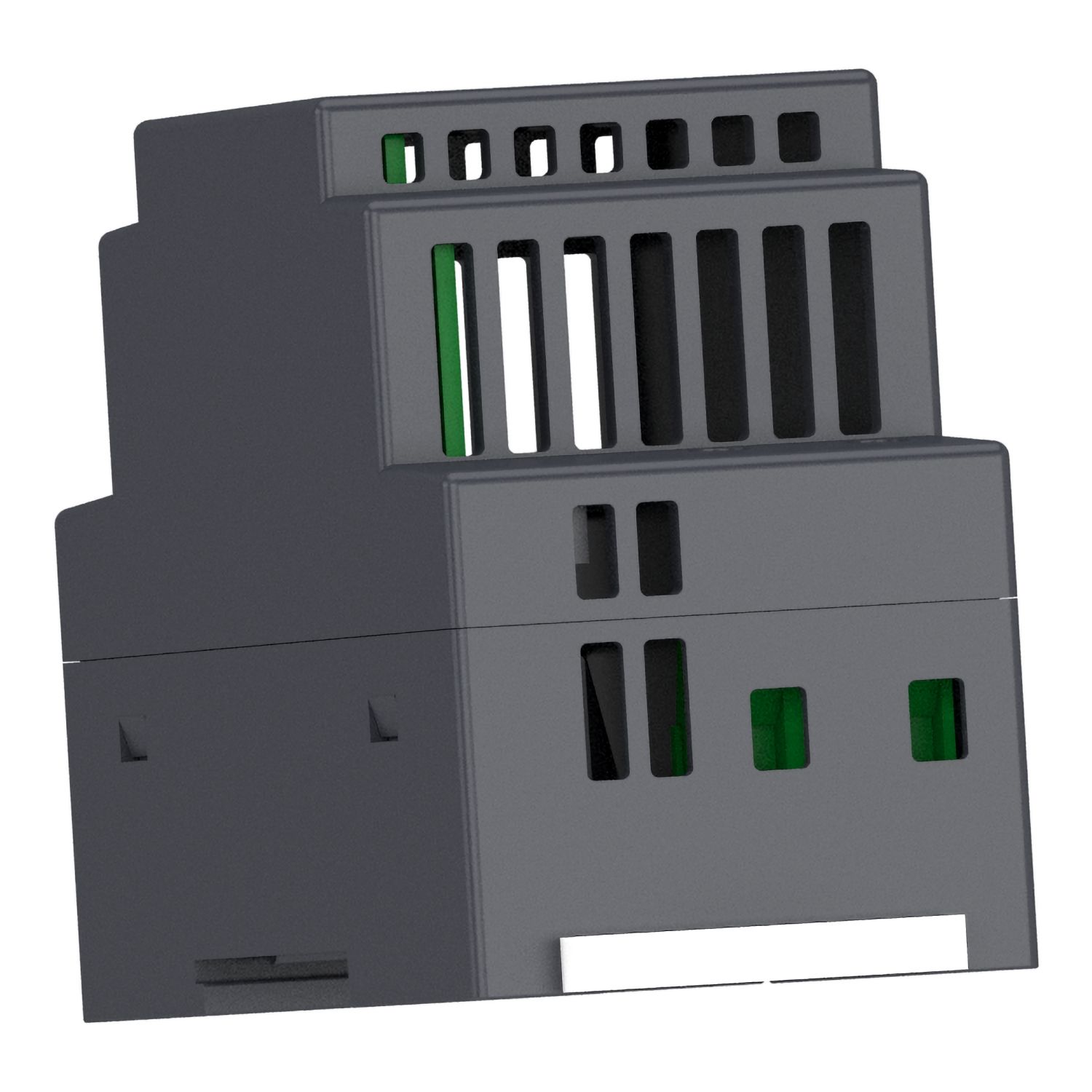

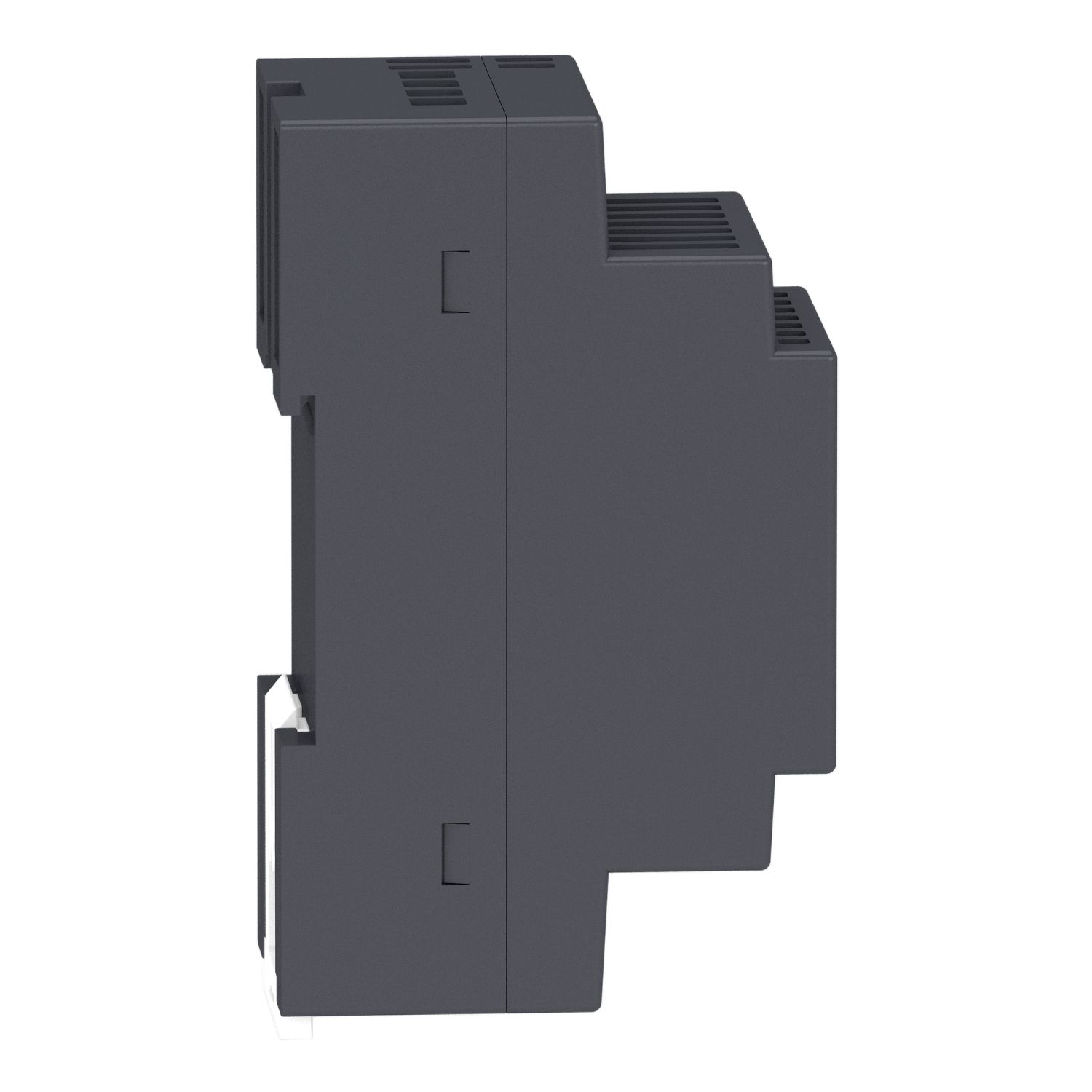

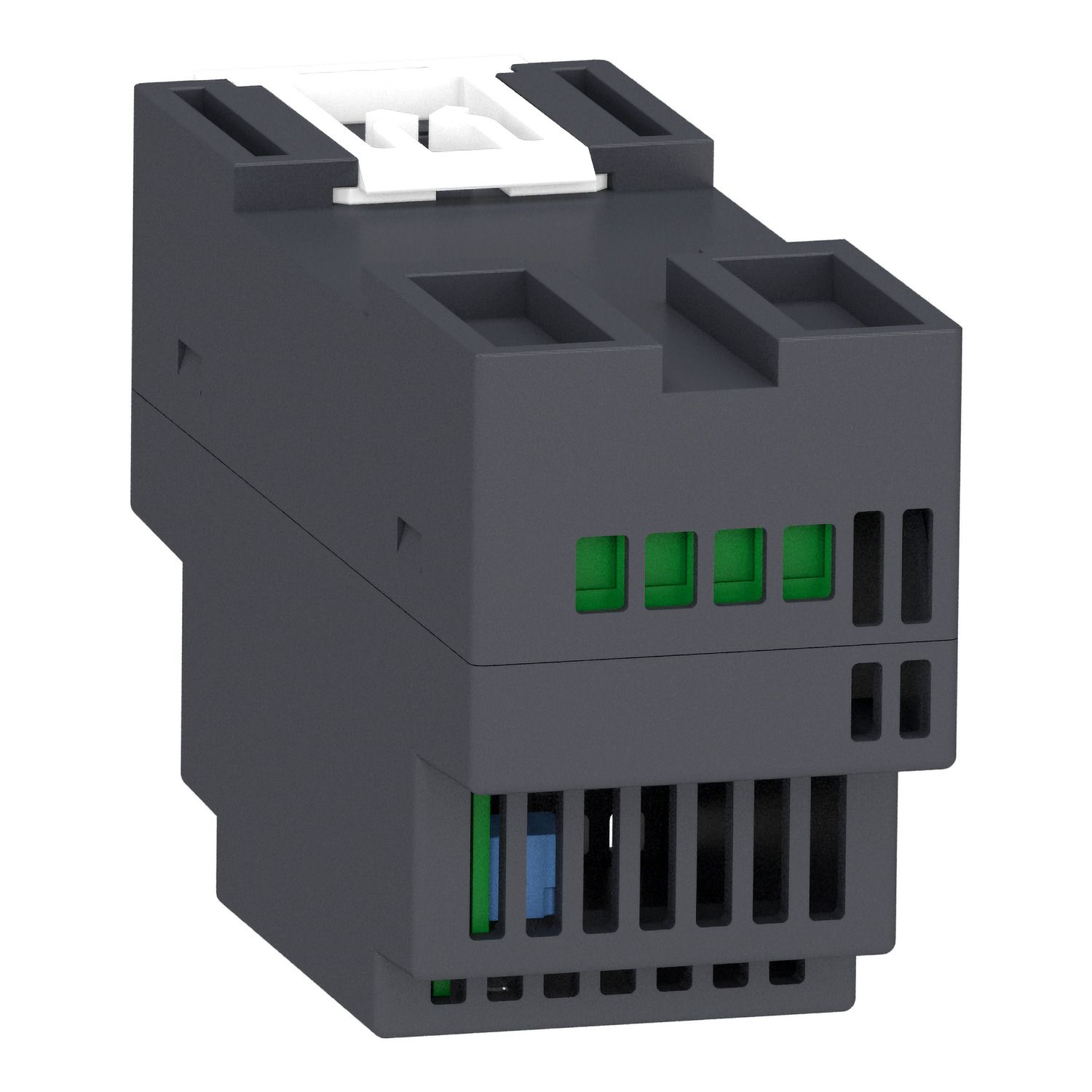

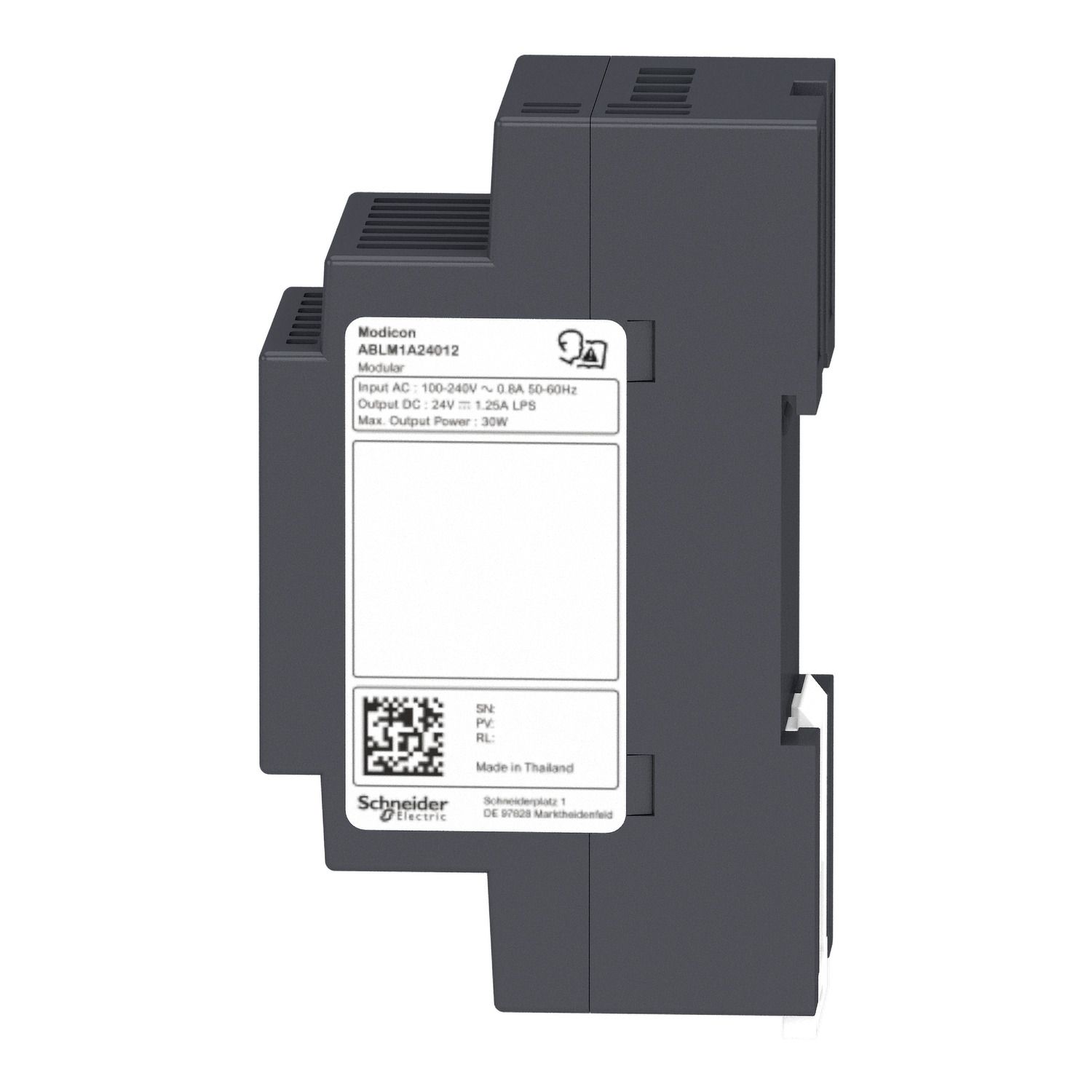

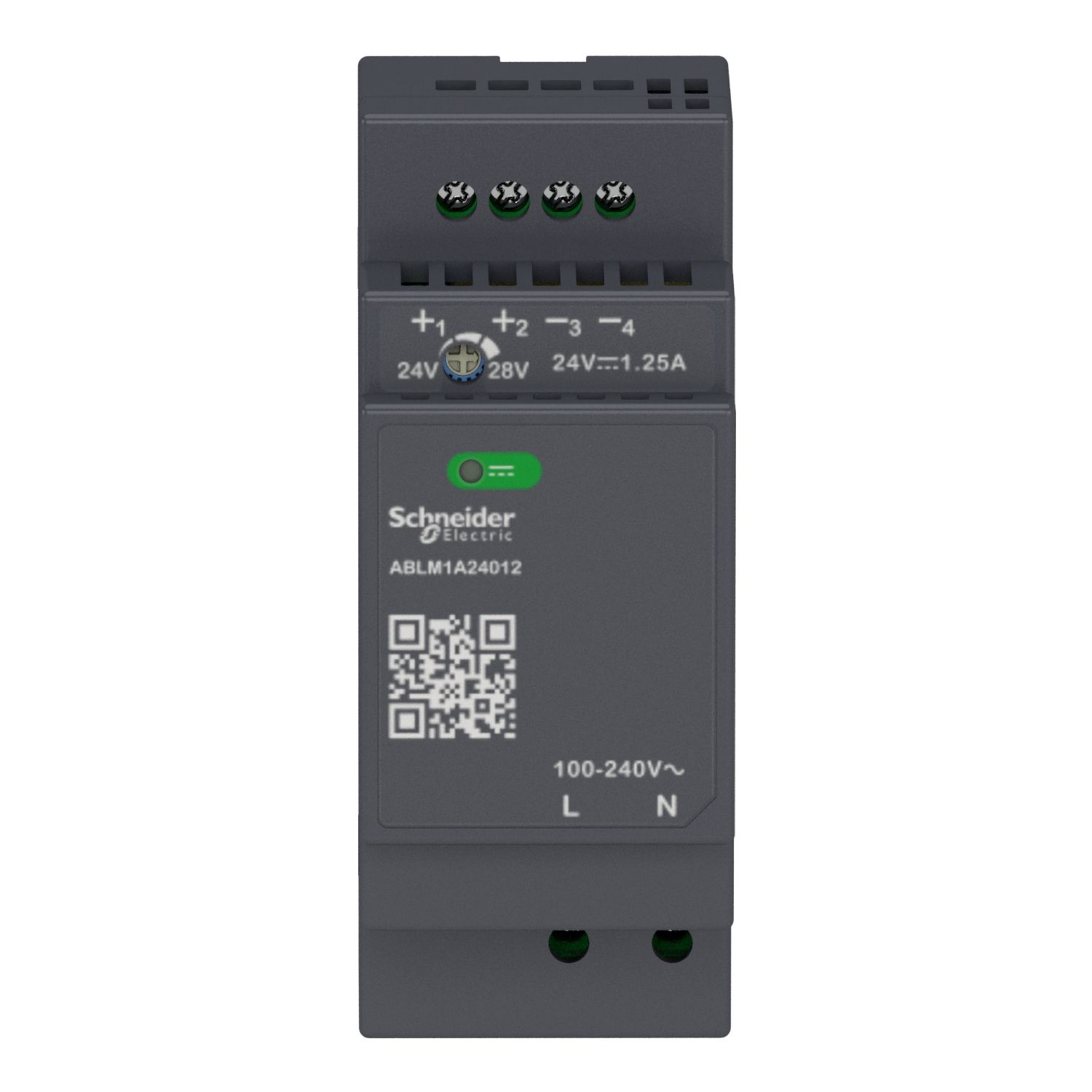

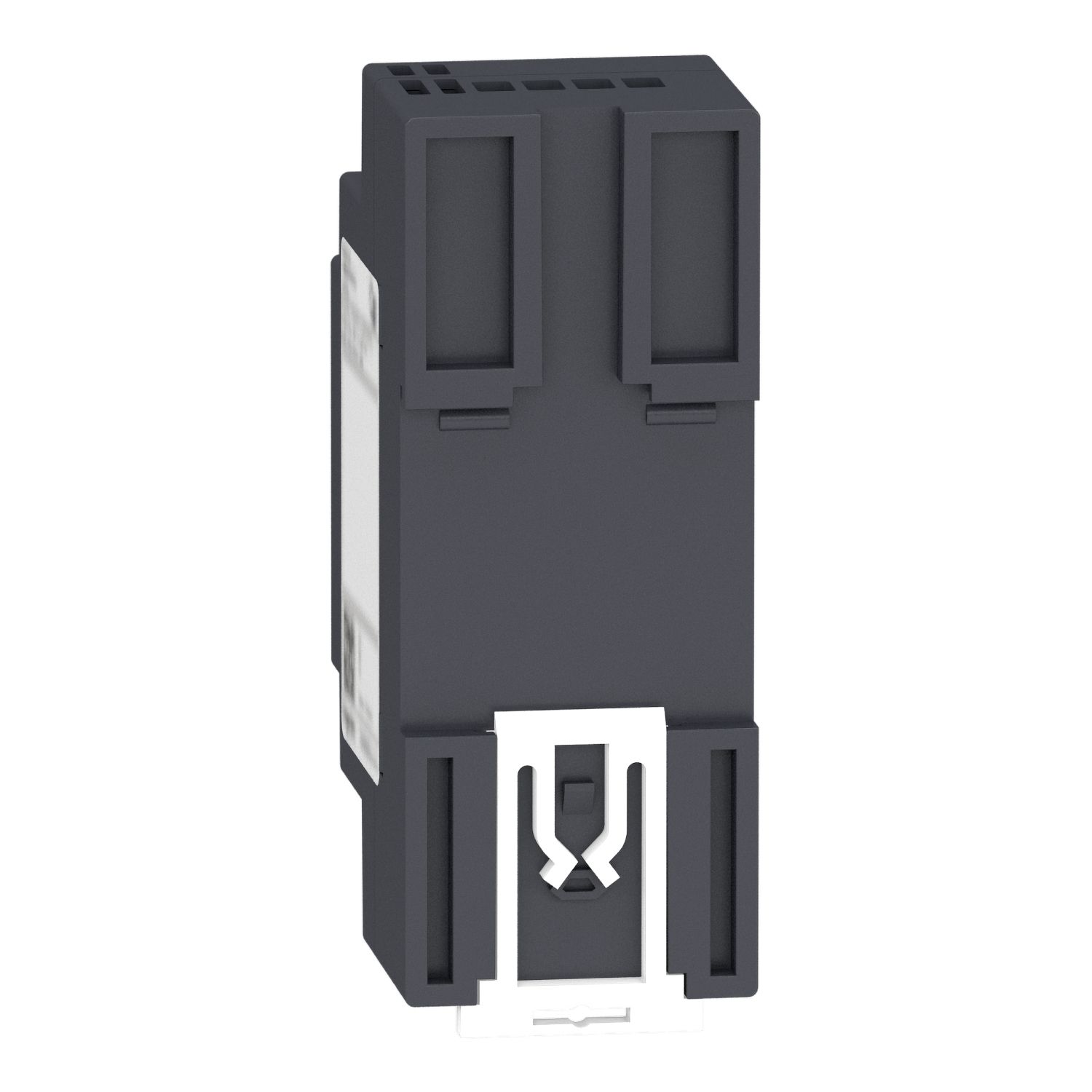

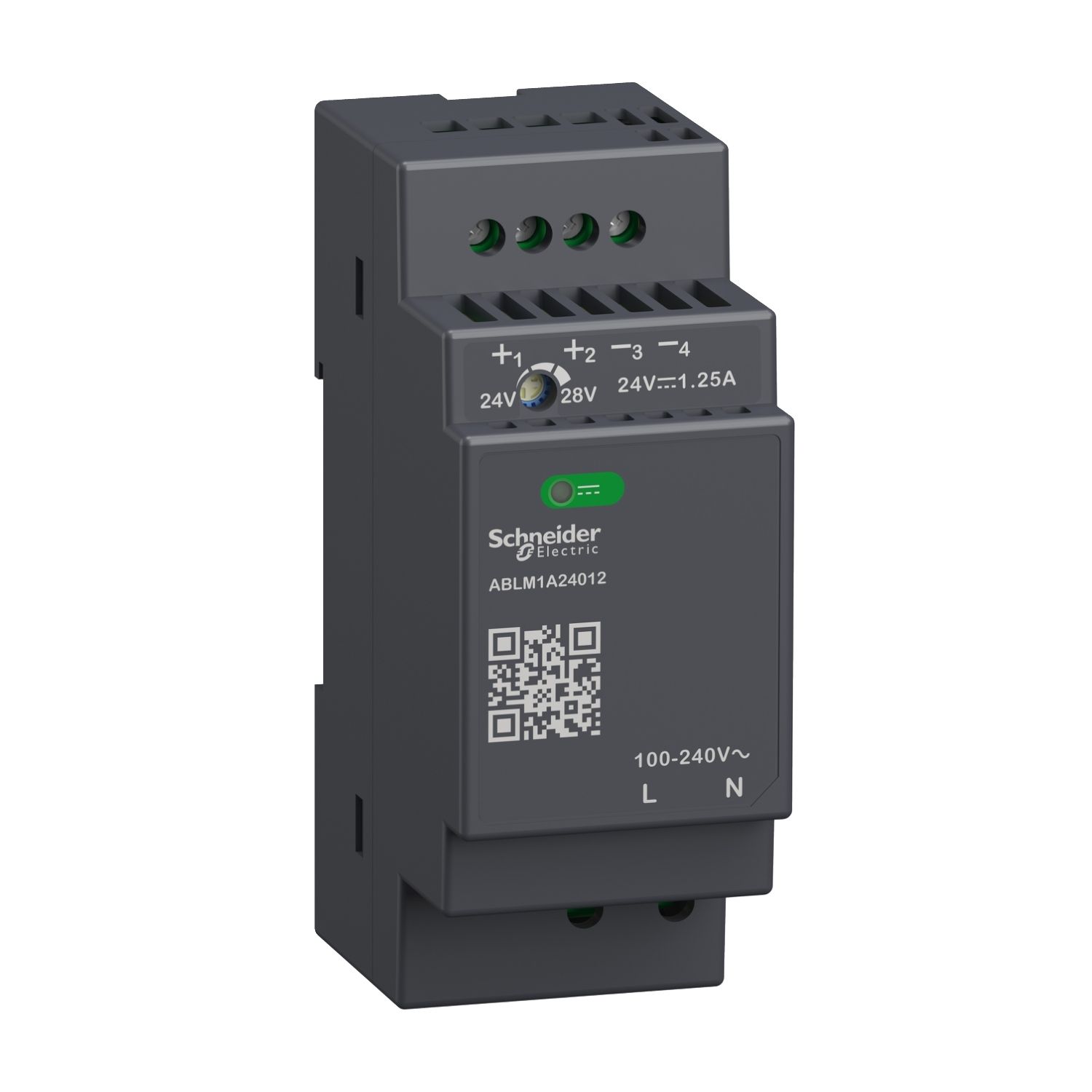

Picture of Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Picture of Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
SKU:

ABLM1A24012

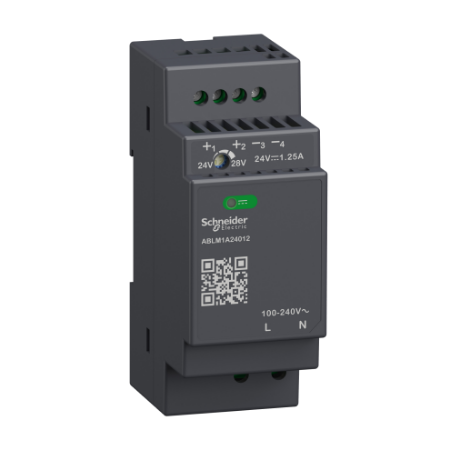

Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular

$189.00
Available for Shipping : 14-Nov-2024
Product Selector
Regulated Power Supply, 100 to 240V AC, 24V, 1.2A, single phase, Modular
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Brochure
Product environmental
Product Page Link
Product Data Sheet
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1,25A at 24V DC and a rated power output of 30W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Related products

Picture of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 20A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 20A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

M9F22120
$22.70
View Detail

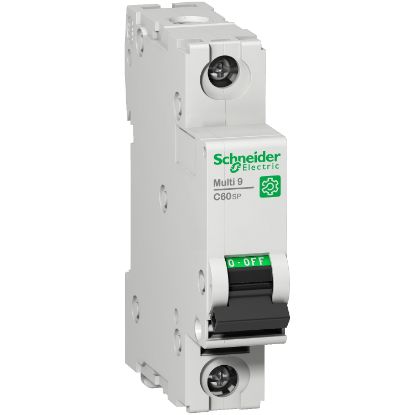

Picture of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 4A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 4A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

M9F22104
$22.70
View Detail

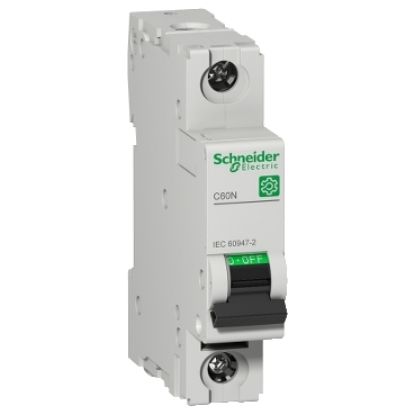

Picture of Miniature circuit breaker (MCB), Multi9 C60N, 1P, 4A, C curve, 10kA (IEC/EN 60947-2)
