SKU:

ABLS1A24021

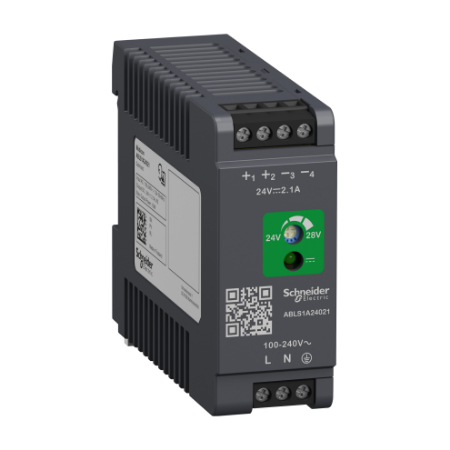

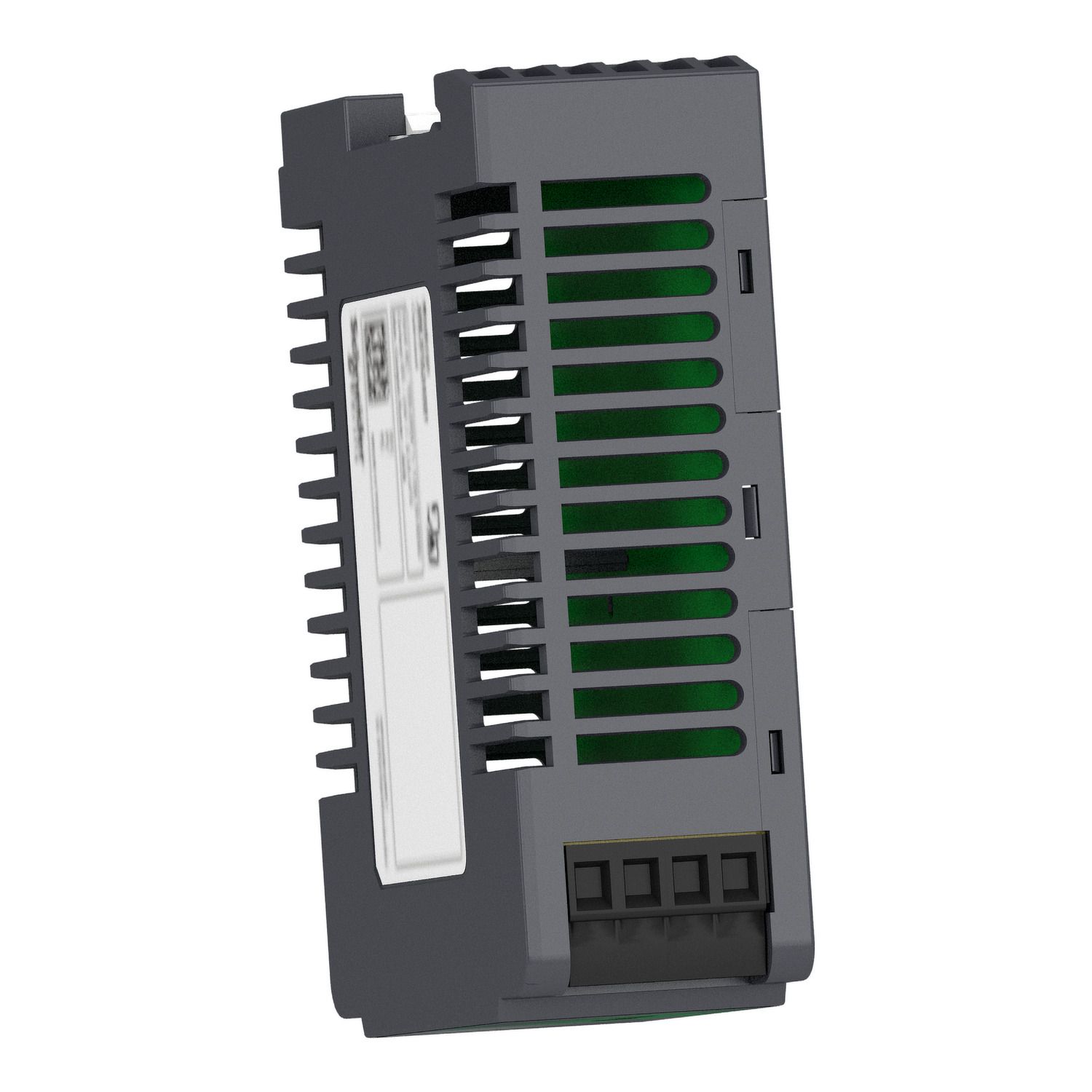

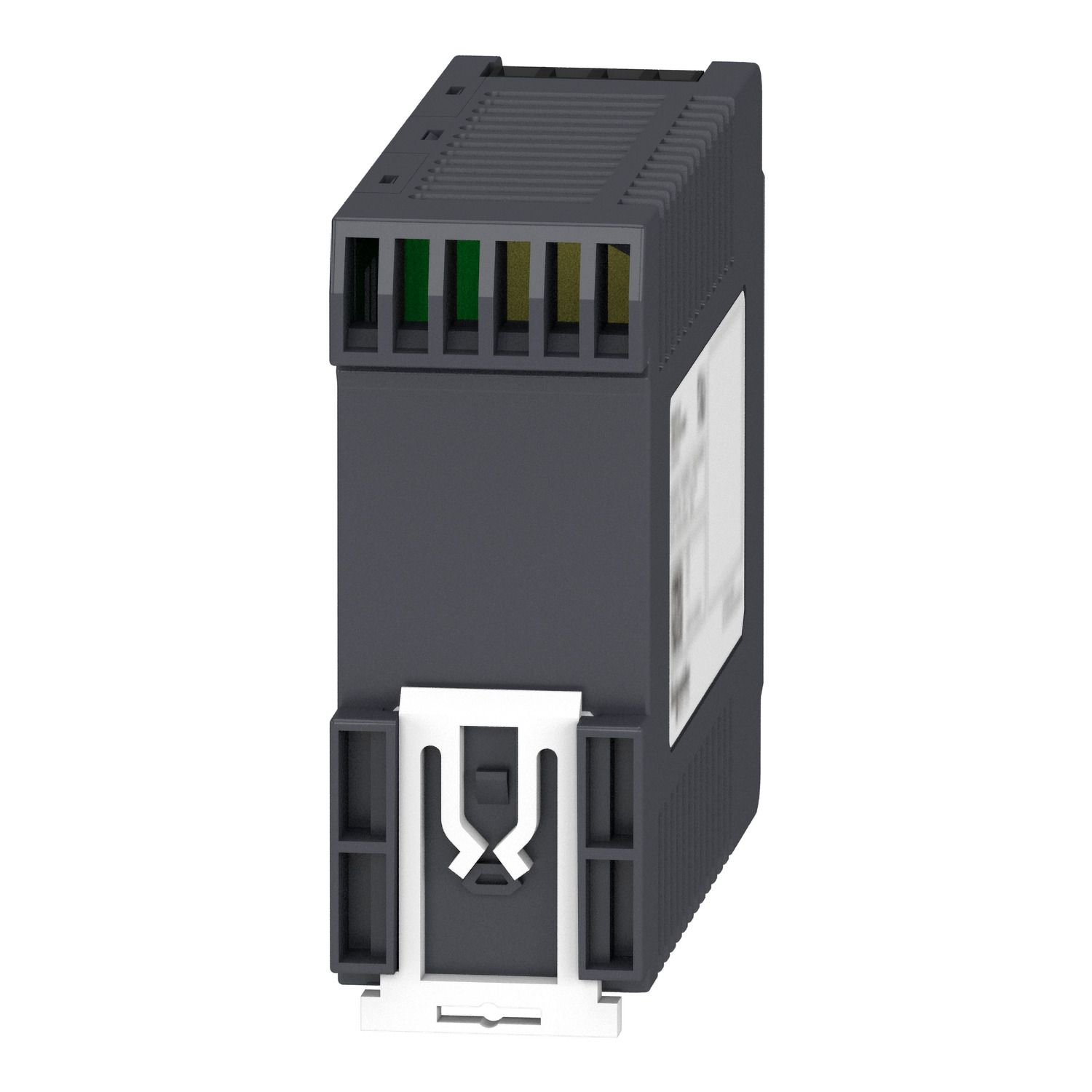

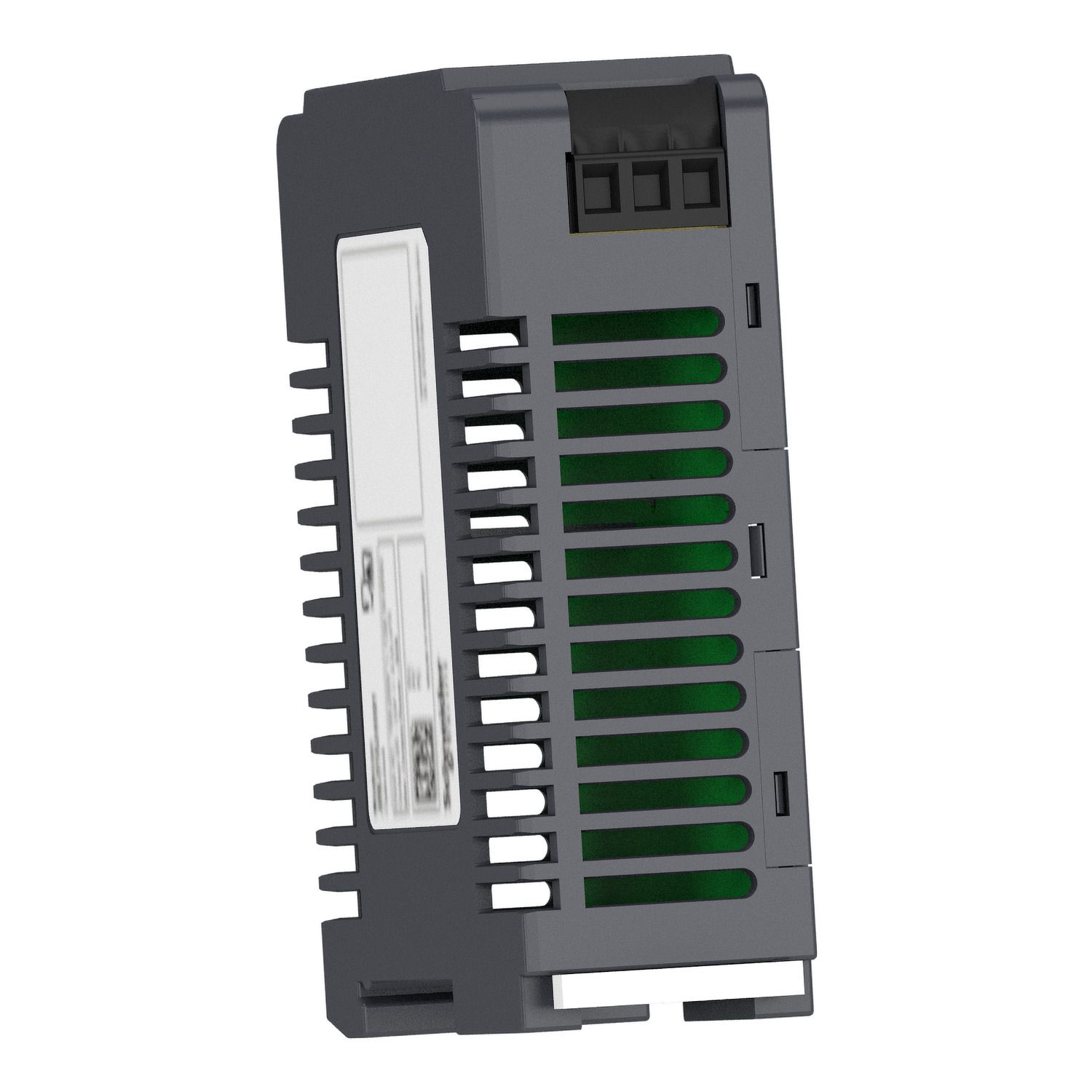

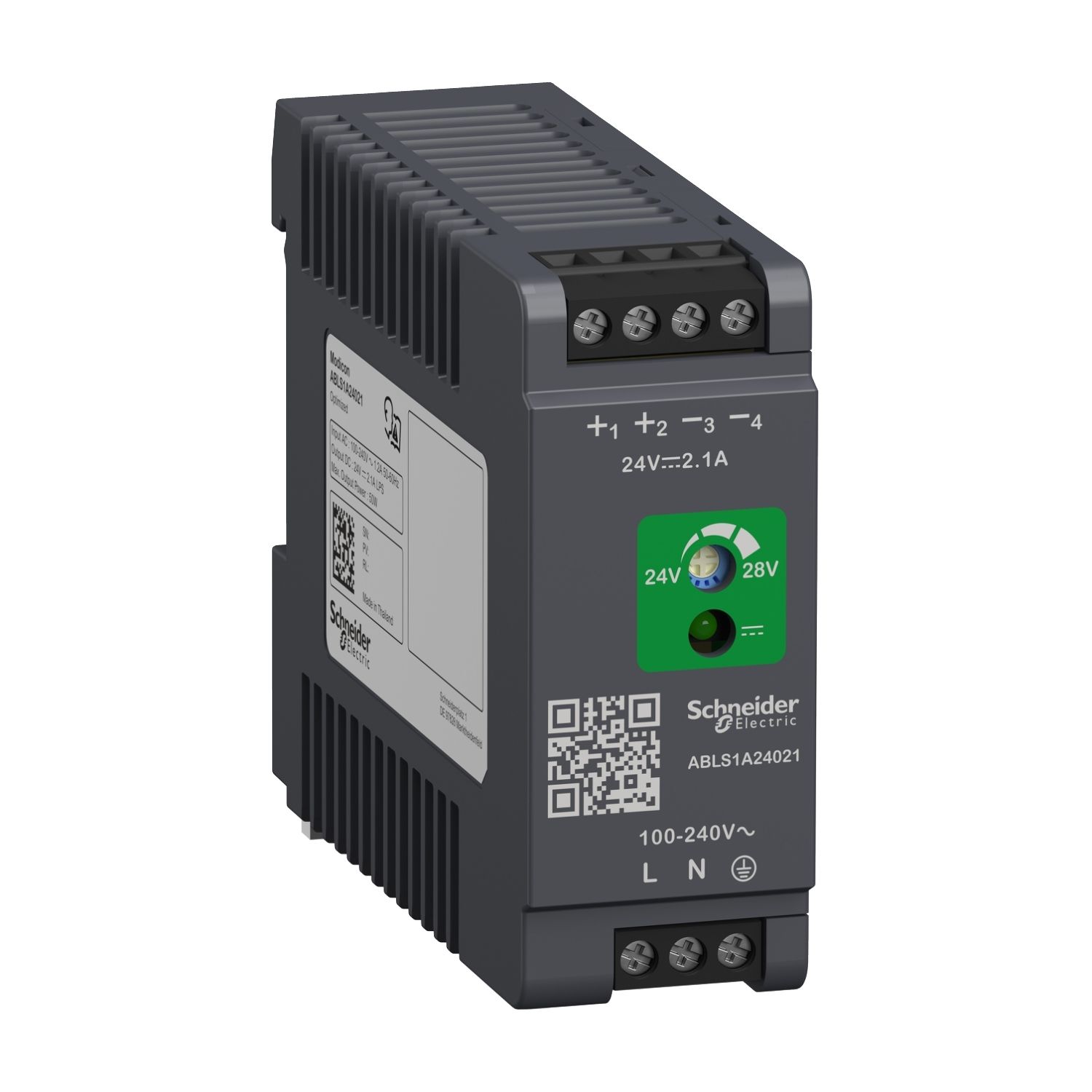

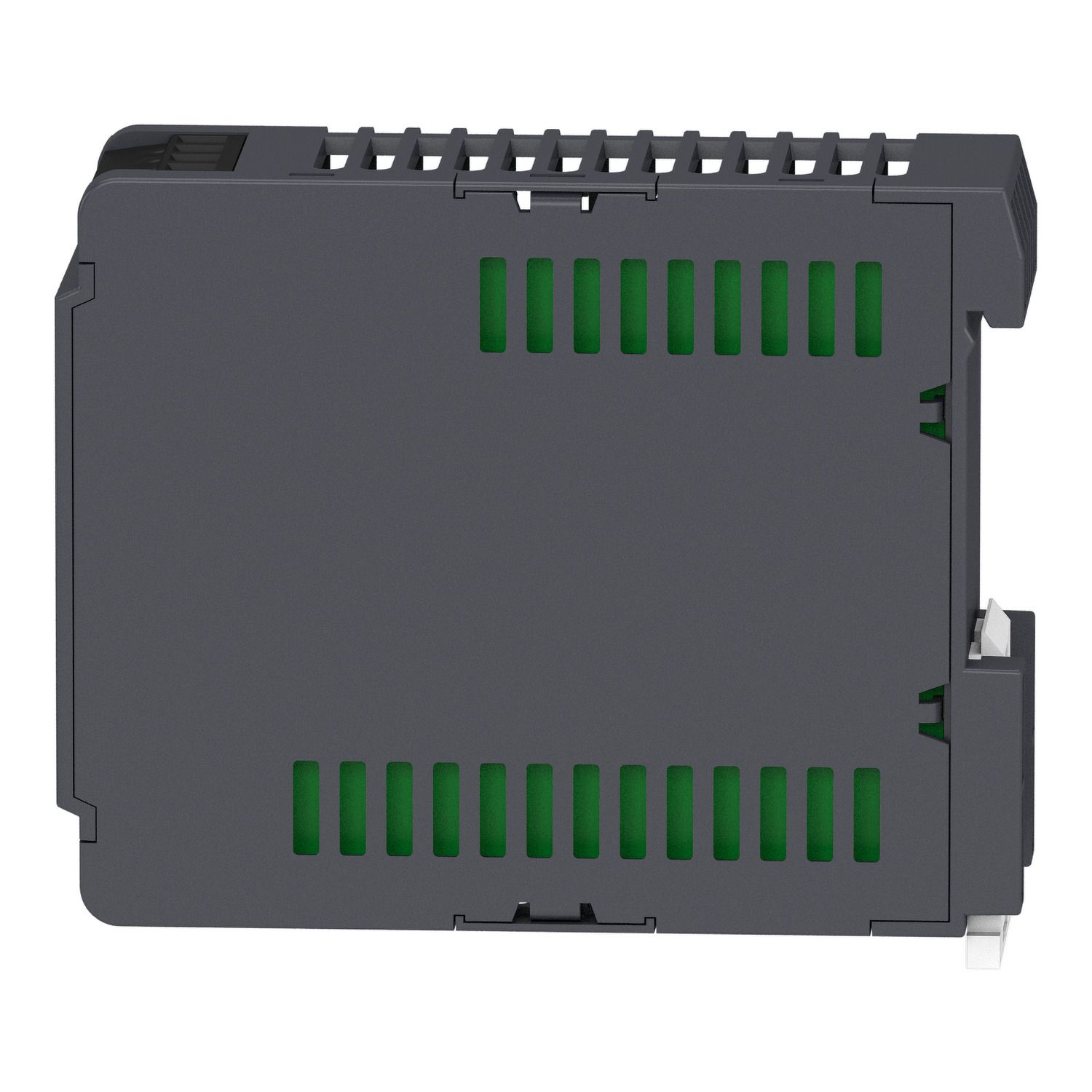

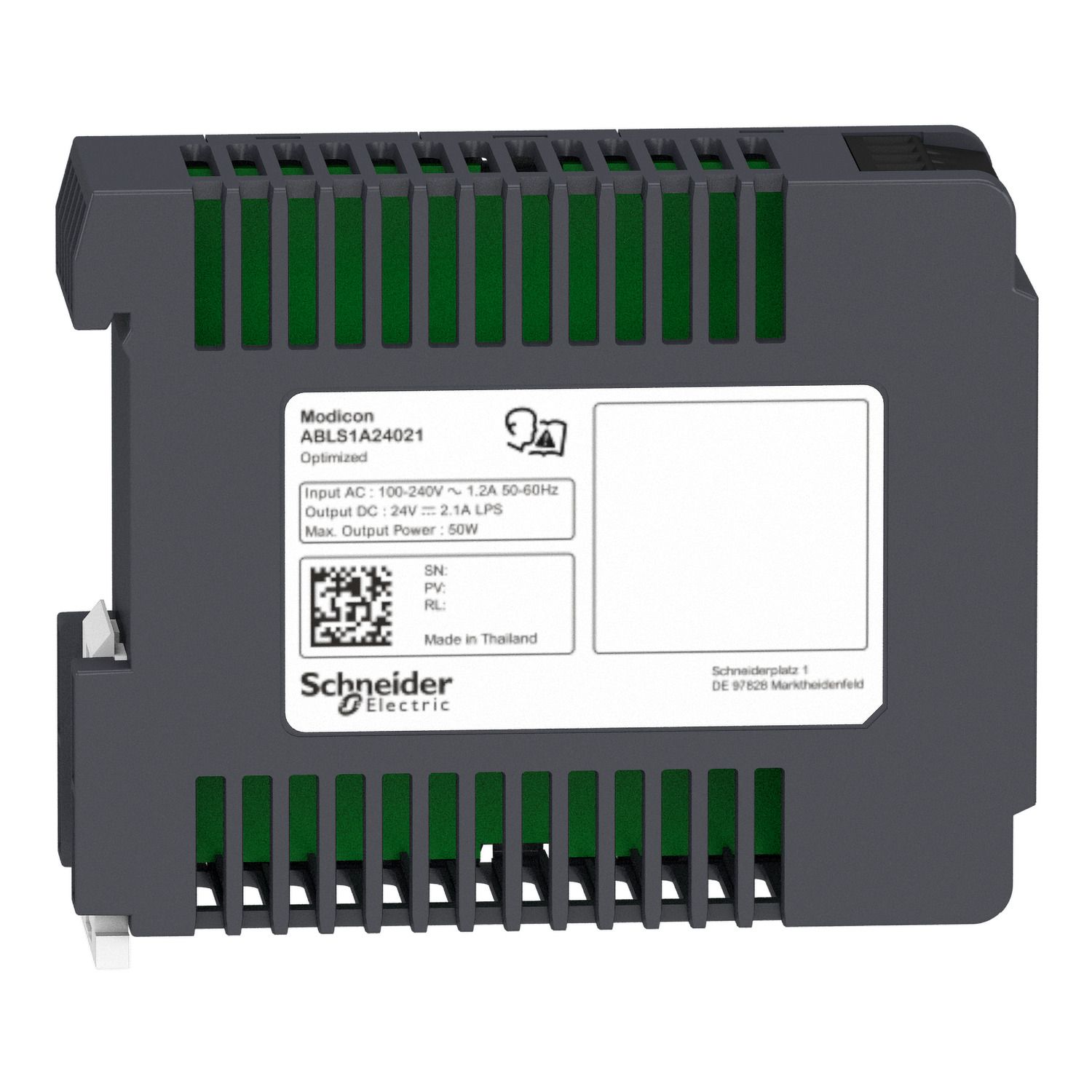

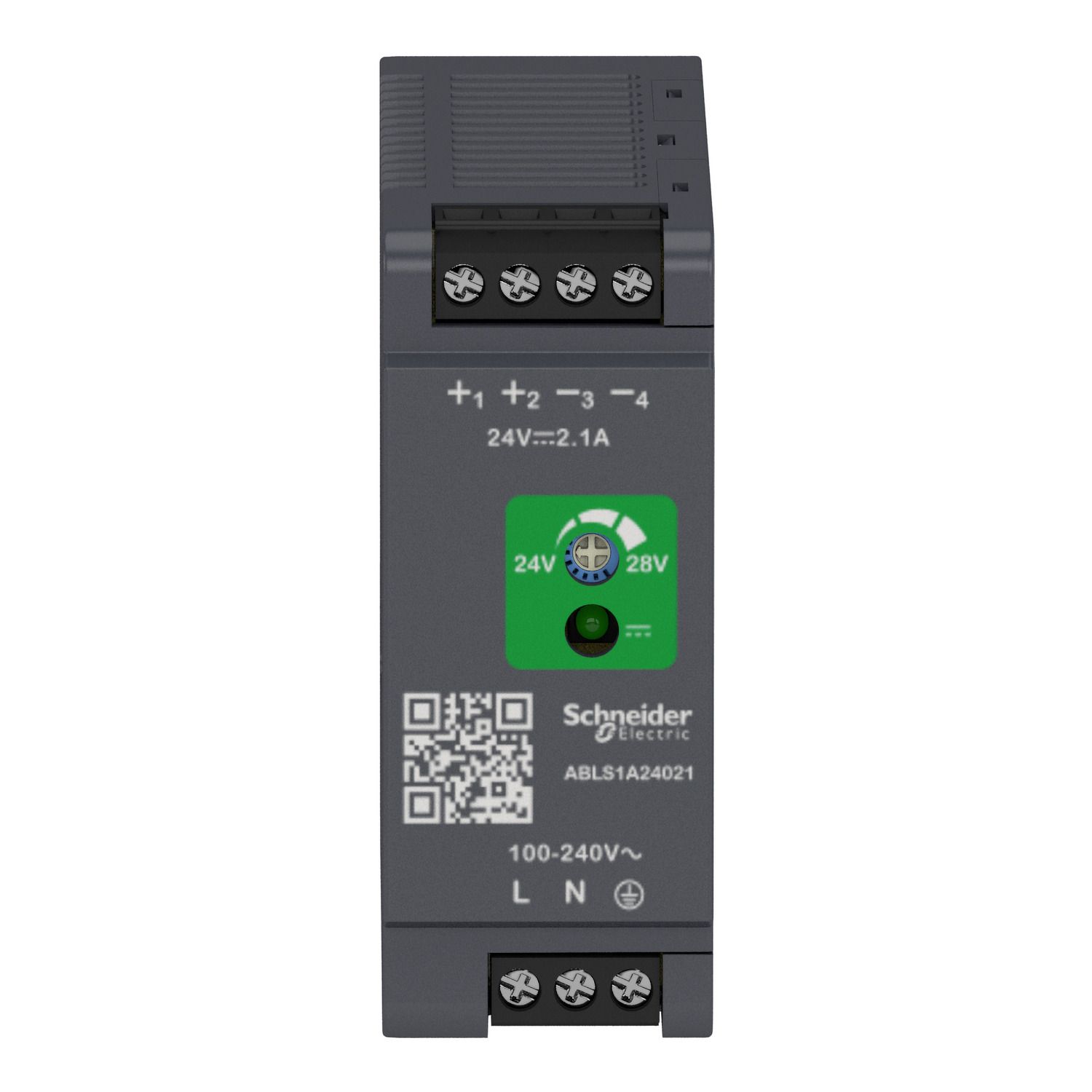

Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized

$173.90

Qty:

Available for Shipping : 14-Nov-2024

Product Selector

Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Product environmental

Catalogue

Brochure

Instruction sheet

Declaration of conformity

Product Page Link

Product Data Sheet

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 24V DC and a rated power output of 50W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 89,5mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.180kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its compact housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Products specifications

Attribute name	Attribute value
Main
Rated power in W	50 W
Input voltage	100...240 V AC phase to phase, 100...240 V AC single phase
Output voltage	24 V DC
Range of product	Modicon Power Supply
Enclosure material	plastic
Power supply output current	2.1 A
Power supply type	regulated switch mode
Product or component type	power supply
Complementary
Power factor	0.35 at 230 V AC, 0.45 at 115 V AC
Inrush current	75.0 A at 230 V, 35.0 A at 115 V
Efficiency	88 % at 230 V AC, 86 % at 115 V AC
Load capacitance	3000 µF
Power dissipation in W	7.5 W
Meantime between failure [MTBF]	900000 h at 55 °C, 80 % load conforming to SR 332, 2000000 h at 25 °C, full load conforming to SR 332
Input protection type	external protection (recommended) 6 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 20 A Curve C, integrated fuse (not interchangeable) 3.15 A
Network frequency limits	50-60 Hz
Connections - terminals	screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) for input/output
Earthing system	IT, TT, TN
Input voltage limits	85...264 V AC
Status LED	1 LED (green) output voltage
Residual ripple	< 75 mV
Height	75 mm
Depth	89.5 mm
Overvoltage category	II
Width	30 mm
Line and load regulation	< 1 % at full voltage range in line at 25 °C, < 0.5 % at 0 to 100 % load at 25 °C
Response time	< 3 s
Mounting support	double-profile DIN rail, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Output voltage limits	24...28 V
Service life	10 year(s)
Output protection type	against overvoltage, protection technology: manual reset, against over temperature, protection technology: manual reset, against overload and short-circuits, protection technology: automatic reset
Maximum leakage current	1 mA 240 V AC
Net weight	0.180 kg
Supply	SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1
Current consumption	< 0.65 A 230 V AC, < 1.1 A 115 V AC
Dielectric strength	3000 V AC with input to output
Holding time	> 100 ms 230 V AC, > 20 ms 100 V AC
Output coupling	serial, parallel
Environment
IP degree of protection	IP20
Electromagnetic compatibility	conforming to EN 55016-2-1, conforming to EN 55016-1-2, limits for harmonic current emissions conforming to IEC 61000-3-2, disturbing field emission conforming to EN 55016-2-3, immunity to voltage dips conforming to IEC 61000-4-11, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
Pollution degree	2
Product certifications	NEC: class 2, KC, EAC, CB Scheme, RCM, cUL recognized, cUL listed, CE
Ambient air temperature for operation	55-70 °C with current derating of 3.33 % per °C mounting position A < 2000 m, -10-55 °C without derating mounting position A < 2000 m, -20--10 °C with current derating of 2 % per °C mounting position A < 2000 m
Electromagnetic emission	radiated emissions conforming to IEC 61000-6-4, conducted emissions conforming to IEC 61000-6-3
Electrical shock protection class	class I
Operating altitude	< 2000 m
Vibration resistance	10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6, 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6
Shock resistance	150 m/s² for 11 ms
Standards	EN/IEC 62368-1, CSA C22.2 No 107.1, UL 508, CSA C22.2 No 62368-1, UL 62368-1, EN 61000-3-3, IEC 61000-3-2, IEC 61000-6-4, IEC 61000-6-3, IEC 61000-6-2, IEC 61000-6-1, EN/IEC 61204-3, IEC 62368-1

Variant option	optimized
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.75 cm
Package 1 Width	8.6 cm
Package 1 Length	10.9 cm
Package 1 Weight	218.0 g
Unit Type of Package 2	2
Number of Units in Package 2	30
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	6.917 kg
