SKU:

M9F22106

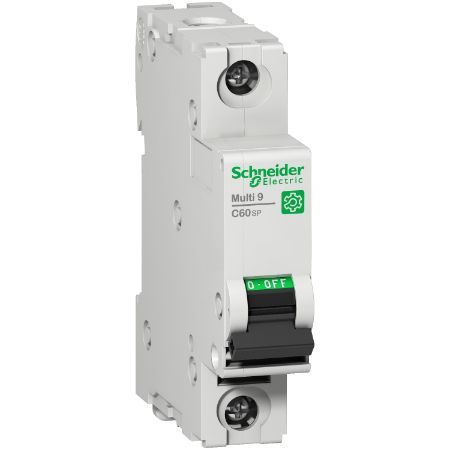

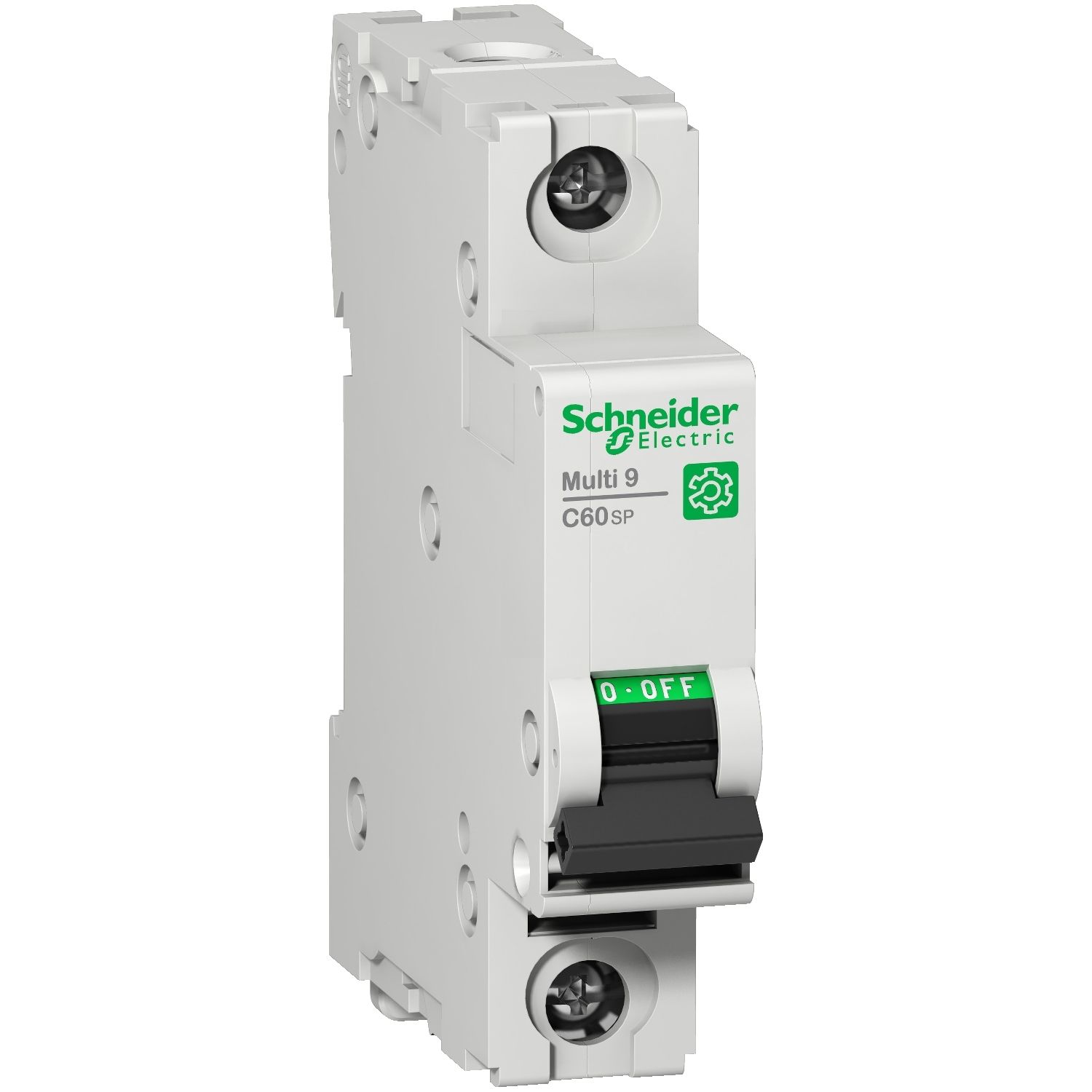

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 6A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

$22.70

Qty:

Available for Shipping : 03-Dec-2024

Product Selector

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 6A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Be the first to review this product

Manufacturer: Schneider Electric

Brochure

Product environmental

Declaration of conformity

Catalogue

Product Page Link

Product Data Sheet

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN/IEC 60947-2
Standards	CSA C22.2 No 235, UL 1077, GB 14048.2, EN/IEC 60947-2
Number of protected poles	1
Trip unit technology	thermal-magnetic
Network type	DC, AC
Device short name	C60SP
Breaking capacity	20 kA Icu at 60 V DC conforming to GB 14048.2, 10 kA Icu at 240 V AC conforming to GB 14048.2, 3 kA Icu at 415 V AC conforming to GB 14048.2, 20 kA Icu at 60 V DC conforming to EN/IEC 60947-2, 10 kA Icu at 240 V AC conforming to EN/IEC 60947-2, 3 kA Icu at 415 V AC conforming to EN/IEC 60947-2, 10 kA AIR at 65 V DC conforming to CSA C22.2 No 235, 14 kA AIR at 120 V AC conforming to CSA C22.2 No 235, 14 kA AIR at 240 V AC conforming to CSA C22.2 No 235, 10 kA AIR at 277 V AC conforming to CSA C22.2 No 235, 10 kA AIR at 65 V DC conforming to UL 1077, 14 kA AIR at 120 V AC conforming to UL 1077, 14 kA AIR at 240 V AC conforming to UL 1077, 10 kA AIR at 277 V AC conforming to UL 1077
Range	Multi9
Product certifications	CSA, UR, CCC, IEC
Curve code	C
Range of product	Multi9
Poles description	1P
Product name	Multi9 C60
Product or component type	miniature circuit-breaker
[In] rated current	6 A at 25 °C conforming to EN/IEC 60947-2
Complementary
Provision for padlocking	padlockable
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Electrical durability	10000 cycles
Earth-leakage protection	without
Height	81 mm
[Ics] rated service breaking capacity	20 kA 100 % conforming to GB 14048.2 - 60 V DC, 7.5 kA 75 % conforming to GB 14048.2 - 240 V AC, 2.25 kA 75 % conforming to GB 14048.2 - 415 V AC, 20 kA 100 % conforming to EN/IEC 60947-2 - 60 V DC, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC, 2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC
Magnetic tripping limit	12 x In +/- 20 % DC, 8.5 x In +/- 20 % AC
[Ui] rated insulation voltage	500 V AC conforming to EN/IEC 60947-2
9 mm pitches	2
Tightening torque	2.5-2.5 N.m top or bottom
Colour	grey
Connection pitch	18 mm between devices
Mechanical durability	20000 cycles
Mounting mode	clip-on
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
[Ue] rated operational voltage	60 V DC, 415 V AC 50/60 Hz, 240 V AC 50/60 Hz
Depth	72 mm
Width	18 mm
Local signalling	ON/OFF indication
Connections - terminals	tunnel type terminal (top or bottom)1-16 mm² (AWG 18...AWG 8) - flexible, tunnel type terminal (top or bottom)1-16 mm² (AWG 18...AWG 8) - flexible with ferrule, tunnel type terminal (top or bottom)1-25 mm² (AWG 18...AWG 8) - rigid
Mounting support	DIN rail
Contact position indicator	yes
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-80 °C
Tropicalisation	2 conforming to IEC 60068-1
Ambient air temperature for operation	-30-70 °C
Operating altitude	0...2000 m
Pollution degree	3 conforming to EN/IEC 60947-2
IP degree of protection	IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.5 cm
Package 1 Width	1.8 cm
Package 1 Length	8.5 cm
Package 1 Weight	112 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8 cm
Package 2 Width	8.8 cm
Package 2 Length	22.5 cm
Package 2 Weight	1.389 kg
Unit Type of Package 3	3
Number of Units in Package 3	144
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	17.16 kg
Unit Type of Package 4	4
Number of Units in Package 4	1152
Package 4 Height	45 cm
Package 4 Width	80 cm
Package 4 Length	120 cm
Package 4 Weight	149 kg
