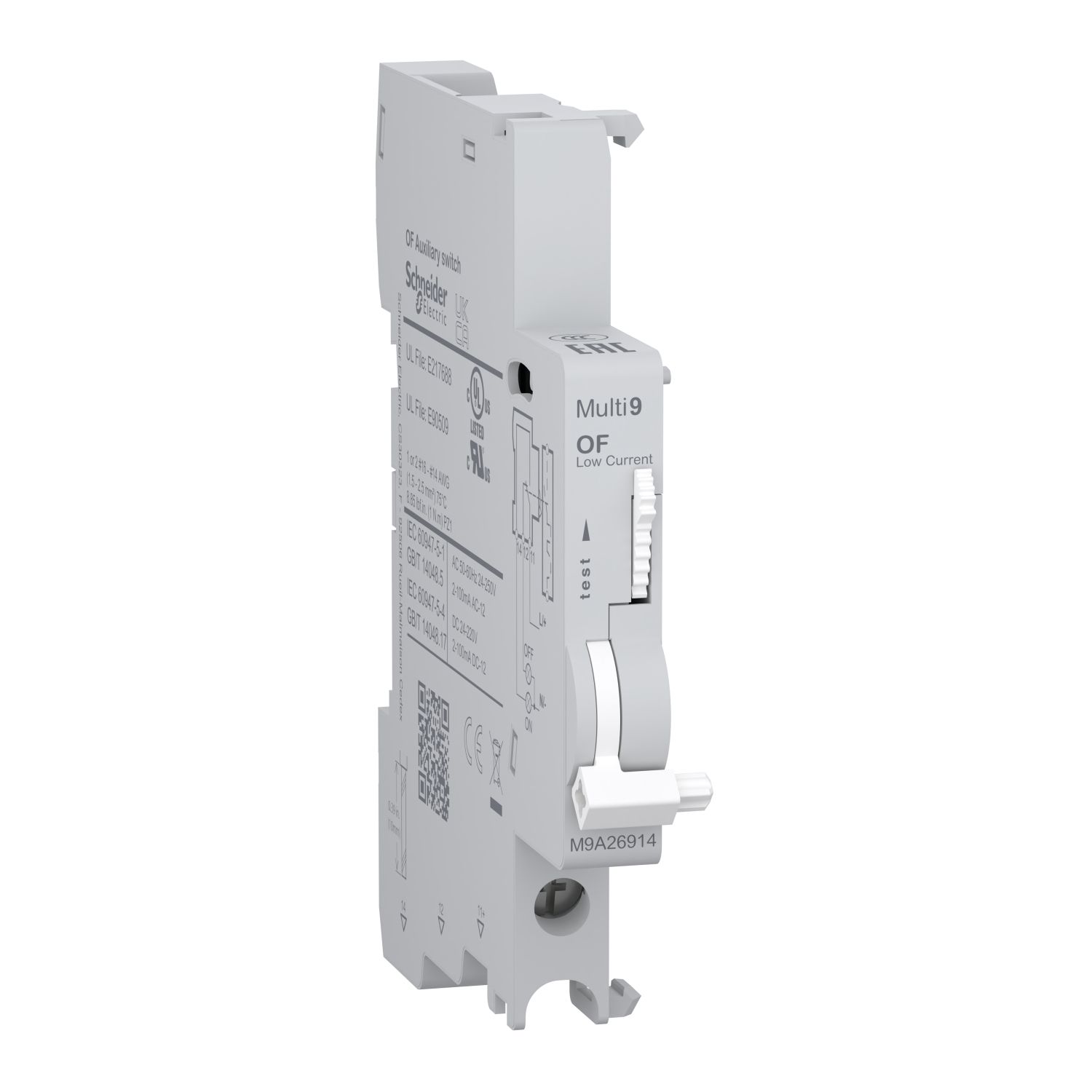

M9A26914

Auxiliary contact, Multi9 M9A, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

$47.95
Available for Shipping : 24-Nov-2024
Auxiliary contact, Multi9 M9A, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
  • Can report the signaling to an Open/Closed Devices status
  • Compatible with PLC network when I/O module needs a current from 2mA up to 100mA
  • Compatible with Multi9 MCB's
  • To be fixed with clips directly on the left of the MCB
  • Monitoring up to 100 protective devices (permanently close) under daisy chain
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Brochure
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Multi9 electrical auxiliary is a modular OC contact used as remote indication ot the position of the associated device. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 250VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This OC contact is compatible with Multi9 ranges such as C60BP, C60SP, C60 and N40. The OF is either used for device short name or compatibility code. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards. This product is certified with CE, UL, CSA and UKCA standards.

Products specifications

Attribute name Attribute value
Main
Device short name OF
Range Multi9
[In] rated current 2-100 mA at 220 V, DC,  2-100 mA at 130 V, DC,  2-100 mA at 60 V, DC,  2-100 mA at 48 V, DC,  2-100 mA at 24 V, DC,  2-100 mA at 24...240 V, AC 50/60 Hz
Signal contacts composition 1 C/O
Product or component type OC contact
9 mm pitches 1
Complementary
Product compatibility single terminal
Tightening torque 1-1 N.m bottom
Colour grey
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code OF
Mounting mode clip-on
Wire stripping length 9 mm
Comb busbar and distribution block compatibility top: YES
Height 85 mm
Depth 68 mm
Market segment OEM, industry
Width 9 mm
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 29 g
Connections - terminals screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - rigid, screw clamp terminal (bottom) 1 cable(s) 2.5-2.5 mm² - rigid
Operating mode daisy chain up to 100 devices
Range compatibility Multi 9 Multi9 N40 Vigi, Multi 9 Multi9 N40, Multi 9 Multi9 C60, Multi 9 Multi9 C60SP, Multi 9 Multi9 C60BP
Mounting support DIN rail
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-70 °C
Quality labels CCC, EAC
Standards CSA C22.2 No 65-03, CSA C22.2 No 235-04, CSA C22.2 No 5-13, CSA C22.2 No 0-10, UL 489, UL 1077, GB/T 14048.17, GB/T 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-5-1
Product certifications CSA, UL, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.8 cm
Package 1 Width 7.6 cm
Package 1 Length 9.3 cm
Package 1 Weight 38.5 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.7 cm
Package 2 Width 10 cm
Package 2 Length 23.4 cm
Package 2 Weight 520 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 26.9 cm
Package 3 Width 28.5 cm
Package 3 Length 38.7 cm
Package 3 Weight 6 kg

Related products

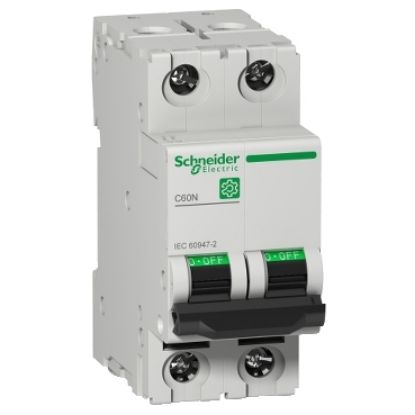

Picture of Miniature circuit breaker (MCB), Multi9 C60N, 2P, 6A, C curve, 10kA (IEC/EN 60947-2)
