SKU:

M9U21106

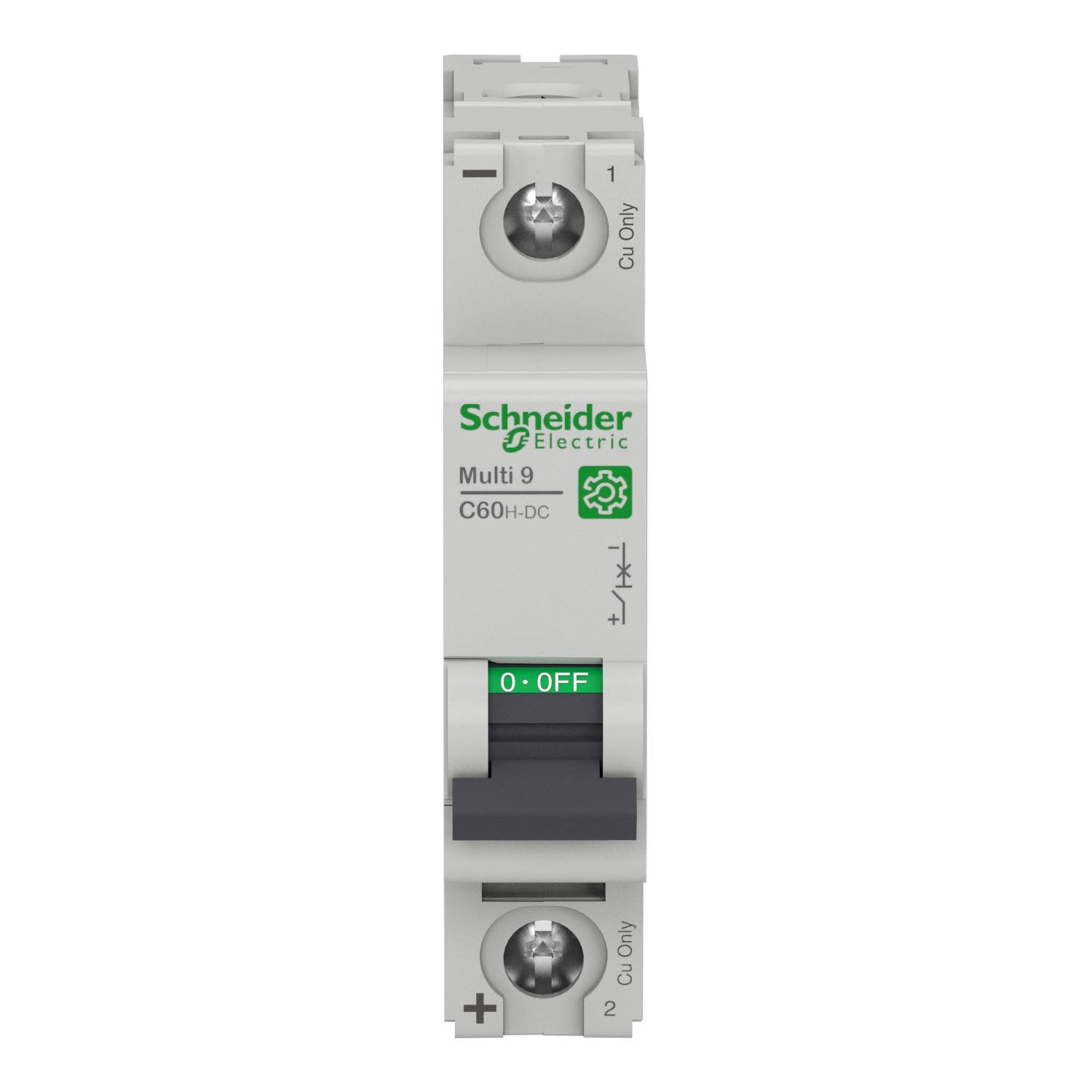

Miniature circuit breaker (MCB), Multi9 C60H-DC, 1P, 6A, C curve, 5kA (UL 1077), 6kA (IEC/EN 60947-2)

$54.60

Qty:

Available for Shipping : 03-Dec-2024

Product Selector

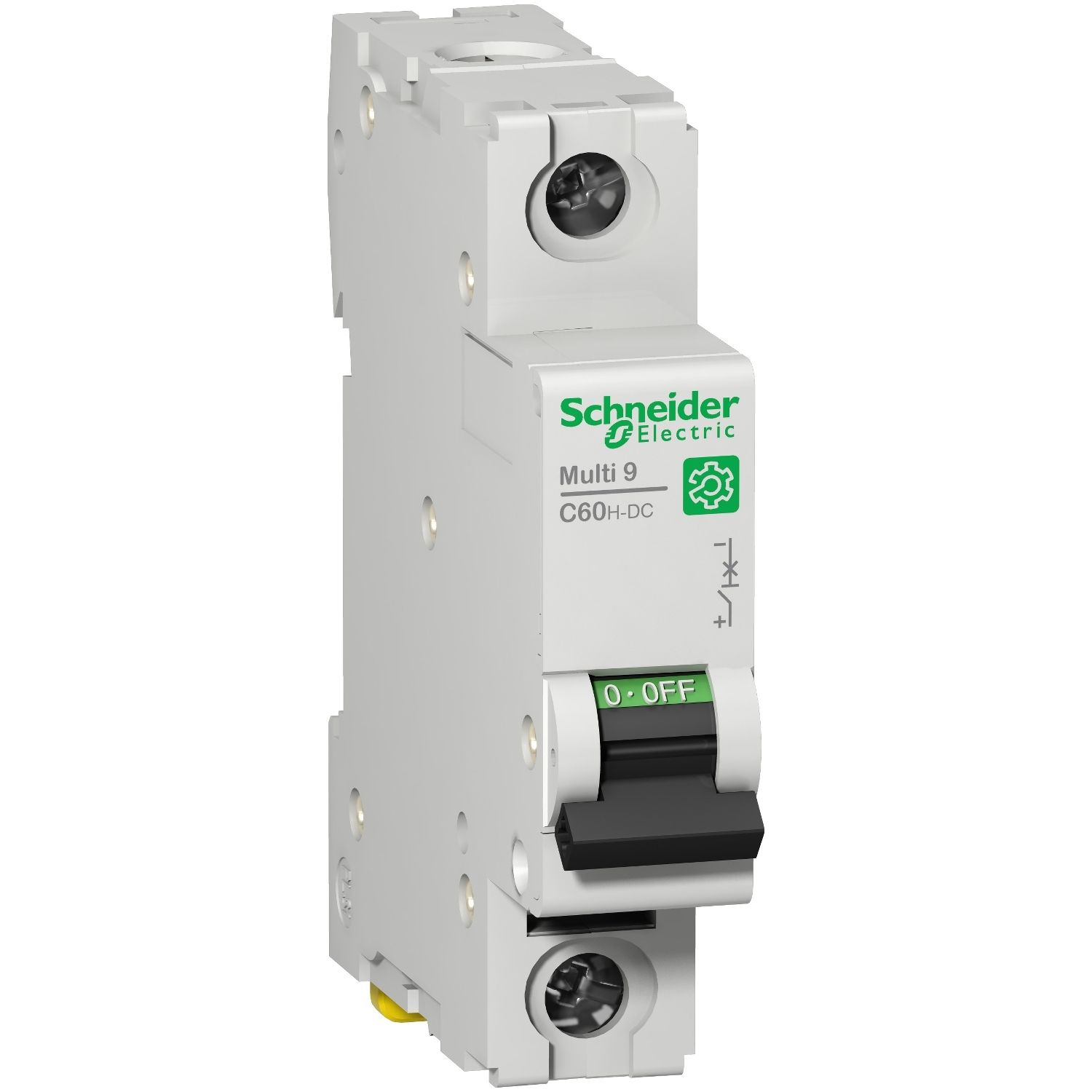

Miniature circuit breaker (MCB), Multi9 C60H-DC, 1P, 6A, C curve, 5kA (UL 1077), 6kA (IEC/EN 60947-2)

Be the first to review this product

Manufacturer: Schneider Electric

Brochure

Product environmental

Catalogue

Product Page Link

Product Data Sheet

This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
