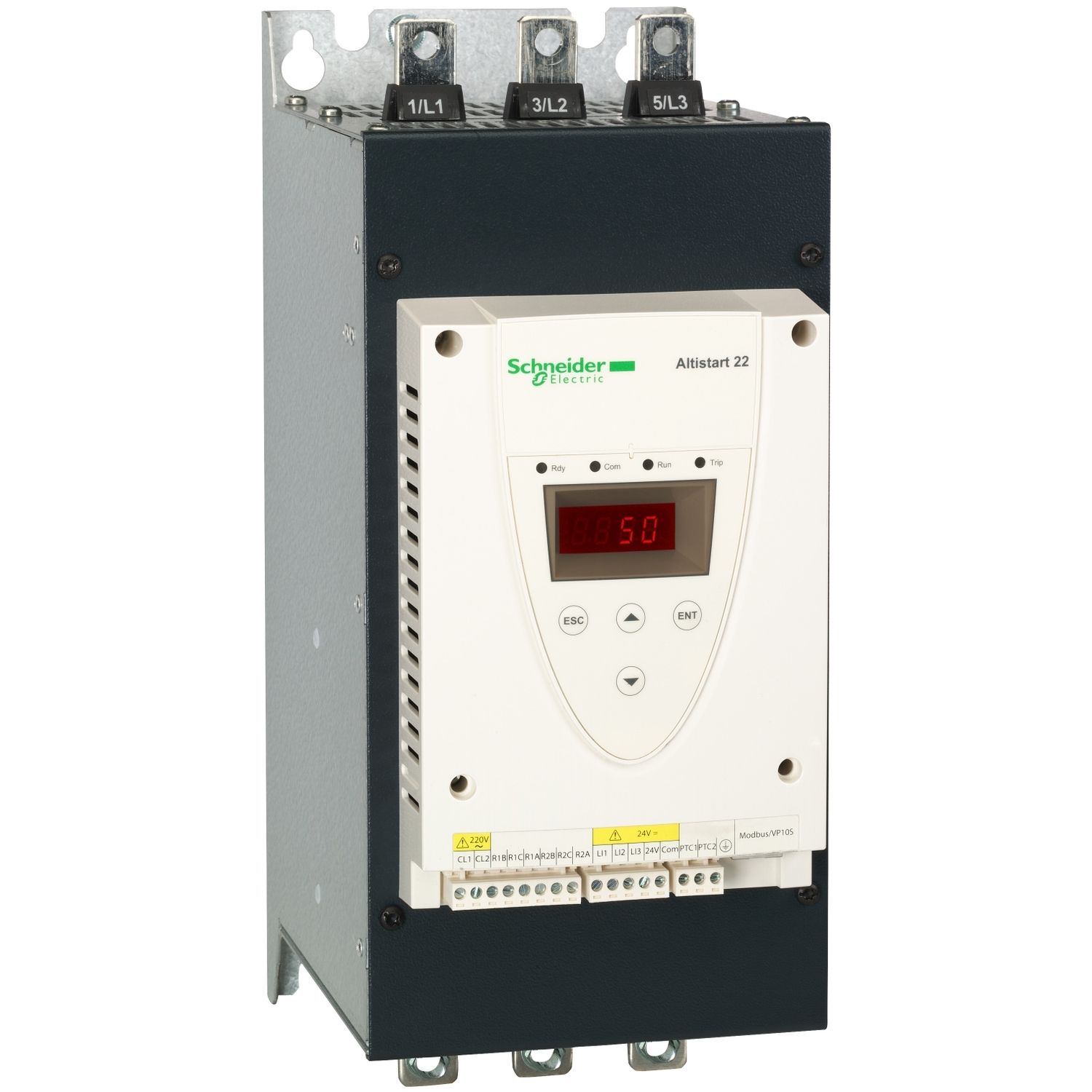

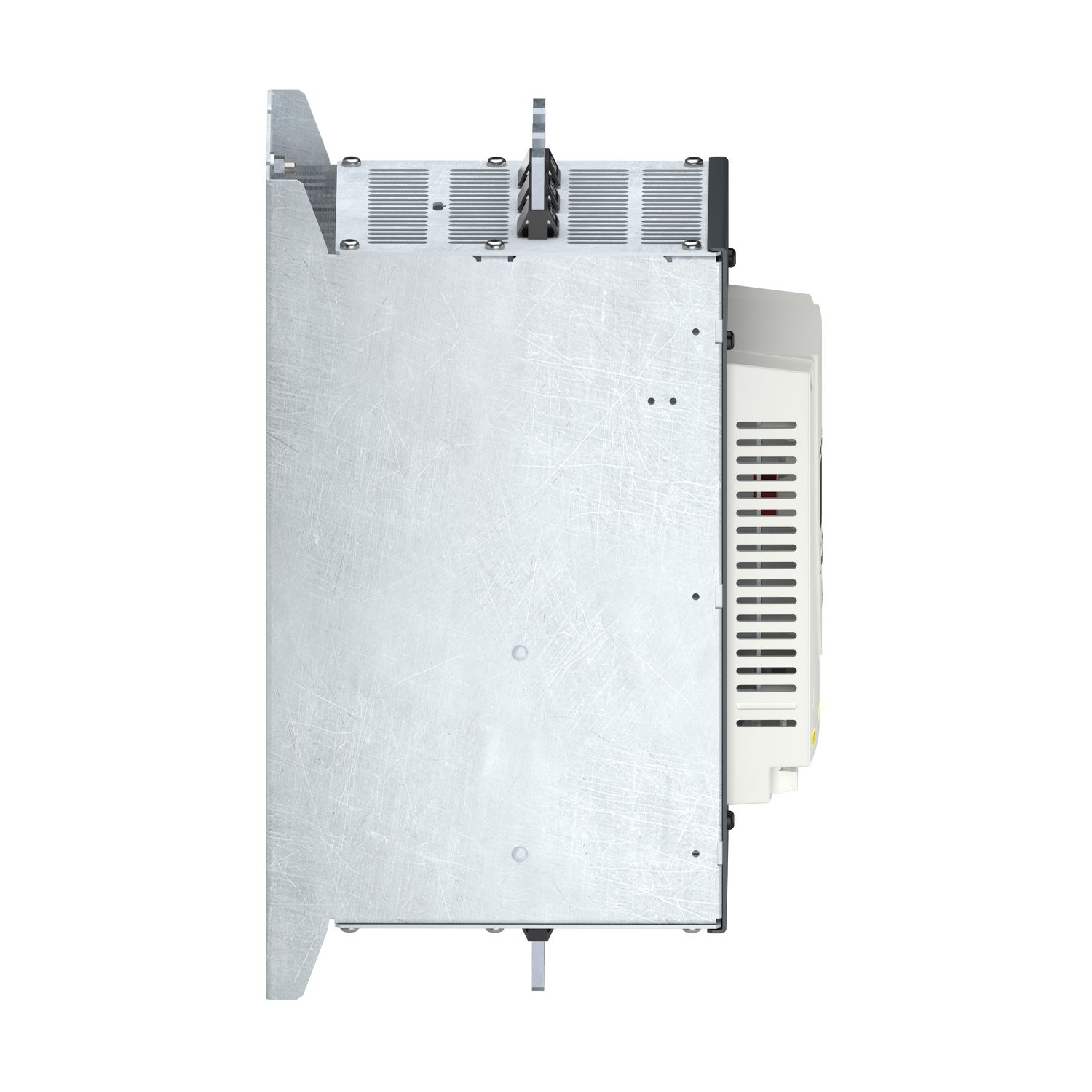

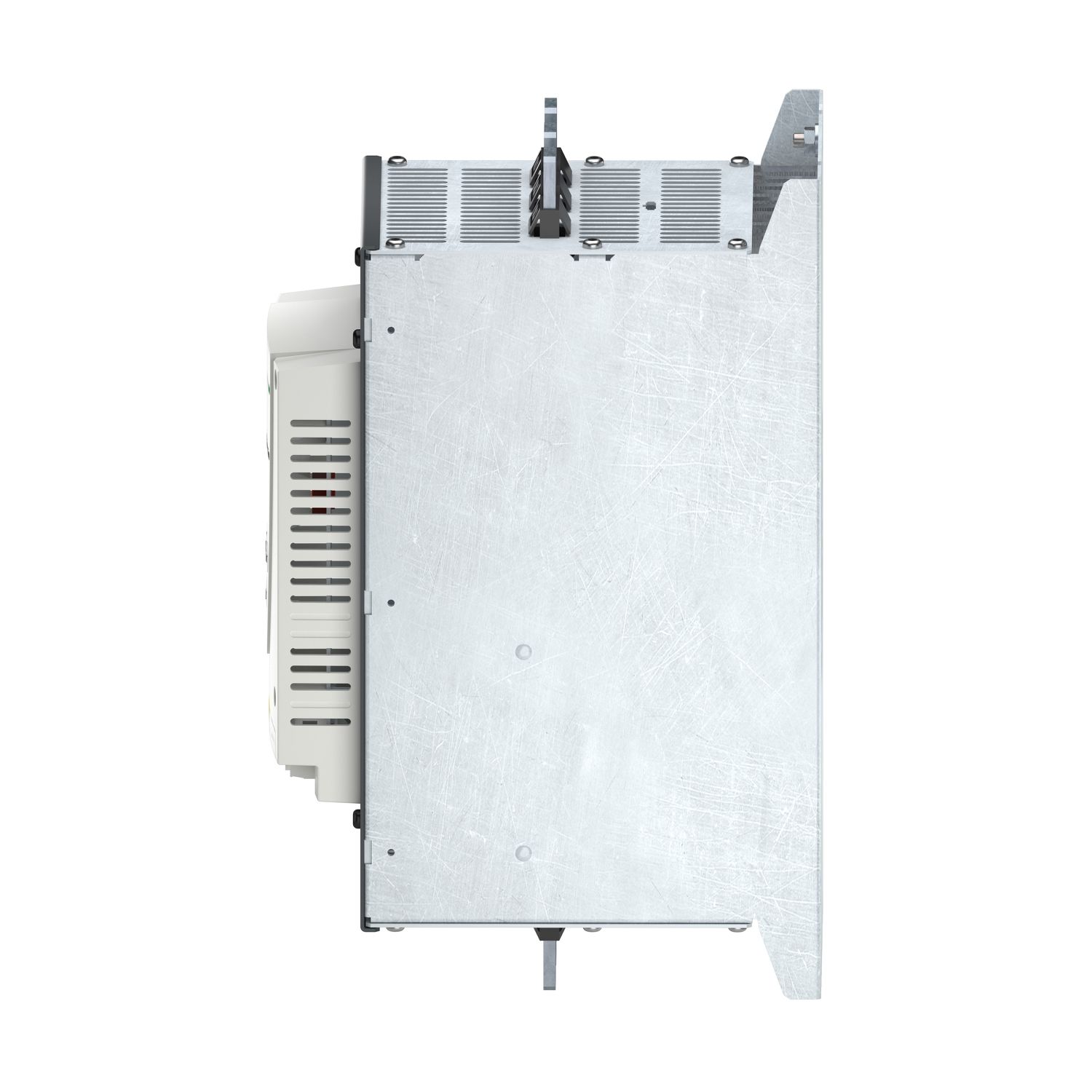

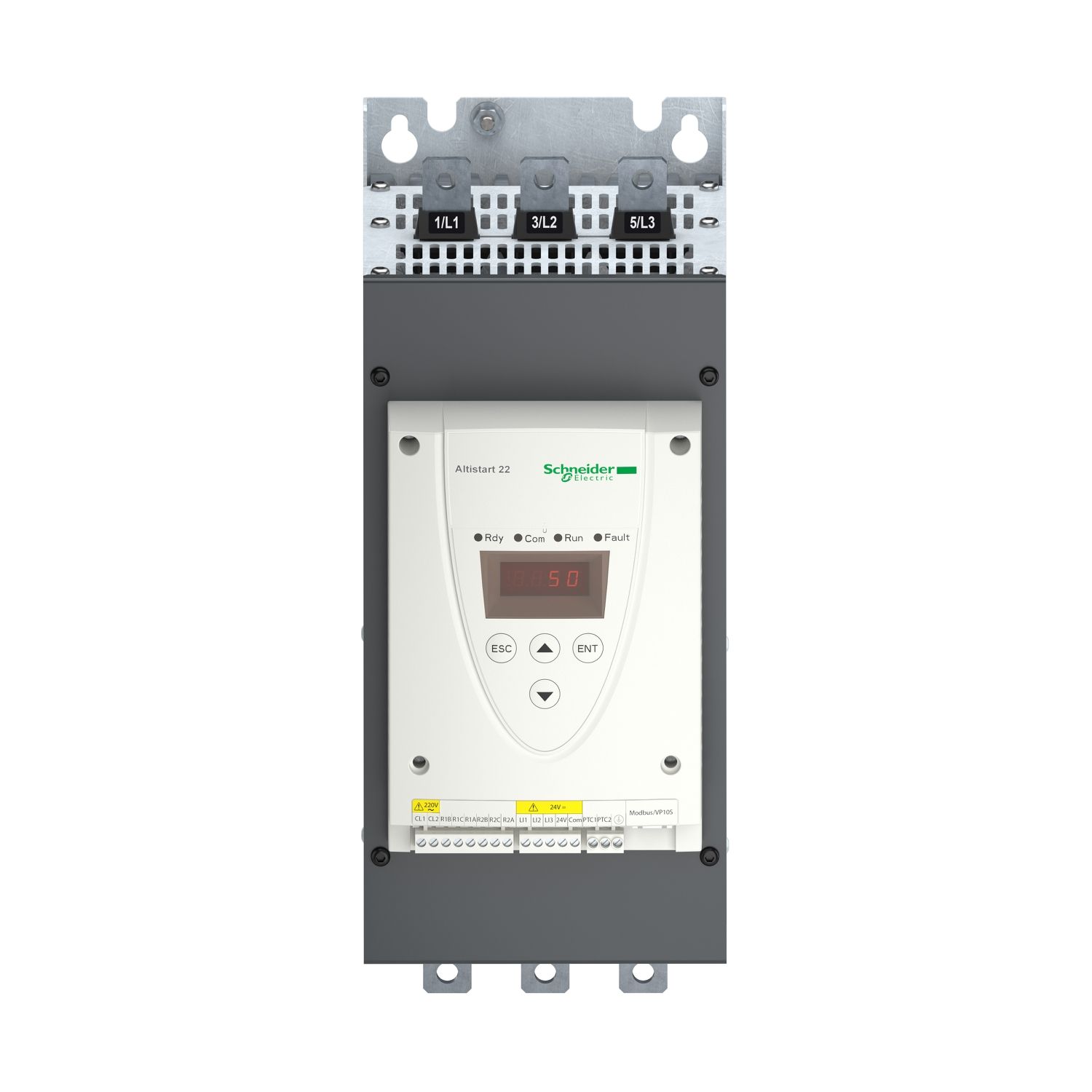

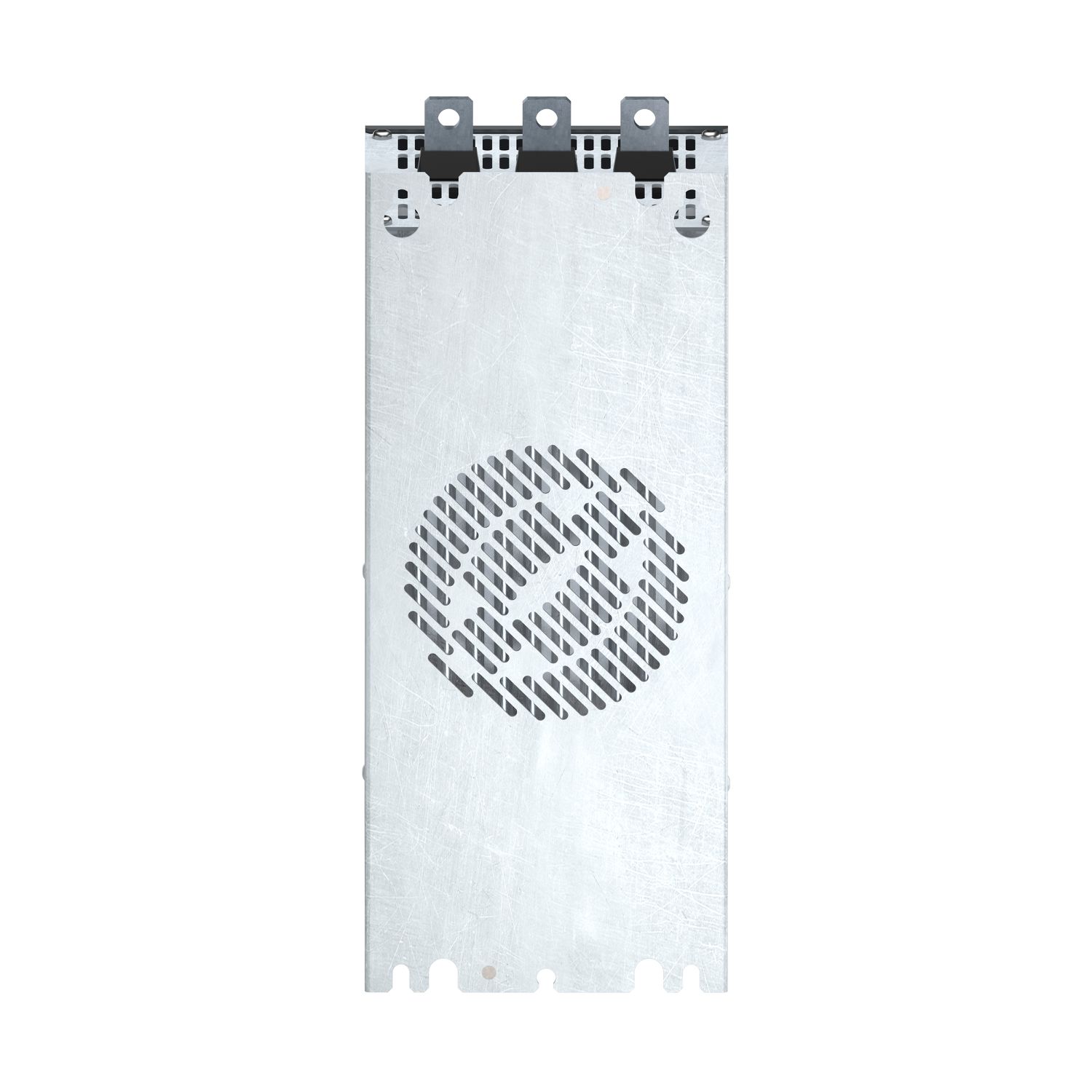

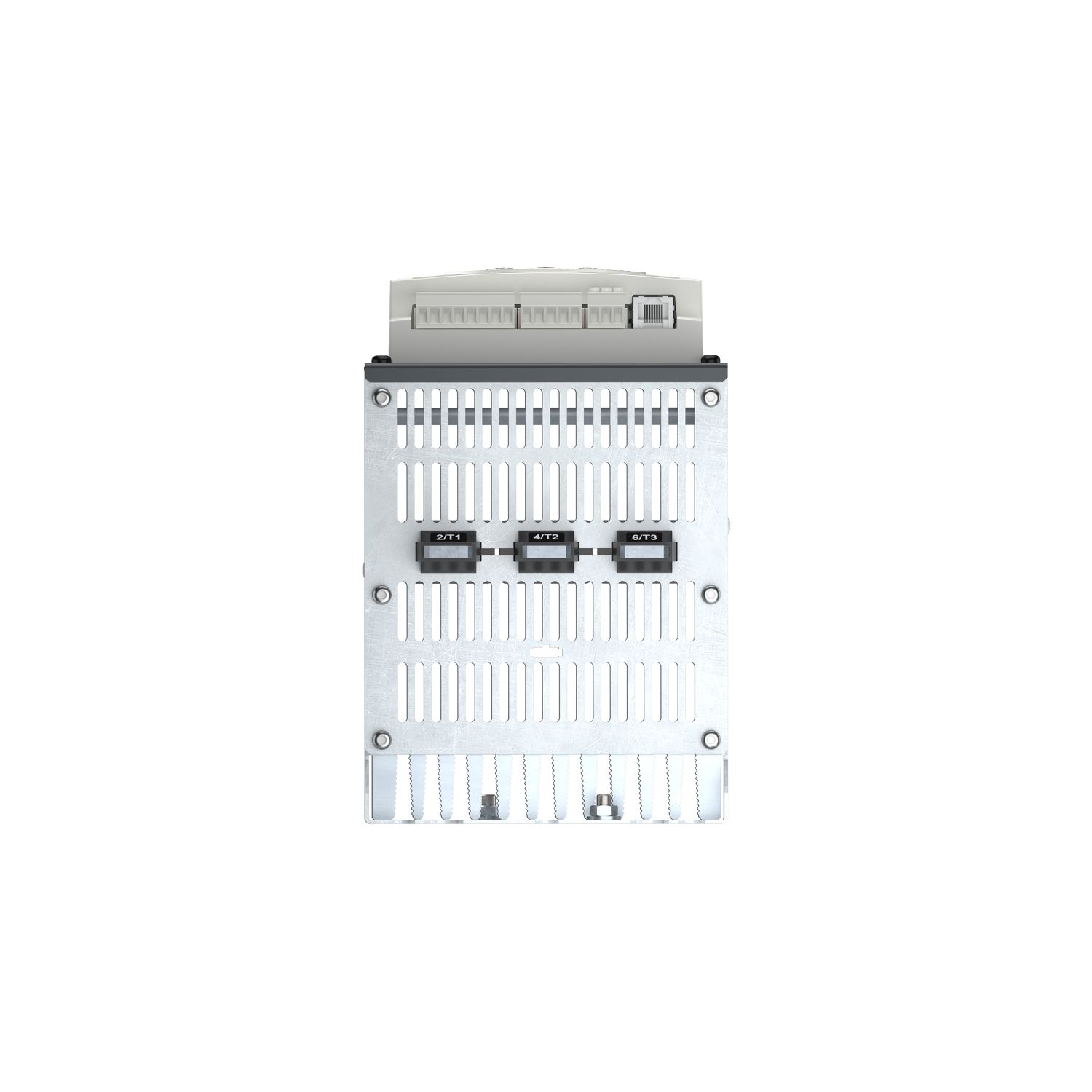

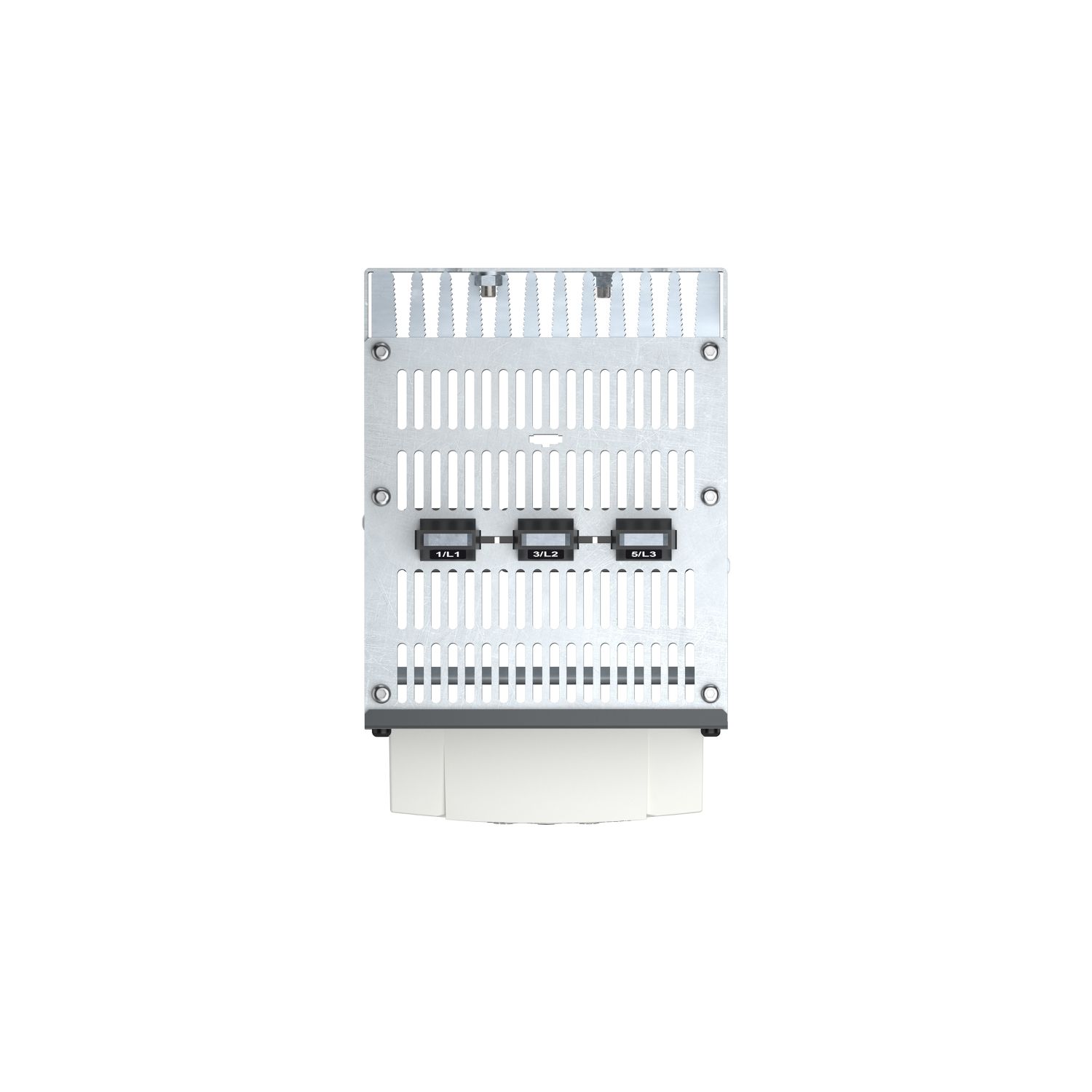

Picture of Altistart 22, Soft starter, ATS22 control 220V power 230V(45kW)/400...440V(90kW)
SKU:

ATS22C17Q

Altistart 22, Soft starter, ATS22 control 220V power 230V(45kW)/400...440V(90kW)

$3,836.82
Available for Shipping : 24-Nov-2024
Product Selector
Altistart 22, Soft starter, ATS22 control 220V power 230V(45kW)/400...440V(90kW)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
User guide
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 170A and 230V to 440V, a rated power up to 90kW (400V to 440V in supply line) and up to 132kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Products specifications

Attribute name Attribute value
Main
Factory setting current 162 A
IP degree of protection IP00
Power dissipation in W 91 W for standard applications
Range of product Altistart 22
[Us] rated supply voltage 230...440 V - 15...10 %
Motor power kW 90 kW 440 V, 90 kW 400 V, 45 kW 230 V
Product specific application pumps and fans
Utilisation category AC-53A
Type of start start with torque control (current limited to 3.5 In)
IcL starter rating 170 A for connection in the motor supply line for standard applications
Network number of phases 3 phases
Component name ATS22
Product or component type soft starter
Product destination asynchronous motors
Complementary
Protection type thermal protection: starter, thermal protection: motor, phase failure: line
Operating position vertical +/- 10 degree
Assembly style with heat sink
Type of cooling forced convection
Physical interface RS485 multidrop
Discrete input type (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Supply voltage limits 195-484 V
Control circuit consumption 20 W
Function available internal bypass
Motor starter type soft starter
Connector type 1 RJ45
Output current 0.4...1 Icl adjustable
Marking CE
Discrete input voltage 24 V <= 30 V
Height 356 mm
Supply frequency 50...60 Hz - 10...10 %
Discrete input logic positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Depth 229.5 mm
Transmission rate 4800, 9600 or 19200 bps
Width 150 mm
PTC probe input 750 Ohm
Discrete input number 3
Communication port protocol Modbus
Discrete output number 2
Communication data link serial
Installed device 31
Net weight 18 kg
Power range 55-100 kW at 380-440 V 3 phases, 30-50 kW at 200-240 V 3 phases
Maximum switching current 2 A 30 V DC inductive 7 ms relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 5 A 30 V DC resistive 1 relay outputs, 5 A 250 V AC resistive 1 relay outputs
Discrete output type relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
[Uc] control circuit voltage 230 V - 15...10 % 50/60 Hz
Minimum switching current 100 mA at 12 V DC (relay outputs)
Network frequency 45...66 Hz
Device connection in the motor supply line, to the motor delta terminals
Environment
Relative humidity 0-95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Pollution degree level 2 conforming to IEC 60664-1
Noise level 56 dB
Ambient air temperature for operation 40-60 °C (with current derating 2.2 % per °C), -10-40 °C (without derating)
Electromagnetic compatibility voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, conducted and radiated emissions level A conforming to IEC 60947-4-2
Operating altitude > 1000...< 2000 m with current derating of 2.2 % per additional 100 m, <= 1000 m without derating
Vibration resistance 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 60947-4-2
Product certifications CCC, UL, GOST, C-Tick, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.0 cm
Package 1 Width 33.0 cm
Package 1 Length 41.0 cm
Package 1 Weight 13.218 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 73.5 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 64.064 kg

Related products

Picture of TeSys F - terminal shroud for contactor or relay 3P

TeSys F - terminal shroud for contactor or relay 3P

LA9F702
$277.68
View Detail
Picture of Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP54

Altistart 22, Remote terminal, ATS22, for soft starter for asynchronous motor, IP54

VW3G22101
$184.45
View Detail
Picture of Altistart 22, Fan option, size C, 220 V

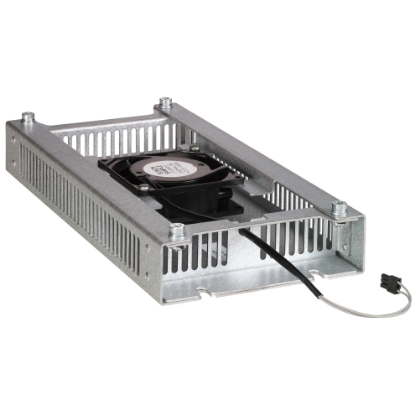

Altistart 22, Fan option, size C, 220 V
