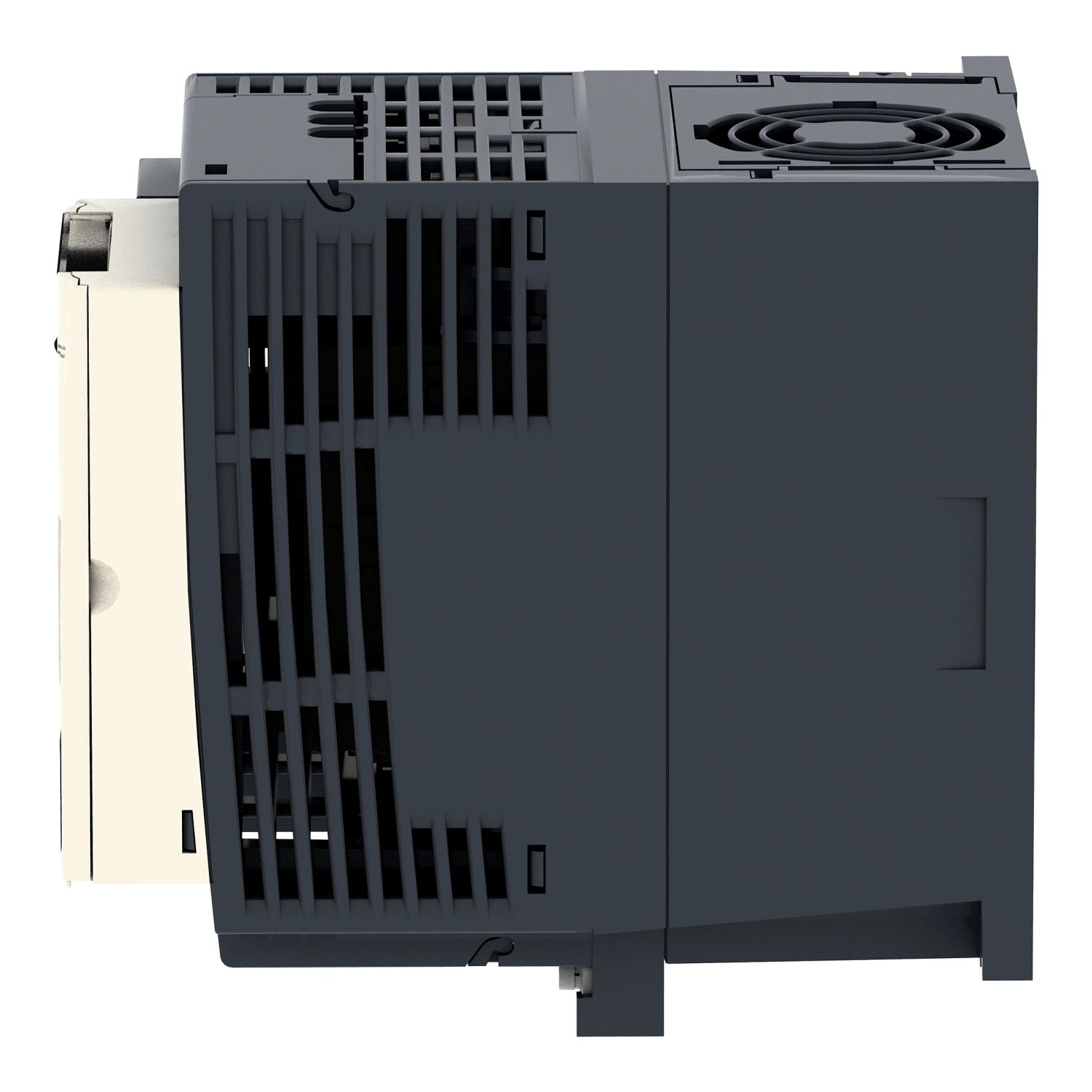

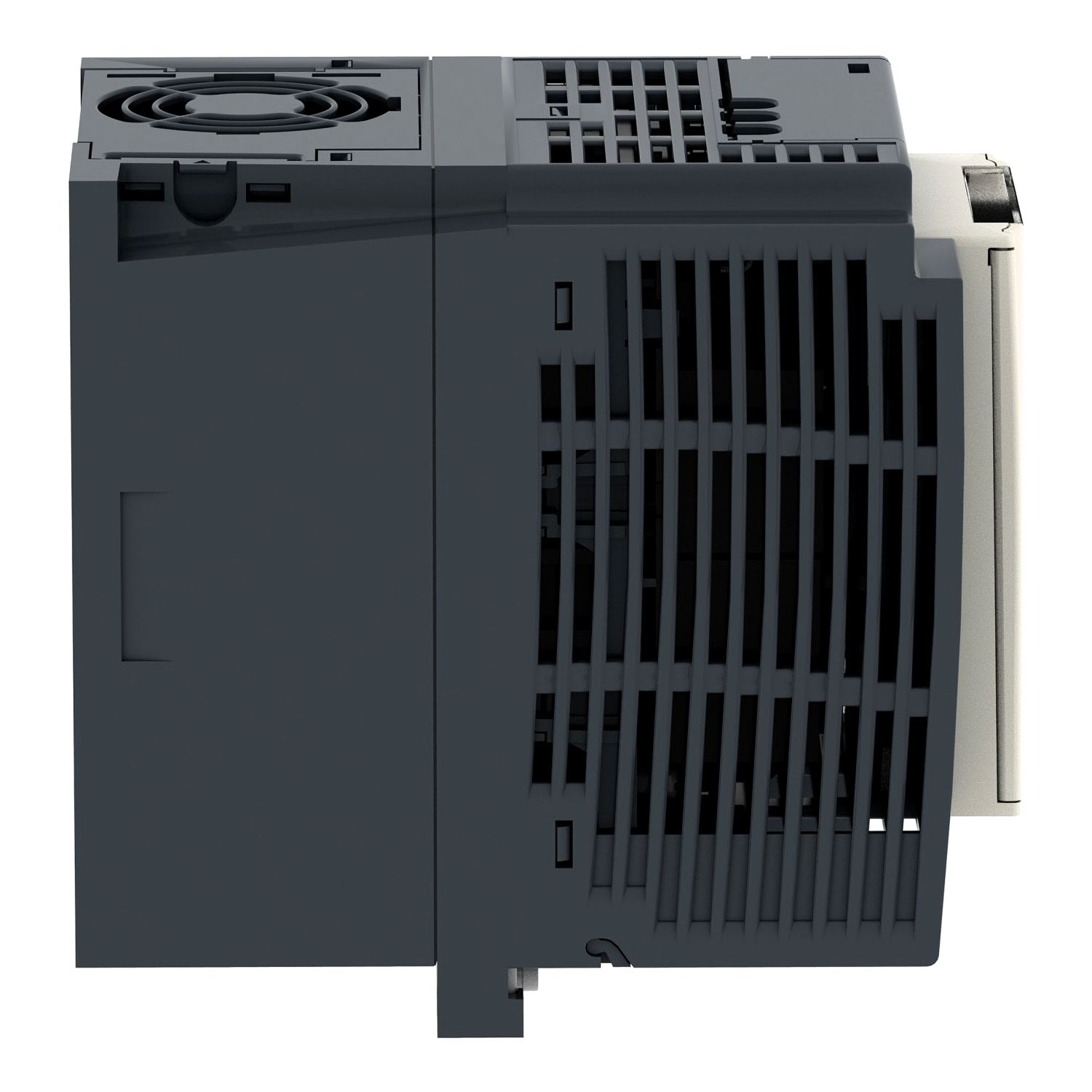

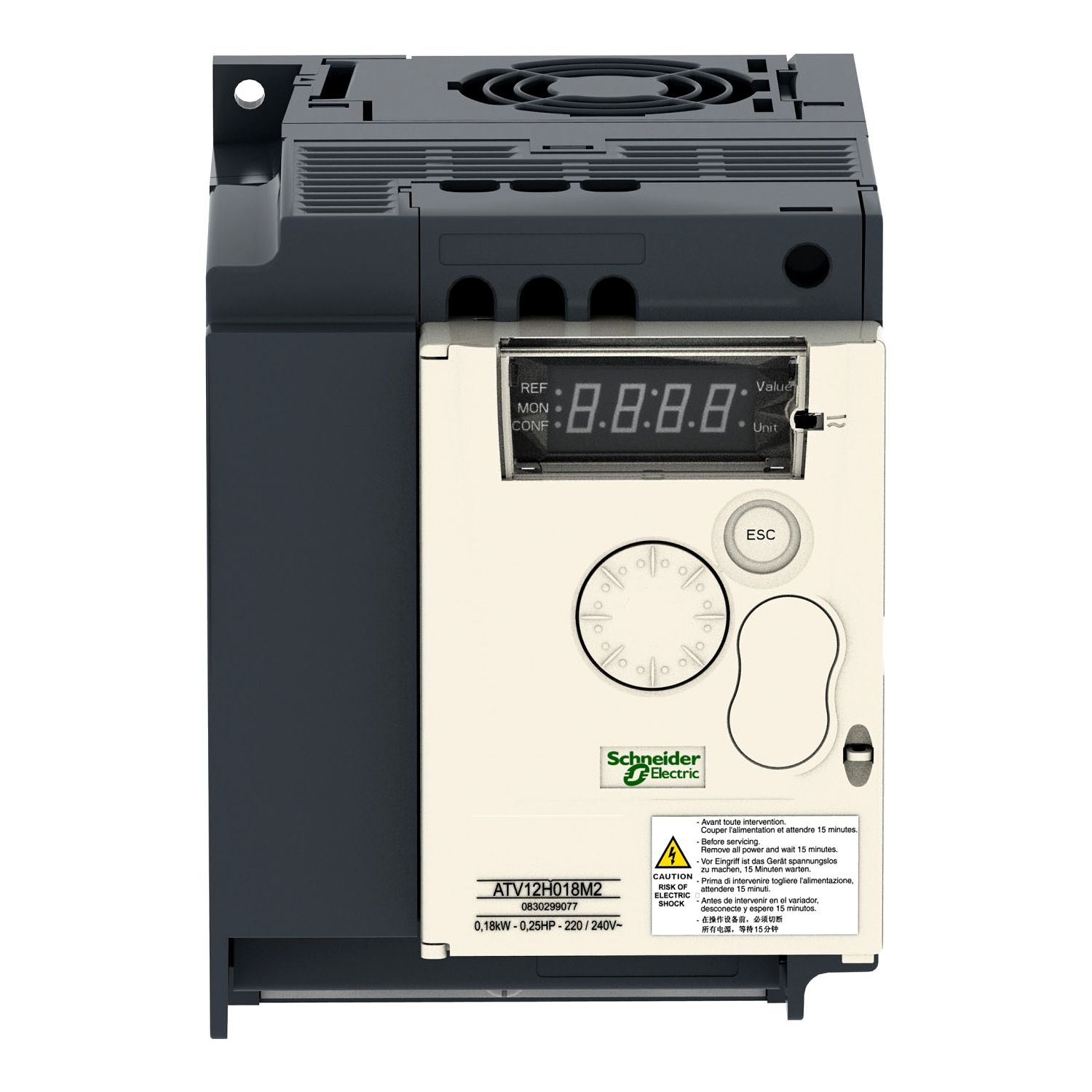

Picture of variable speed drive, Altivar 12, 1.5kW, 2hp, 200 to 240V, 3 phases, with heat sink
SKU:

ATV12HU15M3

variable speed drive, Altivar 12, 1.5kW, 2hp, 200 to 240V, 3 phases, with heat sink

$528.76
Product Selector
variable speed drive, Altivar 12, 1.5kW, 2hp, 200 to 240V, 3 phases, with heat sink
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Declaration of conformity
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. The ATV12 range meets basic machine requirements united with simplicity.

Products specifications

Attribute nameAttribute value
Main
EMC filterwithout EMC filter
Mounting modecabinet mount
[Us] rated supply voltage200...240 V - 15...10 %, 200...240 V
Motor power kW1.5 kW
Range of productAltivar 12
Supply frequency50/60 Hz +/- 5 %
Number of output phases3
Motor power hp2 hp
Number of input phases3
Design of frequency changerU converter
Product specific applicationsimple machine
Nominal output current7.5 A
Communication port protocolModbus
Relative symmetric mains voltage tolerance10 %
IP degree of protectionIP20
Product or component typevariable speed drive
Complementary
With safety function Safely Limited Speed (SLS)False
Number of HW interfaces other0
Number of HW interfaces serial TTY0
Protection typethermal motor protection via the drive by continuous calculation of I²t, against input phase loss in three-phase, short-circuit between motor phases, overheating protection, overcurrent between output phases and earth, line supply undervoltage, line supply overvoltage
Braking to standstillby DC injection
Capacity of DC link780.0 µF
Supporting protocol for SUCONETFalse
Power loss static current independent12.0 W
Quantity per setset of 1
Nominal switching frequency4 kHz
Brake chopper integratedFalse
With safety function Safe programmable logicFalse
Number of inputs, bidirectional, not potential-free0
Number of inputs, potential-free0
Continuous output current7.5 A at 4 kHz
Tightening torque1.2 N.m
Supporting protocol for EtherNet/IPFalse
Supporting protocol for DeviceNetFalse
Insulationelectrical between power and control
Physical interface2-wire RS 485
Analogue output number1
Operating element presentTrue
Supporting protocol for PROFINET IOFalse
Supporting protocol for Data-HighwayFalse
Connector type1 RJ45
Number of HW interfaces serial RS2320
Number of HW interfaces serial RS4851
Supporting protocol for PROFINET CBAFalse
Supporting protocol for PROFIBUSFalse
Supporting protocol for ASIFalse
Data format8 bits, configurable odd, even or no parity
Number of HW interfaces USB0
With safety function Safe torque off (STO)False
Transient overtorque150-170 % of nominal motor torque depending on drive rating and type of motor
Relay output number1
Supporting protocol for SERCOSFalse
With safety function Safe Speed Monitor (SSM)False
Supporting protocol for SafetyBUS PFalse
Supporting protocol for AS-Interface Safety at WorkFalse
Transmission frameRTU
Speed drive output frequency0.5-400 Hz
Base load current at high overload7.5 A
Maximum output voltage240 V
Time constant20 ms +/- 1 ms for reference change
Acceleration and deceleration rampsS, U, linear from 0 to 999.9 s
Height143 mm
With safety function Safe brake management (SBC/SBT)False
Number of HW interfaces serial RS4220
Supporting protocol for TCP/IPFalse
Optical interface presentFalse
Maximum output frequency4 kHz
Supporting protocol for other bus systemsFalse
Supporting protocol for Foundation FieldbusFalse
Sampling duration10 ms for analogue input, 20 ms, tolerance +/- 1 ms for logic input
Computer portTrue
Application in industrial area permittedTrue
Supporting protocol for PROFIsafeFalse
Depth131.2 mm
Supporting protocol for KNXFalse
Transmission rate38.4 kbit/s, 19.2 kbit/s, 9.6 kbit/s
Width105 mm
With safety function Safe Stop 1 (SS1)False
With sft fct Safe Stop 2 (SS2)False
Housing materialplastic
Supporting protocol for LONFalse
Supporting protocol for BACnetFalse
Linearity error+/- 0.3 % of maximum value for analogue input
Number of HW interfaces parallel0
Power loss per device current dependent73.0 W
Discrete input number4
Speed range1/20/2024 12:00:00 AM
Number of addresses1-247
With safety function Safe Operating Stop (SOS)False
Method of accessserver Modbus serial
With safety function Safely Limited Position (SLP)False
With safety function Safe Position (SP)False
Supporting protocol for DeviceNet SafetyFalse
Discrete output number2
Supporting protocol for MODBUSTrue
Motor slip compensationpreset in factory, adjustable
Analogue input number1
Application in domestic and commercial area permittedFalse
Supporting protocol for CANFalse
Communication serviceread device identification (43), read/write multiple registers (23) 4/4 words, write multiple registers (16) 27 words, write single register (06) 29 words, read holding registers (03) 29 words
Maximum transient current12.4 A during 2 s (heavy duty), 11.2 A during 60 s (heavy duty)
Switching frequency4...16 kHz with derating factor, 2...16 kHz adjustable
1 phase low current possibleFalse
Frequency resolutiondisplay unit: 0.1 Hz, analog input: converter A/D, 10 bits
Type of polarizationno impedance
With safety function Safe Direction (SDI)False
Net weight1.2 kg
Maximum associated fuse rating12.5 A
EMC limit value (complied)False
Nominal output power1500.0 W
Apparent power3.9 kVA at 240 V (heavy duty)
Relative symmetric network frequency tolerance5 %
Supporting protocol for INTERBUS-SafetyFalse
Supporting protocol for INTERBUSFalse
4 quadrant operation possibleFalse
Number of HW interfaces industrial Ethernet0
Asynchronous motor control profilesensorless flux vector control, voltage/frequency ratio (V/f), quadratic voltage/frequency ratio
Number of HW interfaces PROFINET0
Line current9.3 A at 120 V (heavy duty), 11.1 A at 100 V (heavy duty)
Power dissipation in Wforced cooling: 73.0 W
Network frequency50...60 Hz
Prospective line Isc5 kA
Environment
Maximum deflection under vibratory load (during storage)1.5 mm at 2...13 Hz
Ambient air transport temperature-25-70 °C
Maximum acceleration under shock load (during storage)150 m/s² at 11 ms
Operating positionvertical +/- 10 degree
Assembly stylewith heat sink
Relative humidity5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage-25-70 °C
Noise level50 dB
Maximum acceleration under vibratory load (during storage)10 m/s² at 13...200 Hz
Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
MarkingCE
Environmental class (during transport)class 2S1 according to IEC 60721-3-2, class 2C3 according to IEC 60721-3-2
Volume of cooling air14.8 m3/h
Ambient air temperature for operation50-60 °C with current derating 2.2 % per °C, -10-50 °C without derating, -10-60 °C
Electromagnetic compatibilityvoltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11, surge immunity test level 3 conforming to EN/IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3, immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6, electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2, electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
Pollution degree2
Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
Maximum acceleration under shock load (during transport)150 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport)10 m/s² at 13...200 Hz
Electromagnetic emissionconducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <5 m, radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable
Environmental class (during operation)class 3S2 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Environmental class (during storage)class 1S2 according to IEC 60721-3-1, class 1C3 according to IEC 60721-3-1
Overvoltage categoryclass III
Operating altitude> 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating
Regulation loopadjustable PID regulator
Vibration resistance1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6, 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
Shock resistance15 gn conforming to EN/IEC 60068-2-27 for 11 ms
Maximum deflection under vibratory load (during transport)1.5 mm at 2...13 Hz
StandardsEN/IEC 61800-3, EN/IEC 61800-5-1, UL 618000-5-1, UL 508C
Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz
Product certificationsKC, RCM, GOST, UL, C-Tick, CSA, NOM
Maximum input current9.3 A
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height20.000 cm
Package 1 Width18.000 cm
Package 1 Length20.000 cm
Package 1 Weight1.515 kg
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height75.000 cm
Package 2 Width60.000 cm
Package 2 Length80.000 cm
Package 2 Weight58.450 kg

Related products

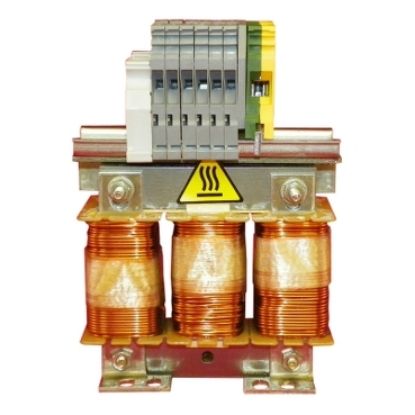

Picture of line/motor choke - 4 mH - 10 A - 3 phases - 65 W - for variable speed drive
