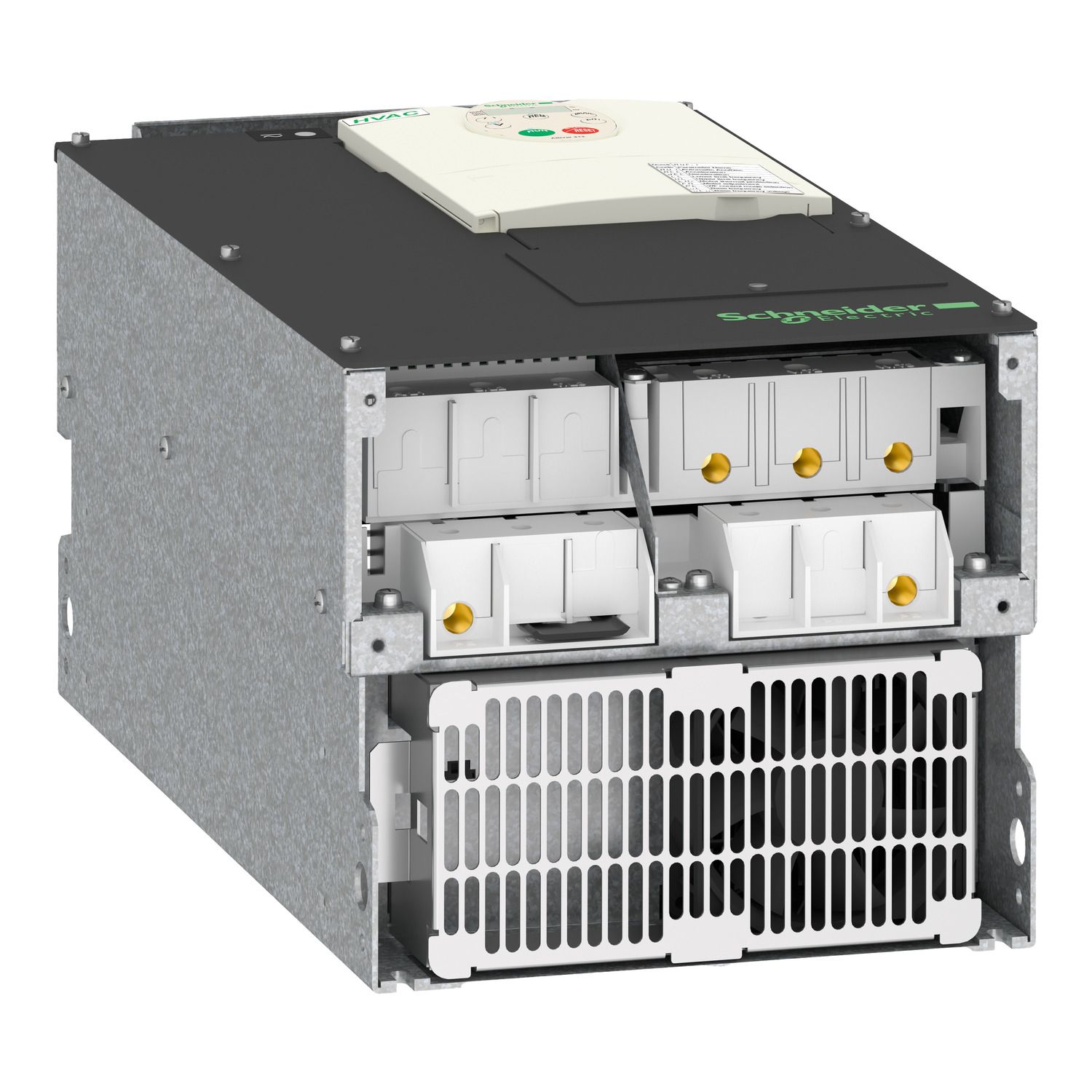

Picture of variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

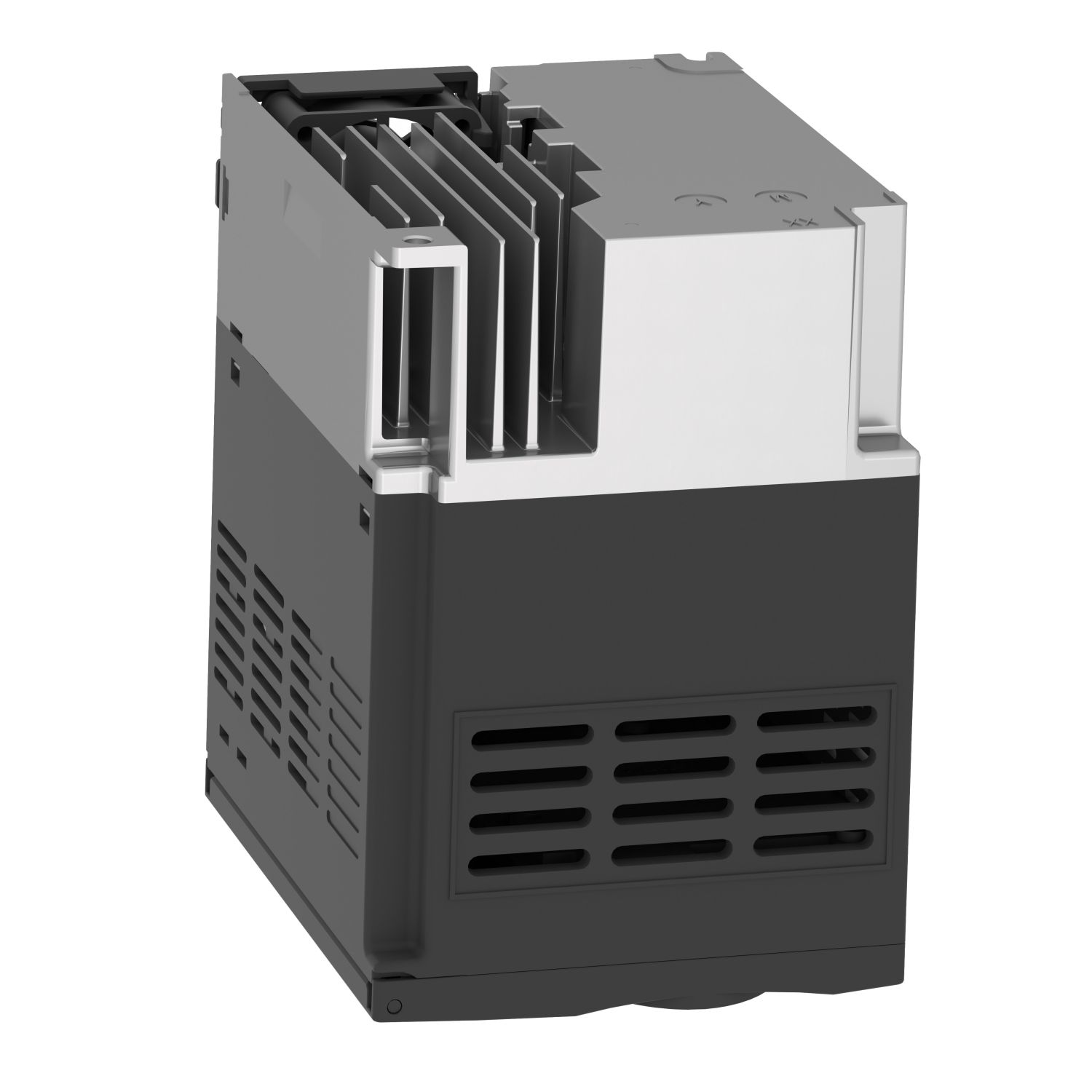

Picture of variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

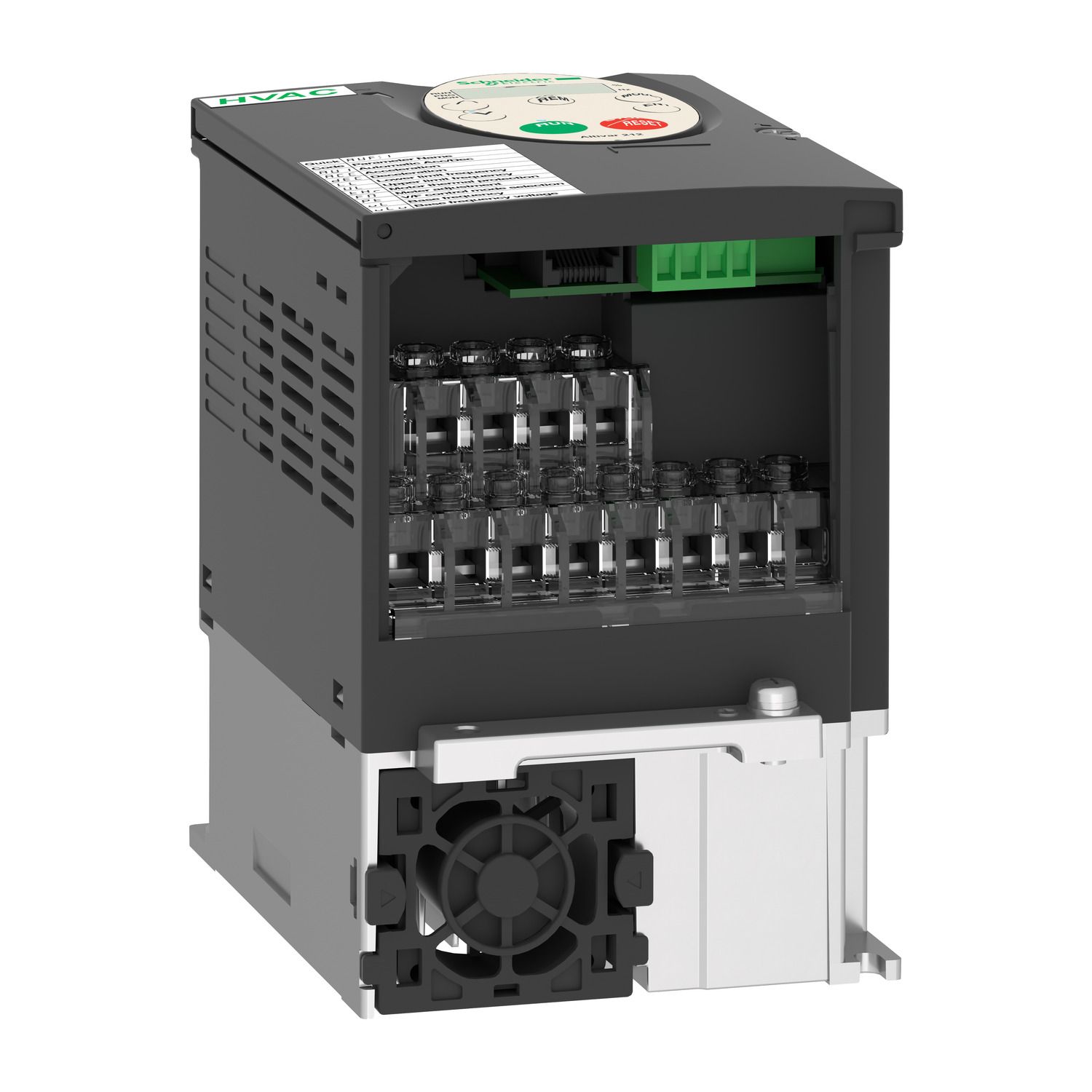

Picture of variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

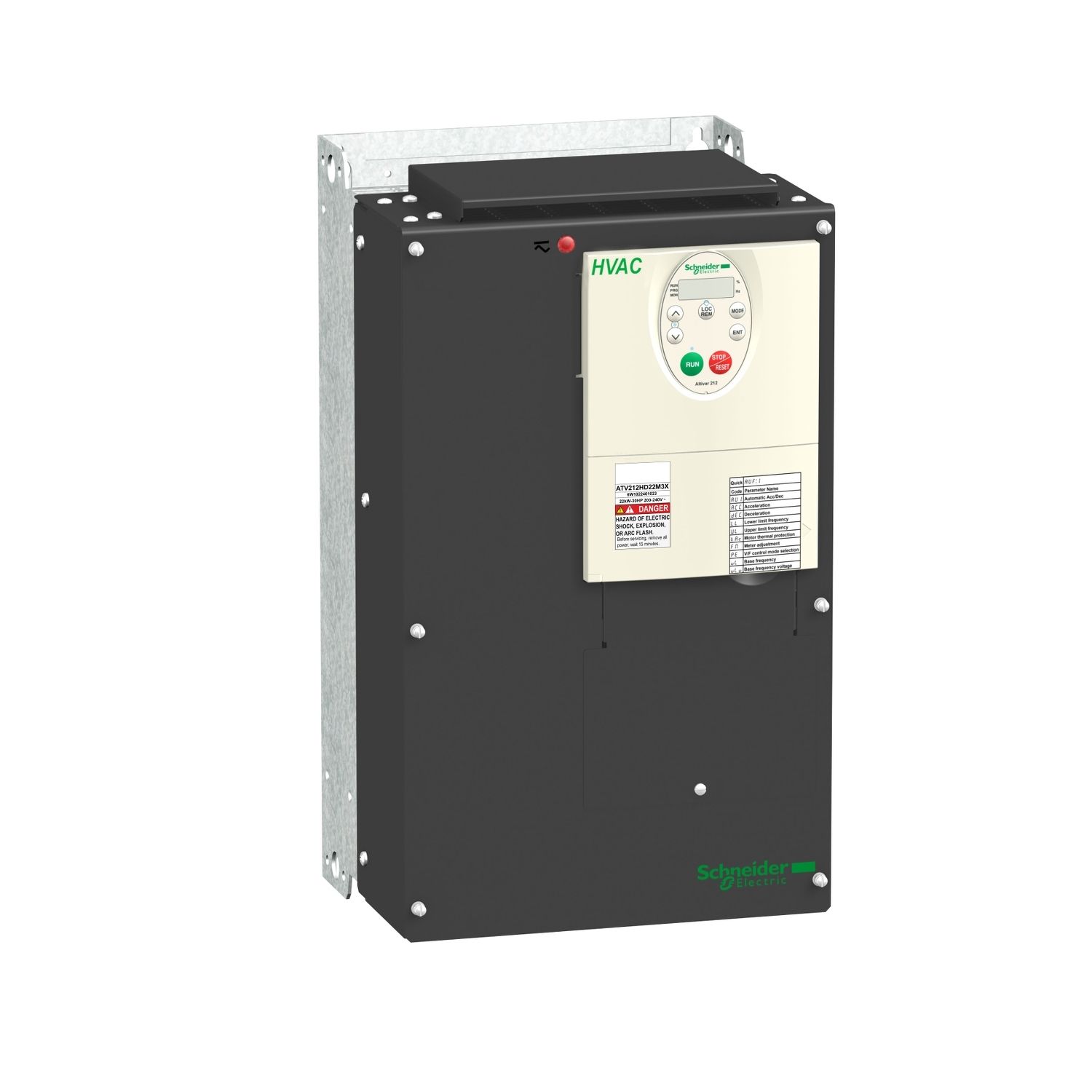

Picture of variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

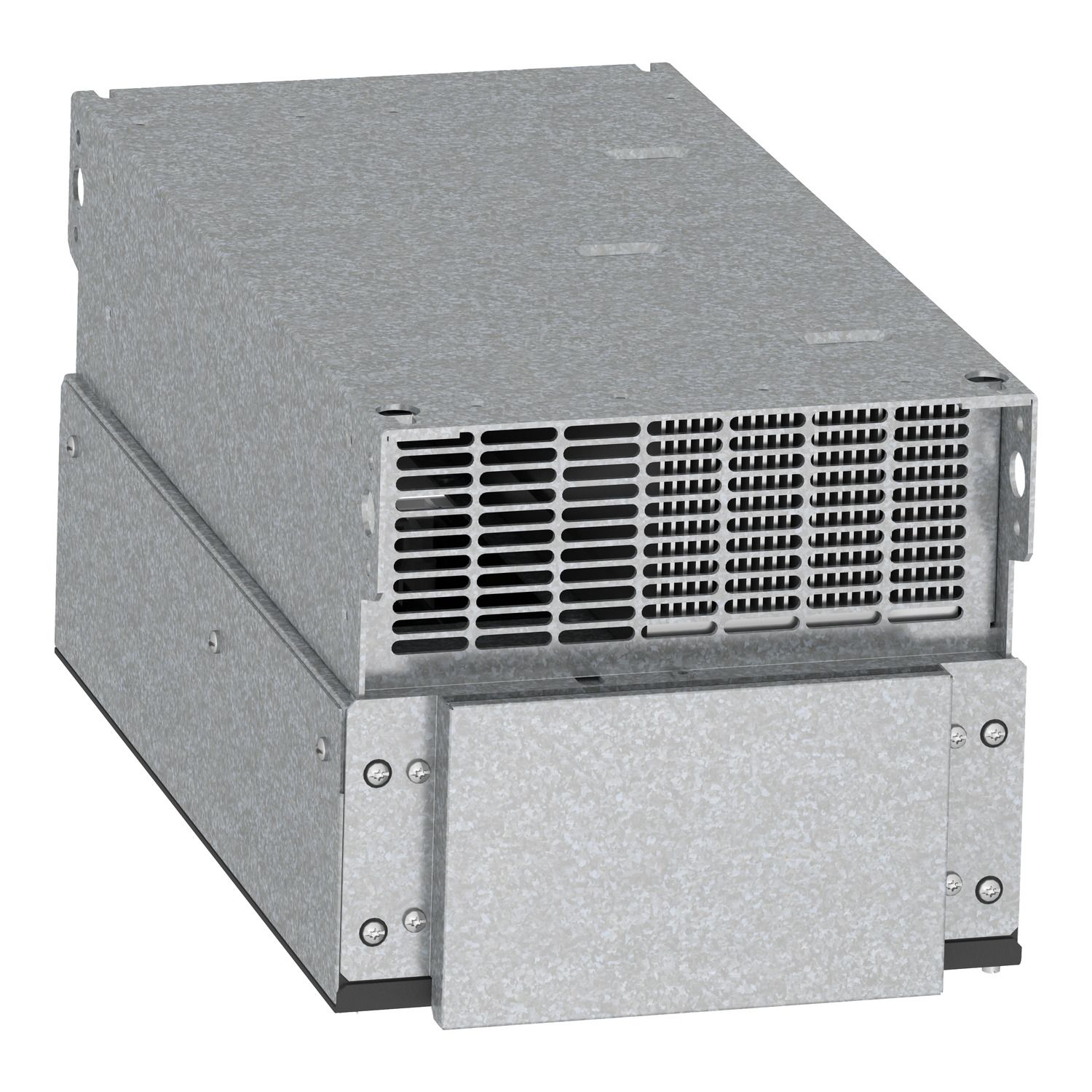

Picture of variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
Picture of variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
SKU:

ATV212HD22N4

variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21

$4,477.04
Available for Shipping : 05-Dec-2024
Product Selector
variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC, IP21
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
Instruction sheet
Product environmental
Catalogue
User guide
Product Page Link
Product Data Sheet
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 22kW / 30hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 26.4kg and its dimensions are, 240mm wide, 420mm high, 214mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
