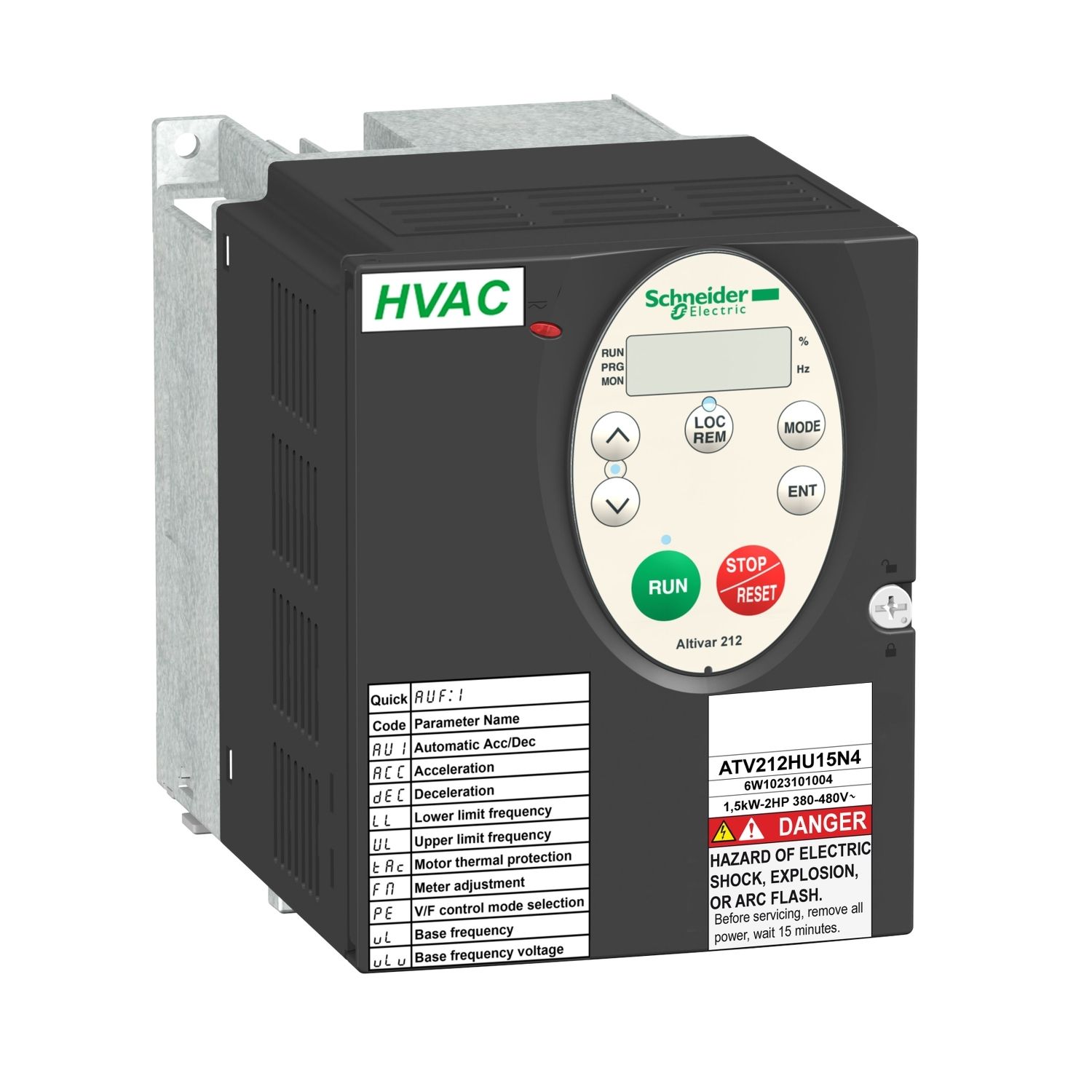

Picture of variable speed drive, Altivar 212, 2.2kW, 3hp, 480V, 3 phases, with EMC, IP21
SKU:

ATV212HU22N4

variable speed drive, Altivar 212, 2.2kW, 3hp, 480V, 3 phases, with EMC, IP21

$1,012.91
Available for Shipping : 24-Nov-2024
Product Selector
variable speed drive, Altivar 212, 2.2kW, 3hp, 480V, 3 phases, with EMC, IP21
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product environmental
User guide
Product Page Link
Product Data Sheet
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 2kg and its dimensions are, 107mm wide, 143mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It can also be mounted directly on a 35 mm wide DIN rail, thanks to the kit VW3A31852, to order separately. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name ATV212
EMC filter Class C2 EMC filter integrated
Supply voltage limits 323-528 V
[Us] rated supply voltage 380...480 V - 15...10 %
Line current 4.6 A at 380 V, 3.6 A at 480 V
Motor power kW 2.2 kW
Range of product Altivar 212
Supply frequency 50...60 Hz - 5...5 %
Motor power hp 3 hp
Product specific application pumps and fans in HVAC
Communication port protocol APOGEE FLN, METASYS N2, Modbus, LonWorks, BACnet
Network number of phases 3 phases
IP degree of protection IP21
Product or component type variable speed drive
Product destination asynchronous motors
Complementary
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn
Supply internal supply: 24 V DC (21-27 V), <200 A, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection
Protection type with PTC probes: motor, motor phase break: motor, thermal protection: motor, against input phase loss: drive, line supply undervoltage: drive, line supply overvoltage and undervoltage: drive, against exceeding limit speed: drive, break on the control circuit: drive, overvoltages on the DC bus: drive, overcurrent between output phases and earth: drive, input phase breaks: drive, short-circuit between motor phases: drive, thermal power stage: drive, overheating protection: drive
Braking to standstill by DC injection
Nominal switching frequency 12 kHz
Output voltage <= power supply voltage
Isolation electrical between power and control
Discrete input type RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm
Tightening torque 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES), 1.3 N.m, 11.5 lb.in (L1/R, L2/S, L3/T)
Continuous output current 5.1 A at 460 V, 5.1 A at 380 V
Power dissipation in W 103 W
Physical interface 2-wire RS 485
Minimum switching current 3 mA at 24 V DC for configurable relay logic
Analogue output number 1
Motor starter type variable speed drive
Functionality mid
Connector type 1 RJ45, 1 open style
Maximum transient current 5.6 A for 60 s
Accuracy +/- 1 % (FM) for a temperature variation 60 °C, +/- 0.6 % (VIB) for a temperature variation 60 °C, +/- 0.6 % (VIA) for a temperature variation 60 °C
Data format 8 bits, 1 stop, odd even or no configurable parity
Transient overtorque 120-120 % of nominal motor torque +/- 10 % for 60 s
Communication service monitoring inhibitable, write multiple registers (16) 2 words maximum, read holding registers (03) 2 words maximum, time out setting from 0.1 to 100 s, read device identification (43), write single register (06)
Torque accuracy +/- 15 %
Transmission frame RTU
Speed drive output frequency 0.5-200 Hz
Acceleration and deceleration ramps linear adjustable separately from 0.01 to 3200 s, automatic based on the load
Height 143 mm
Electrical connection L1/R, L2/S, L3/T: terminal 6-6 mm² / AWG 10, VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5-2.5 mm² / AWG 14
Option card communication card for LonWorks
Sampling duration 22 ms +/- 0.5 ms VIB analog, 3.5 ms +/- 0.5 ms VIA analog, 2 ms +/- 0.5 ms RES discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms F discrete
Discrete and process manufacturing building - HVAC pump, building - HVAC fan, building - HVAC compressor for scroll
Analogue input type VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits, VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm, VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits, VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits
Depth 150 mm
Air flow 35 m3/h
Transmission rate 9600 bps or 19200 bps
Width 107 mm
Specific application HVAC
Linearity error FM: +/- 0.2 % for output, VIB: +/- 0.15 % of maximum value for input, VIA: +/- 0.15 % of maximum value for input
Local signalling 1 LED (red) for DC bus energized
Speed range 1/10/2024 12:00:00 AM
Number of addresses 1-247
Discrete output number 2
Motor slip compensation automatic whatever the load, adjustable, not available in voltage/frequency ratio motor control
Analogue input number 2
Switching frequency 12...16 kHz with derating factor, 6...16 kHz adjustable
Frequency resolution analog input: 0.024/50 Hz, display unit: 0.1 Hz
Type of polarization no impedance
Net weight 2 kg
Power range 2.2-3 kW at 480-500 V 3 phases, 2.2-3 kW at 380-440 V 3 phases
Apparent power 3.9 kVA at 380 V
Dielectric strength 5092 V DC between control and power terminals, 3535 V DC between earth and power terminals
Response time RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FM 2 ms, tolerance +/- 0.5 ms for analog output(s)
Insulation resistance >= 1 mOhm 500 V DC for 1 minute
Maximum switching current 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R), 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R)
Asynchronous motor control profile voltage/frequency ratio, 2 points, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor, standard, voltage/frequency ratio, 5 points, voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
Discrete output type configurable relay logic: (RY, RC) NO - 100000 cycles, configurable relay logic: (FLB, FLC) NC - 100000 cycles, configurable relay logic: (FLA, FLC) NO - 100000 cycles
Analogue output type FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits, FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits
Type of cable with UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Discrete input logic negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1), positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1)
Network frequency 47.5...63 Hz
Prospective line Isc 5 kA
Environment
Operating position vertical +/- 10 degree
IP degree of protection IP41 on upper part conforming to IEC 60529, IP41 on upper part conforming to IEC 61800-5-1, IP21 conforming to IEC 60529, IP21 conforming to IEC 61800-5-1, IP20 on upper part without blanking plate on cover conforming to IEC 60529, IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1
Assembly style with heat sink
Relative humidity 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -25-70 °C
Pollution degree 3 conforming to IEC 61800-5-1
Marking CE
Ambient air temperature for operation 40-50 °C (with derating factor), -10-40 °C (without derating)
Electromagnetic compatibility voltage dips and interruptions immunity test conforming to IEC 61000-4-11, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Operating altitude <= 1000 m without derating, 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m
Regulation loop adjustable PI regulator
Noise level 51 dB conforming to 86/188/EEC
Vibration resistance 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Environmental characteristic classes 3S2 conforming to IEC 60721-3-3, classes 3C1 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards EN 55011 class A group 1, IEC 61800-3 environments 2 category C2, IEC 61800-3 category C2, EN 61800-3 category C3, UL Type 1, IEC 61800-3 environments 2 category C1, IEC 61800-3 category C3, IEC 61800-3 environments 1 category C3, IEC 61800-3 environments 1 category C1, IEC 61800-3 environments 2 category C3, IEC 61800-3 environments 1 category C2, IEC 61800-5-1, IEC 61800-3
Product certifications C-Tick, UL, NOM 117, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 18.500 cm
Package 1 Length 21.200 cm
Package 1 Weight 1.950 kg
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 66.028 kg

Related products

Picture of remote graphic terminal, Altivar, 240 x 160pixels, IP54

remote graphic terminal, Altivar, 240 x 160pixels, IP54

VW3A1101
$327.17
View Detail
Picture of communication card LonWorks

communication card LonWorks

VW3A21212
$308.27
View Detail

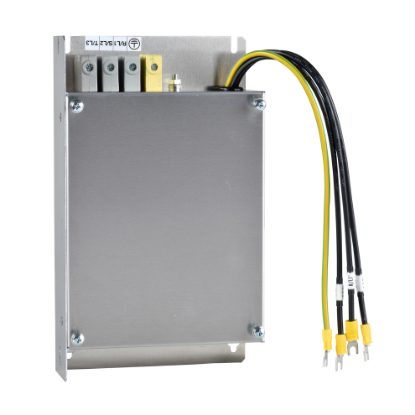

Picture of Altivar 31, Additionnal EMC input filter, 3-phase supply, 15 A
