SKU:

ATV650C25N4F

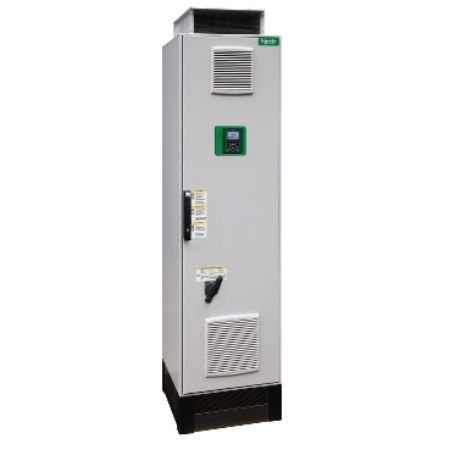

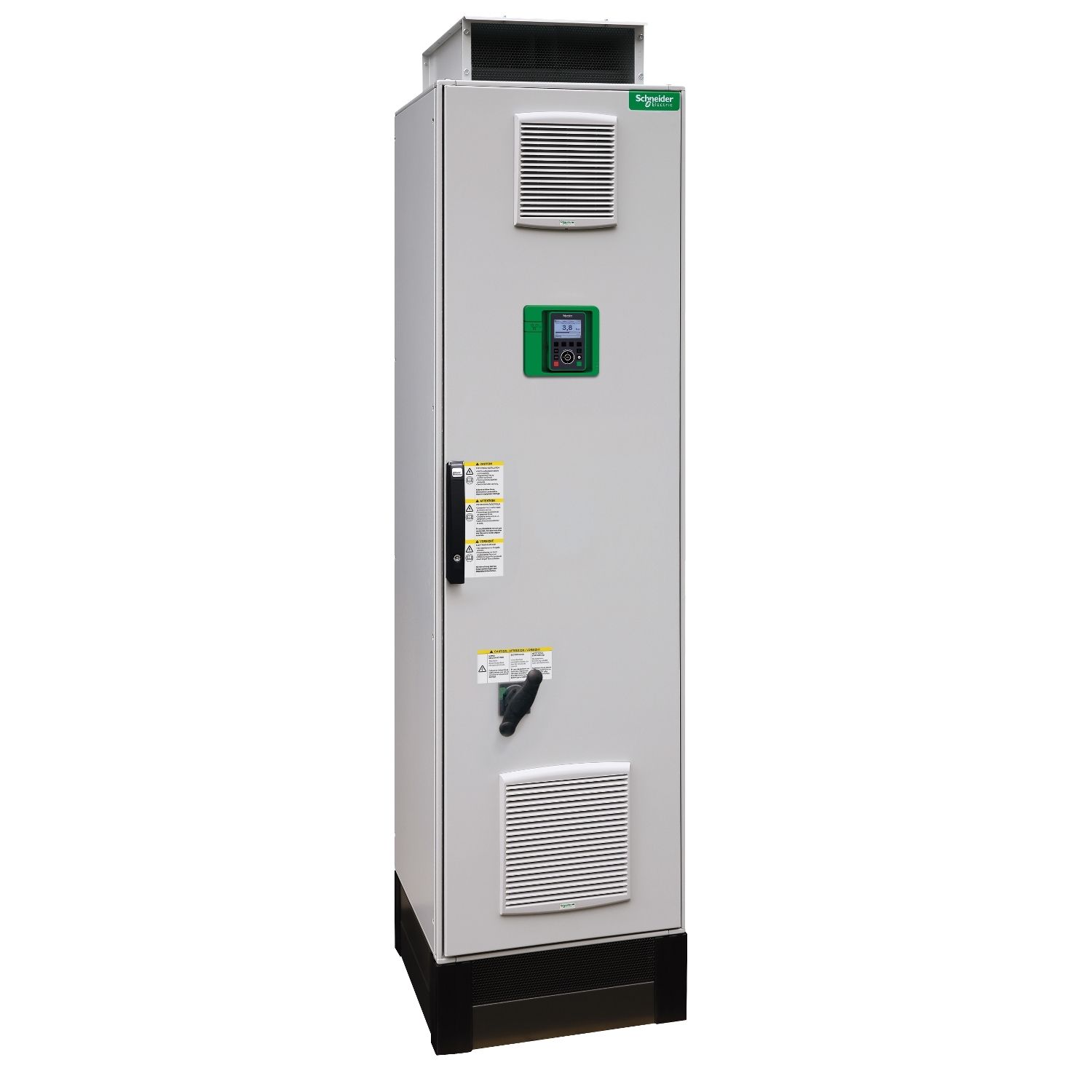

variable speed drive, Altivar Process ATV600, ATV650, 250kW, 400 to 480V, floor standing

$44,115.23
Available for Shipping : 24-Nov-2024
variable speed drive, Altivar Process ATV600, ATV650, 250kW, 400 to 480V, floor standing
Manufacturer: Schneider Electric
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 440V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 250kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 200kW for applications requiring significant overload (up to 150%). It weighs 420kg and its dimensions are, 600mm wide, 2350mm high, 669mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on the floor. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Products specifications

Attribute name Attribute value
Main
Synchronous motor control profile permanent magnet motor, synchronous reluctance motor
Device short name ATV650
Nominal switching frequency 2.5 kHz
Continuous output current 370 A at 2.5 kHz for heavy duty, 477 A at 2.5 kHz for normal duty
Type of cooling forced convection
Discrete input logic 16 preset speeds
[Us] rated supply voltage 380...440 V - 15...10 %, 380...440 V
Motor power kW 200 kW (heavy duty), 250 kW (normal duty)
IP degree of protection IP54 conforming to IEC 61800-5-1, IP54 conforming to IEC 60529
Speed drive output frequency 0.1-500 Hz
Range of product Altivar Process ATV600
Option card slot A: communication module, Profibus DP V1, communication module, Ethernet Powerlink, communication module, BACnet MS/TP, slot A: communication module, Ethernet IP/Modbus TCP/MD-Link, slot A/slot B: output relay extension module, slot A/slot B: digital and analog I/O extension module, slot A: communication module, CANopen screw terminals, slot A: communication module, CANopen SUB-D 9, slot A: communication module, CANopen daisy chain RJ45, slot A: communication module, Modbus TCP/EtherNet/IP, slot A: communication module, DeviceNet, slot A: communication module, PROFINET
Supply frequency 50...60 Hz - 5...5 %
Safety function STO (safe torque off) SIL 3
Product specific application process and utilities
Communication port protocol Ethernet, Modbus TCP
Switching frequency 2.5...8 kHz with derating factor, 2...8 kHz adjustable
Apparent power 243 kVA at 440 V (heavy duty), 298 kVA at 440 V (normal duty)
Product or component type variable speed drive
Variant with disconnect switch
Asynchronous motor control profile variable torque standard, constant torque standard, optimized torque mode
EMC filter integrated with 150 m conforming to IEC 61800-3 category C3
Line current 369 A at 400 V (normal duty), 453 A at 380 V (heavy duty), 319 A at 380 V (normal duty), 391 A at 400 V (heavy duty)
Product destination synchronous motors, asynchronous motors
Prospective line Isc 50 kA
Complementary
Maximum deflection under vibratory load (during storage) 1.5 mm at 2...13 Hz
Ambient air transport temperature -25-70 °C
With safety function Safely Limited Speed (SLS) False
Number of HW interfaces other 0
Supply external supply for digital inputs: 24 V DC (19-30 V), <1.25 mA, protection type: overload and short-circuit protection, internal supply for digital inputs and STO: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Number of HW interfaces serial TTY 0
Protection type thermal protection: motor, break on the control circuit: drive, overspeed: drive, line supply phase loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, overvoltages on the DC bus: drive, motor phase break: drive, short-circuit protection: drive, overload of output voltage: drive, overcurrent between output phases and earth: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase break: motor, safe torque off: motor
Discrete input type DI7, DI8 programmable as pulse input: 0-30 kHz, 24 V DC (<= 30 V)
Maximum acceleration under shock load (during storage) 40 m/s² at 11 ms
Braking to standstill by DC injection
Capacity of DC link 18800.0 µF
Supporting protocol for SUCONET False
Power loss static current independent 141.0 W
Quantity per set 1
Output voltage <= power supply voltage
Brake chopper integrated False
With safety function Safe programmable logic False
Isolation between power and control terminals
Number of inputs, bidirectional, not potential-free 0
Number of inputs, potential-free 0
Supporting protocol for EtherNet/IP True
Enclosure mounting floor-standing
Supporting protocol for DeviceNet False
Refresh time relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Minimum switching current relay output R1, R2, R3: 5 mA at 24 V DC
Physical interface 2-wire RS 485, Ethernet
Analogue output number 2
Permitted relative humidity (during transport) class 2K5 according to EN 60721-3
Operating element present True
Mounting mode floor-standing
Supporting protocol for PROFINET IO True
Motor starter type variable speed drive
Permissible temporary current boost 1.1 x In during 60 s (normal duty), 1.5 x In during 60 s (heavy duty)
Supporting protocol for Data-Highway False
Input compatibility DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
Number of HW interfaces serial RS232 0
Connector type RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP, RJ45 (on the remote graphic terminal) for Modbus serial
Maximum acceleration under vibratory load (during storage) 6 m/s² at 13...200 Hz
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Number of HW interfaces serial RS485 1
Maximum acceleration under vibrational stress (during operation) 6 m/s² at 13...200 Hz
Supporting protocol for PROFINET CBA True
Base load current at low overload 477.0 A
Supporting protocol for PROFIBUS True
Supporting protocol for ASI False
Data format 8 bits, configurable odd, even or no parity
Number of HW interfaces USB 0
Environmental class (during transport) class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2
With safety function Safe torque off (STO) True
Relay output number 3
Supporting protocol for SERCOS False
With safety function Safe Speed Monitor (SSM) False
Supporting protocol for SafetyBUS P False
Supporting protocol for AS-Interface Safety at Work False
Transmission frame RTU
Base load current at high overload 370.0 A
Maximum output voltage 440.0 V
Maximum acceleration under shock impact (during operation) 40 m/s² at 11 ms
Acceleration and deceleration ramps linear adjustable separately from 0.01...9999 s
Height 2350 mm
Maximum acceleration under shock load (during transport) 40 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport) 6 m/s² at 13...200 Hz
With safety function Safe brake management (SBC/SBT) False
Number of HW interfaces serial RS422 0
Supporting protocol for TCP/IP True
Optical interface present False
Maximum output frequency 500 kHz
Electrical connection control: removable screw terminals 0.5...1.5 mm², motor: M12 bar - 4 cables 3 x 120 mm² maximum per phase (heavy duty), motor: M12 bar - 3 cables 3 x 185 mm² maximum per phase (heavy duty), motor: M12 bar - 2 cables 3 x 95 mm² minimum per phase (heavy duty), motor: M12 bar - 1 cables 3 x 185 mm² minimum per phase (heavy duty), line side: M12 bar - 4 cables 3 x 120 mm² maximum per phase (heavy duty), line side: M12 bar - 3 cables 3 x 185 mm² maximum per phase (heavy duty), line side: M12 bar - 2 cables 3 x 95 mm² minimum per phase (heavy duty), motor: M12 bar - 4 cables 3 x 120 mm² maximum per phase (normal duty), motor: M12 bar - 3 cables 3 x 185 mm² maximum per phase (normal duty), motor: M12 bar - 3 cables 3 x 70 mm² minimum per phase (normal duty), motor: M12 bar - 2 cables 3 x 120 mm² minimum per phase (normal duty), line side: M12 bar - 4 cables 3 x 120 mm² maximum per phase (normal duty), line side: M12 bar - 3 cables 3 x 185 mm² maximum per phase (normal duty), line side: M12 bar - 3 cables 3 x 70 mm² minimum per phase (normal duty), line side: M12 bar - 2 cables 3 x 120 mm² minimum per phase (normal duty)
Supporting protocol for other bus systems False
Supporting protocol for Foundation Fieldbus False
Sampling duration 2 ms +/- 0.5 ms (DI1...DI4) - discrete input, 10 ms +/- 1 ms (AO1) - analog output, 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (DI5, DI6) - discrete input
Environmental class (during operation) class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Environmental class (during storage) class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1
Computer port True
Discrete and process manufacturing building - HVAC compressor centrifugal, water and waste water mixer, water and waste water conveyor, water and waste water fan, water and waste water compressor centrifugal, water and waste water screw compressor, water and waste water lobe compressor, water and waste water screw pump, water and waste water electro submersible pump (ESP), water and waste water positive displacement pump, water and waste water centrifuge pump, oil and gas compressor for refinery, oil and gas jet fuel pump, oil and gas water injection pump, oil and gas electro submersible pump (ESP), food and beverage processing atomization, food and beverage processing fan, food and beverage processing pump, building - HVAC screw compressor, water and waste water other application, oil and gas fan, mining mineral and metal pump, mining mineral and metal fan, food and beverage processing other application
Application in industrial area permitted True
Supporting protocol for PROFIsafe False
Number of output phases 3
Analogue input type AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Depth 669 mm
Supporting protocol for KNX False
Transmission rate 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 10, 100 Mbits
Width 600 mm
Number of input phases 3
Design of frequency changer U converter
With safety function Safe Stop 1 (SS1) False
With sft fct Safe Stop 2 (SS2) False
Housing material sheet steel
Supporting protocol for LON False
Supporting protocol for BACnet False
Specific application utility
Number of addresses 1-247 for Modbus serial
Linearity error AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AO1, AO2: +/- 0.2 % for analog output
Number of HW interfaces parallel 0
Local signalling 3 LEDs for local diagnostic, 1 LED (red) for presence of voltage, 4 LEDs (dual colour) for communication module status, 3 LEDs (dual colour) for embedded communication status
Power loss per device current dependent 5443.0 W
Nominal output current 477.0 A
Discrete input number 8
Permitted relative humidity (during operation) class 3K5 according to EN 60721-3
With safety function Safe Operating Stop (SOS) False
Method of access slave Modbus TCP
With safety function Safely Limited Position (SLP) False
With safety function Safe Position (SP) False
Supporting protocol for DeviceNet Safety False
Discrete output number 0
Supporting protocol for MODBUS True
Motor slip compensation can be suppressed, adjustable, automatic whatever the load, not available in permanent magnet motor law
Analogue input number 3
Application in domestic and commercial area permitted False
Supporting protocol for CAN True
Maximum transient current 555 A during 60 s (heavy duty), 525 A during 60 s (normal duty)
Permitted relative humidity (during storage) class 1K5 according to EN 60721-3
1 phase low current possible False
Relay output type configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, configurable relay logic R3: sequence relay NO electrical durability 100000 cycles, configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Frequency resolution display unit: 0.1 Hz, analog input: 0.012/50 Hz
Type of polarization no impedance
With safety function Safe Direction (SDI) False
Net weight 500 kg
Network number of phases 3 phases
Power range 250-500 kW at 380-440 V 3 phases, 110-220 kW at 480-500 V 3 phases
EMC limit value (complied) True
Nominal output power 250.0 kW
Relative symmetric mains voltage tolerance 10 %
IP degree of protection IP54
Relative symmetric network frequency tolerance 5 %
Maximum deflection under vibratory load (during transport) 1.5 mm at 2...13 Hz
Supporting protocol for INTERBUS-Safety False
Supporting protocol for INTERBUS False
Exchange mode half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
4 quadrant operation possible False
Maximum switching current relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 30 V DC
Number of HW interfaces industrial Ethernet 1
Discrete output type relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA
Number of HW interfaces PROFINET 0
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Analogue output type software-configurable current DQ-, DQ+: 100 mA, software-configurable current DQ-, DQ+: 30 V DC, software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Discrete input logic negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1), positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)
Network frequency 50...60 Hz
Environment
Maximum THDI <48 % full load conforming to IEC 61000-3-12
Operating position vertical +/- 10 degree
Relative humidity 5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61800-5-1, 3
Noise level 70 dB, 70 dB conforming to 86/188/EEC
Marking CE
Volume of cooling air 1300 m3/h
Ambient air temperature for operation -15-40 °C (without derating), 40-50 °C (with derating factor), 0-50 °C
Electromagnetic compatibility electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Standards UL 508C, IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61000-3-12, IEC 61800-5-1, environment 2 category C3 IEC 61800-3, IEC 61800-3, IEC 61800-2, IEC 60204-1
Overvoltage category III
Operating altitude <= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m
Regulation loop adjustable PID regulator
Vibration resistance 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth
Power dissipation in W 5750 W, switching frequency 2.5 kHz (normal duty), 3380 W, switching frequency 2.5 kHz (heavy duty)
Product certifications C-Tick, EAC, ATEX
Maximum input current 453.0 A
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 214.5 cm
Package 1 Width 120.0 cm
Package 1 Length 111.0 cm
Package 1 Weight 550.0 kg
