SKU:

BMEP584020

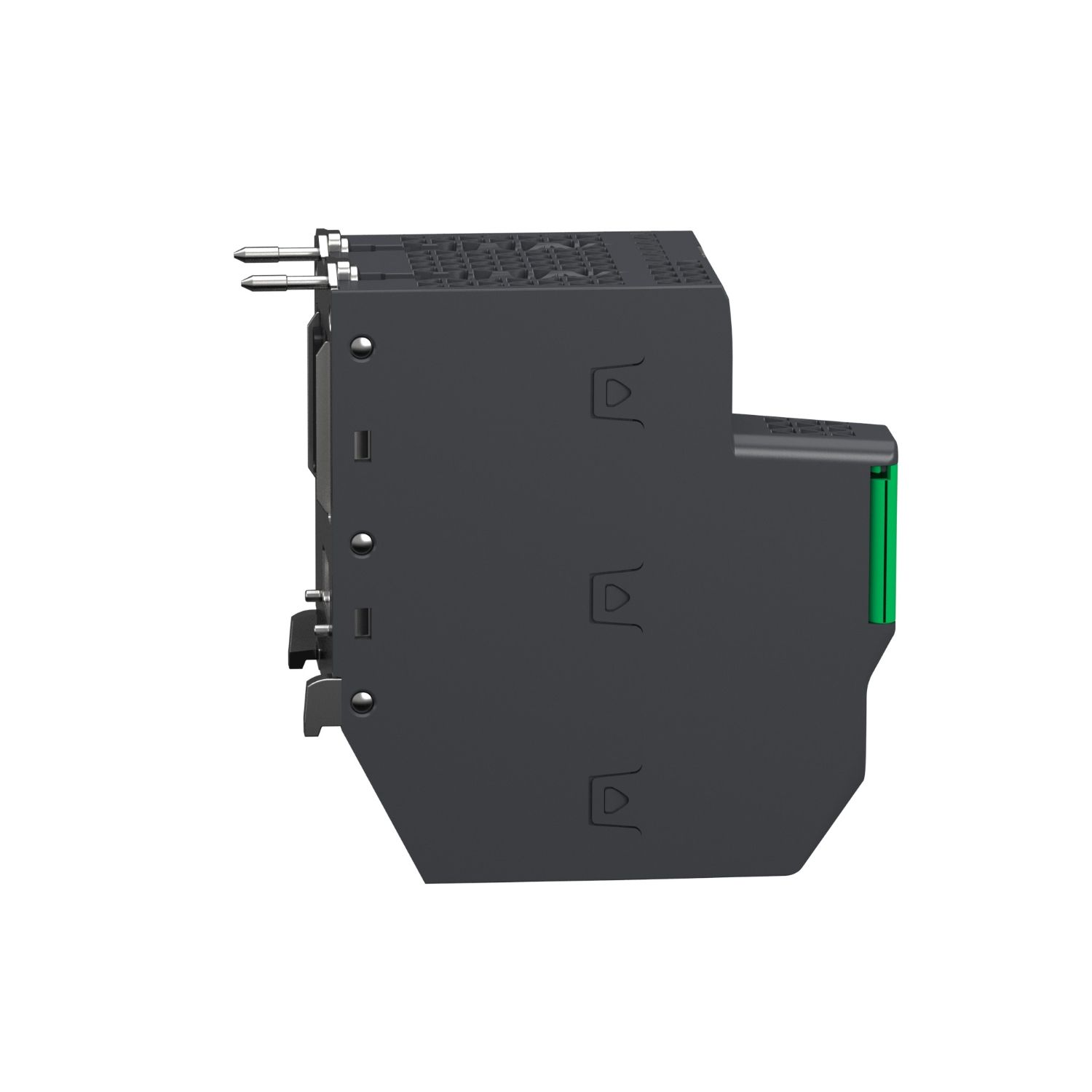

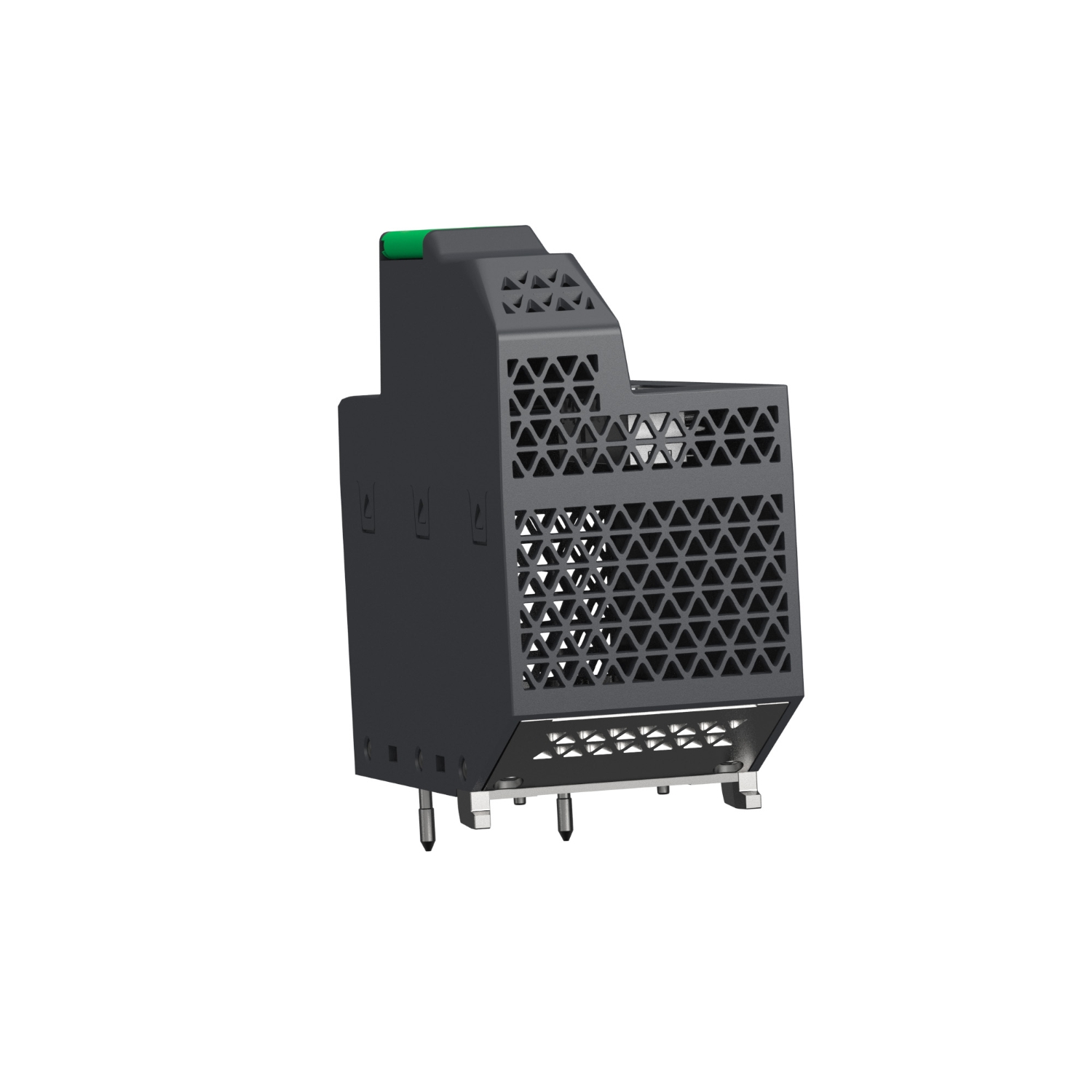

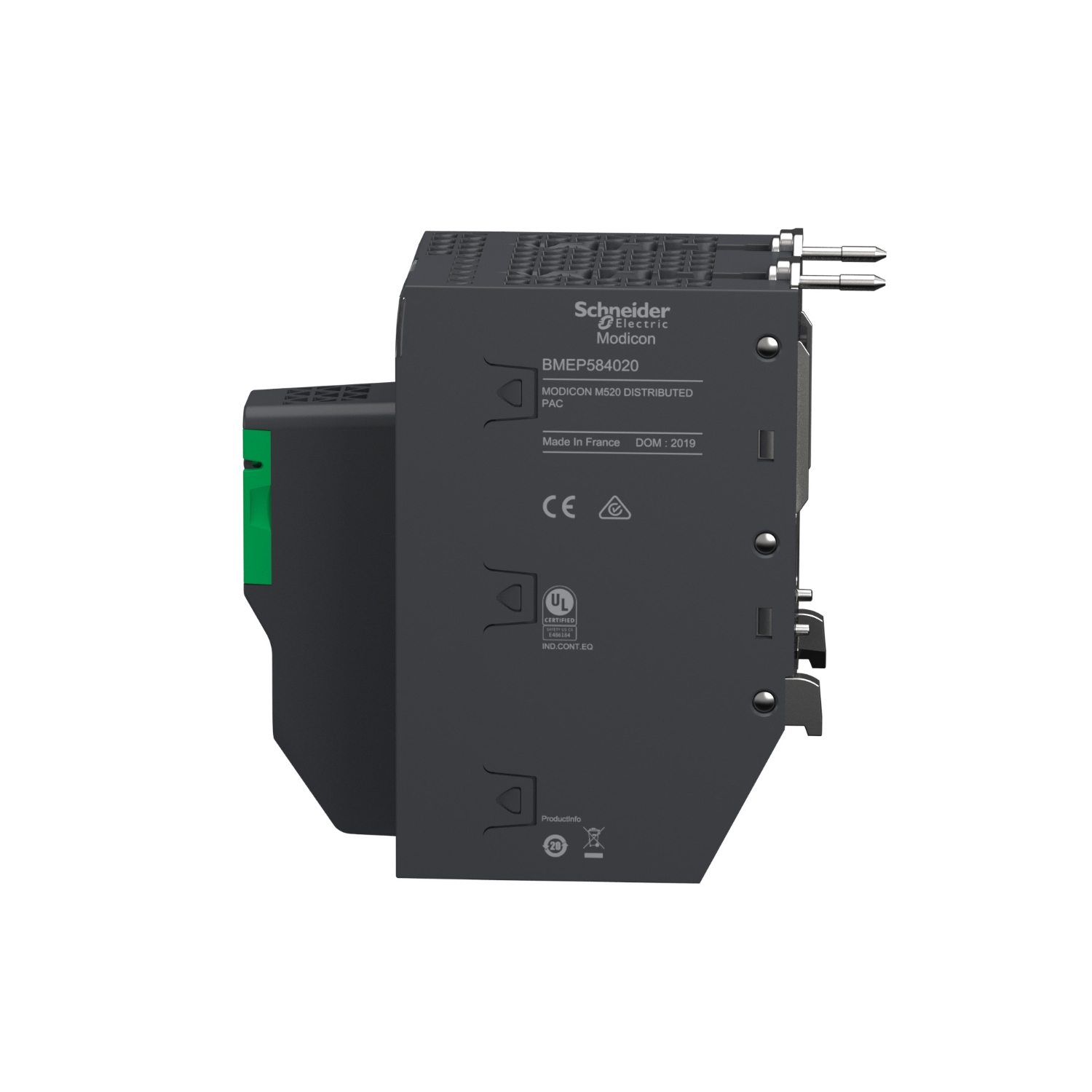

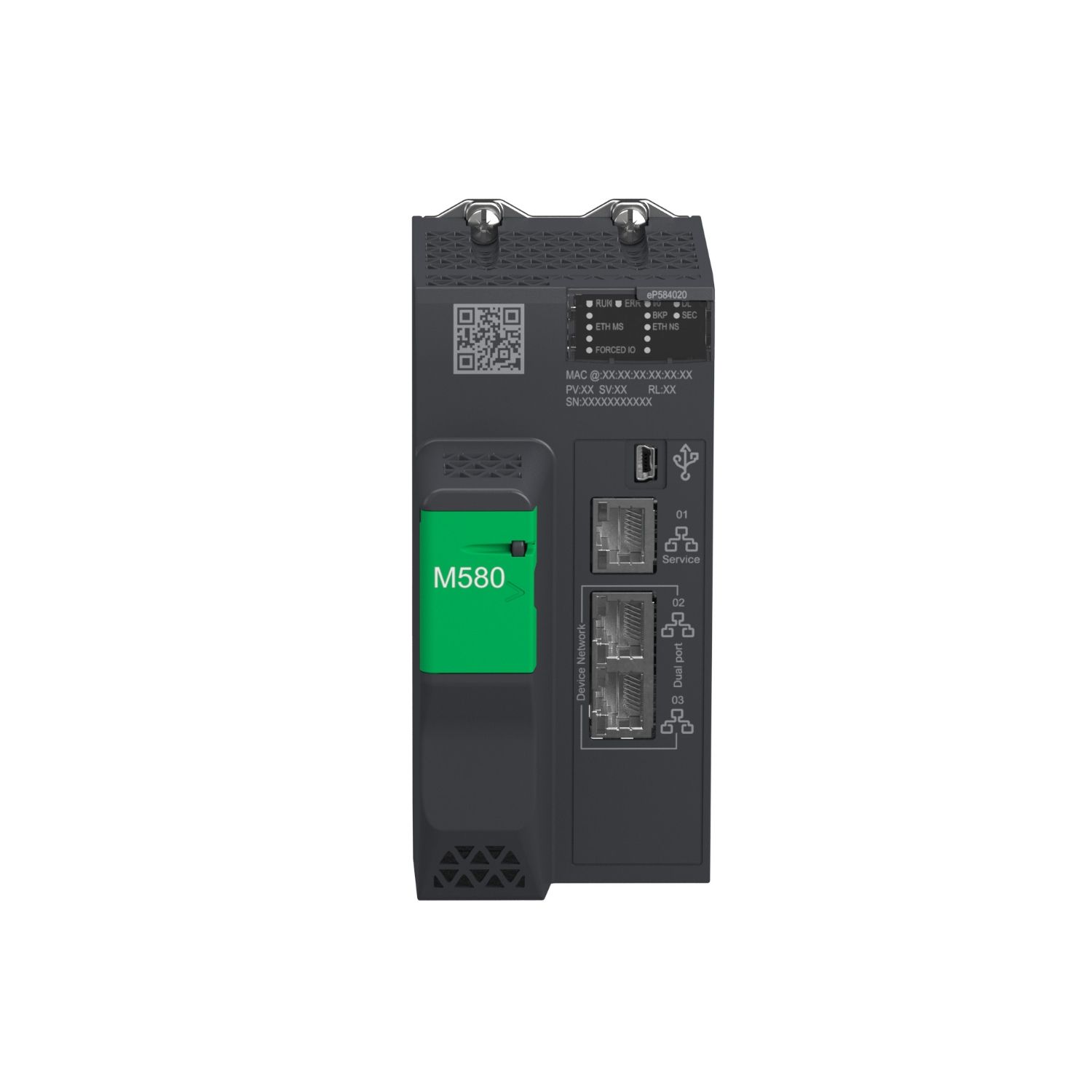

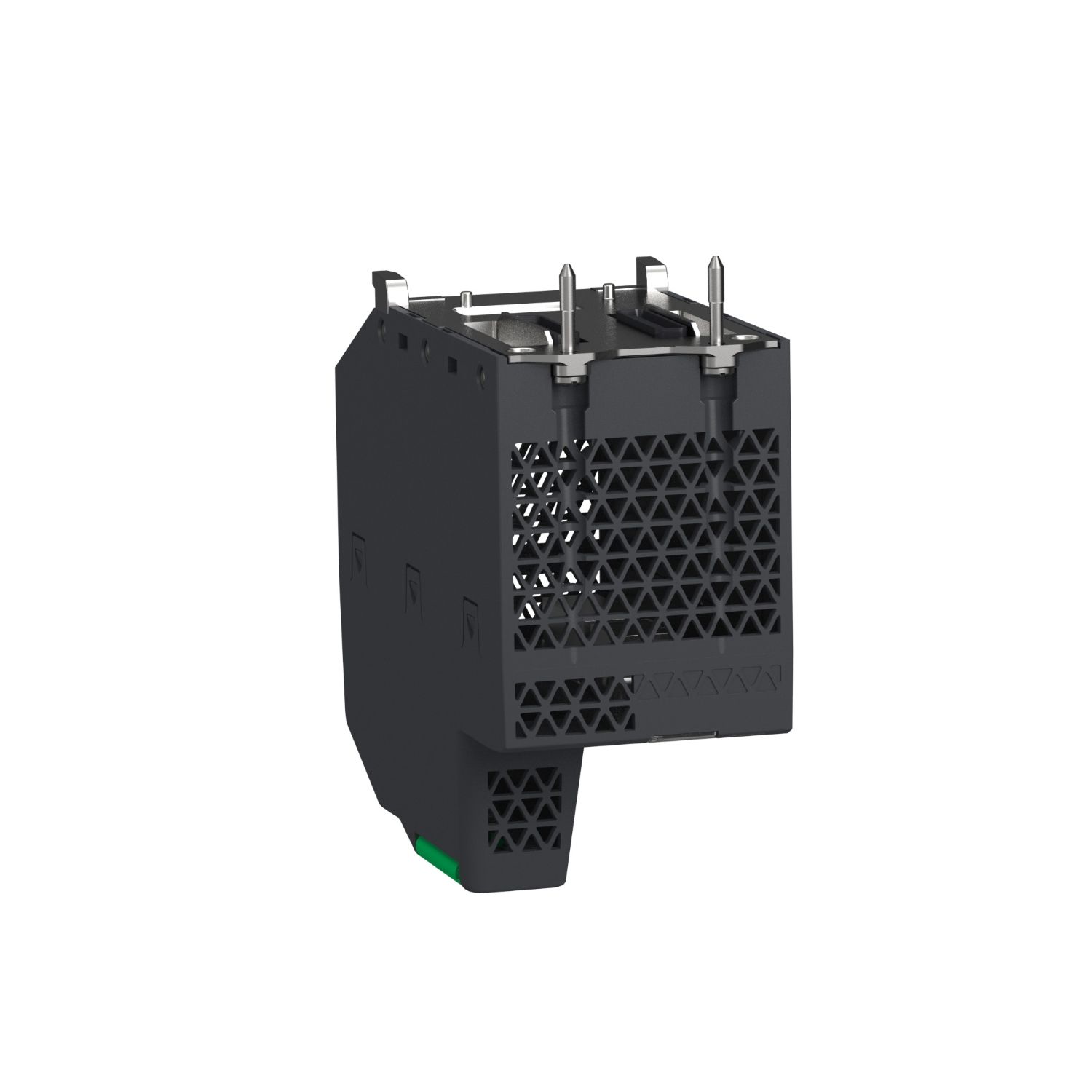

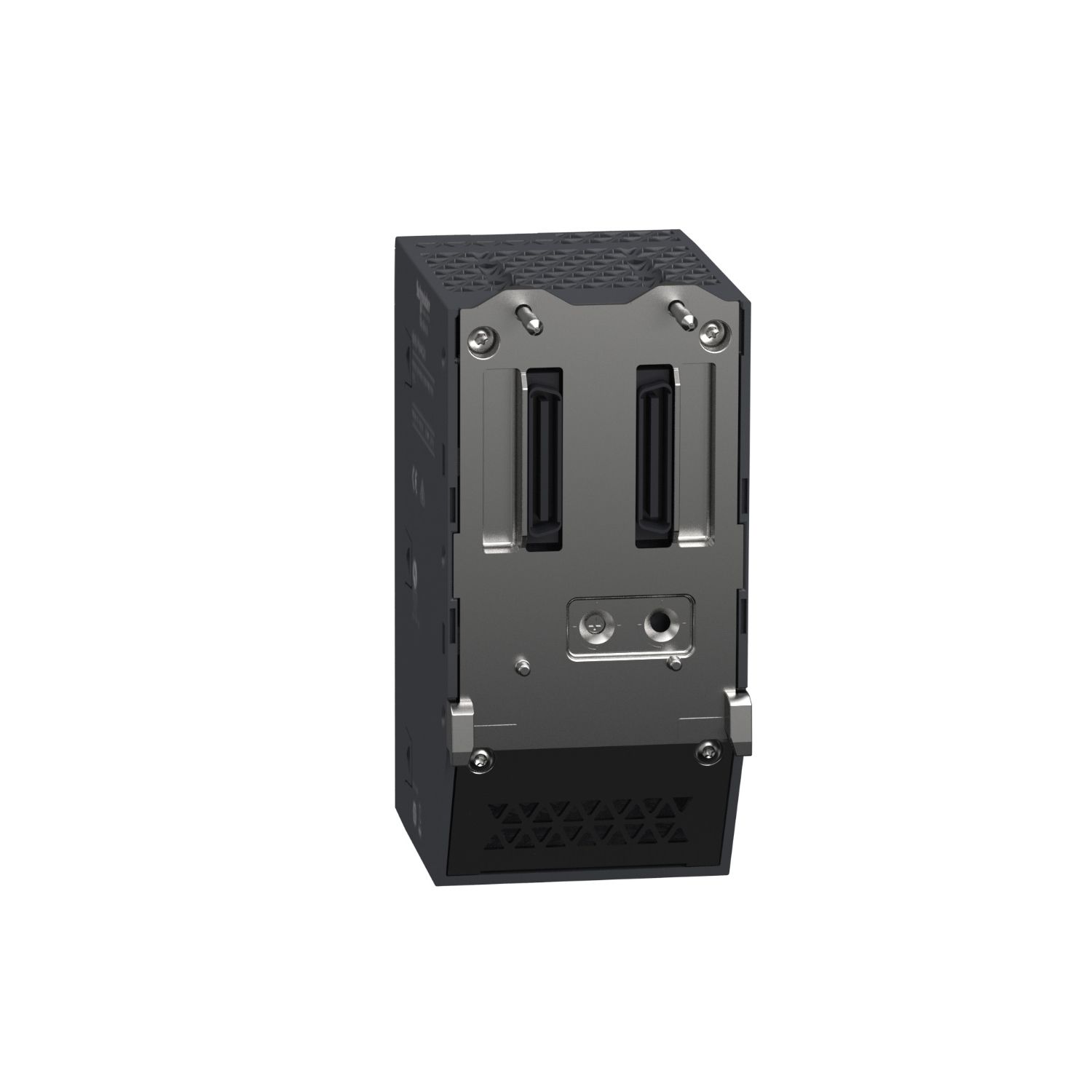

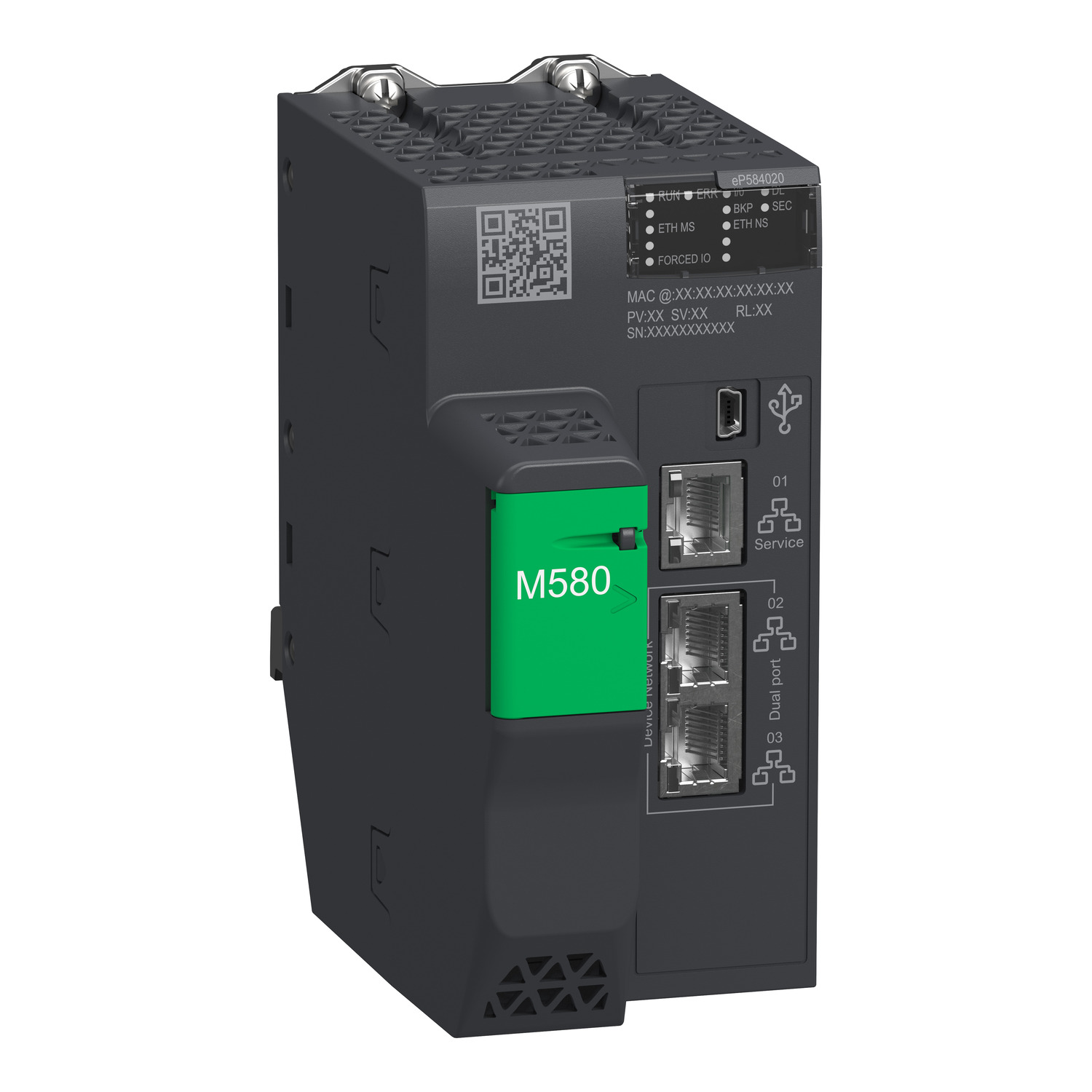

standalone processor, Modicon M580, 16MB, 125 Ethernet devices, 8 local IO racks of 4096 digital, 1024 analog

Please Contact Sales to buy this Product. click here

Product Selector

standalone processor, Modicon M580, 16MB, 125 Ethernet devices, 8 local IO racks of 4096 digital, 1024 analog

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 18-Oct-2024

User guide

Declaration of conformity

End of life manual

Catalogue

Product environmental

Product Page Link

Product Data Sheet

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 144 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 4096 discrete, 1024 analogue local I/O channels and 128 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Product or component type	processor module
Complementary
Number of application specific channel	144
Memory description	integrated RAM, 2048 kB for data, integrated RAM, 16 MB for program, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage
Control channels	programmable loops
Analogue I/O processor capacity	1024 I/O
Number of instructions per ms	40 Kinst/ms 100 % Boolean, 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
Application specific I/O	counter, motion control, serial link, SSI encoder, accurate time stamping, HART
Application structure	128 event tasks, 1 periodic fast task, 2 auxiliary tasks, 1 cyclic/periodic master task
Marking	CE
Number of racks	8
Communication service	DIO scanner
Number of distributed equipment	128
MTBF reliability	775000 H
Checks	process control
Discrete I/O processor capacity	4096 I/O
Cybersecurity	security log, secure communiction (HTTPS), port hardening, password protection, firmware signature, embedded firewall, audit trail, transport layer security, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified
Integrated connection type	USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption	295 mA at 24 V DC
Communication module processor capacity	4 Ethernet communication module, 8 AS-Interface module
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Status LED	1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	0.849 kg
Vibration resistance	3 gn
Environmental characteristic	hazardous location class I division 2
Shock resistance	30 gn
Supply	internal power supply via rack
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.000 cm
Package 1 Width	18.000 cm
Package 1 Length	25.000 cm
Package 1 Weight	874.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.729 kg
