SKU:

BMEP585040

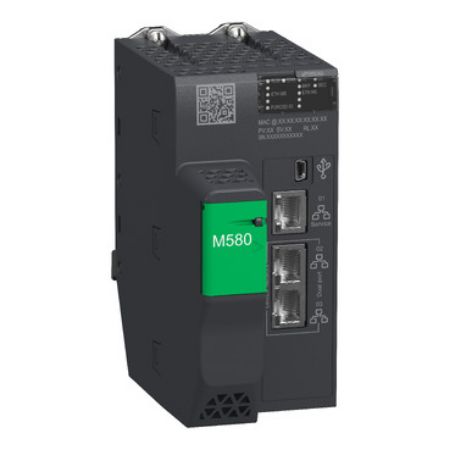

standalone processor, Modicon M580, 24MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum

Please Contact Sales to buy this Product. click here

Product Selector

standalone processor, Modicon M580, 24MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

User guide

Declaration of conformity

Catalogue

End of life manual

Product environmental

Product Page Link

Product Data Sheet

This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 180 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 5120 discrete, 1280 analogue local I/O channels and 64 distributed equipment. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 - 2 racks per remote drop for I/O station. It has an integrated RAM of 24MB for program, 4096kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon M580
Product or component type	processor module
Complementary
Number of application specific channel	180
Memory description	integrated RAM, 4096 kB for data, integrated RAM, 24 MB for program, integrated RAM, 10 kB for system memory, expandable flash, 4 GB for data storage
Control channels	programmable loops
Analogue I/O processor capacity	1280 I/O
Number of instructions per ms	60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean
Application specific I/O	accurate time stamping, HART, serial link, motion control, SSI encoder, counter
Number of remote I/O station	31 - 2 rack(s) per remote drop
Application structure	2 auxiliary tasks, 1 cyclic/periodic master task, 128 event tasks, 1 periodic fast task
Marking	CE
Number of racks	8
Communication service	RIO scanner, DIO scanner
Number of distributed equipment	64
MTBF reliability	775000 H
Checks	process control
Discrete I/O processor capacity	5120 I/O
Cybersecurity	security log, secure communiction (HTTPS), port hardening, password protection, firmware signature, embedded firewall, audit trail, transport layer security, Syslog protocol support, SNMP logging, IPSec, DoS prevention, Achilles certified
Integrated connection type	USB type mini B, 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port
Current consumption	300 mA at 24 V DC
Communication module processor capacity	6 Ethernet communication module, 8 AS-Interface module
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications	Merchant Navy, EAC, RCM, CSA, UL, CE
Standards	EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Status LED	1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN)
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Net weight	0.849 kg
Vibration resistance	3 gn
Environmental characteristic	hazardous location class I division 2
Shock resistance	30 gn
Supply	internal power supply via rack
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.8 cm
Package 1 Width	17.8 cm
Package 1 Length	25.2 cm
Package 1 Weight	879.0 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.714 kg
