SKU:

BMEXBP1200

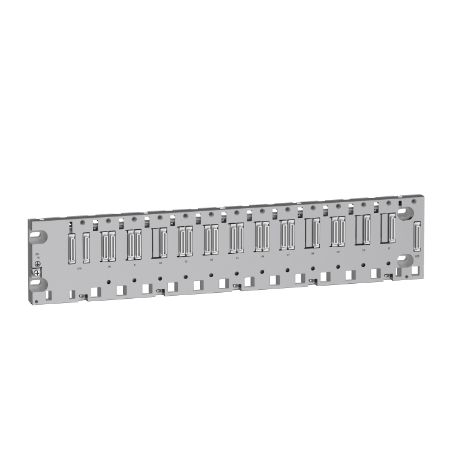

rack, Modicon X80, 12 slots, Ethernet backplane

Please Contact Sales to buy this Product. click here

Product Selector

rack, Modicon X80, 12 slots, Ethernet backplane

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Product environmental

User guide

Catalogue

Declaration of conformity

End of life manual

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon X80
Accessory / separate part type	rack
Complementary
Product compatibility	BME processor, BMX processor, BMXCPS power supply, specific application module, I/O module
Power consumption in W	3.9 W 24 V DC, 283 mW 3.3 V DC
Fixing mode	by 4 screws - diameter: 4.32-6.35 mm, mounting on panel, by 4 M6 screws, mounting on plate
MTBF reliability	1166108 H
Net weight	1.377 kg
Current consumption	86 mA at 3.3 V DC, 164 mA at 24 V DC
Number of slots	4 bus X, 8 bus X + Ethernet
Electrical connection	1 connector (XBE) expansion module
Environment
IP degree of protection	IP20
Relative humidity	5-95 % without condensation
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	0-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.000 cm
Package 1 Width	16.000 cm
Package 1 Length	56.500 cm
Package 1 Weight	1.380 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.860 kg
