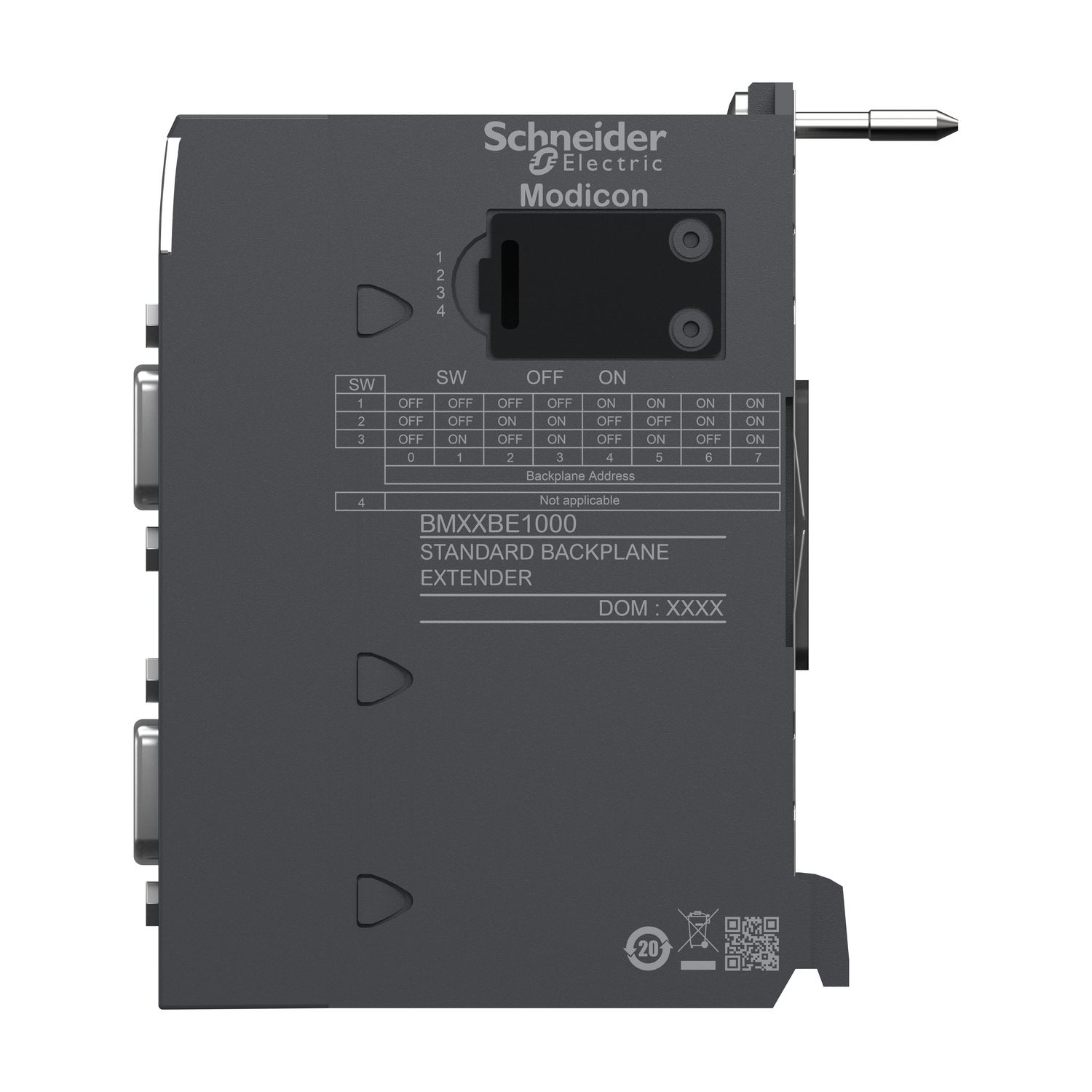

Picture of backplane expander, Modicon M340, for multiracks configuration

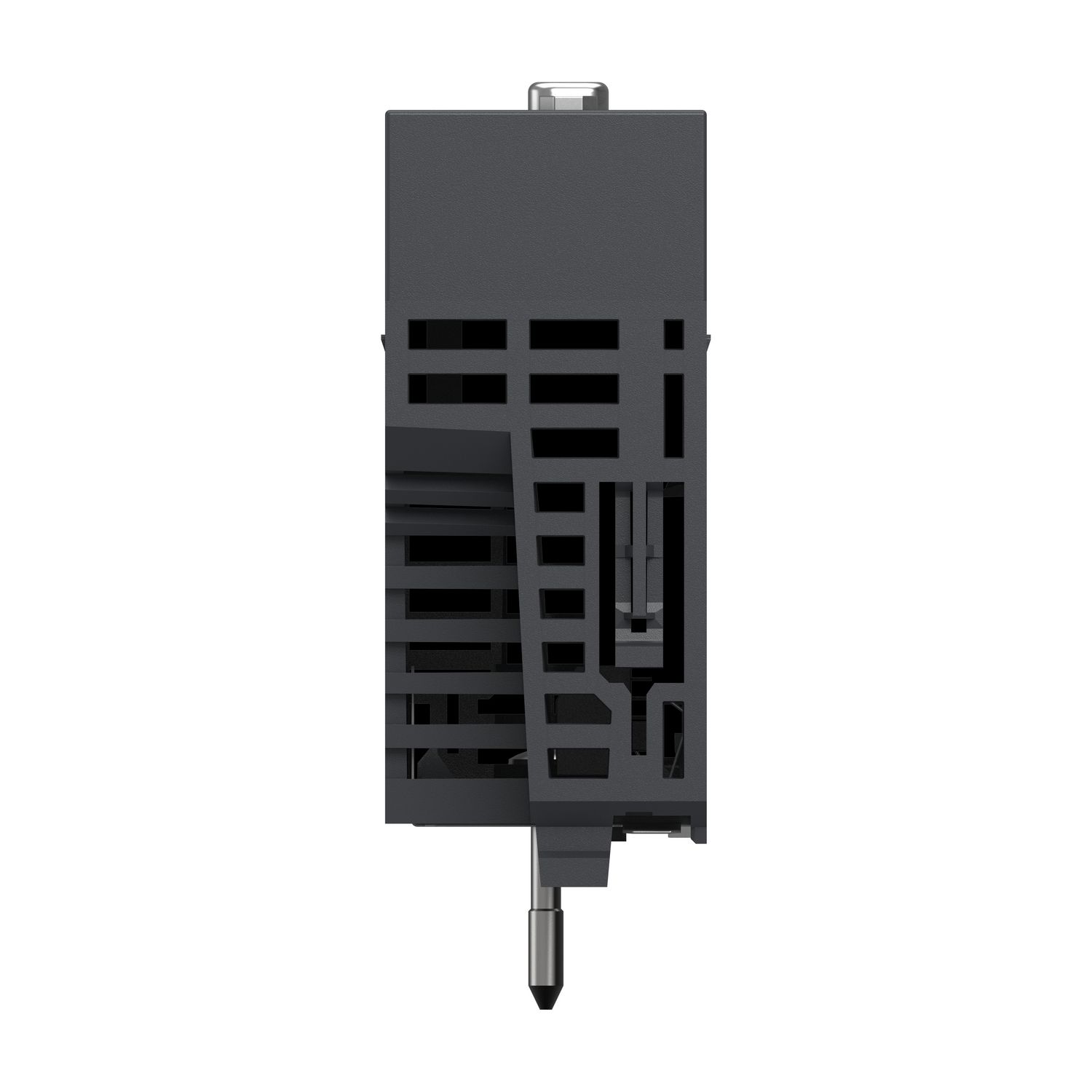

Picture of backplane expander, Modicon M340, for multiracks configuration

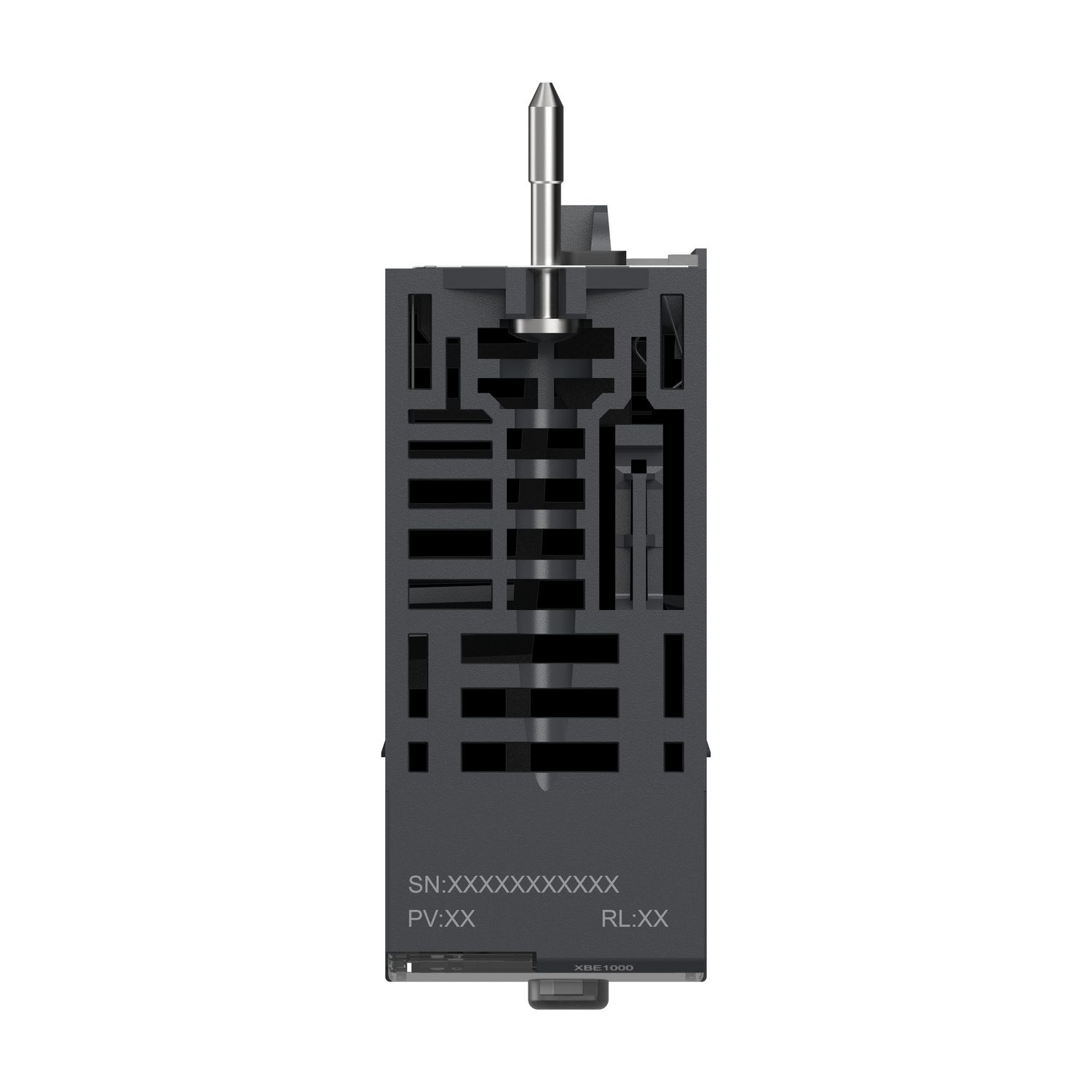

Picture of backplane expander, Modicon M340, for multiracks configuration

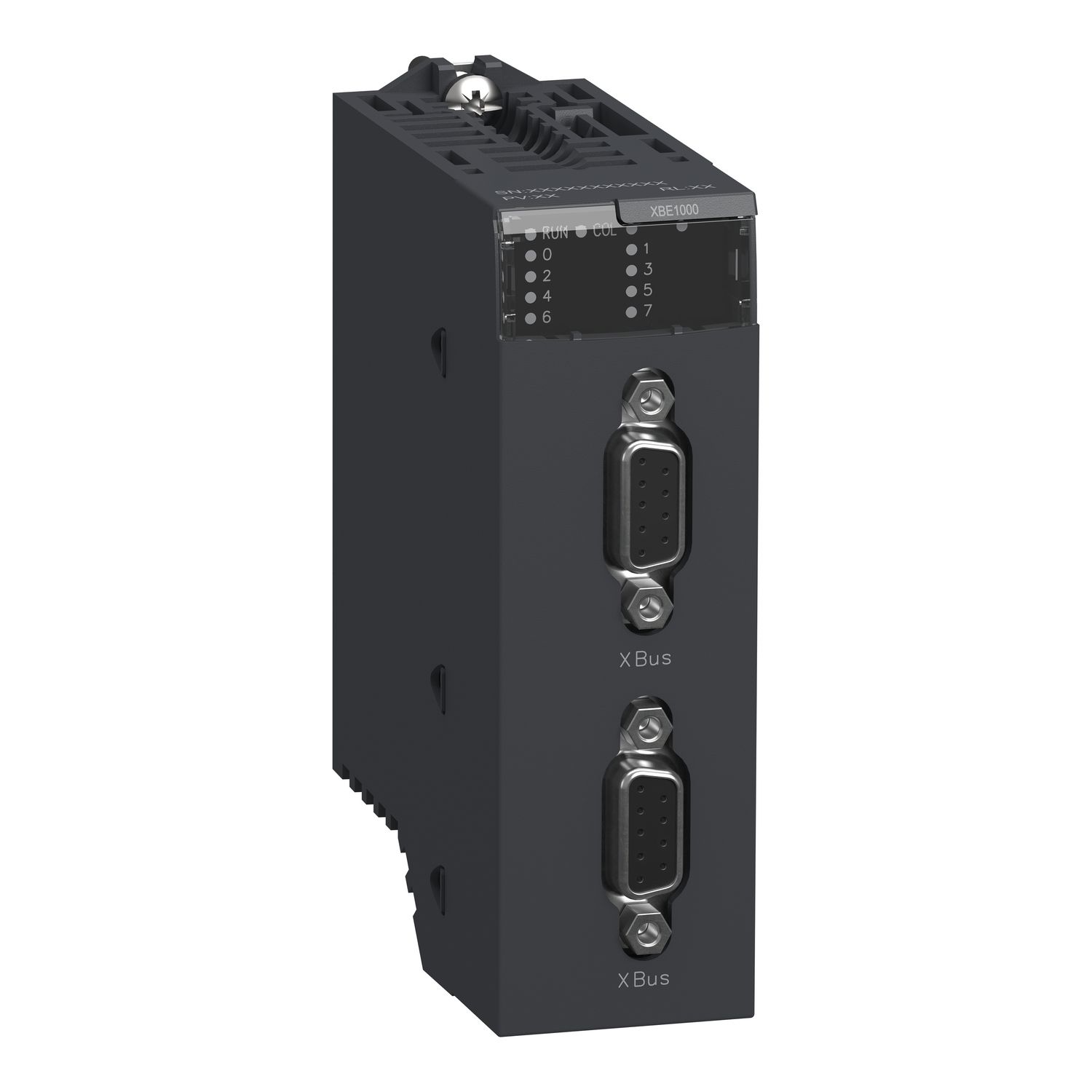

Picture of backplane expander, Modicon M340, for multiracks configuration

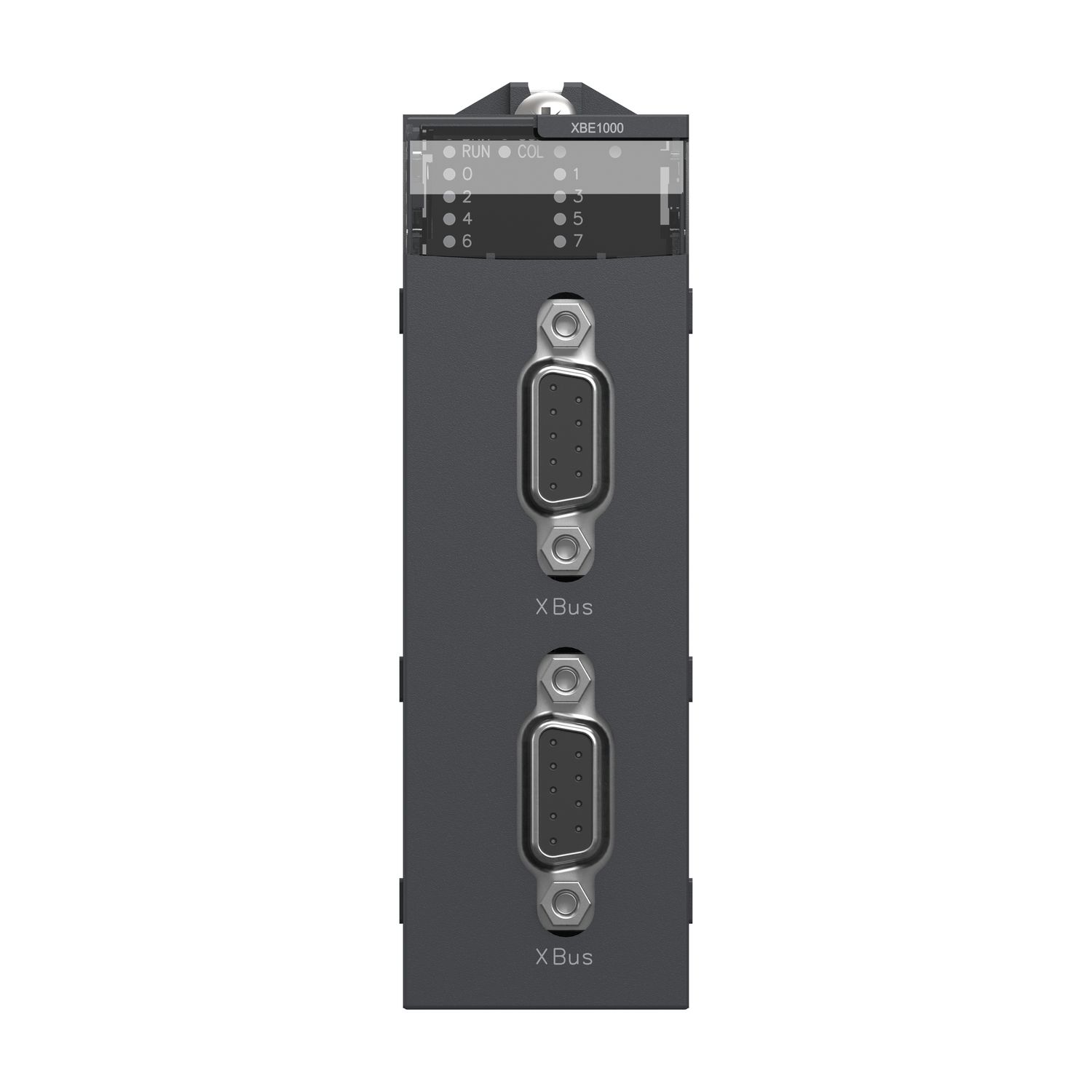

Picture of backplane expander, Modicon M340, for multiracks configuration

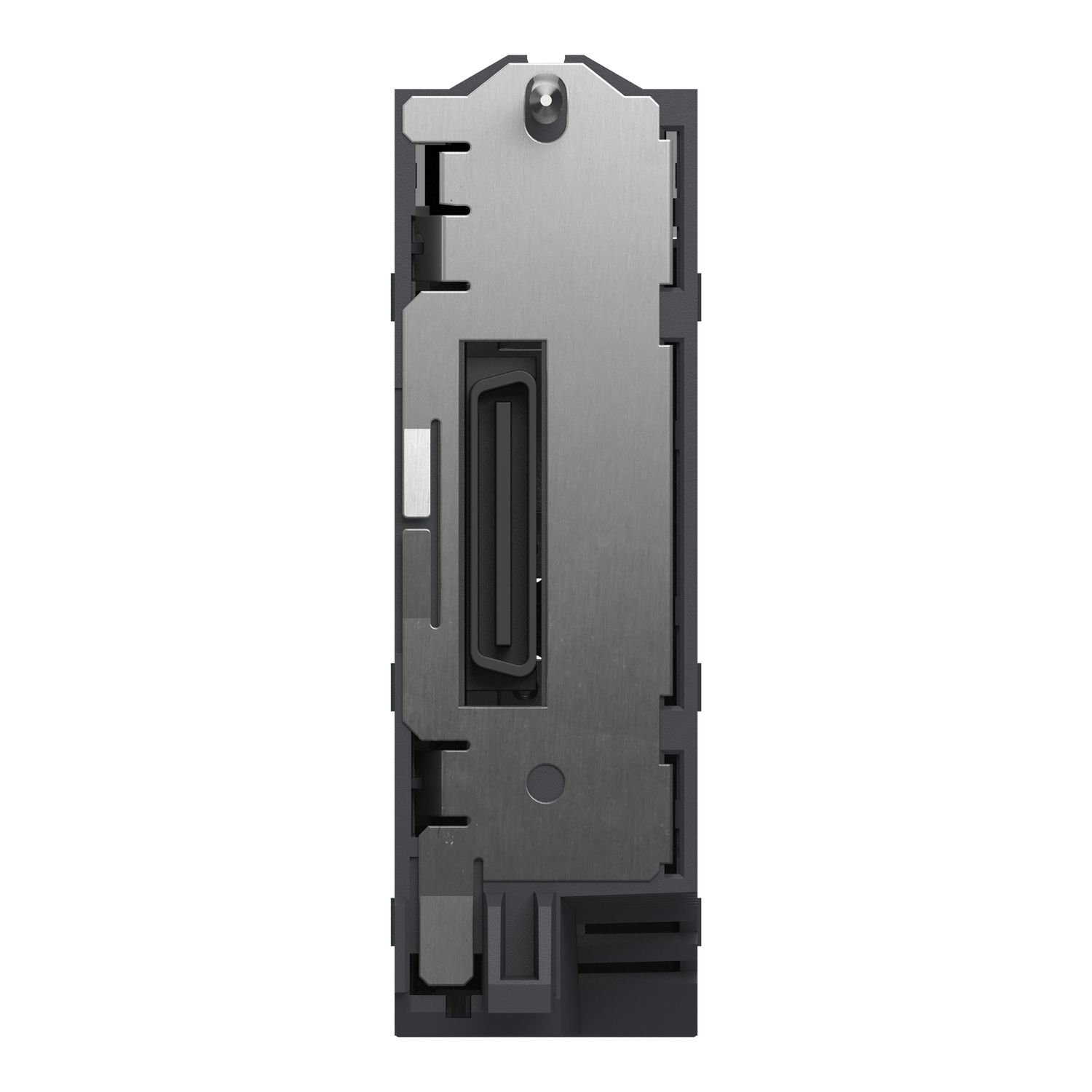

Picture of backplane expander, Modicon M340, for multiracks configuration

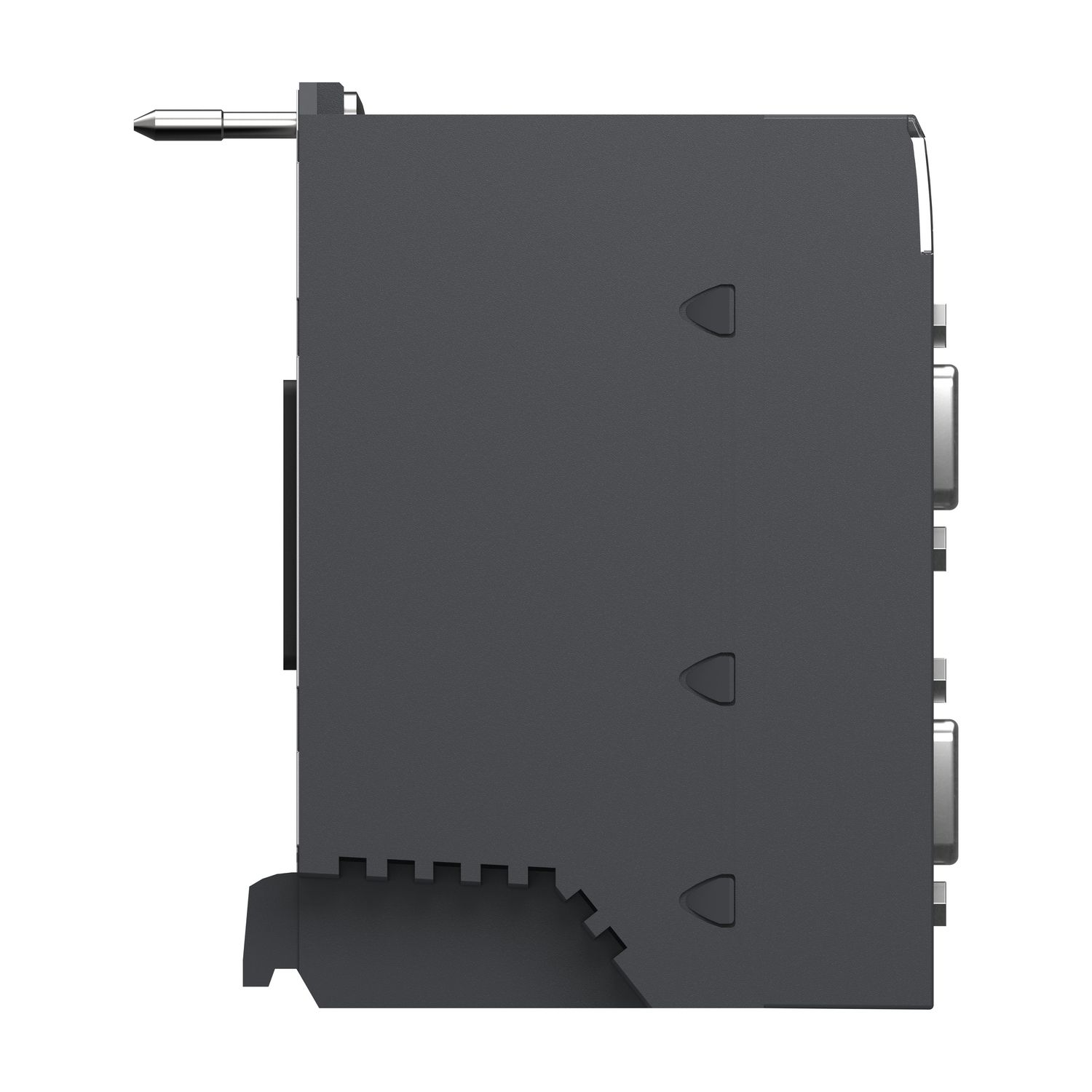

Picture of backplane expander, Modicon M340, for multiracks configuration
Picture of backplane expander, Modicon M340, for multiracks configuration
SKU:

BMXXBE1000

backplane expander, Modicon M340, for multiracks configuration

Please Contact Sales to buy this Product. click here
backplane expander, Modicon M340, for multiracks configuration
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Image of product
Image of product
Declaration of conformity
Image of product
User guide
Product environmental
CAD
End of life manual
Image of product
Catalogue
Image of product
Product Page Link
Product Data Sheet
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part destinationfor multiracks configuration
Accessory / separate part typebackplane
Product compatibilityBMXXBP1200, BMXXBP0800, BMXXBP0400, BMXXBP0600
Accessory / separate part categoryextension accessory
Accessory / separate part designationbackplane expander
Range of productModicon M340 automation platform
Complementary
Module formatstandard
Local signalling4 LEDs green for rack adresses status, 1 LED red for collision error (COL) rack, 1 LED green for operating status (RUN) bus
Current consumption22 mA at 3.3 V DC, 160 mA at 24 V DC
Electrical connection2 female connectors SUB-D 9
Environment
IP degree of protectionIP20
Protective treatmentTC
Relative humidity10-95 % without condensation
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristichazardous location class I division 2
Product certificationsMerchant Navy, EAC, RCM, CSA, UL, CE
StandardsEN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN 61131-2
Ambient air temperature for operation0-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.500 cm
Package 1 Width11.000 cm
Package 1 Length11.500 cm
Package 1 Weight173.000 g
Unit Type of Package 22
Number of Units in Package 215
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.910 kg
