Modicon MC80, Controller, 8 DI, 12 DO, 4 AI

Please Contact Sales to buy this Product. click here
Modicon MC80, Controller, 8 DI, 12 DO, 4 AI
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
User guide
Catalogue
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet

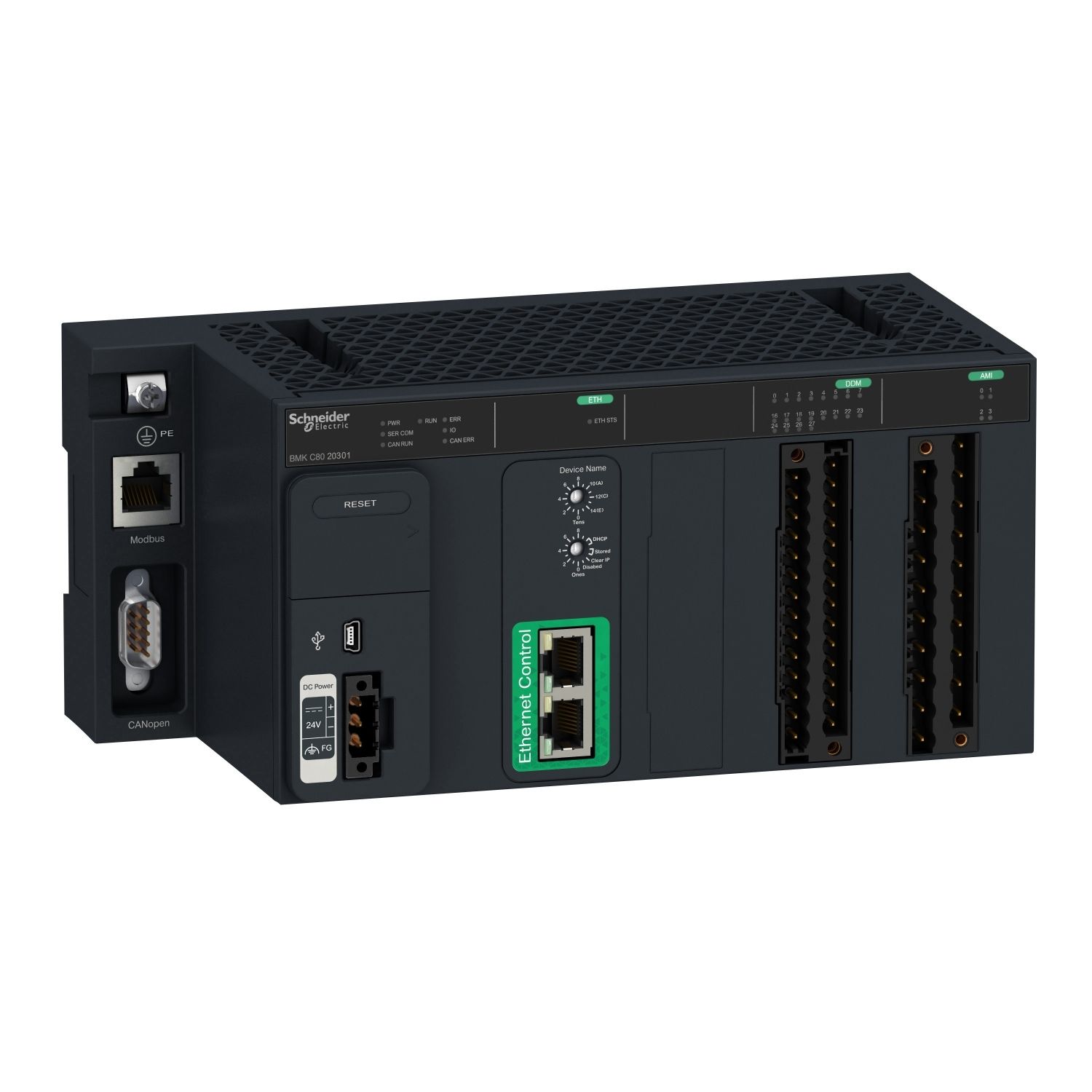

This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. It integrates 4 channels for analog inputs in addition to discrete I/O channels. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.05kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal blocks with 20 or 28 pins Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.

Products specifications

Attribute nameAttribute value
Main
Range of productModicon MC80
Product specific applicationthermo solar - parabolic through
Product or component typeprocessor module
Complementary
Memory descriptioninternal RAM 3590 kB program constants and symbols, internal RAM 128 kB data, internal RAM 3840 kB
Bus length0-100 m, communication port: Ethernet, 0-2500 m, transmission rate: 20 kbit/s, communication port: CANopen, 0-20 m, transmission rate: 1 Mbit/s, communication port: CANopen, 0-1000 m serial link isolated with external isolation tap, 0-15 m serial link non isolated, 0-10 m serial link non isolated
Realtime clockwith
Analogue input resolution16 bits
Fast read cycle time1.3 ms + 1.3 ms x number of channels used
[Us] rated supply voltage24 V - 15...20 % DC
Function availablememory retention without battery
Discrete output voltage19...30 V DC
Discrete output current10 A per module, 2 A per output
Protection typeshort-circuit protection for output, overload protection for output
Communication port protocol2 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, 1 CANopen, connector type: SUB-D 9, transmission rate: 20 kbit/s...1 Mbit/s for connecting 16 devices, 1 non isolated serial link, connector type: RJ45, communication port: RS485/RS232, transmission rate: 0.3...19.2 kbit/s for connecting 247 devices
Discrete input voltage19...30 V DC
Discrete input typetype 3
Analogue input typevoltage, input range: - 10...10 V, current, input range: - 20...20 mA
Port Ethernet10BASE-T/100BASE-TX
Product compatibilityBMXFTB28... terminal block discrete I/O module, BMXFTB20... terminal block analog input module
Nominal read cycle time6.5 ms for 4 channels
Execution time per instruction0.08 µs mixed, 0.06 µs Boolean
Isolation voltage1500 V DC
Analogue input number4
Communication serviceRSTP support for Ethernet, SNMP for Ethernet, FDR client for Ethernet, Service Data Object (SDO) for CANopen, Process Data Object (PDO) for CANopen, send/receive character string for character mode, diagnostics for Modbus, read/write variables for Modbus
Current consumption<= 700 mA
Discrete input current2.4 mA
Discrete input number8 positive logic (sink)
Discrete output number12 positive
Integrated connection typeUSB port: mini B USB connector
Environment
Ambient air temperature for storage-40-85 °C
Relative humidity0-95 %
Vibration resistance3 gn
MarkingCE
Ambient air temperature for operation-25-70 °C
StandardsCSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2, UL 508, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C
Product certificationsRCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height14.4 cm
Package 1 Width11.8 cm
Package 1 Length27.2 cm
Package 1 Weight1.19 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight7581 kg
Unit Type of Package 33
Number of Units in Package 348
Package 3 Height70 cm
Package 3 Width60 cm
Package 3 Length80 cm
Package 3 Weight69148 kg
