SKU:

BMXAMI0410

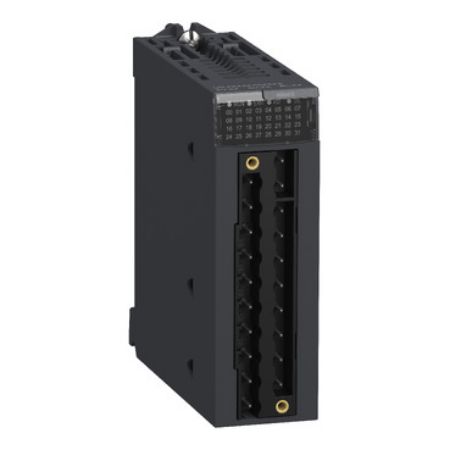

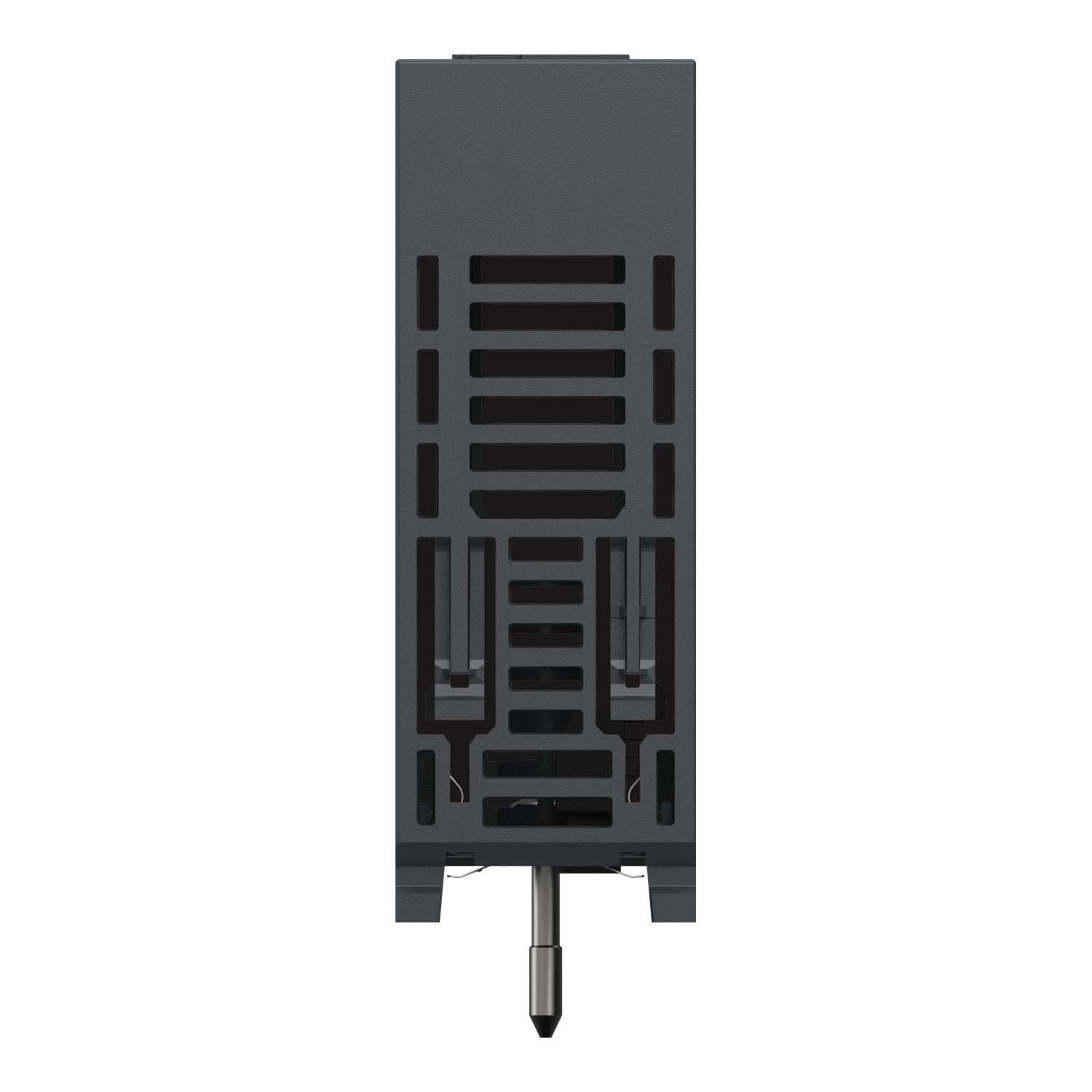

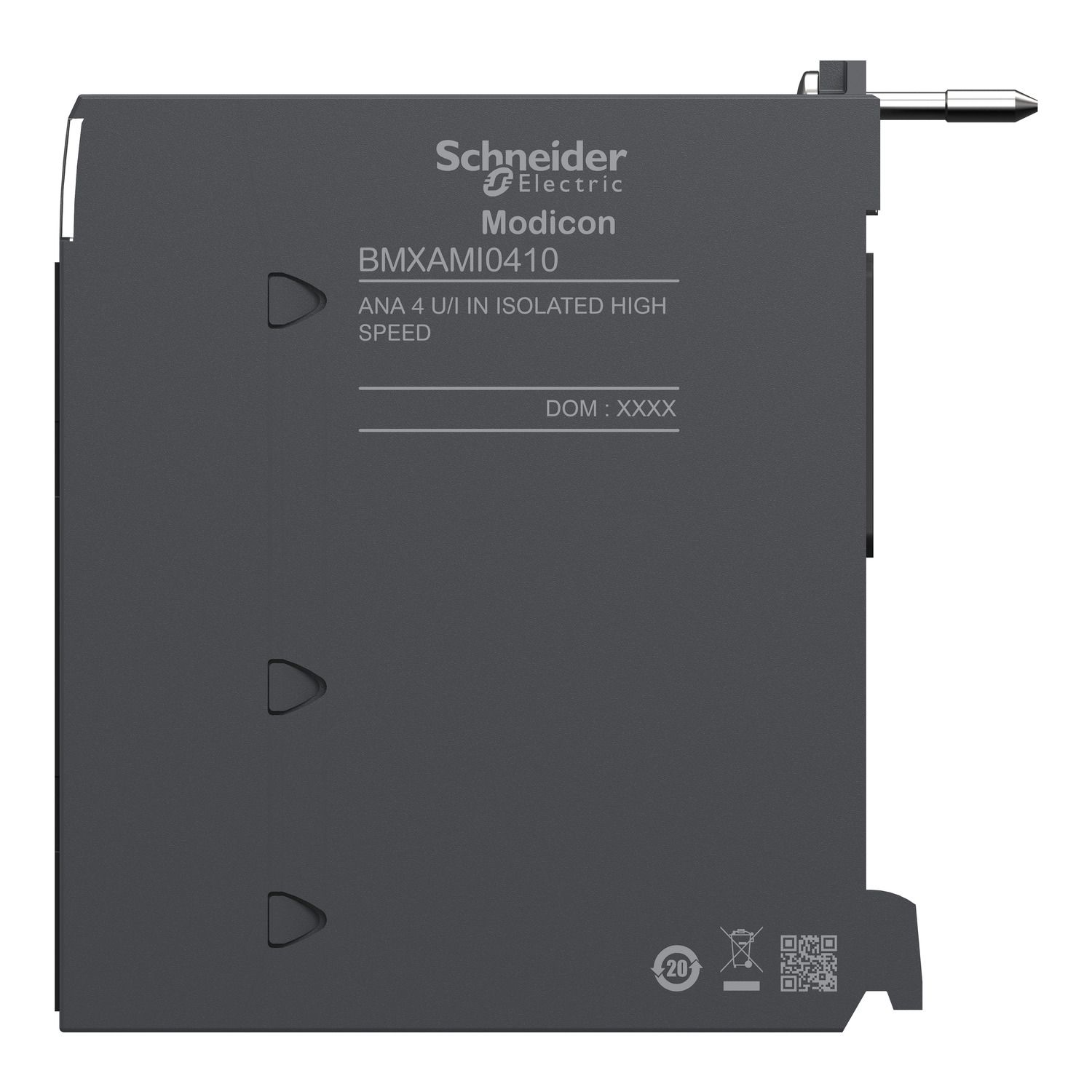

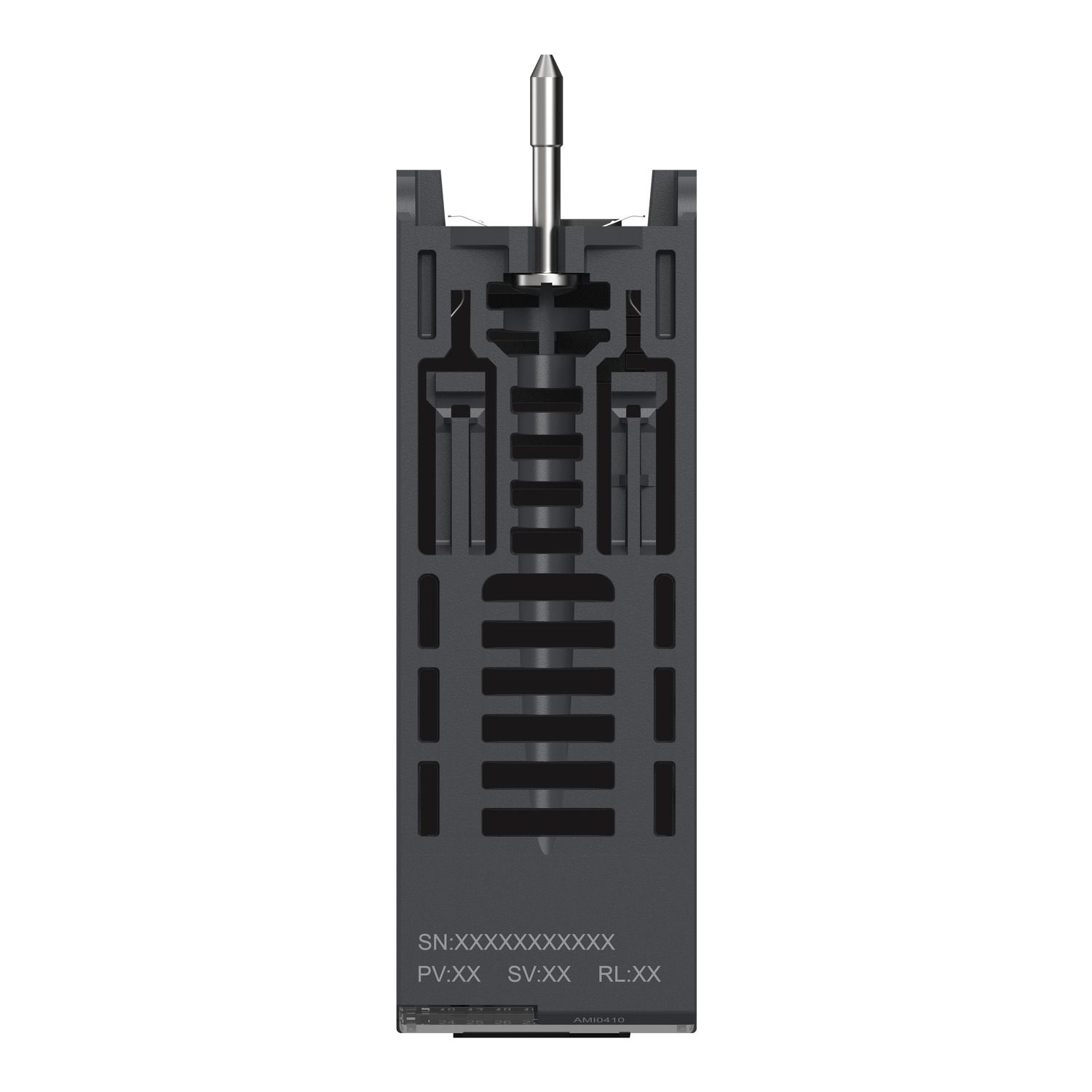

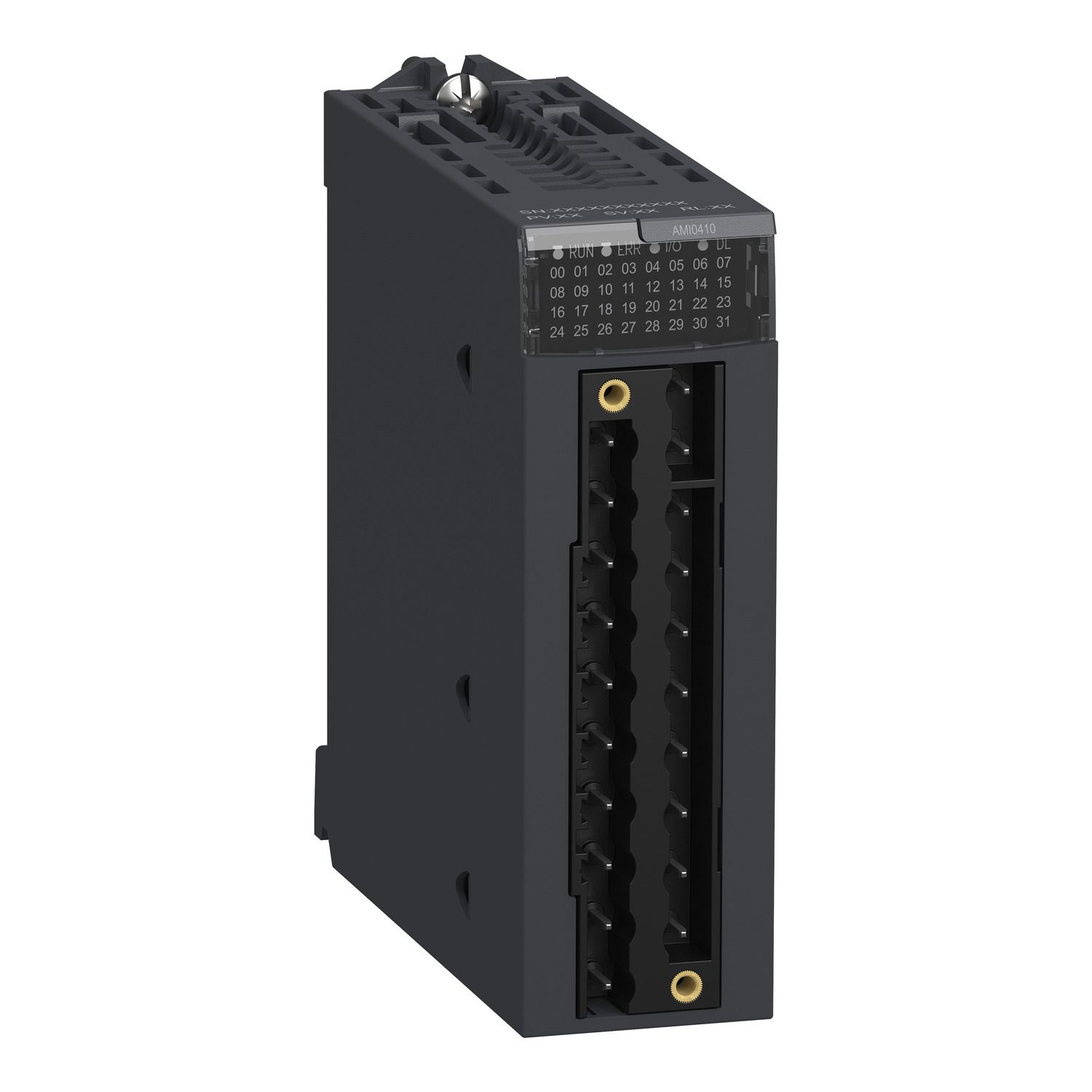

analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

$1,621.73 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

User guide

Declaration of conformity

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name	Attribute value
Main
Analogue input type	voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA, current +/- 20 mA
Analogue input number	4
Input output isolation	isolated

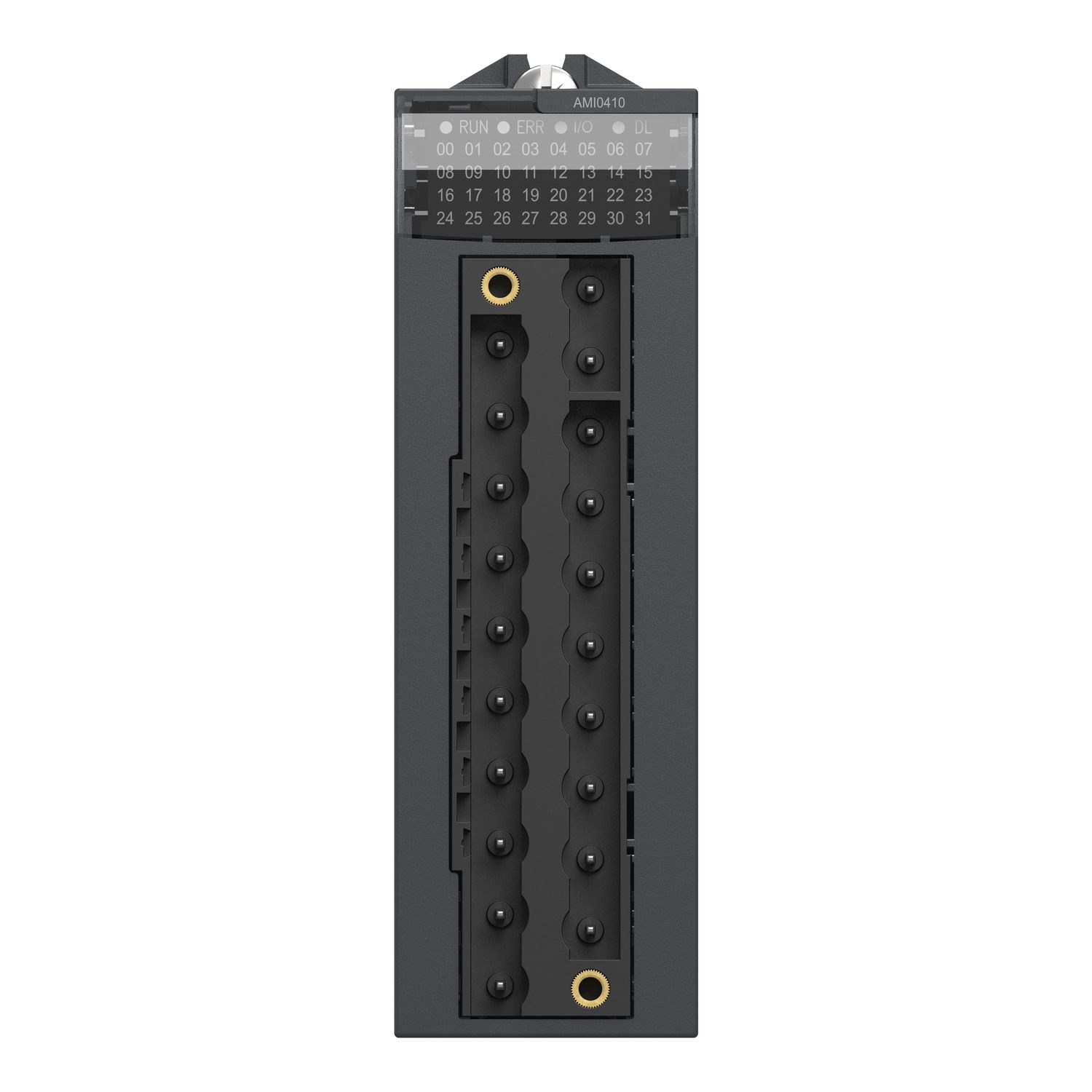

Electrical connection	20 ways 1 connector
Input level	high level
Product or component type	analog input module
Range of product	Modicon X80
Complementary
Permitted overload on inputs	+/- 90 mA 4...20 mA, +/- 90 mA 0...20 mA, +/- 90 mA +/- 20 mA, +/- 30 V 1...5 V, +/- 30 V 0...5 V, +/- 30 V 0...10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 10 V
Measurement resolution	0.92 µA 4...20 mA, 0.92 µA 0...20 mA, 0.92 µA +/- 20 mA, 0.35 mV 1...5 V, 0.35 mV 0...5 V, 0.35 mV 0...10 V, 0.35 mV +/- 5 V, 0.35 mV +/- 10 V
Analog/digital conversion	24 bits
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Nominal read cycle time	5 ms for 4 channels
Digital value format	+/- 10000 by default, - 32768 to + 32767 in maximum user scale
Power consumption in W	0.48 W 3.3 V DC maximum, 0.32 W 3.3 V DC typical, 1.30 W 24 V DC maximum, 0.82 W 24 V DC typical
Fast read cycle time	1 ms + 1 ms x number of channels used
Isolation voltage	1400 V DC between channels and bus, 1400 V DC between channels and ground, 300 V DC between channels
Input impedance	250 Ohm + 3.6...50 Ohm internal protective resistor in current mode, 10 MOhm in voltage mode
Net weight	0.143 kg
Minimum crosstalk attenuation	80 dB
Analogue input resolution	16 bits
Current consumption	45 mA at 24 V DC, 150 mA at 3.3 V DC
Common mode rejection	90 dB
Recalibration	internal
Temperature drift	30 ppm/°C 4...20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C +/- 20 mA, 15 ppm/°C 1...5 V, 15 ppm/°C 0...5 V, 15 ppm/°C 0...10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C +/- 10 V
Precision of internal conversion resistor	0.1 % - 15 ppm/°C
Status LED	1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Type of filter	first order digital filtering
Maximum conversion value	0...30 mA 4...20 mA, 0...30 mA 0...20 mA, 0...30 mA +/- 20 mA, +/- 11.4 V 1...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V +/- 10 V
Measurement error	0.15 % of full scale 4...20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale +/- 10 V 25 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C
MTBF reliability	1200000 H
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance	3 gn
Shock resistance	30 gn
Standards	CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation	0-60 °C
Product certifications	UL, Merchant Navy, EAC, CSA, RCM, CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.600 cm
Package 1 Width	11.100 cm
Package 1 Length	11.700 cm
Package 1 Weight	172.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.923 kg
