SKU:

BMXCPS2010

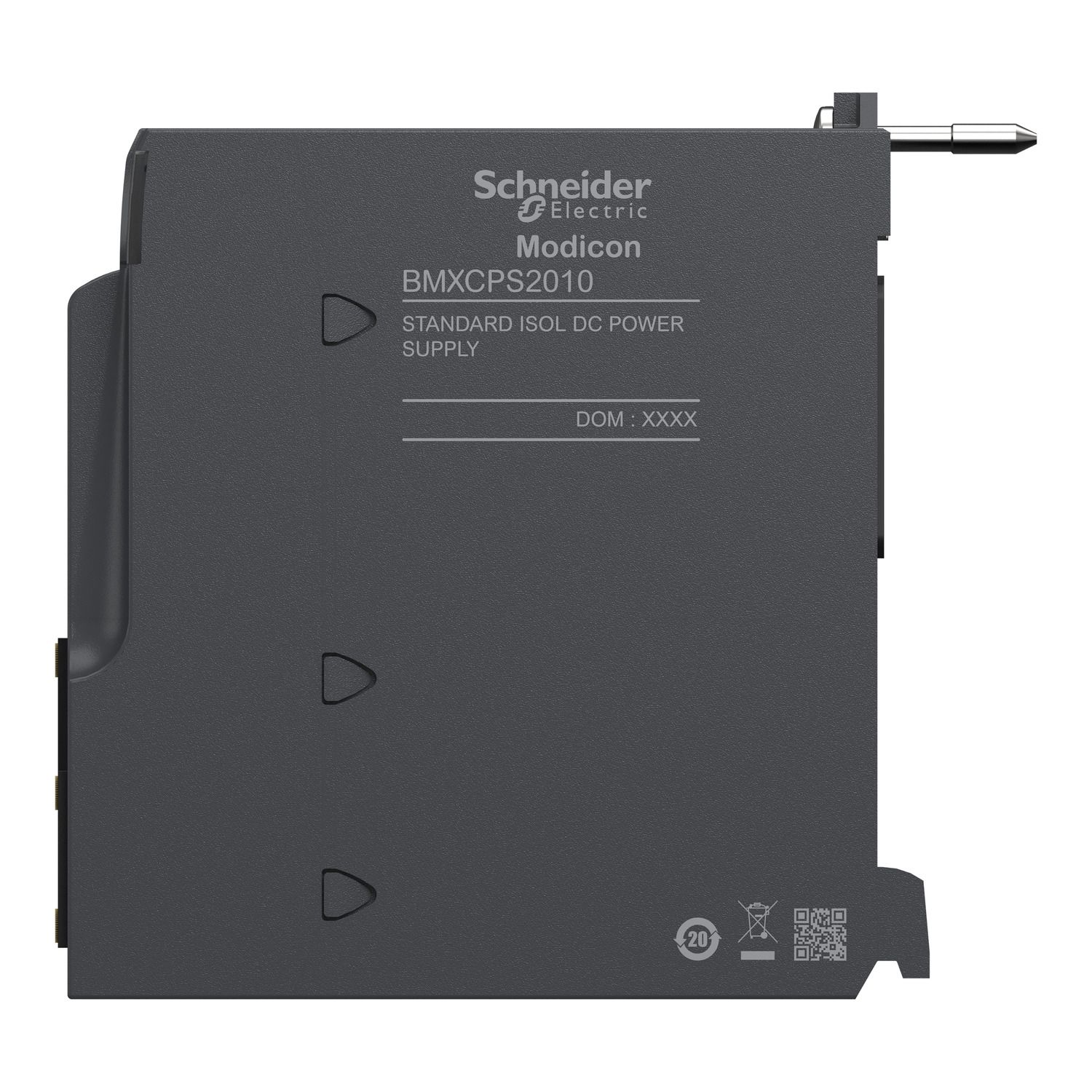

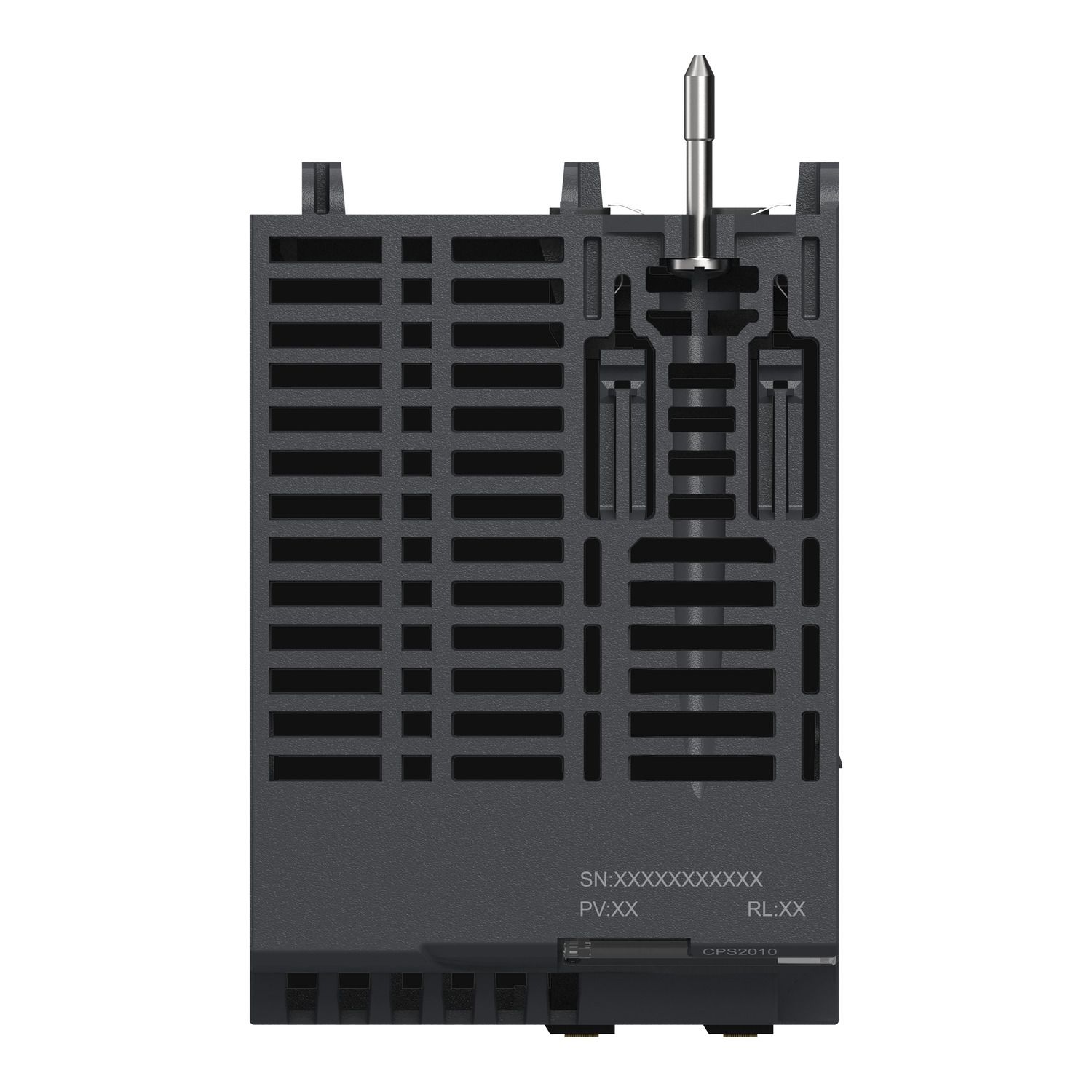

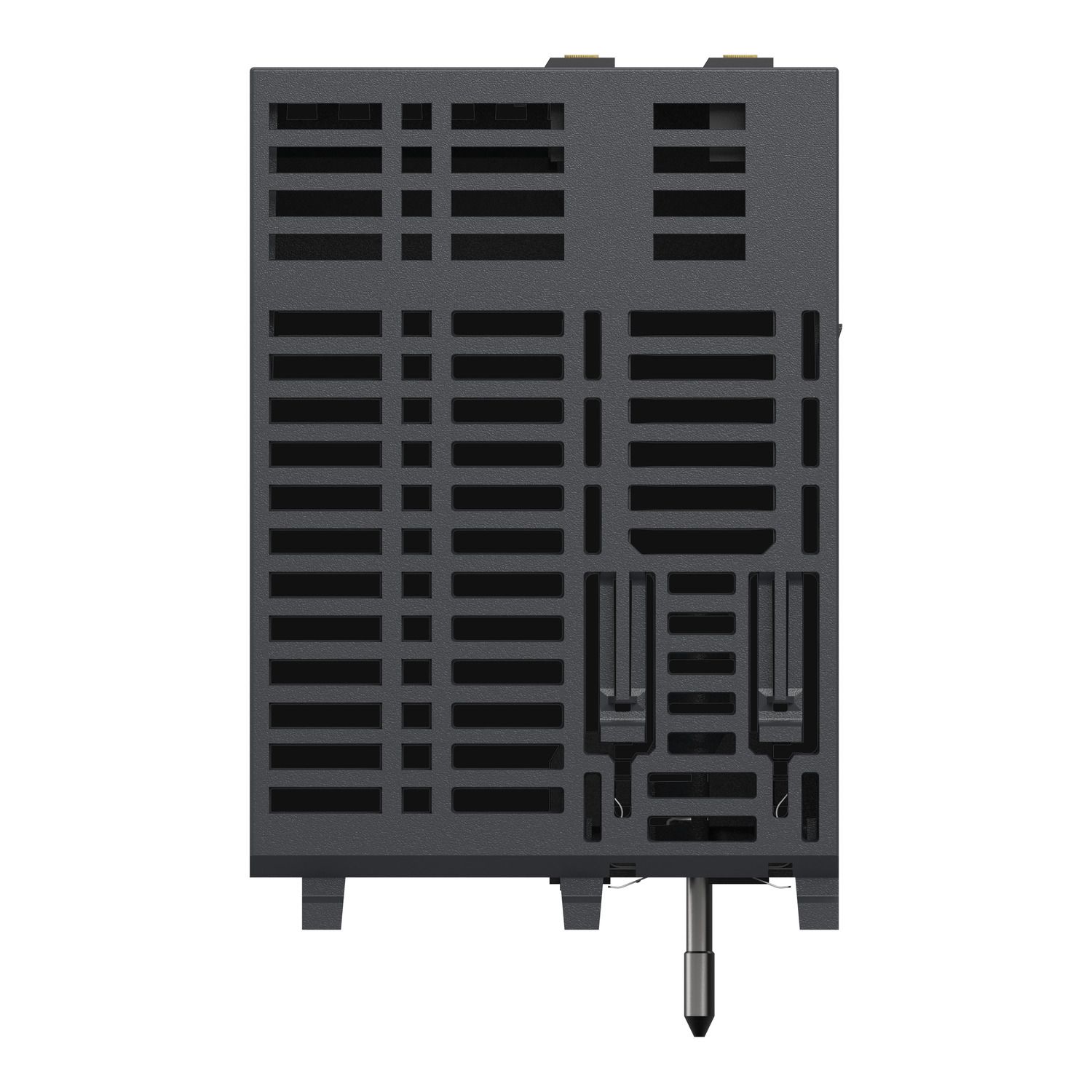

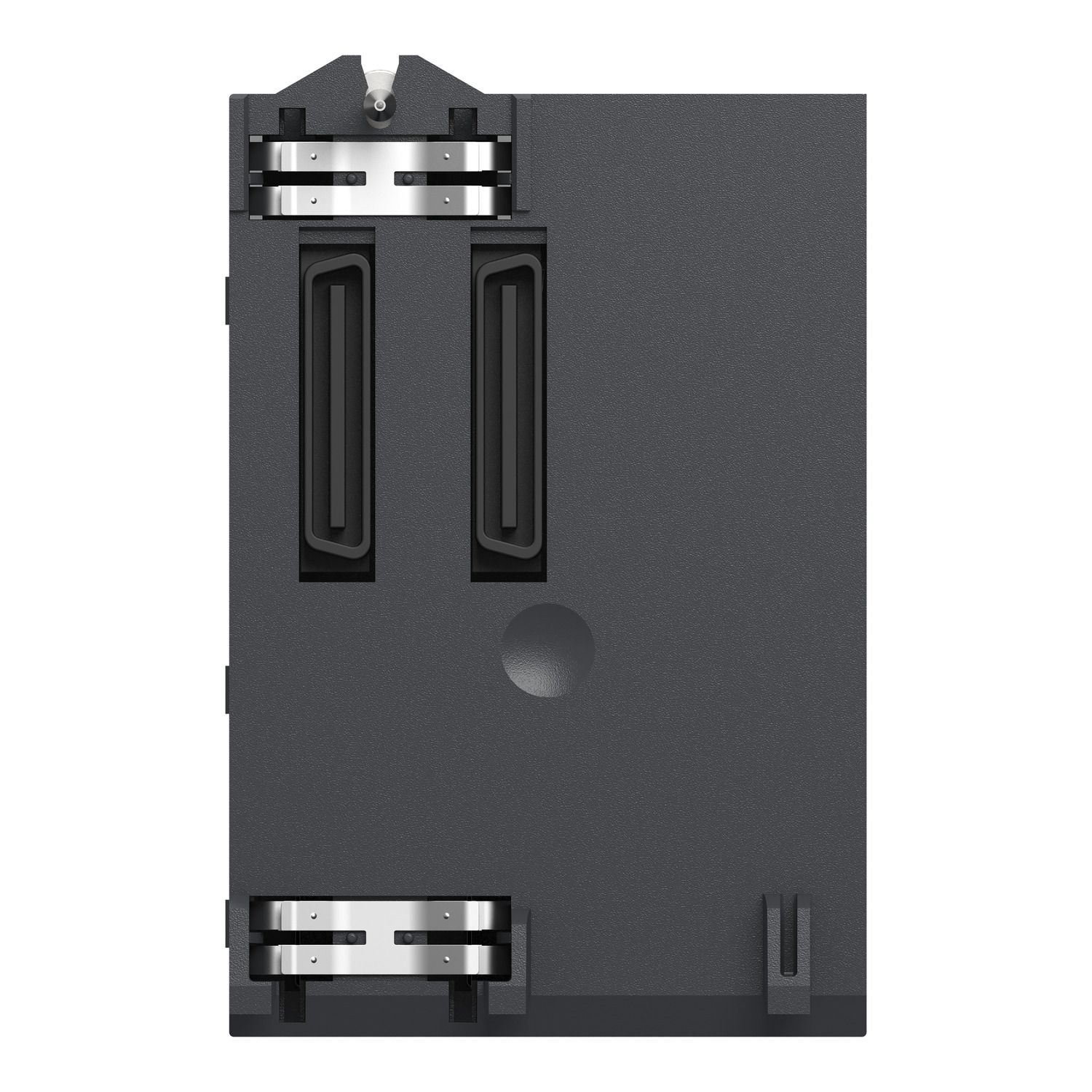

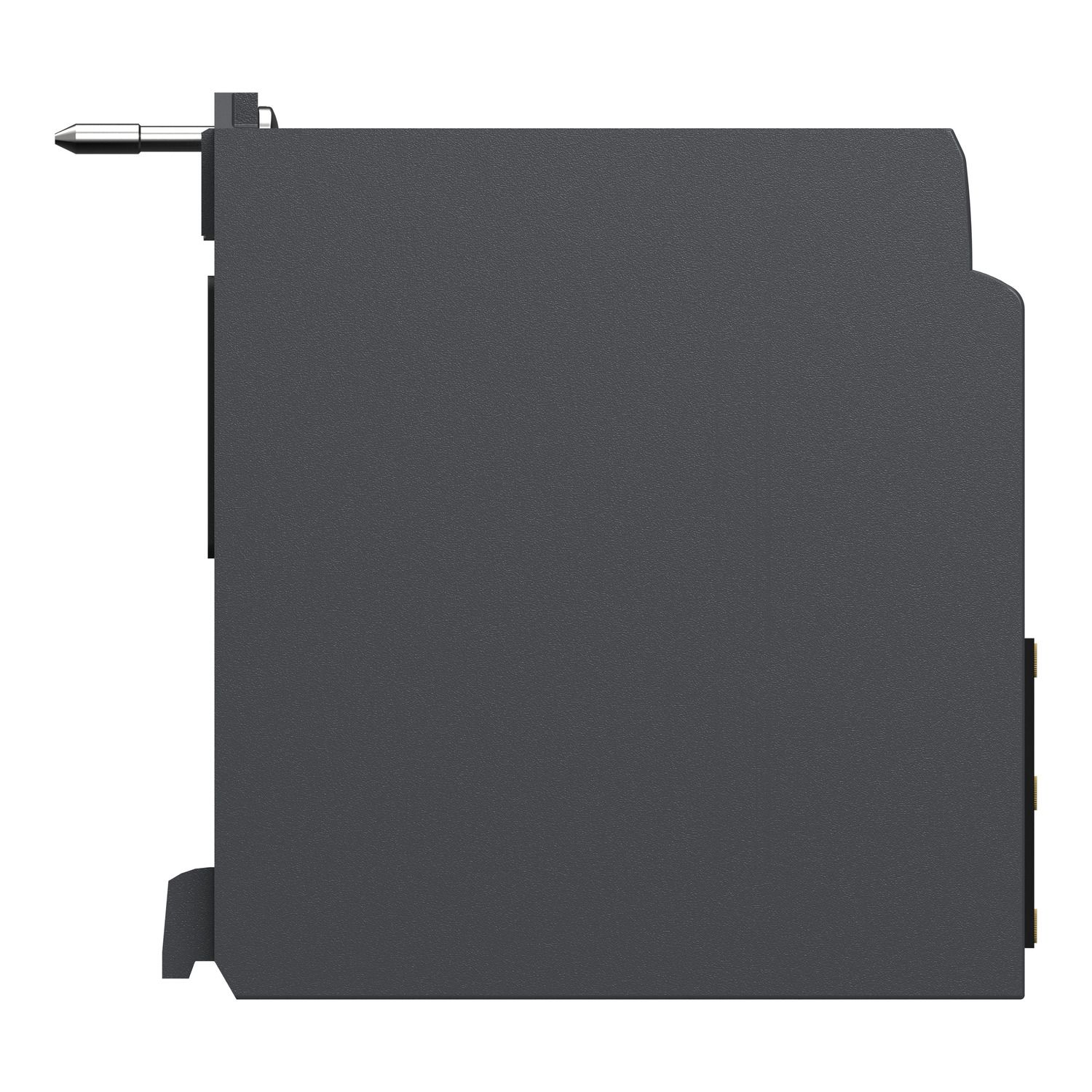

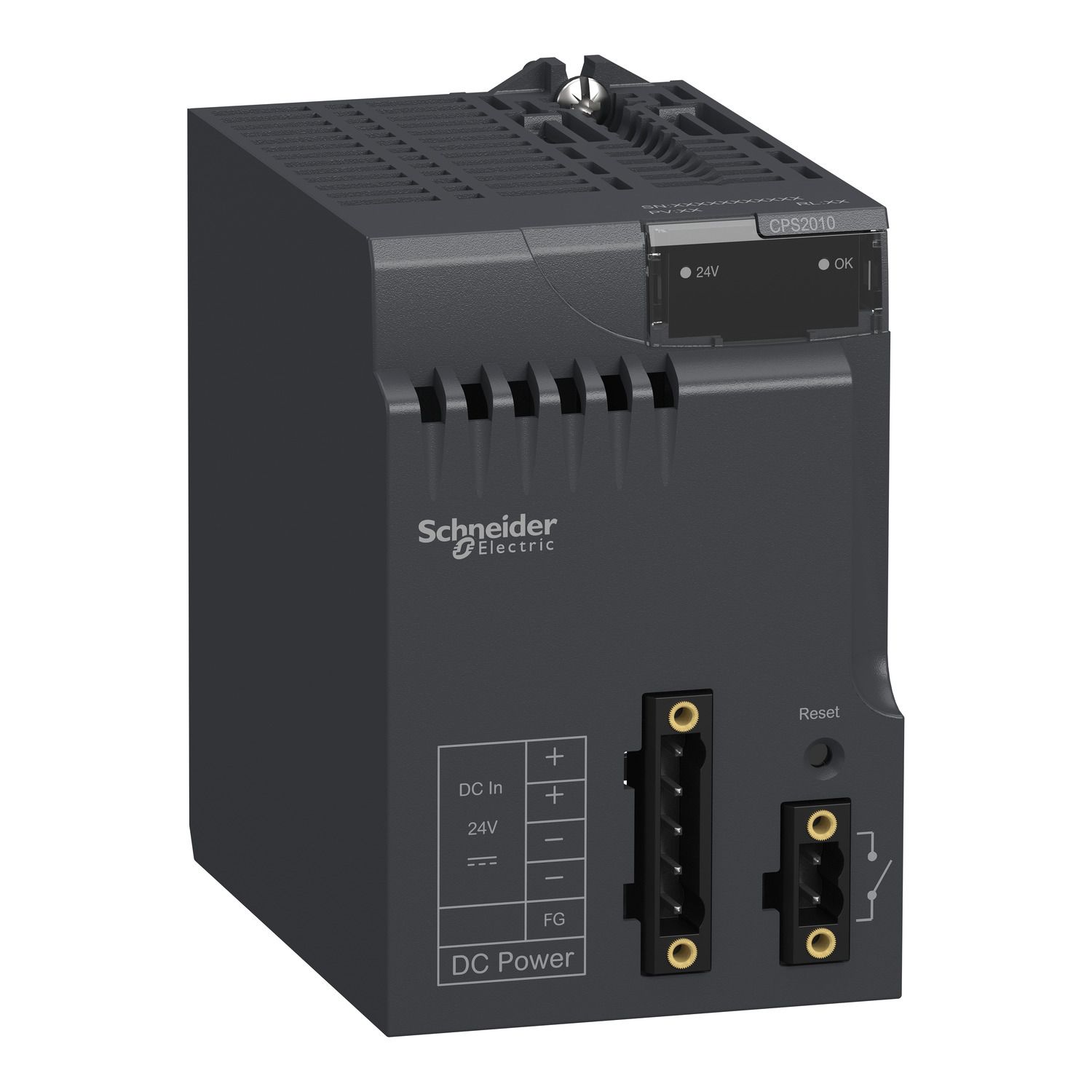

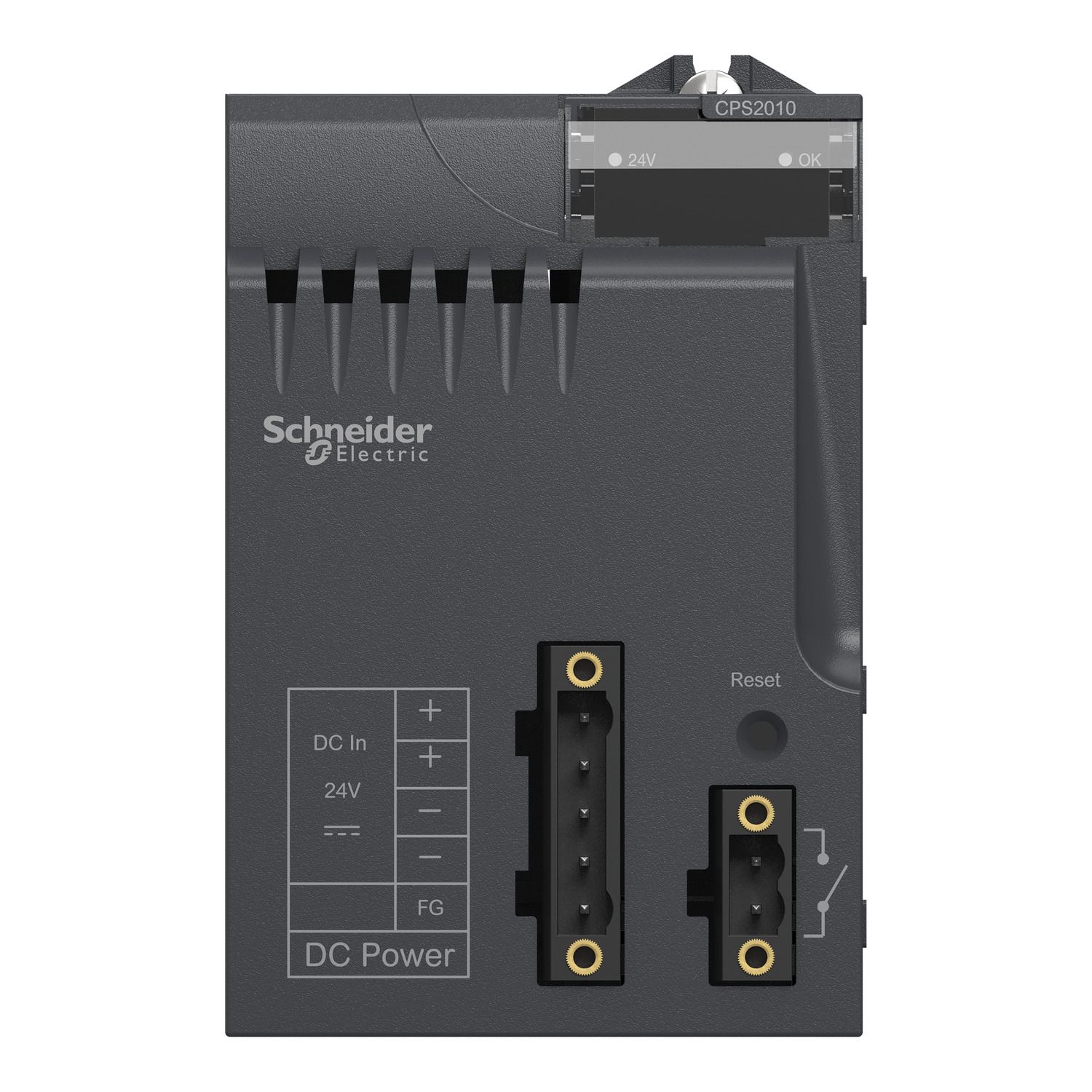

power supply module, Modicon X80, 24V DC, 16.8W

$1,014.53 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
power supply module, Modicon X80, 24V DC, 16.8W
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
User guide
Environmental Disclosure
CAD
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility not compatible with BMEXBP..02
Supply circuit type DC
Secondary power 8.3 W 3.3 V DC I/O module logic power supply, 16.8 W 24 V DC I/O module power supply and processor
Product or component type power supply module
Range of product Modicon X80
Primary voltage 24 V isolated
Complementary
Protection type short-circuit protection for secondary circuit, 24 V sensor power supply, overvoltage protection for secondary circuit, 24 V sensor power supply, overload protection for secondary circuit, 24 V sensor power supply, internal fuse not accessible for primary circuit
Inrush current 30 A 24 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.29 kg
Insulation resistance >= 10 MOhm primary/secondary, >= 10 MOhm primary/ground
Current at secondary voltage 2.5 A 3.3 V DC I/O module logic power supply, 0.7 A 24 V DC I/O module power supply and processor
Input current 1 A 24 V
I²t on activation 0.6 A².s 24 V
Status LED 1 LED (green) rack voltage OK
It on activation 0.15 A.s 24 V
Primary voltage limit 18...31.2 V
Maximum cable distance between devices 30 m power supply cable copper 2.5 mm², 20 m power supply cable copper 1.5 mm²
MTBF reliability 4886000 H
Environment
Dielectric strength 1500 V primary/secondary, 1500 V primary/ground
IP degree of protection IP20
Protective treatment TC
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Shock resistance 30 gn
Immunity to microbreaks 1 ms
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.300 cm
Package 1 Width 13.000 cm
Package 1 Length 15.500 cm
Package 1 Weight 466.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.288 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 35.160 kg
