SKU:

BSH0702P32F2A

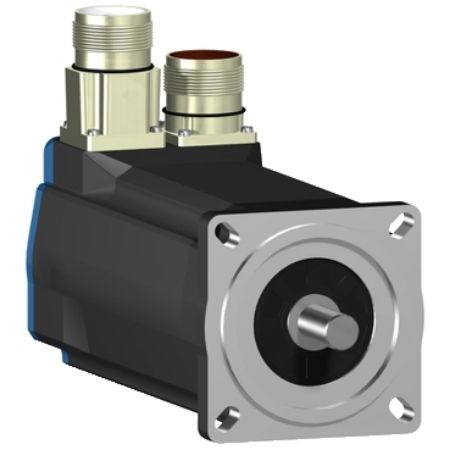

AC servo motor BSH, Lexium 05, 2.2N.m, 3000rpm, keyed shaft, with brake, IP65

Please Contact Sales to buy this Product. click here

Product Selector

AC servo motor BSH, Lexium 05, 2.2N.m, 3000rpm, keyed shaft, with brake, IP65

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 01-Nov-2024

Catalogue

Product environmental

User guide

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	2.2 N.m for LXM15LD13M3, 230 V, single phase, 2.12 N.m for LXM05CD10M3X, 200...240 V, three phase, 2.12 N.m for LXM05CD10M2, 200...240 V, single phase, 2.12 N.m for LXM05BD10M3X, 200...240 V, three phase, 2.12 N.m for LXM05BD10M2, 200...240 V, single phase, 2.12 N.m for LXM05AD10M3X, 200...240 V, three phase, 2.12 N.m for LXM05AD10M2, 200...240 V, single phase, 2.2 N.m for LXM15LD10N4, 400 V, three phase, 2.2 N.m for LXM15LD10N4, 230 V, three phase, 2.2 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 2.12 N.m for LXM05CD14N4, 380...480 V, three phase, 2.12 N.m for LXM05CD17M3X, 200...240 V, three phase, 2.12 N.m for LXM05BD14N4, 380...480 V, three phase, 2.12 N.m for LXM05BD17M3X, 200...240 V, three phase, 2.12 N.m for LXM05AD14N4, 380...480 V, three phase, 2.12 N.m for LXM05AD17M3X, 200...240 V, three phase, 2.2 N.m for LXM15LD10N4, 480 V, three phase, 2.12 N.m for LXM05CD17M2, 200...240 V, single phase, 2.12 N.m for LXM05BD17M2, 200...240 V, single phase, 2.12 N.m for LXM05AD17M2, 200...240 V, single phase, 2.2 N.m for LXM32.D12N4 at 3 A, 400 V, three phase
Device short name	BSH
Nominal speed	3000 rpm for LXM05BD14N4, 380...480 V, three phase, 3000 rpm for LXM05BD10M3X, 200...240 V, three phase, 3000 rpm for LXM05AD14N4, 380...480 V, three phase, 3000 rpm for LXM05AD10M3X, 200...240 V, three phase, 3000 rpm for LXM05CD10M2, 200...240 V, single phase, 3000 rpm for LXM05BD10M2, 200...240 V, single phase, 3000 rpm for LXM05AD10M2, 200...240 V, single phase, 6000 rpm for LXM15LD10N4, 400 V, three phase, 3000 rpm for LXM15LD10N4, 230 V, three phase, 5000 rpm for LXM32.D12N4 at 3 A, 480 V, three phase, 8000 rpm for LXM15LD10N4, 480 V, three phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM15LD13M3, 230 V, single phase, 3000 rpm for LXM05CD14N4, 380...480 V, three phase, 3000 rpm for LXM05CD10M3X, 200...240 V, three phase, 5000 rpm for LXM32.D12N4 at 3 A, 400 V, three phase
IP degree of protection	IP67 with IP67 kit, IP65 standard
Product compatibility	LXM05BD10M3X at 200...240 V three phase, LXM05AD10M3X at 200...240 V three phase, LXM15LD13M3 at 230 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05CD10M2 at 200...240 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM05BD10M2 at 200...240 V single phase, LXM15LD10N4 at 480 V three phase, LXM15LD10N4 at 230 V three phase, LXM05AD17M2 at 200...240 V single phase, LXM32.D12N4 at 480 V three phase, LXM32.D12N4 at 400 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM15LD10N4 at 400 V three phase, LXM05CD14N4 at 380...480 V three phase, LXM05BD14N4 at 380...480 V three phase, LXM05AD14N4 at 380...480 V three phase, LXM05CD10M3X at 200...240 V three phase, LXM05AD10M2 at 200...240 V single phase
Peak stall torque	5.63 N.m for LXM05CD17M2, 200...240 V, single phase, 4.57 N.m for LXM05CD10M2, 200...240 V, single phase, 5.63 N.m for LXM05BD17M2, 200...240 V, single phase, 4.57 N.m for LXM05BD10M2, 200...240 V, single phase, 5.63 N.m for LXM05AD17M2, 200...240 V, single phase, 4.57 N.m for LXM05AD10M2, 200...240 V, single phase, 5.63 N.m for LXM15LD13M3, 230 V, single phase, 5.63 N.m for LXM05CD14N4, 380...480 V, three phase, 5.63 N.m for LXM05CD17M3X, 200...240 V, three phase, 7.6 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 4.57 N.m for LXM05CD10M3X, 200...240 V, three phase, 5.63 N.m for LXM05BD14N4, 380...480 V, three phase, 5.63 N.m for LXM05BD17M3X, 200...240 V, three phase, 4.57 N.m for LXM05BD10M3X, 200...240 V, three phase, 5.63 N.m for LXM05AD14N4, 380...480 V, three phase, 5.63 N.m for LXM05AD17M3X, 200...240 V, three phase, 4.57 N.m for LXM05AD10M3X, 200...240 V, three phase, 4.85 N.m for LXM15LD10N4, 480 V, three phase, 4.85 N.m for LXM15LD10N4, 400 V, three phase, 4.85 N.m for LXM15LD10N4, 230 V, three phase, 7.6 N.m for LXM32.D12N4 at 3 A, 400 V, three phase
Nominal output power	600 W for LXM05CD10M2, 200...240 V, single phase, 600 W for LXM05BD17M2, 200...240 V, single phase, 600 W for LXM05BD10M2, 200...240 V, single phase, 600 W for LXM05AD17M2, 200...240 V, single phase, 600 W for LXM05AD10M2, 200...240 V, single phase, 597 W for LXM15LD13M3, 230 V, single phase, 1000 W for LXM15LD10N4, 400 V, three phase, 600 W for LXM05CD17M3X, 200...240 V, three phase, 600 W for LXM05CD14N4, 380...480 V, three phase, 850 W for LXM32.D12N4 at 3 A, 480 V, three phase, 600 W for LXM05CD10M3X, 200...240 V, three phase, 600 W for LXM05BD17M3X, 200...240 V, three phase, 600 W for LXM05BD14N4, 380...480 V, three phase, 600 W for LXM05BD10M3X, 200...240 V, three phase, 600 W for LXM05AD17M3X, 200...240 V, three phase, 600 W for LXM05AD14N4, 380...480 V, three phase, 600 W for LXM05AD10M3X, 200...240 V, three phase, 597 W for LXM15LD10N4, 230 V, three phase, 1300 W for LXM15LD10N4, 480 V, three phase, 600 W for LXM05CD17M2, 200...240 V, single phase, 850 W for LXM32.D12N4 at 3 A, 400 V, three phase
Speed feedback resolution	131072 points/turn x 4096 turns
Maximum mechanical speed	8000 rpm
Nominal torque	1.9 N.m for LXM15LD13M3, 230 V, single phase, 1.9 N.m for LXM05CD17M2, 200...240 V, single phase, 1.9 N.m for LXM05CD10M2, 200...240 V, single phase, 1.9 N.m for LXM05BD17M2, 200...240 V, single phase, 1.9 N.m for LXM05BD10M2, 200...240 V, single phase, 1.9 N.m for LXM05AD17M2, 200...240 V, single phase, 1.9 N.m for LXM05AD10M2, 200...240 V, single phase, 1.9 N.m for LXM15LD10N4, 230 V, three phase, 1.9 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.64 N.m for LXM32.D12N4 at 3 A, 480 V, three phase, 1.9 N.m for LXM05CD14N4, 380...480 V, three phase, 1.9 N.m for LXM05CD10M3X, 200...240 V, three phase, 1.9 N.m for LXM05BD17M3X, 200...240 V, three phase, 1.9 N.m for LXM05BD14N4, 380...480 V, three phase, 1.9 N.m for LXM05BD10M3X, 200...240 V, three phase, 1.9 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.9 N.m for LXM05AD14N4, 380...480 V, three phase, 1.9 N.m for LXM05AD10M3X, 200...240 V, three phase, 1.65 N.m for LXM15LD10N4, 400 V, three phase, 1.55 N.m for LXM15LD10N4, 480 V, three phase, 1.64 N.m for LXM32.D12N4 at 3 A, 400 V, three phase
Electrical connection	rotatable right-angled connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	with
Mounting support	international standard flange
Complementary
Temperature copper hot	120 °C
Coefficient 1_2	1.357043579733E-18 N.m/rpm²
Coefficient 1_1	-5.00000000009391E-05 N.m/rpm
Coefficient 1_4	1.7396E-25 N.m/rpm4
Coefficient 1_3	-7.20888839E-22 N.m/rpm3
Coefficient 1_6	0 N.m/rpm6
Coefficient 1_5	-1.9E-29 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	70 mm
Stator inductance	19 mH at 20 °C
Brake pull-in power	10 W
Centring collar depth	2.5 mm
Back emf constant	48 V/krpm at 120 °C
Maximum radial force Fr	710 N at 1000 rpm, 560 N at 2000 rpm, 490 N at 3000 rpm, 450 N at 4000 rpm, 410 N at 5000 rpm, 390 N at 6000 rpm
Saturation coefficient 1	-5.1039779039E-18
Saturation coefficient 3	2.300384407E-19
Saturation coefficient 2	-0.00748413131855247
Switching frequency	8 kHz
Temperature magnet hot	100 °C
Continuous power	1.51 W
Circle diameter of the mounting holes	82 mm
Maximum permanent current	11.8 A
Torque constant	0.77 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	2.9 A
Range compatibility	Lexium 15, Lexium 32, Lexium 05
Stator resistance	4.2 Ohm at 20 °C
Feedback type	multiturn SinCos Hiperface
Mounting holes diameter	5.5 mm
Shaft diameter	11 mm
Key width	18 mm
Centring collar diameter	60 mm
Sizing reference	BSH0702P
Net weight	3 kg
Maximum current Irms	11.8 A for LXM05BD17M2, 11.8 A for LXM05BD10M2, 11.8 A for LXM05AD14N4, 11.8 A for LXM05AD17M3X, 11.8 A for LXM05AD10M3X, 11.8 A for LXM05AD17M2, 11.8 A for LXM05AD10M2, 11.8 A for LXM15LD10N4, 11.8 A for LXM32.D12N4, 11.8 A for LXM05CD14N4, 11.8 A for LXM05CD17M3X, 11.8 A for LXM05CD10M3X, 11.8 A for LXM05CD17M2, 11.8 A for LXM05CD10M2, 11.8 A for LXM05BD14N4, 11.8 A for LXM05BD17M3X, 11.8 A for LXM05BD10M3X, 11.8 A for LXM15LD13M3
Length	212.5 mm
Shaft length	23 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	6
Rotor inertia	0.482 kg.cm²
Number of motor stacks	2
Holding torque	2 N.m holding brake
Stator electrical time constant	4.52 ms at 20 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	17.5 cm
Package 1 Width	16 cm
Package 1 Length	46 cm
Package 1 Weight	3.63 kg
Unit Type of Package 2	2
Number of Units in Package 2	3
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	12.142 kg
Unit Type of Package 3	3
Number of Units in Package 3	15
Package 3 Height	77 cm
Package 3 Width	80 cm
Package 3 Length	60 cm
Package 3 Weight	62.95 kg
