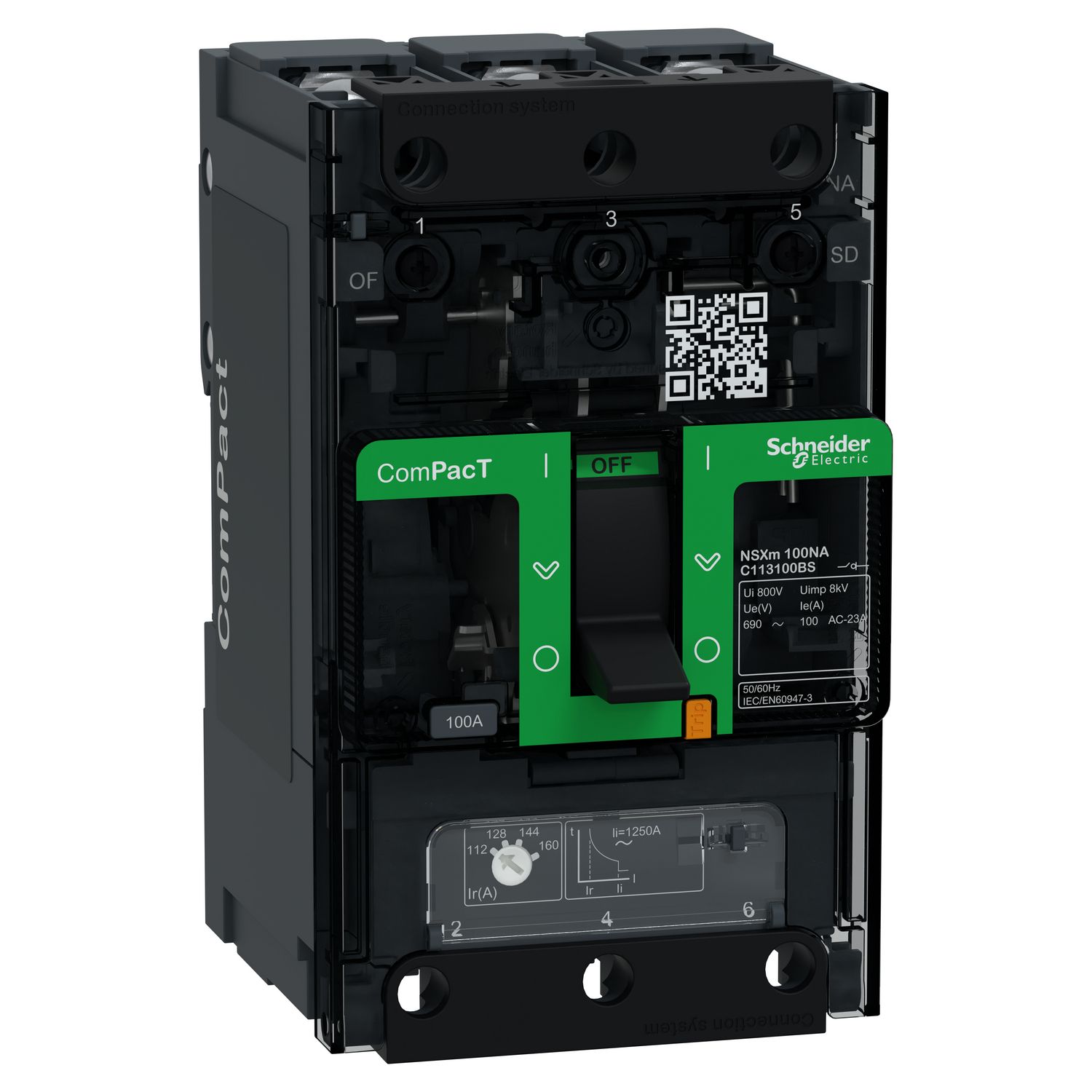

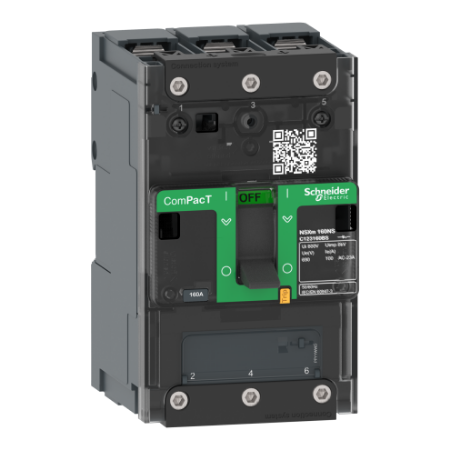

Switch disconnector, ComPacT NSXm 100NA, 3 poles, thermal current Ith 100A, compression lugs and busbar connectors

$554.48
Product Selector
Switch disconnector, ComPacT NSXm 100NA, 3 poles, thermal current Ith 100A, compression lugs and busbar connectors
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 20-Oct-2024
Declaration of conformity
Instruction sheet
User guide
Product environmental
Catalogue
Product Page Link
Product Data Sheet
It is a ComPacT NSXm NA 100A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 3 poles version is compatible with ComPacT NSXm circuit breakers accessories and auxiliaries. ComPacT NSXm NA has the same footprint as ComPacT NSXm circuit breakers, 81mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational currentAC-22: 100 A AC 50/60 Hz, AC-23: 100 A AC 50/60 Hz
Suitability for isolationyes conforming to EN/IEC 60947-3
[Ui] rated insulation voltage800 V
Utilisation categoryAC-23A, AC-22A
Network typeAC
Device short nameNSXm 100NA
[Icw] rated short-time withstand current335 A during 20 s, 1500 A during 3 s, 1500 A during 1 s
Mounting modefixed
Control typetoggle
RangeComPacT new generation
[Ith] conventional free air thermal current100 A at 40 °C
Range of productComPacT NSXm new generation
[Ue] rated operational voltage690 V AC 50/60 Hz
Poles description3P
[Icm] rated short-circuit making capacity150 kA with upstream protection circuit breaker, 2.13 kA switch-disconnector alone
Product nameComPacT NSXm new generation
Product or component typeswitch disconnector
Visible breakno
Breaking capacity codeNA
Contact position indicatoryes
[In] rated current100 A
Network frequency50/60 Hz
Complementary
Electrical durabilityAC-23A: 3000 cycles 690 V AC 50/60 Hz Ie, AC-22A: 5000 cycles 690 V AC 50/60 Hz Ie, AC-23A: 6000 cycles 690 V AC 50/60 Hz Ie/2, AC-22A: 10000 cycles 690 V AC 50/60 Hz Ie/2, AC-23A: 10000 cycles 440 V AC 50/60 Hz Ie, AC-22A: 10000 cycles 440 V AC 50/60 Hz Ie, AC-23A: 20000 cycles 440 V AC 50/60 Hz Ie/2, AC-22A: 20000 cycles 440 V AC 50/60 Hz Ie/2
Height137 mm
Mechanical durability20000 cycles
Net weight1.06 kg
Product certificationsCCC, EAC, CE
Connection pitch27 mm
Depth80 mm
Width81 mm
Connections - terminalsbars,  1 crimp lug wire size 2.5-95 mm², flexible aluminium/copper,  1 crimp lug wire size 2.5-120 mm², rigid or stranded aluminium/copper
Mounting supportbackplate, 35 mm symmetrical DIN rail
StandardsEN/IEC 60947-3, EN/IEC 60947-1
Environment
Ambient air temperature for storage-50-85 °C
Electrical shock protection classclass II
Pollution degree3 conforming to IEC 60664-1
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to IEC 62262
