Picture of Wireless indication auxiliary contact, ComPacT NSXm, circuit breaker status OF/SD
SKU:

LV429453

Wireless indication auxiliary contact, ComPacT NSXm, circuit breaker status OF/SD

Please Contact Sales to buy this Product. click here
Wireless indication auxiliary contact, ComPacT NSXm, circuit breaker status OF/SD
  • Plug & play technology for clear connection status (0 or 1, no half-way wired)
  • Placed in the same position as the wired version
  • Its LED light will give you direct indication in case of a tripping
  • It will send you an immediate notification via EcoStruxure Facility Expert
  • Wireless auxiliary contact accelerates overall wiring time
  • Status communication is done very simply and commissioned wirelessly
  • Communication architecture is fully EcoStruxure Power validated, with any application
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
End of life manual
Product environmental
Instruction sheet
User guide
Catalogue
Product Page Link
Product Data Sheet

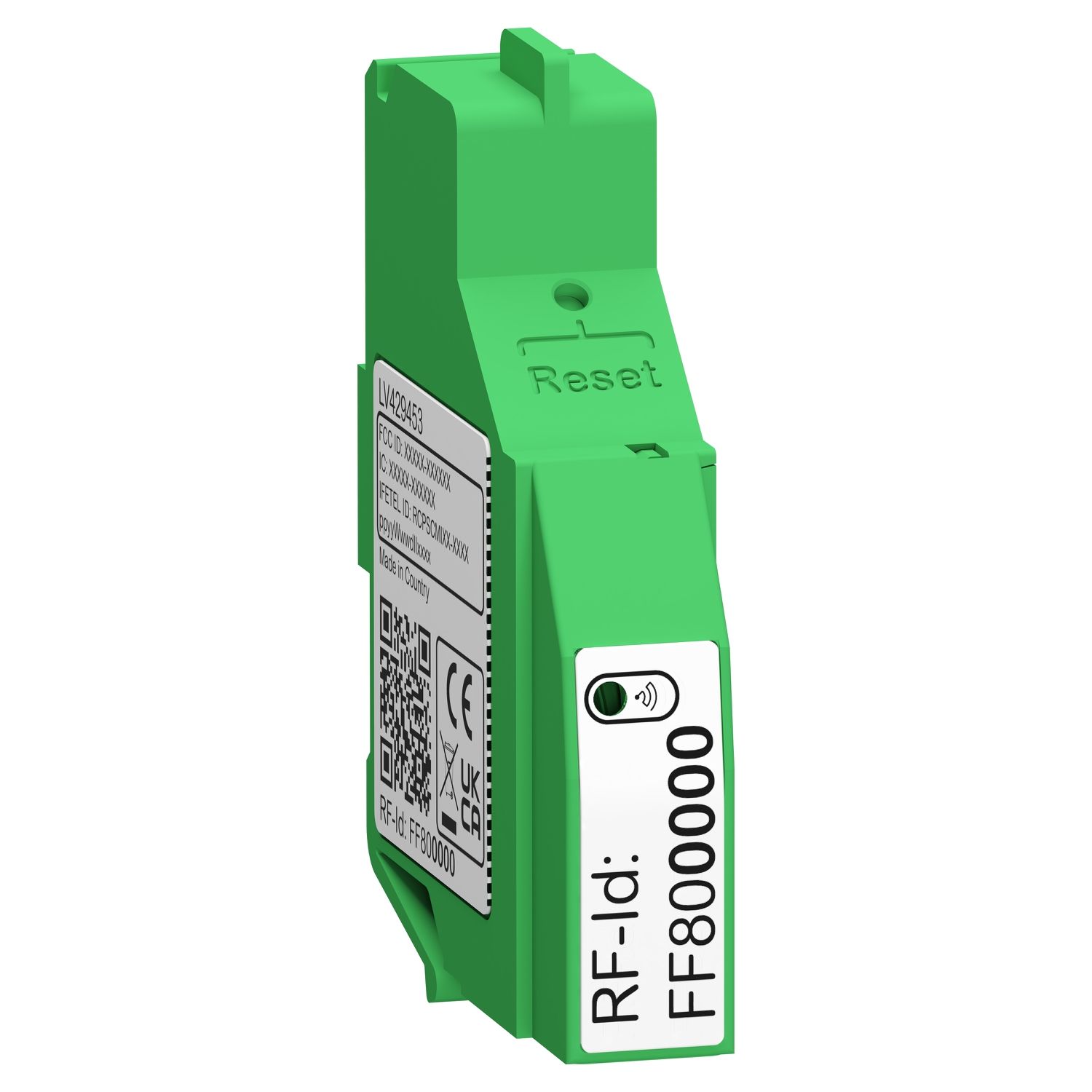

This is a wireless auxiliary contact that provides remote indications of the circuit breaker status. It is used on ComPacT NSXm new generation. This wireless auxiliary contact provides OF information (ON/OFF), that indicates the position of the circuit breaker power contacts. It provides SDE information (fault trip indication), that indicates that the circuit breaker as tripped due to an electrical fault (overload, short-circuit, ground fault, earth fault). This wireless auxiliary contact works with Zigbee wireless communication protocol (IEEE 802.15.4) within the frequency range 2405-2480MHz . It is a plug & play technology for clear connection status. This wireless auxiliary contact is placed in the same position as the wired version. A LED light is integrated and gives an indication in case of tripping. Communication architecture is fully EcoStruxure Power validated, with any application.

Products specifications

Attribute nameAttribute value
Main
Device short nameSD, OF
Device applicationbreaker status monitoring
Connectivity to devicesZigBee device
RangeComPacT new generation
Fault typegeneral electric fault
Range of productComPacT NSXm new generation
Communication network typeZigBee IEEE 802.15.4 (2405-2480 MHz)
Local signallingfault trip for electrical fault, trip indicator for relay trip indicator, ON/OFF indication for open/close
Product or component typewireless indication auxiliary
Range compatibilityComPacT new generation ComPacT NSXm new generation
Complementary
[Uimp] rated impulse withstand voltage8 kV
Body materialplastic
Mechanical durability50000 cycles
Mounting modeclip-on
Battery life5-5 year(s)
Power supply typebattery
Status LEDwith
StandardsUL 489, EN/IEC 60947
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-25-85 °C
IP degree of protectionIP4X conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.700 cm
Package 1 Width6.000 cm
Package 1 Length8.000 cm
Package 1 Weight37.000 g
Unit Type of Package 22
Number of Units in Package 262
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.680 kg
