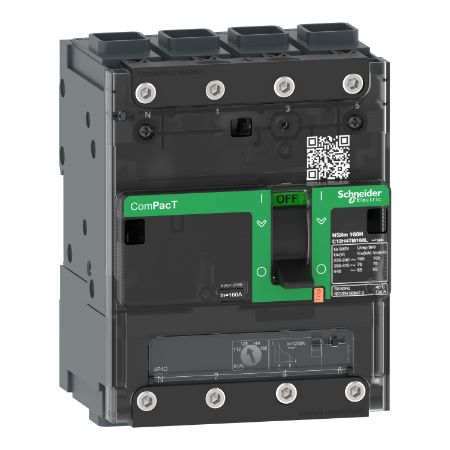

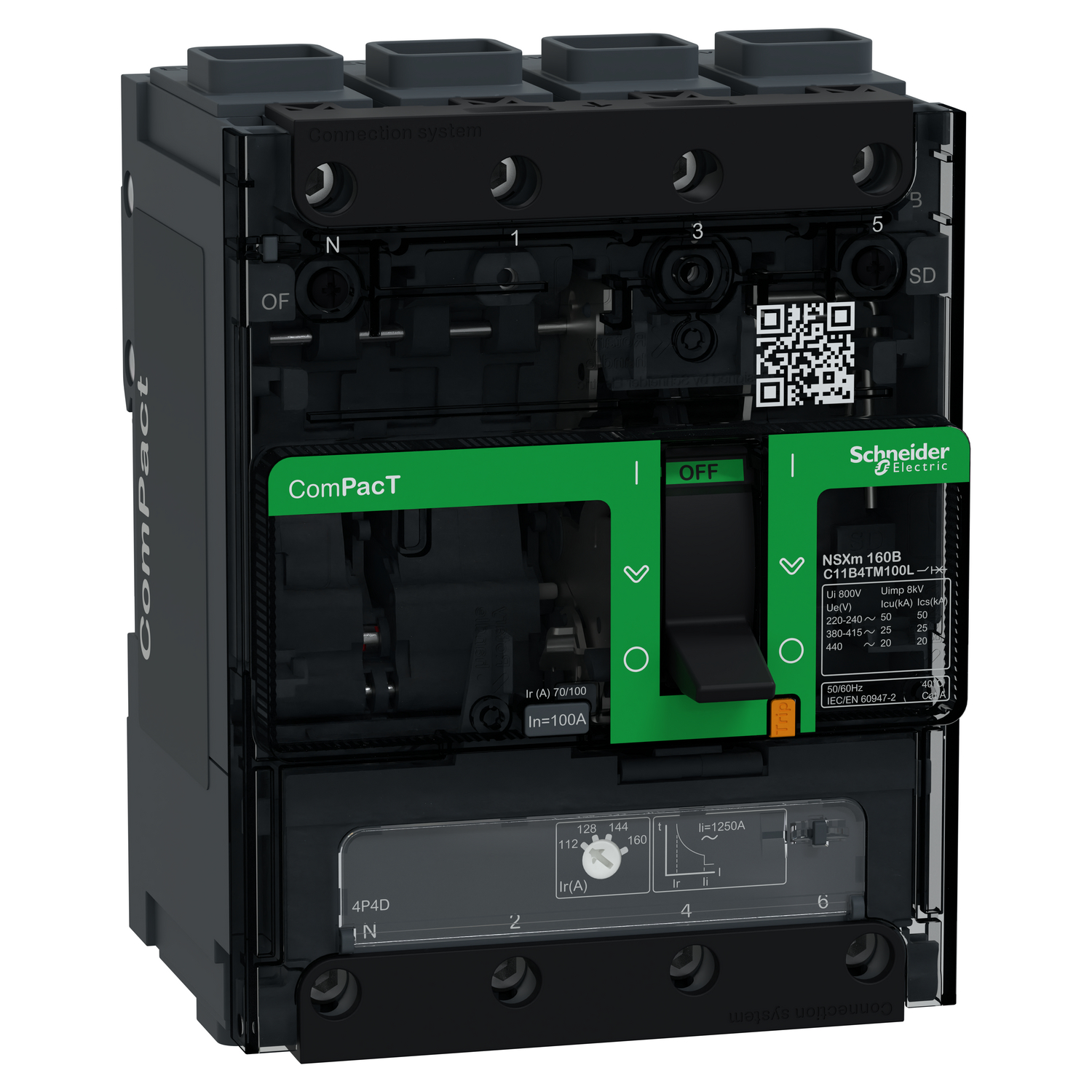

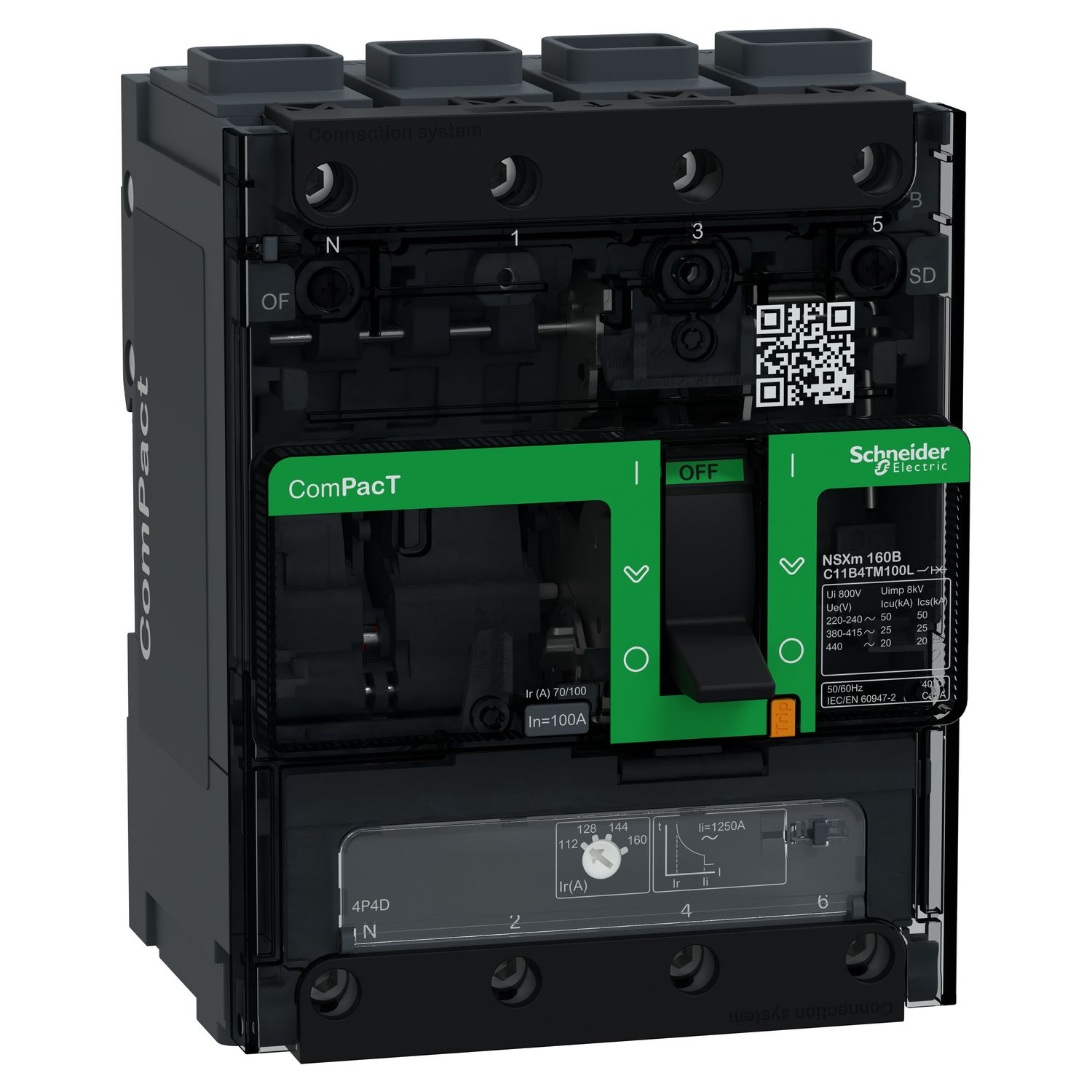

Picture of Circuit breaker, ComPacT NSXm 160B, 25kA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 100A, EverLink lugs
SKU:

C11B4TM100L

Circuit breaker, ComPacT NSXm 160B, 25kA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 100A, EverLink lugs

$949.03
Available for Shipping : 12-Dec-2024
Product Selector
Circuit breaker, ComPacT NSXm 160B, 25kA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 100A, EverLink lugs
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
Product environmental
Catalogue
Product Page Link
Product Data Sheet
It is a ComPacT NSXm molded case circuit breaker, 100A, 25kA at 415VAC, for all LV standard applications. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. ComPacT NSXm is one of the smallest MCCB on the market, 108mm (W) x 137mm (H) x 80mm (D). This is a 4 poles version with an embedded thermal-magnetic trip unit. It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to IEC 60947-2
Trip unit technology thermal-magnetic
Neutral position left
Utilisation category category A
Network type AC
Device short name NSXm 160B
Breaking capacity code B 25 kA 415 V AC
Breaking capacity 10 kA Icu at 500 V AC conforming to IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Protected poles description 4D
Range of product ComPacT NSXm new generation
Trip unit name TM-D
Poles description 4P
Product name ComPacT NSXm new generation
Product or component type circuit breaker
Trip unit protection functions LI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 100 A at 40 °C
Network frequency 50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage 8 kV
Trip unit rating 100-100 A at 40 °C
Long time pick-up adjustment type Ir adjustable
Electrical durability 5000 cycles at 690 V In, 10000 cycles at 690 V In/2, 10000 cycles at 440 V In, 20000 cycles at 440 V In/2
Downside connection front
Earth-leakage protection without
Height 137 mm
[Ics] rated service breaking capacity 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
9 mm pitches 12 module
[Ui] rated insulation voltage 800 V AC 50/60 Hz
Net weight 1.42 kg
Long time delay adjustment type fixed
Number of slots 1 slot(s) for voltage release MN or MX, 1 slot(s) for alarm switch SD, 1 slot(s) for auxiliary switch OF
Power dissipation per pole 8.77 W
Colour grey (RAL 7016)
Connection pitch 27 mm without spreaders, 35 mm with spreaders
Mechanical durability 20000 cycles
Upside connection front
Long time pick-up adjustment range 0.7...1 x In
Neutral protection setting 1 x Ir (4D)
Depth 80 mm
Width 108 mm
Mounting position flat on the back, horizontal and vertical
Local signalling flag (green) for presence of auxiliary contacts
Connections - terminals 1 Everlink lug wire size 2.5-70 mm², flexible copper,  1 Everlink lug wire size 2.5-95 mm², rigid or stranded aluminium/copper
Instantaneous pick-up adjustment type Ii fixed
Instantaneous pick-up adjustment range 1250 A
Mounting support backplate
Environment
Relative humidity 0-95 %
Ambient air temperature for storage -50-85 °C
Operating altitude 5000 m with derating, 2000 m without derating
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Standards EN/IEC 60947
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.0 cm
Package 1 Width 11.5 cm
Package 1 Length 21.0 cm
Package 1 Weight 1.546 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.666 kg
