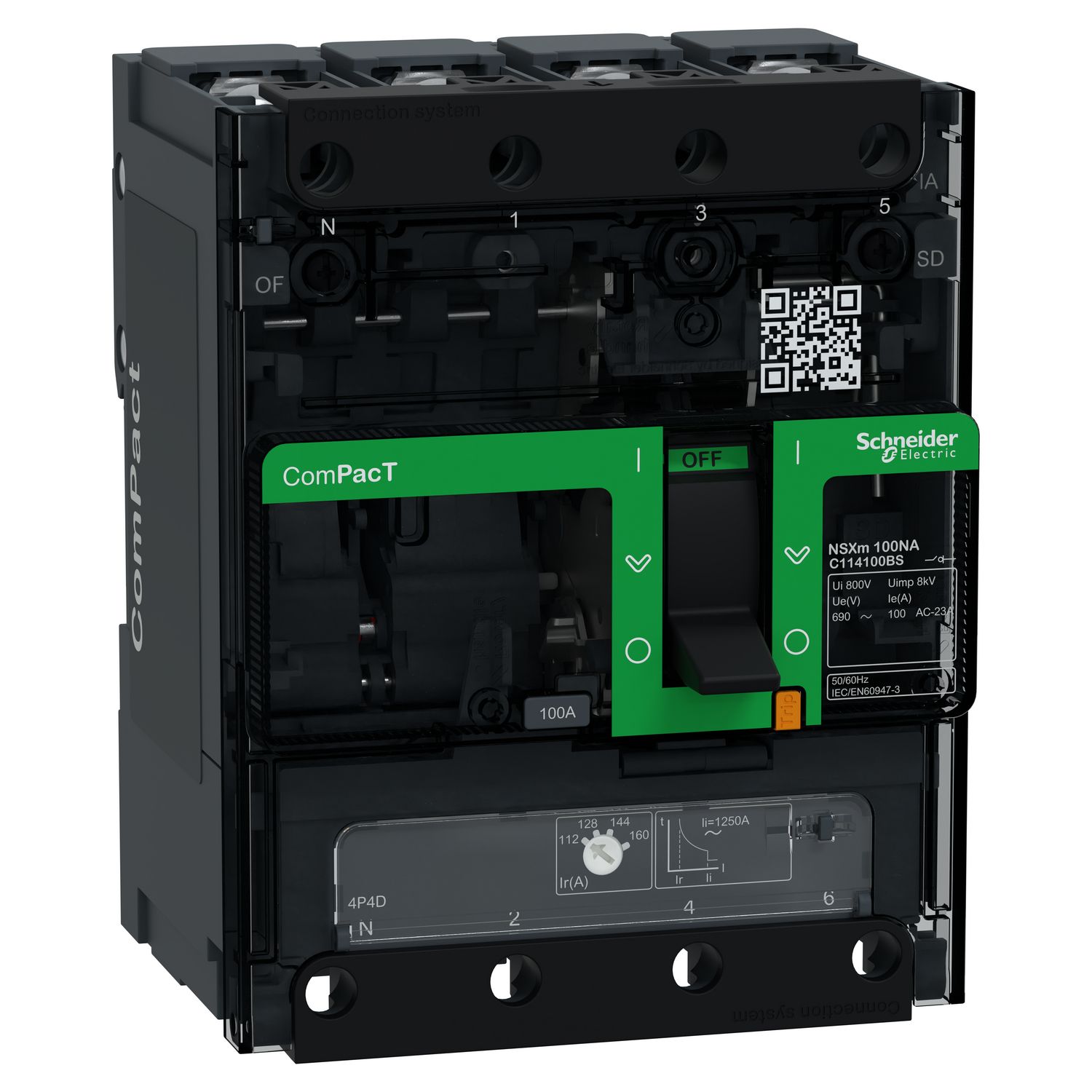

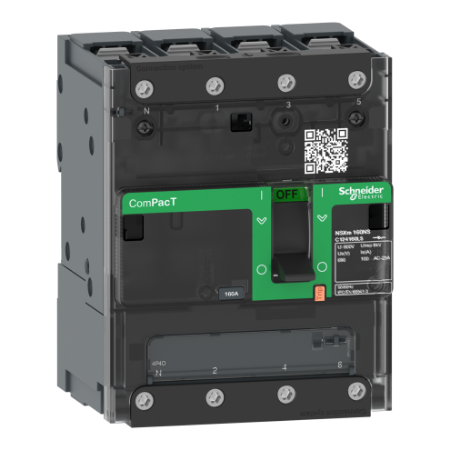

Picture of Switch disconnector, ComPacT NSXm 100NA, 4 poles, thermal current Ith 100A, compression lugs and busbar connectors
SKU:

C114100BS

Switch disconnector, ComPacT NSXm 100NA, 4 poles, thermal current Ith 100A, compression lugs and busbar connectors

$725.59
Available for Shipping : 12-Dec-2024
Product Selector
Switch disconnector, ComPacT NSXm 100NA, 4 poles, thermal current Ith 100A, compression lugs and busbar connectors
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
Product environmental
Catalogue
Product Page Link
Product Data Sheet
It is a ComPacT NSXm NA 100A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 4 poles version is compatible with ComPacT NSXm circuit breakers accessories and auxiliaries. ComPacT NSXm NA has the same footprint as ComPacT NSXm circuit breakers, 108mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.

Products specifications

Attribute name Attribute value
Main
Device application distribution
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22: 100 A AC 50/60 Hz, AC-23: 100 A AC 50/60 Hz
Suitability for isolation yes conforming to EN/IEC 60947-3
[Ui] rated insulation voltage 800 V
Utilisation category AC-23A, AC-22A
Network type AC
Device short name NSXm 100NA
[Icw] rated short-time withstand current 335 A during 20 s, 1500 A during 3 s, 1500 A during 1 s
Mounting mode fixed
Control type toggle
Range ComPacT new generation
[Ith] conventional free air thermal current 100 A at 40 °C
Range of product ComPacT NSXm new generation
[Ue] rated operational voltage 690 V AC 50/60 Hz
Poles description 4P
[Icm] rated short-circuit making capacity 150 kA with upstream protection circuit breaker, 2.13 kA switch-disconnector alone
Product name ComPacT NSXm new generation
Product or component type switch disconnector
Visible break no
Breaking capacity code NA
Contact position indicator yes
[In] rated current 100 A
Network frequency 50/60 Hz
Complementary
Electrical durability AC-23A: 3000 cycles 690 V AC 50/60 Hz Ie, AC-22A: 5000 cycles 690 V AC 50/60 Hz Ie, AC-23A: 6000 cycles 690 V AC 50/60 Hz Ie/2, AC-22A: 10000 cycles 690 V AC 50/60 Hz Ie/2, AC-23A: 10000 cycles 440 V AC 50/60 Hz Ie, AC-22A: 10000 cycles 440 V AC 50/60 Hz Ie, AC-23A: 20000 cycles 440 V AC 50/60 Hz Ie/2, AC-22A: 20000 cycles 440 V AC 50/60 Hz Ie/2
Height 137 mm
Mechanical durability 20000 cycles
Net weight 1.42 kg
Product certifications CCC, EAC, CE
Connection pitch 27 mm
Depth 80 mm
Width 108 mm
Connections - terminals bars,  1 crimp lug wire size 2.5-95 mm², flexible aluminium/copper,  1 crimp lug wire size 2.5-120 mm², rigid or stranded aluminium/copper
Mounting support backplate, 35 mm symmetrical DIN rail
Standards EN/IEC 60947-3, EN/IEC 60947-1
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13 cm
Package 1 Width 12 cm
Package 1 Length 22 cm
Package 1 Weight 1.6 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 10.19 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 150 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 254.49 kg
