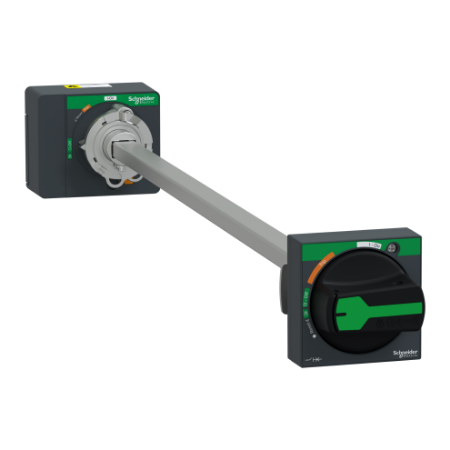

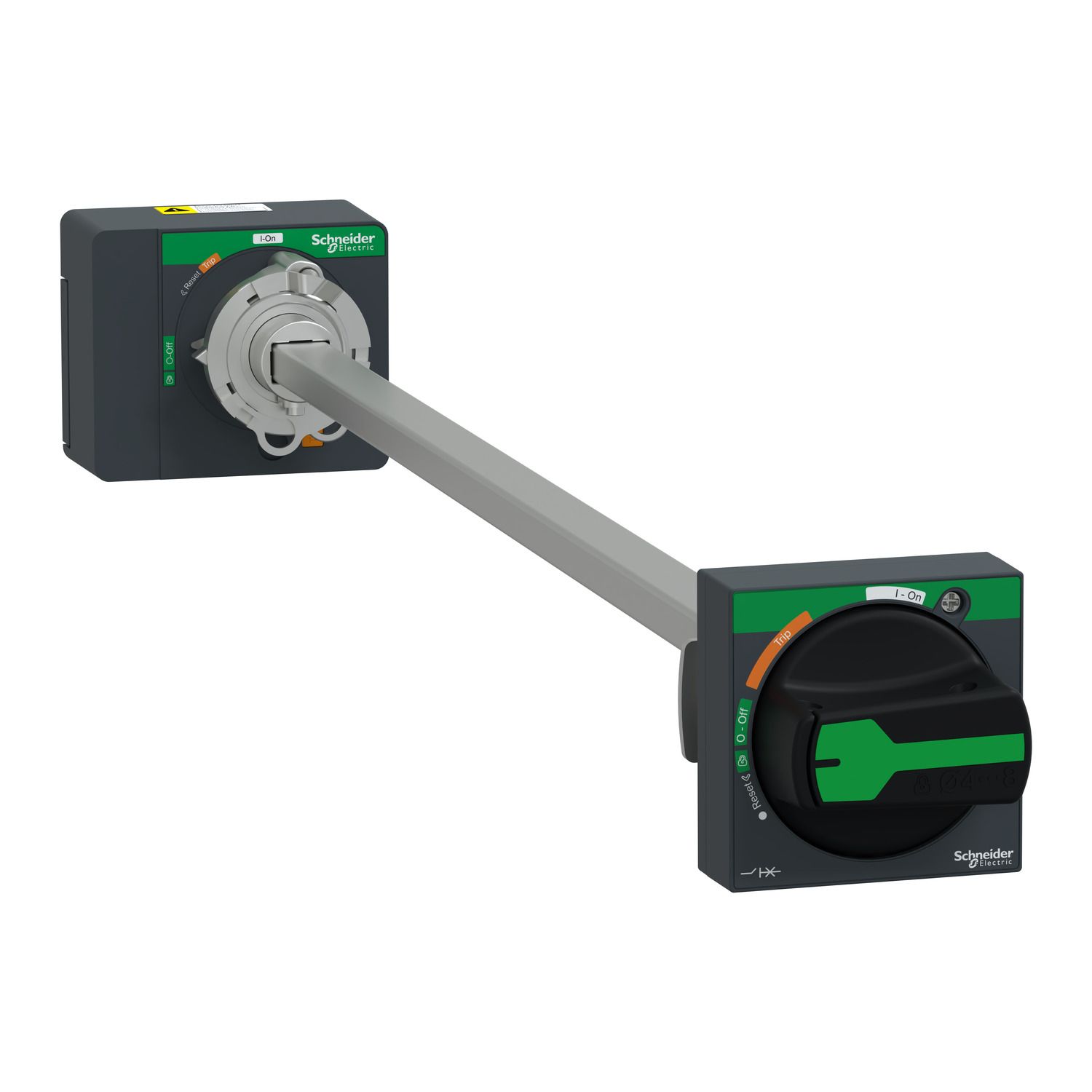

Picture of Extended rotary handle, ComPacT NSXm, black handle, shaft length 200mm to 600mm, IP54
SKU:

LV426932T

Extended rotary handle, ComPacT NSXm, black handle, shaft length 200mm to 600mm, IP54

$291.65
Available for Shipping : 14-Nov-2024
Extended rotary handle, ComPacT NSXm, black handle, shaft length 200mm to 600mm, IP54
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Product environmental
User guide
Catalogue
Product Page Link
Product Data Sheet
This extended rotary handle is a control accessory for ComPacT NSXm and PowerPact B devices. The circuit breaker installed in a switchboard with this extended rotary handle is IP54 according to IEC 60529 standard. It can be mounted on the device with an extension shaft up to 600 mm and it maintains suitability for isolation. The shaft length is adjustable. This accessory has a black handle on a black front. Padlocks can be used to lock the handle and disable door opening.

Products specifications

Attribute name Attribute value
Main
Range ComPacT new generation
Range of product ComPacT NSXm new generation
Rotary handle mounting style extended
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Range compatibility ComPacT new generation ComPacT NSXm new generation, PowerPact PowerPact B
Complementary
Rotary handle mounting location front
Locking options description 1 to 3 padlocks Ø 4 to Ø 8
Rotary handle padlocking padlock in ON position, padlock in OFF position, 1 to 3 padlocks
Environment
IP degree of protection IP54
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 9.1 cm
Package 1 Length 45.8 cm
Package 1 Weight 745.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 9.664 kg
