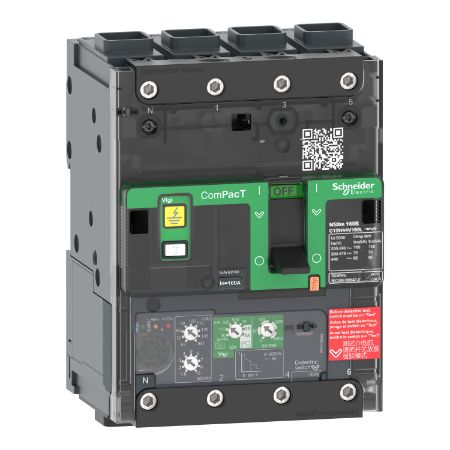

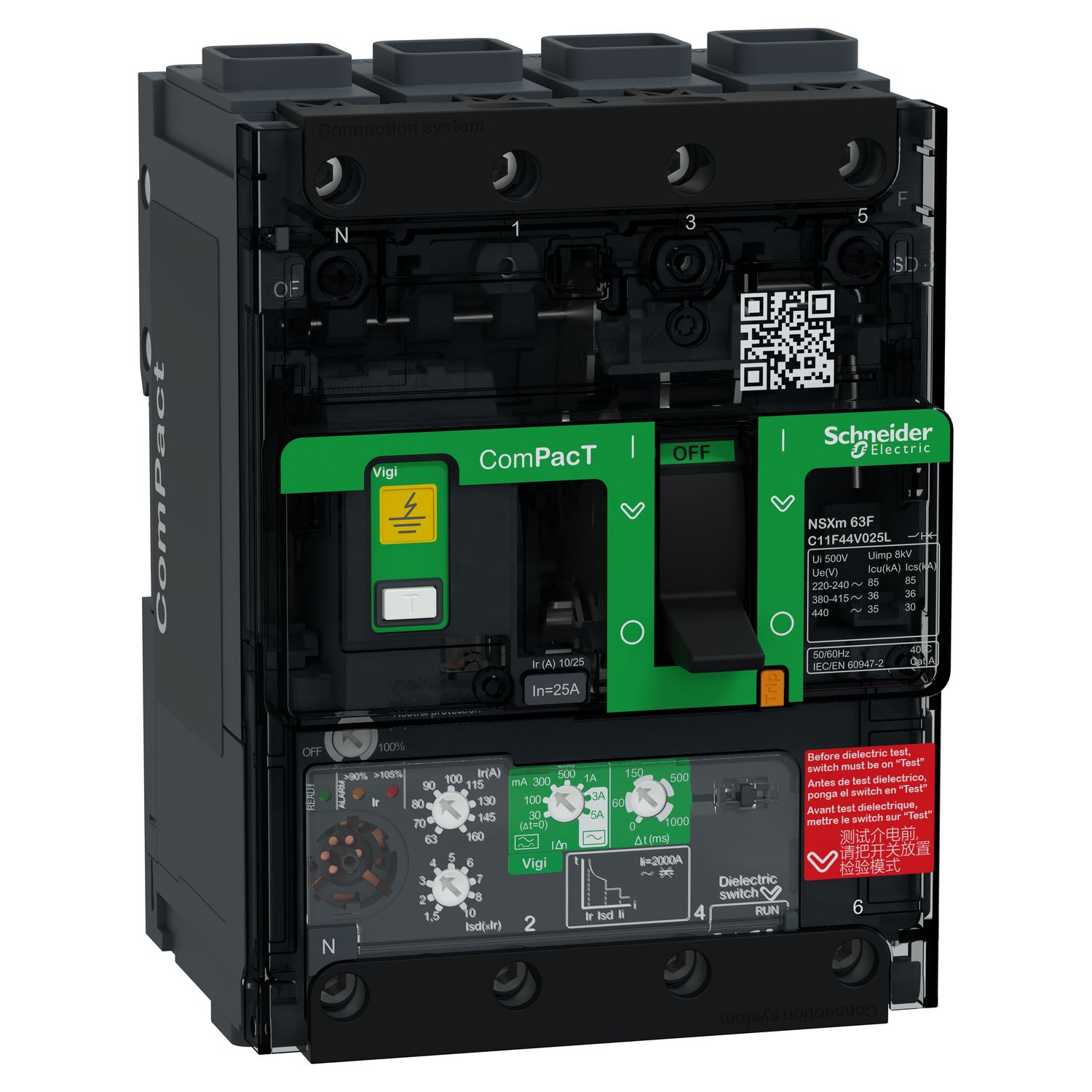

Picture of Circuit breaker, ComPacT NSXm 63F, 36kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, EverLink lugs
SKU:

C11F44V025L

Circuit breaker, ComPacT NSXm 63F, 36kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, EverLink lugs

$3,168.14
Product Selector
Circuit breaker, ComPacT NSXm 63F, 36kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, EverLink lugs
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Declaration of conformity
End of life manual
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
ComPacT NSXm100F is a complete 4P fixed circuit breaker designed to optimize space and breaking capacity. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. It introduces new features like Everlink connectors technology. It offers built-in DIN rail & plate mounting capability and spring type auxiliaries externally visible. This 4 poles Earth Leakage Circuit Breaker (ELCB) is one of the smallest on the market. The dimensions are 108mm (W) x 144mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.

Related products

Picture of Standard undervoltage release MN, ComPacT NSXm, 220/240VAC 50Hz, 208/240VAC 60Hz

Standard undervoltage release MN, ComPacT NSXm, 220/240VAC 50Hz, 208/240VAC 60Hz

LV426804
$392.78
View Detail
Picture of Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz

Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz

LV426844
$318.11
View Detail
Picture of Long terminal shield, ComPacT NSXm, upstream and downstream mounting, IP40, 4 poles

Long terminal shield, ComPacT NSXm, upstream and downstream mounting, IP40, 4 poles

LV426913
$64.56
View Detail
Picture of Interphase barriers, ComPacT NSXm, set of 6 parts

Interphase barriers, ComPacT NSXm, set of 6 parts

LV426920
$55.51
View Detail
Picture of standard auxiliary contact, ComPact NSXm, circuit breaker status OF/SD, 1 changeover contact type

standard auxiliary contact, ComPact NSXm, circuit breaker status OF/SD, 1 changeover contact type

LV426950
$137.59
View Detail
Picture of Wireless indication auxiliary contact, ComPacT NSXm, circuit breaker status OF/SD

Wireless indication auxiliary contact, ComPacT NSXm, circuit breaker status OF/SD

LV429453
Please Contact Sales to buy this Product. click here
View Detail
Picture of Direct rotary handle, ComPacT NSXm, black handle, IP40

Direct rotary handle, ComPacT NSXm, black handle, IP40

LV426930T
$197.57
View Detail
Picture of Extended rotary handle, ComPacT NSXm, black handle, shaft length 200mm to 600mm, IP54

Extended rotary handle, ComPacT NSXm, black handle, shaft length 200mm to 600mm, IP54

LV426932T
$291.65
View Detail
