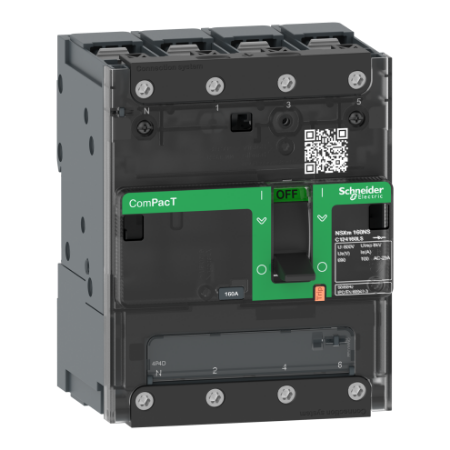

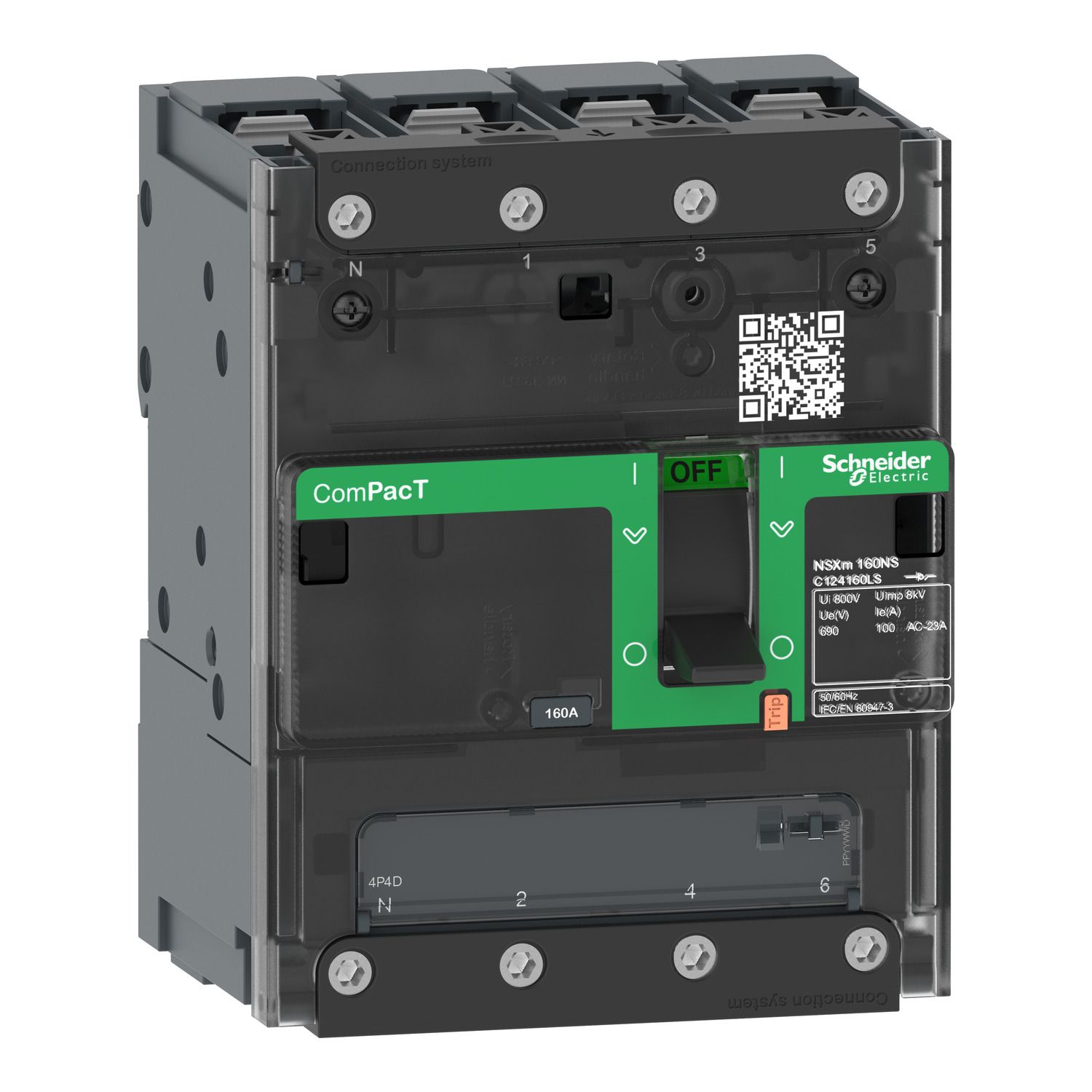

Picture of Switch disconnector, ComPacT NSXm 160NA, 4 poles, thermal current Ith 160A, compression lugs and busbar connectors
SKU:

C124160BS

Switch disconnector, ComPacT NSXm 160NA, 4 poles, thermal current Ith 160A, compression lugs and busbar connectors

$963.14
Product Selector
Switch disconnector, ComPacT NSXm 160NA, 4 poles, thermal current Ith 160A, compression lugs and busbar connectors
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 20-Oct-2024
Declaration of conformity
Instruction sheet
Product environmental
User guide
Catalogue
Product Page Link
Product Data Sheet
It is a ComPacT NSXm NA 160A switch disconnector, category AC-22A/AC-23A. It is designed to ensure a reliable isolation switching. It offers new features like Everlink technology, DIN rail and plate mounting capability. It embeds new spring type auxiliaries externally visible. This 4 poles version is compatible with ComPacT NSXm circuit breakers accessories and auxiliaries. ComPacT NSXm NA has the same footprint as ComPacT NSXm circuit breakers, 108mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
