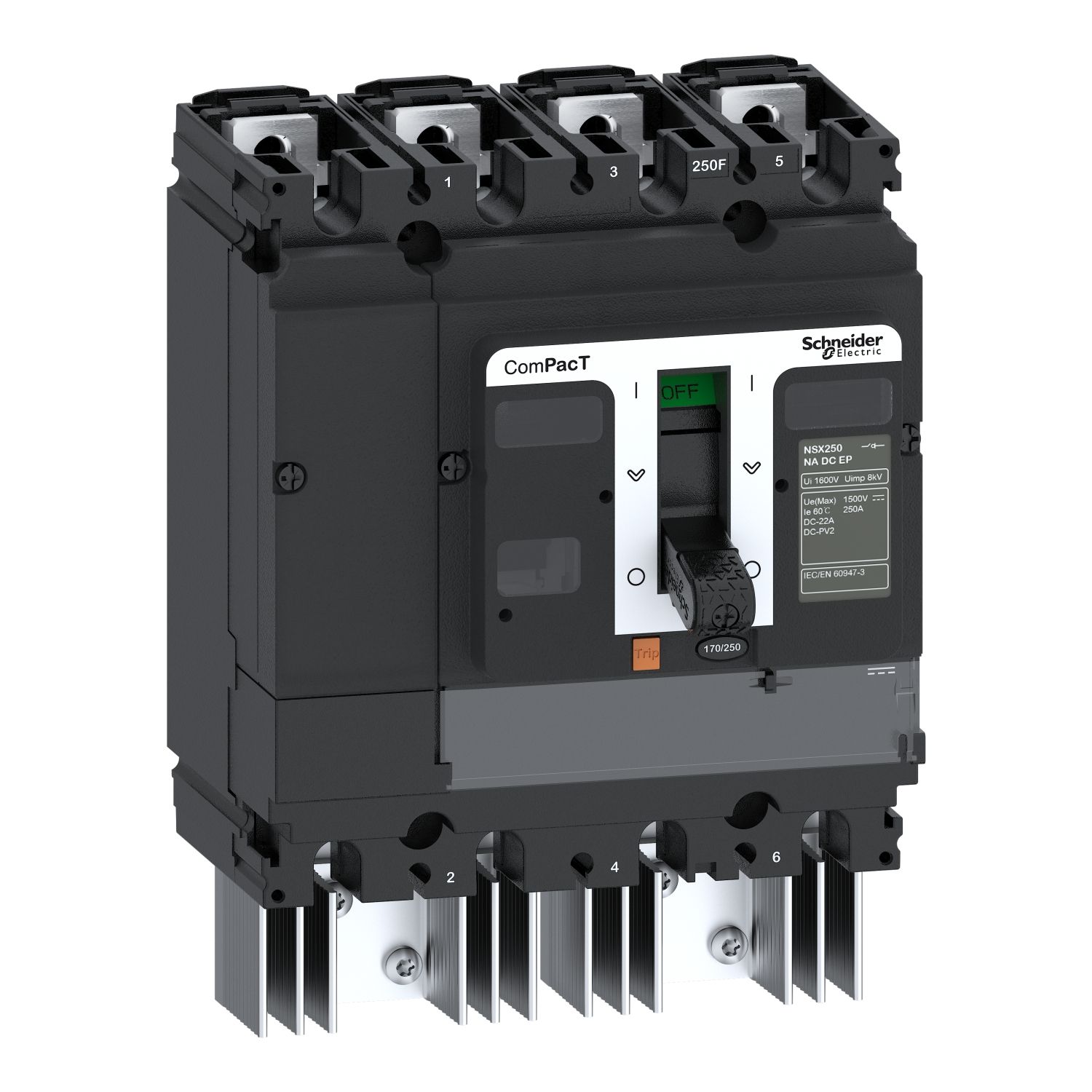

Picture of Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 200A rating, 1500V
SKU:

C254200D3S

Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 200A rating, 1500V

Please Contact Sales to buy this Product. click here
Product Selector
Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 200A rating, 1500V
  • ComPacT NSX DC EP (Enhanced Performance) is designed for voltages from 1100VDC to 1500VDC
  • ComPacT NSX DC EP is dedicated to photovoltaic and marine applications
  • ComPacT NSX DC EP offers 8 current ratings (100A;125A;160A;200A;250A;320A;400A;500A)
  • The rated short-time withstand current Icw is 3.5kA/1s
  • With heatsinks supplied as standard, the circuit breaker is optimized.
  • ComPacT NSX DC EP allows to save space in the enclosure
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 29-Nov-2024
End of life manual
User guide
Catalogue
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
ComPacT NSX 250NA DC PV is a 4 poles switch disconnector designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. It is used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 200 A at 1500 VDC. The operational voltage is 1500 VDC. It is compliant with international standard EN/IEC 60947.

Products specifications

Attribute nameAttribute value
Main
Device short nameNSX250 DC EP
Device applicationmarine application, photovoltaic
[Icw] rated short-time withstand current3.5 kA during 1 s
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational currentDC-PV2: 200 A DC 1500 V, DC-22A: 200 A DC 1500 V
Suitability for isolationyes conforming to EN/IEC 60947-3
Mounting modefixed
Control typetoggle
RangeComPacT new generation
[Ith] conventional free air thermal current200 A at 40 °C
Range of productComPacT NSX250/630 DC EP
[Ue] rated operational voltage1500 V DC
Poles description4P
[Ui] rated insulation voltage1600 V DC
[Icm] rated short-circuit making capacity3.5 kA switch-disconnector alone
Utilisation categoryDC-PV2, DC-22A
Product nameComPacT NSX DC EP
Product or component typeswitch disconnector
Visible breakno
Breaking capacity codeNA
Network typeDC
Contact position indicatoryes
[In] rated current200 A
Complementary
Compatibility codeNSX200
Electrical durability4500 cycles 1500 V DC In
Upside connectionfront
Downside connectionfront
Connection pitch35 mm
Height161 mm
Depth86 mm
Width140 mm
Mechanical durability10000 cycles
Net weight2.8 kg
Mounting supportbackplate
StandardsEN/IEC 60947-3, EN/IEC 60947-1
Product certificationsCCC, CE
Environment
Ambient air temperature for storage-50-85 °C
Pollution degree3 conforming to IEC 60664-1
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to IEC 62262
Electrical shock protection classclass II
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.5 cm
Package 1 Width14.5 cm
Package 1 Length19 cm
Package 1 Weight2.8 kg
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight11.641 kg
Unit Type of Package 33
Number of Units in Package 332
Package 3 Height75 cm
Package 3 Width60 cm
Package 3 Length80 cm
Package 3 Weight98.9 kg
