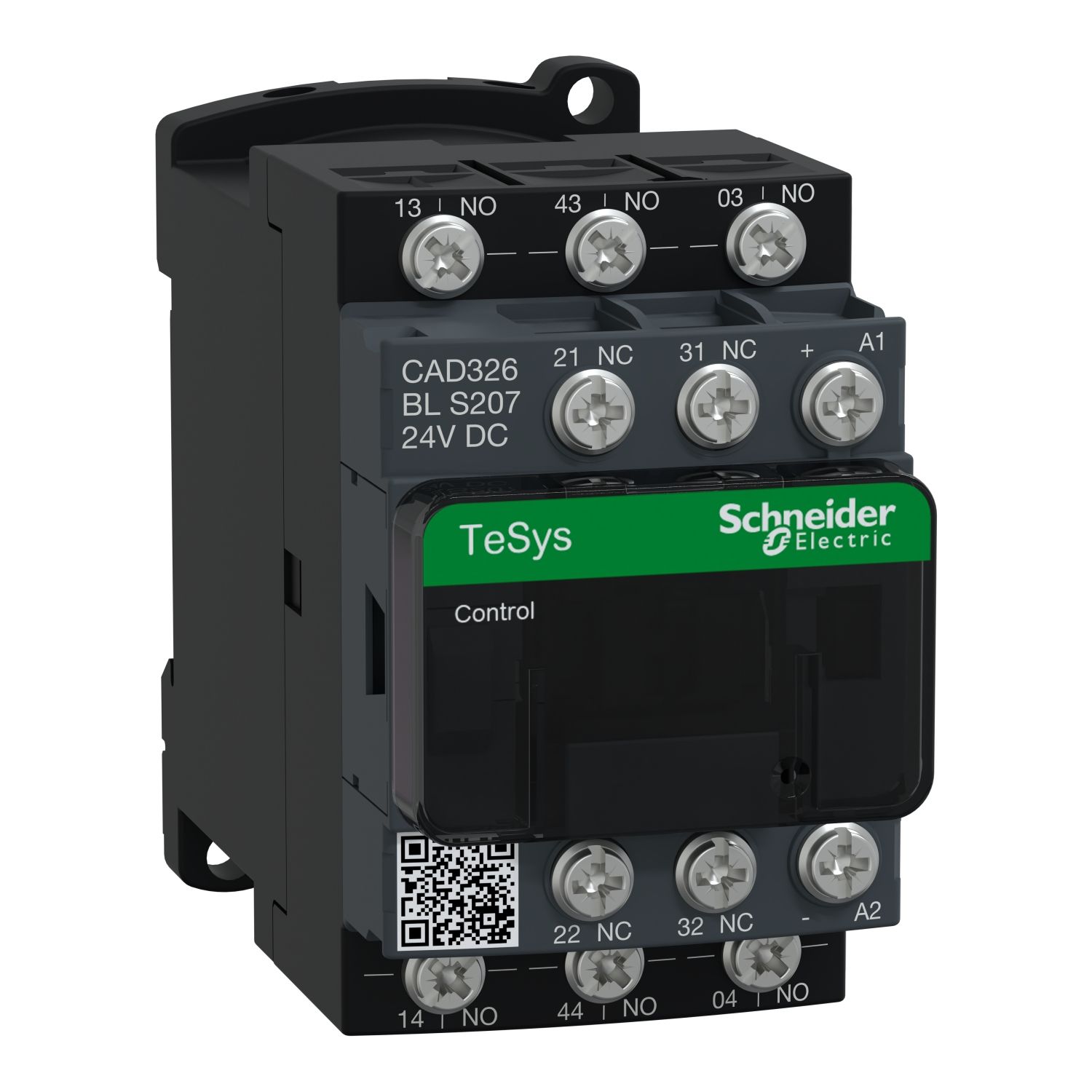

Picture of Control relay, TeSys Deca S207 railway, 3NO+2NC, <= 690V, 24V DC low consumption coil
SKU:

CAD326BLS207

Control relay, TeSys Deca S207 railway, 3NO+2NC, <= 690V, 24V DC low consumption coil

$195.07
Control relay, TeSys Deca S207 railway, 3NO+2NC, <= 690V, 24V DC low consumption coil
  • Made of new material, fully railway European standard EN45545 R22 HL3 compliant, with unchanged commercial reference.
  • Meet tighter requirements on fire behavior of materials and components.
  • The highest choice for demanding or wide power range applications.
  • TeSys Control Relays provide a cost-effective solution to a simple application.
  • Multiple international certifications.
  • Green Premium products, deliver valued sustainable performance.
  • Compatible for all the voltages on the market.
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024
End of life manual
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is fully compliant with railway standards. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. It procures high reliability and durability with 180 cycles/min operating rate and 30 Mcycle mechanical durability under ambient temperature -40-70°C. The dimension is 77mm x 45mm x 93mm (H x W x D), clipping on rail or fixing by screw on plate. Multi standards certified (IEC, UL, CSA, CCC, EAC, UKCA), Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name CAD
Range TeSys
Product name TeSys CAD
Product or component type control relay
Contactor application control circuit
Range of product TeSys D control relay
Complementary
[Icw] rated short-time withstand current 140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
Depth 93 mm
Width 45 mm
Operating time 28...42 ms coil de-energisation and NC closing, 57...77 ms coil energisation and NC opening, 14...25 ms coil de-energisation and NO opening, 65...88 ms coil energisation and NO closing
Compatibility code CAD
Inrush power in W 2.4-2.4 W (at 20 °C)
Mechanical durability 30 Mcycles
Tightening torque 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5, 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5
Maximum operating rate 180 cyc/mn
Minimum switching voltage 17 V
Utilisation category AC-15, AC-14, DC-13
Time constant 40 ms
Coil technology with integral suppression device
Pole contact composition 3 NO + 2 NC
Connections - terminals lugs-ring terminals (external diameter: 9.5 mm)
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Net weight 0.32 kg
Associated fuse rating 10 A gG conforming to IEC 60947-5-1
Irms rated making capacity 250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Insulation resistance > 10 MOhm
Hold-in power consumption in W 2.4-2.4 W at 20 °C
[Uc] control circuit voltage 24 V DC
Control circuit type DC low consumption
Mounting support rail, plate
Control circuit voltage limits 0.7...1.25 Uc (-40-70 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC
[Ith] conventional free air thermal current 10 A (at 60 °C)
Height 77 mm
[Ue] rated operational voltage <= 690 V AC 25...400 Hz
Mechanical robustness vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Minimum switching current 5 mA
Non-overlap time 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 0...3000 m
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -60-80 °C
Flame retardance V0 conforming to UL 94
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN 45545: R22 HL3
Ambient air temperature for operation -40-70 °C
Product certifications UKCA, CE, EAC, CSA, UL, CCC, CB
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.4 cm
Package 1 Width 8.1 cm
Package 1 Length 5.4 cm
Package 1 Weight 300.0 g

Related products

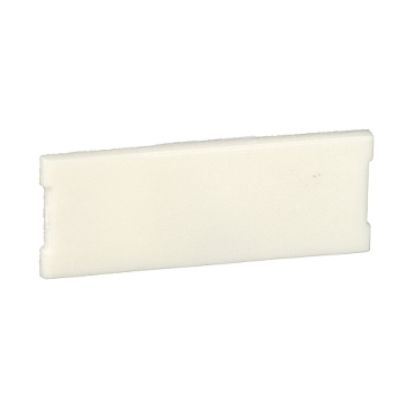

Picture of TeSys, Clip-in marker holder, 8 x 22 mm, for 4P contactor
