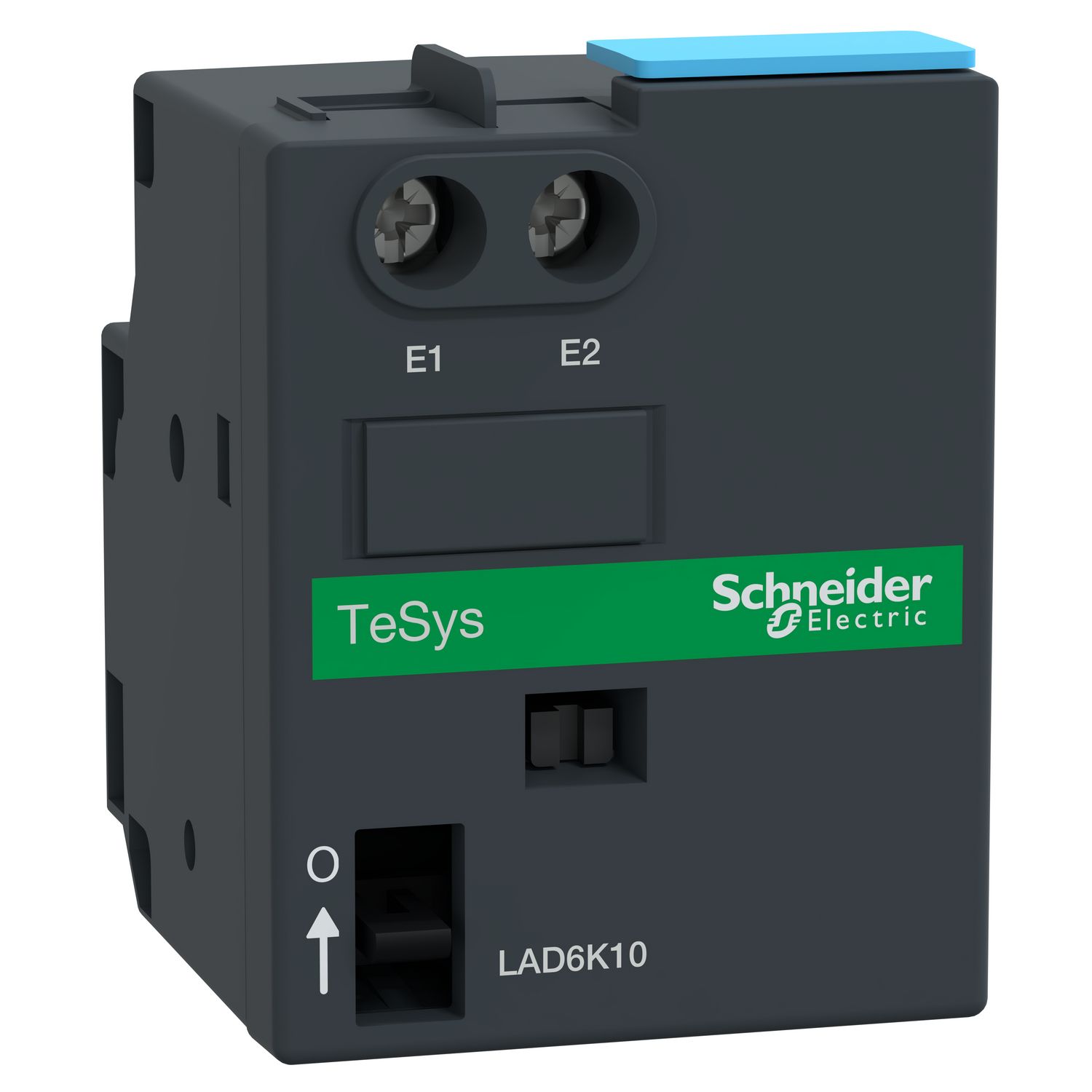

Picture of TeSys, Mechanical latch block, TeSys Deca, 220...240V AC/DC
SKU:

LAD6K10M

TeSys, Mechanical latch block, TeSys Deca, 220...240V AC/DC

$314.90
Available for Shipping : 17-Nov-2024
TeSys, Mechanical latch block, TeSys Deca, 220...240V AC/DC
  • Helps to save contactor coil consumption and reduce carbon footprint
  • Front add-on design ensures product flexibility
  • Easy installation without needs of any tools
  • Flexible connection with multi-standard screws
  • IP2X degree electrical protection
  • New Product signature to align with TeSys Deca series
  • Enhanced digital customer experience with access to all product data and documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 220-240V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Range TeSys
Product or component type mechanical latch block
Product compatibility LC1DT80A 3 phases + neutral AC/DC, LC1DT60A 3 phases + neutral AC/DC, LC1D40A...D80A 3 phases AC/DC, LC1DT20...DT40 AC/DC, LC1D09...D38 AC/DC
Range of product TeSys Deca, TeSys Deca control relay
[Uc] control circuit voltage 220/240 V DC, 220/240 V AC 50/60 Hz
Complementary
Power required in VA 25 for AC circuit
On-load factor 10 %
Mechanical durability 500000 cycles
Maximum operating rate 1200 cyc/h
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
Mounting location front side
Net weight 0.07 kg
Tripping control manual, electrical
Power required in W 30 W for DC circuit
Environment
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to VDE 0106
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 5.000 cm
Package 1 Length 6.500 cm
Package 1 Weight 98.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.270 kg
Unit Type of Package 3 3
Number of Units in Package 3 1024
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 112.640 kg

Related products

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 24VAC 50/60Hz standard coil, screw clamp

CAD32B7
$224.11
View Detail

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 24VDC standard coil, screw clamp

CAD32BD
$518.56
View Detail
Picture of TeSys, Control relay, TeSys Deca, 3NO+2NC, 0 to 690V, 32VAC 50/60Hz standard coil, screw clamp

TeSys, Control relay, TeSys Deca, 3NO+2NC, 0 to 690V, 32VAC 50/60Hz standard coil, screw clamp

CAD32C7
$224.11
View Detail

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 36VDC standard coil, screw clamp

CAD32CD
$298.54
View Detail

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 42VAC 50/60Hz standard coil, screw clamp

CAD32D7
$127.92
View Detail

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 48VAC 50/60Hz standard coil, screw clamp

CAD32E7
$224.51
View Detail

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 48VDC standard coil, screw clamp

CAD32ED
$315.72
View Detail

TeSys; TeSys Deca, Control relay, 3NO+2NC, 0 to 690V, 110VAC 50/60Hz standard coil, screw clamp

CAD32F7
$224.51
View Detail
