SKU:

CAD326FLS207

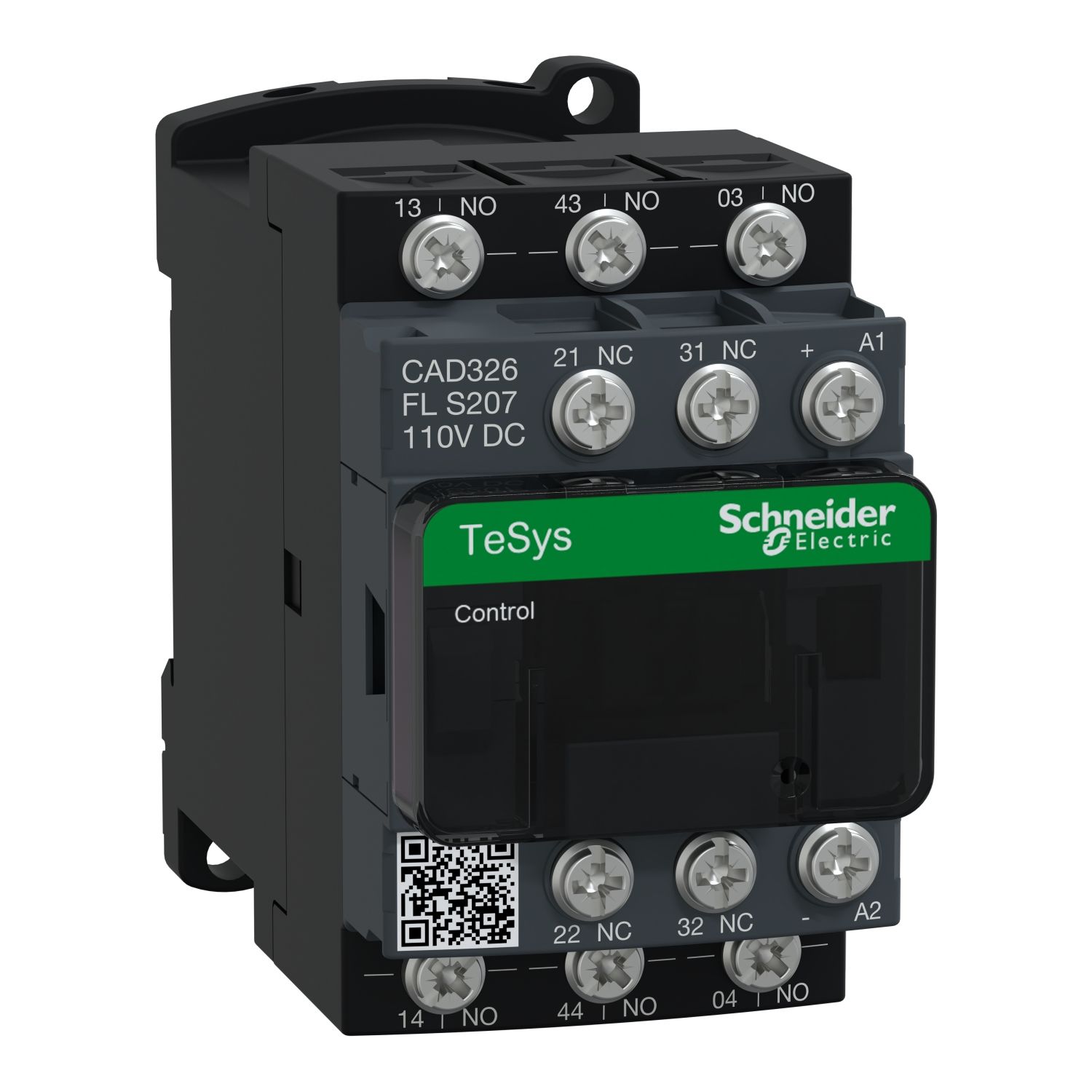

Control relay, TeSys Deca S207 railway, 3NO+2NC, <= 690V, 110V DC low consumption coil

$195.07
Available for Shipping : 17-Dec-2024
Control relay, TeSys Deca S207 railway, 3NO+2NC, <= 690V, 110V DC low consumption coil
  • Made of new material, fully railway European standard EN45545 R22 HL3 compliant, with unchanged commercial reference.
  • Meet tighter requirements on fire behavior of materials and components.
  • The highest choice for demanding or wide power range applications.
  • TeSys Control Relays provide a cost-effective solution to a simple application.
  • Multiple international certifications.
  • Green Premium products, deliver valued sustainable performance.
  • Compatible for all the voltages on the market.
Manufacturer: Schneider Electric
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is fully compliant with railway standards. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by lugs. It procures high reliability and durability with 180 cycles/min operating rate and 30 Mcycle mechanical durability under ambient temperature -40-70°C. The dimension is 77mm x 45mm x 93mm (H x W x D), clipping on rail or fixing by screw on plate. Multi standards certified (IEC, UL, CSA, CCC, EAC, UKCA), Green Premium product (RoHS/REACh).
