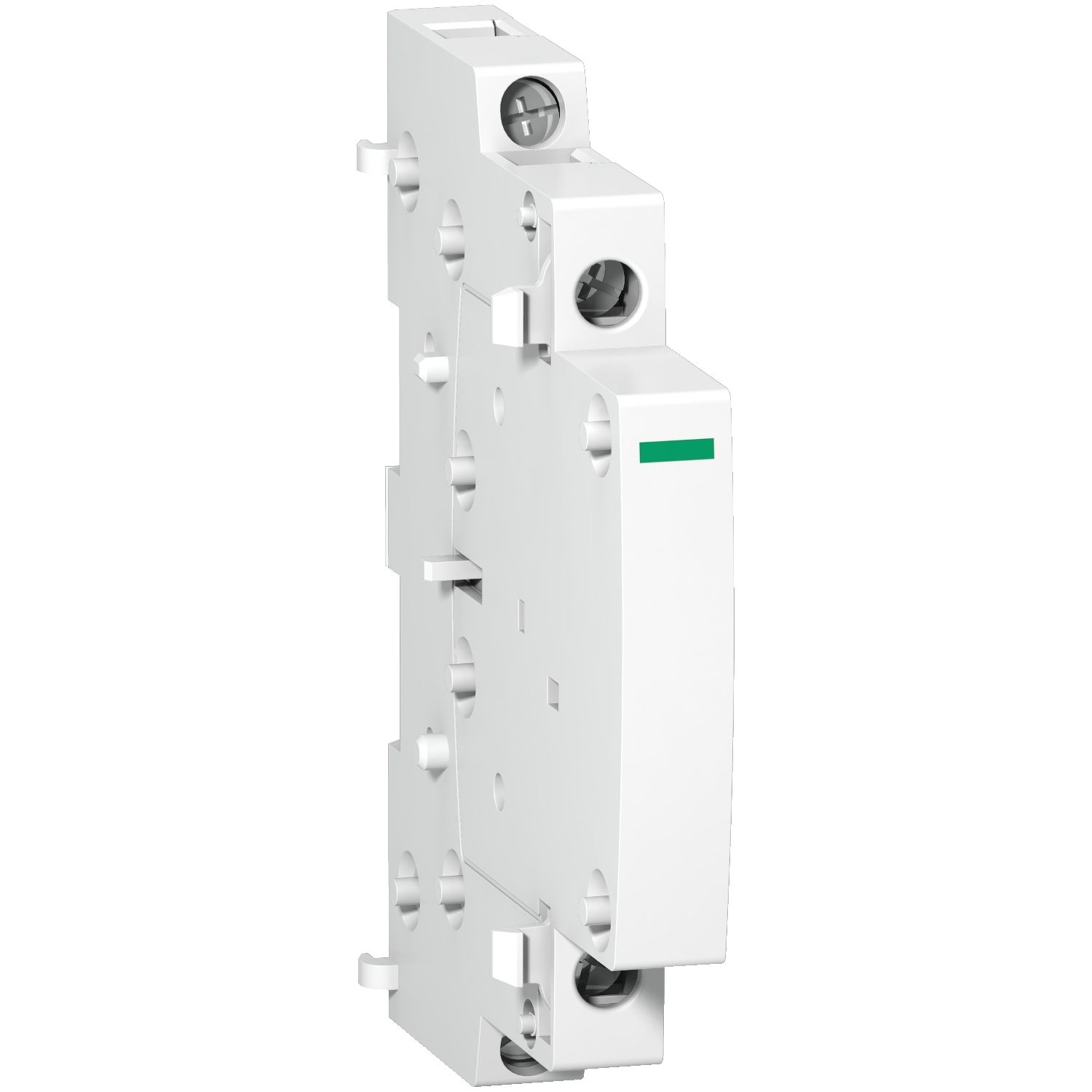

Picture of Auxiliary contacts block, TeSys GC & GY, 2NO, 250V, Right side mounting
SKU:

GAC0531

Auxiliary contacts block, TeSys GC & GY, 2NO, 250V, Right side mounting

$95.86
Auxiliary contacts block, TeSys GC & GY, 2NO, 250V, Right side mounting
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Product Page Link
Product Data Sheet
TeSys GC, GY auxiliary contact block, for GC and GY contactors. It provides 2NO instantaneous auxiliary contacts rated up to 5A/250V AC. For side mounting on all GC and GY contactor models (9mm width). Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameGAC0
Product compatibilityTeSys GC, TeSys GY
Pole contact composition2 NO
Mounting locationright side
RangeTeSys
Product or component typeauxiliary contact block
[Ue] rated operational voltage250 V
[Ith] conventional free air thermal current5 A (at 50 °C)
Complementary
Depth60 mm
Width8.75 mm
Mechanical durability1 Mcycles
Tightening torque0.8 N.m - on screw clamp terminals
[Ui] rated insulation voltage500 V conforming to VDE 0110, 500 V conforming to IEC 60947-5
Connections - terminalsscrew clamp terminals2.5-2.5 mm²flexible, screw clamp terminals2.5-2.5 mm²solid
Net weight0.016 kg
Height81 mm
Environment
Operating altitude<= 3000 m without derating
Protective treatmentTC
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP20 conforming to VDE 0106
StandardsIEC 60947-5
Ambient air temperature for operation-5-50 °C
Product certificationsNF-USE, VDE, OVE, CEBEC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.0 cm
Package 1 Width7.5 cm
Package 1 Length8.6 cm
Package 1 Weight44.0 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height8.0 cm
Package 2 Width9.5 cm
Package 2 Length23.0 cm
Package 2 Weight491.0 g
Unit Type of Package 33
Number of Units in Package 380
Package 3 Height30.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight4.451 kg
