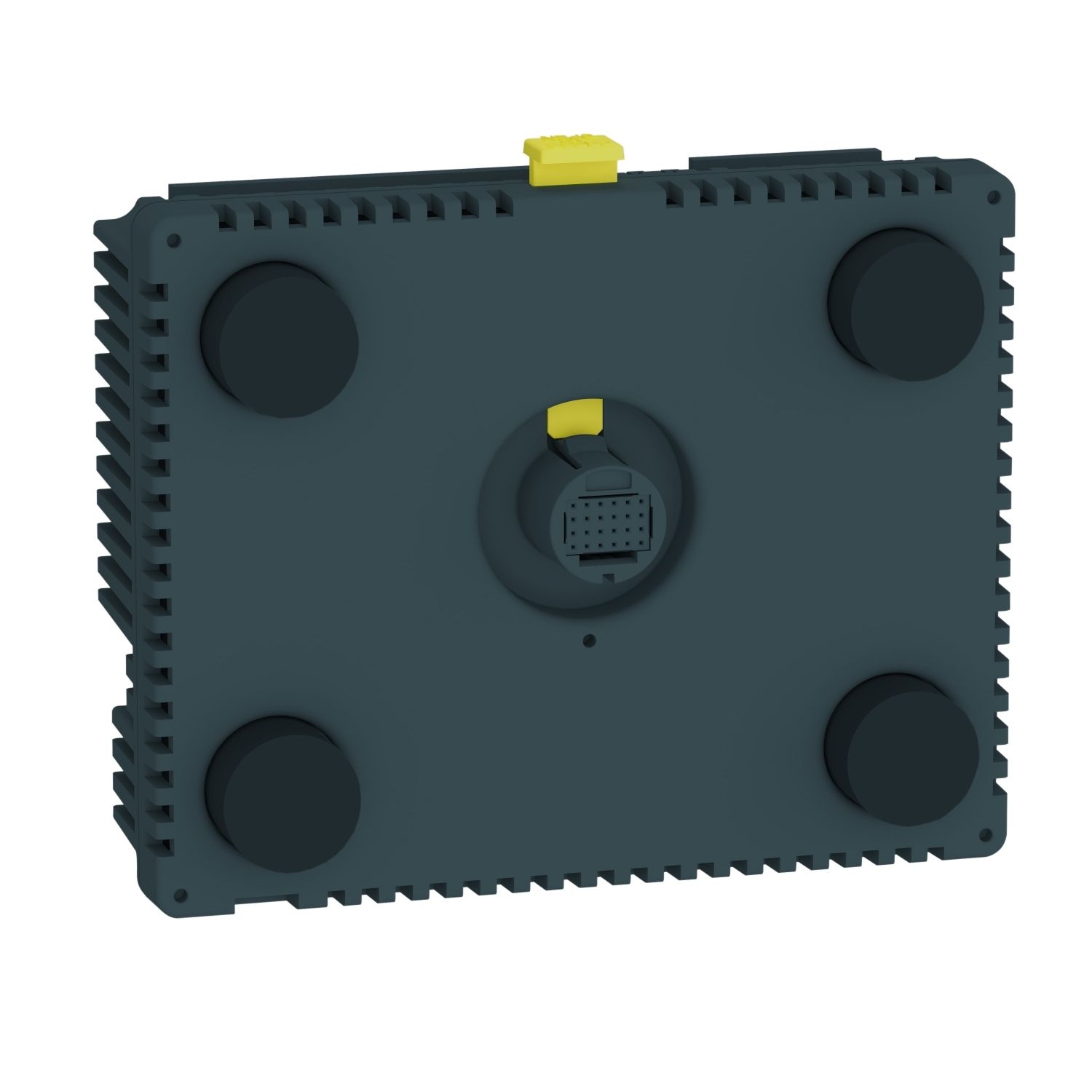

Picture of Controller, Harmony SCU, Rear Module panel, Dig 16 inputs/10 outputs
SKU:

HMISAC

Controller, Harmony SCU, Rear Module panel, Dig 16 inputs/10 outputs

$1,147.82
Available for Shipping : 10-Dec-2024
Product Selector
Controller, Harmony SCU, Rear Module panel, Dig 16 inputs/10 outputs
Be the first to review this product
Manufacturer: Schneider Electric
Quick start guide
User guide
End of life manual
Instruction sheet
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This rear module controller offers 16 digital inputs and 10 outputs. It is a controller with a supply voltage of 24V DC. It features CPU RISC processor, 128MB flash NAND, 128kB FRAM internal data storage and 128MB application run DRAM. It is an equipped with 1 serial link, 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A and DE-09 D-sub CANopen master bus connections. It is an IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529 and NEMA 4X front panel rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height). It weighs 0.359kg. This product is certified by GOST, C-Tick, KCC and CULus. It meets ANSI/ISA 12-12-01, UL 508, IEC 61000-6-2 and CSA C22.2 No 213 Class I Division 2 standards. It can be installed into 1mm to 6mm thick panel. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.

Products specifications

Attribute name Attribute value
Main
Device presentation basic element
Range of product Harmony SCU
Product or component type controller
Complementary
Number of common point 2 for digital input, 1 for fast input (HSC mode)
Memory description application run DRAM, 128 MB, internal data storage FRAM, 128 kB, flash NAND, 128 MB
Discrete input number 14 for digital input conforming to IEC 61131-2 Type 1, 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1
Input/output number 8 for digital output, terminal(s): DQ0...DQ7, 2 for fast output, terminal(s): FQ0...FQ1, 14 for digital input, terminal(s): DI0...DI13, 2 for fast input, terminal(s): FI0...FI1
Realtime clock built-in
Downloadable protocols CANopen, Modbus TCP/IP, Modbus
Maximum output frequency 1 kHz for fast output (PWM mode), 100 kHz for fast output (PTO mode)
Maximum input frequency 100 kHz for fast input - control type pulse/direction, 100 kHz for fast input - control type single phase, 100 kHz for fast input (encoder mode) - control type A/B
Processor name CPU RISC
Configurable filtering time 3...12 ms integrator (none/run/stop), 0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 0 ms no filter (none)
Processor frequency 333 MHz
Isolation between channels none
Discrete output voltage 220 V AC (voltage limit: 100...250 V) with relay discrete output(s), 24 V DC (voltage limit: 5...30 V) with relay discrete output(s), 24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s)
Electromagnetic compatibility radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Power consumption in W 15 W
Discrete input voltage 24 V DC, discrete input logic: sink or source (positive/negative)
[Us] rated supply voltage 24 V (20.4-28.8 V)DC
Immunity to microbreaks 10 ms
Connection pitch 3.5 mm
Height 50.65 mm
Maximum cable distance between devices unshielded cable: <50 m for digital input, shielded cable: <100 m for digital input, shielded cable: <10 m for fast input
Fixing mode by 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
Discrete output current 50 mA, response time 2 ms for fast output (PWM or PTO mode), 300 mA, response time 2 ms for fast output (normal mode), 2 A 4 A), response time 2 ms with closing contact for digital output, 2 A 4 A), response time 5 ms with opening contact for digital output
Depth 102 mm
Sensor power supply 15-28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA, 15-28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA
Width 128 mm
Local signalling no indicator
Enclosure material PC/PBT
Discrete input current 5 mA for digital, 7.83 mA for fast input
Input impedance 2.81 kOhm, 4.7 kOhm
Absolute accuracy error +/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode), +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode), +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode), 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode), +/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode)
Integrated connection type CANopen master bus - SUB-D 9, 1 USB 2.0 type A, 1 USB 2.0 type mini B, 1 Ethernet TCP/IP - RJ45, 1 serial link - RJ45 - RS232/RS485 (rate: <= 115.2 kbits/s)
Software designation SoMachine
Isolation between channels and internal logic 500 V DC
Net weight 0.359 kg
Overvoltage protection with overvoltage protection
Operating system Harmony
Vibration resistance 1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27, 147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27
Insulation resistance > 10 MOhm between power supply and earth, > 10 MOhm between the I/O and internal logic
Supply external source
Discrete output number 8 digital output, output logic: source, 2 fast output (normal mode), output logic: source
Inrush current 30 A
Number of pages limited by internal memory capacity
Environment
Relative humidity 5-85 % without condensation
Ambient air temperature for storage -20-60 °C
Pollution degree 2 conforming to IEC 60664
IP degree of protection IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
Marking CE
Ambient air temperature for operation 0-50 °C
Operating altitude <= 2000 m
NEMA degree of protection NEMA 4X front panel
Environmental characteristic corrosive gas free
Maximum pressure 800...1114 hPa
Storage altitude 0-10000 m
Standards CSA C22.2 No 213 Class I Division 2, EN 61131-2, IEC 61000-6-2, UL 508, ANSI/ISA 12-12-01, FCC Class A
Product certifications cUL 1604 Class 1 Division 2, cULus CSA 22-2 No 142, cULus 508, KCC, C-Tick, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 19.000 cm
Package 1 Length 26.800 cm
Package 1 Weight 988.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.677 kg

Related products

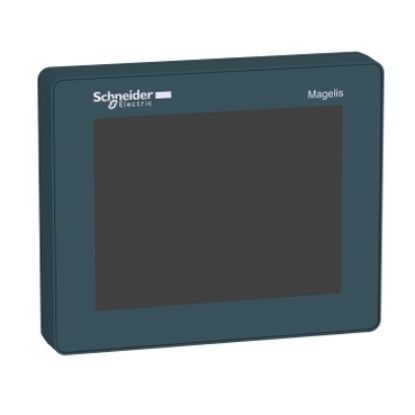

Picture of Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD

Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD

HMIS65
$389.68
View Detail

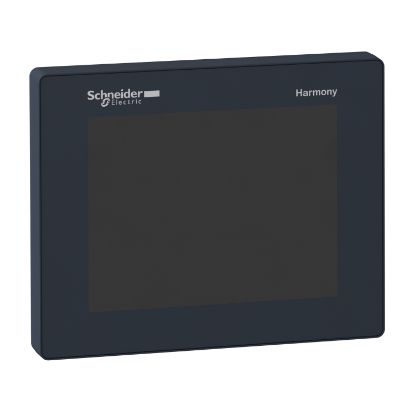

Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
