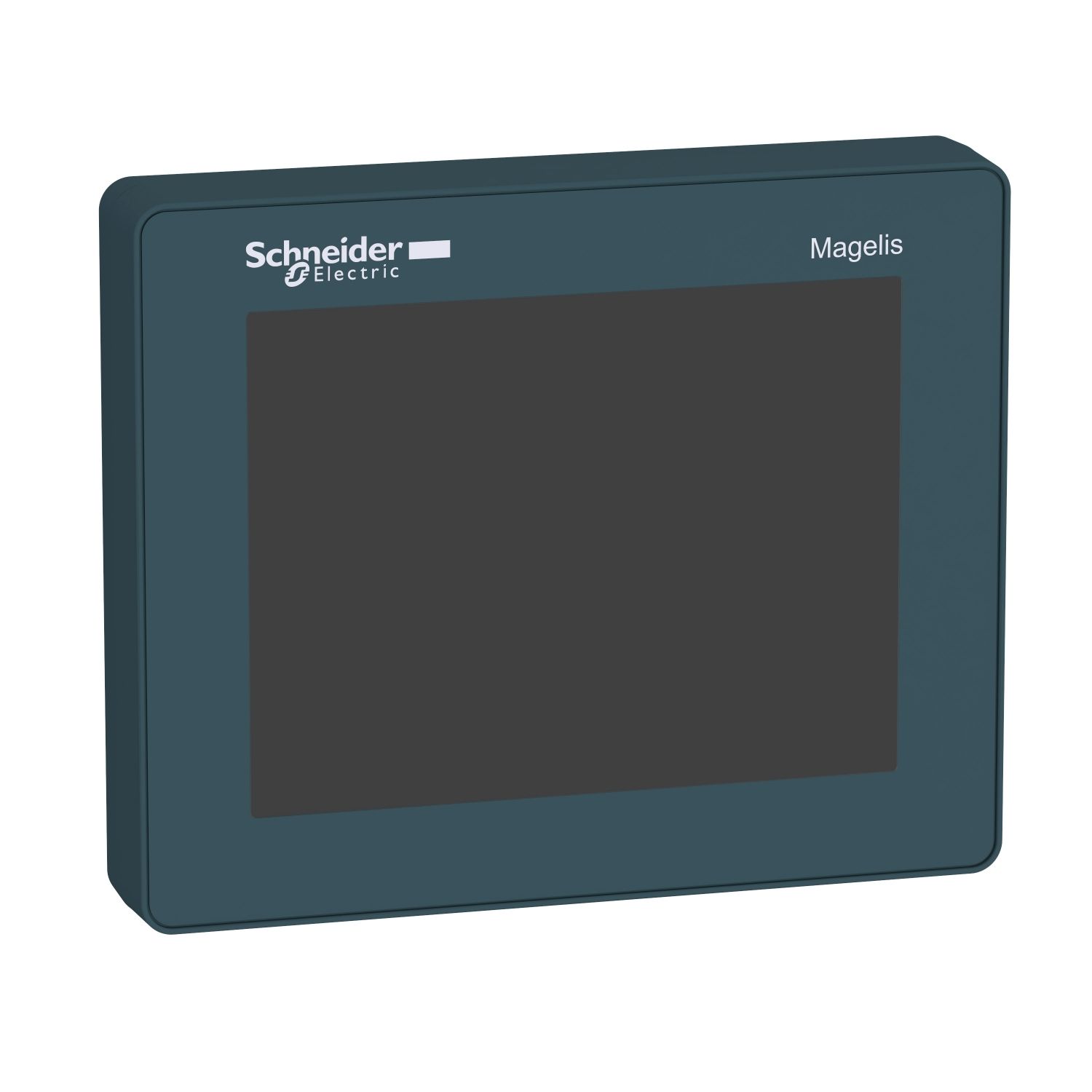

Picture of Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
SKU:

HMIS65

Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD

Please Contact Sales to buy this Product. click here
Product Selector
Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 03-Nov-2024
Quick start guide
User guide
Instruction sheet
Catalogue
Declaration of conformity
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 3.5inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 97.6mm (width) x 80mm (depth) and weighs 0.53kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

Products specifications

Attribute nameAttribute value
Main
Display size3.5 inch
Range of productHarmony SCU
Product or component typesmall touchscreen display HMI
Pixel resolution320 x 240 pixels QVGA
Complementary
Character fontTaiwanese (traditional Chinese), ASCII, Japanese (ANK, Kanji), Chinese (simplified Chinese), Korean
Display typewith backlit LED colour TFT LCD
Backlight lifespan50000 hours with 65536 colours
View angle horiz x vert60° bottom, 40° top, 60° right, 60° left
Depth80 mm
Width97.6 mm
Touch panelanalogue
Net weight0.53 kg
Brightness16 levels via touch panel
Environment
Product certificationsUKEX, UKCA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height12.8 cm
Package 1 Width5.3 cm
Package 1 Length18.3 cm
Package 1 Weight304.0 g
Unit Type of Package 22
Number of Units in Package 216
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.379 kg
Unit Type of Package 33
Number of Units in Package 3256
Package 3 Height60.0 cm
Package 3 Width80.0 cm
Package 3 Length120.0 cm
Package 3 Weight77.824 kg
