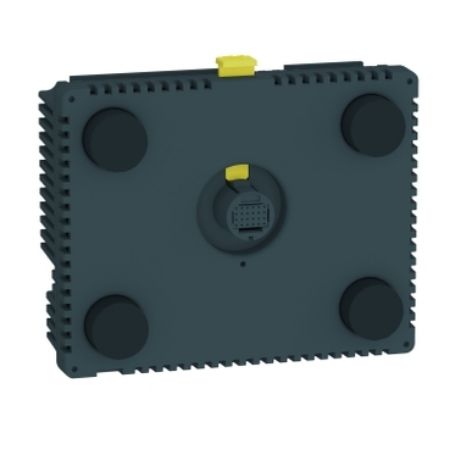

Picture of Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs +Ana 4 In/2 Out
SKU:

HMISBC

Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs +Ana 4 In/2 Out

Please Contact Sales to buy this Product. click here
Product Selector
Controller, Harmony SCU, Rear Module panel, Dig 8 inputs/8 outputs +Ana 4 In/2 Out
  • Simple process Controller module
  • This controller is for use with screen modules HMIS65 (3.5") and HMIS85 (5.7")
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Quick start guide
User guide
End of life manual
Instruction sheet
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. This rear module controller panel provides 8/8 digital I/Os and 4/2 analogue I/Os. It supports Modbus, CANopen and Modbus TCP/IP downloadable protocols. It is designed with internal data storage of 128kB FRAM, flash NAND of 128MB and application run DRAM of 128MB. It is a controller panel with a rated supply voltage of 24V DC, supplied by external source with the limit ranges from 20.4V to 28.8V DC. It is an IP20 (rear panel) / IP65 (front panel) and NEMA 4X rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height) and weighs 0.398kg. It is certified by CULus, CUL, GOST, C-Tick, CSA, KCC. It meets UL 508, FCC Class A, EN 61131-2, WEEE directive 2002/96/EC, CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12-12-01, RoHS, RoHS China SJ/T 11363-2006, IEC 61000-6-2 standards. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

Products specifications

Attribute nameAttribute value
Main
Device presentationbasic element
Range of productHarmony SCU
Product or component typecontroller
Complementary
Number of common point1 for digital input, 1 for fast input (HSC mode)
Memory descriptionapplication run DRAM, 128 MB, internal data storage FRAM, 128 kB, flash NAND, 128 MB
Discrete input number6 for digital input conforming to IEC 61131-2 Type 1, 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1
Input/output number6 for digital output, terminal(s): DQ0...DQ5, 6 for digital input, terminal(s): DI0...DI5, 2 for fast output, terminal(s): FQ0...FQ1, 2 for fast input, terminal(s): FI0...FI1
Realtime clockbuilt-in
Downloadable protocolsModbus TCP/IP, CANopen, Modbus
Maximum output frequency1 kHz for fast output (PWM mode), 100 kHz for fast output (PTO mode)
Maximum input frequency100 kHz for fast input - control type pulse/direction, 100 kHz for fast input - control type single phase, 100 kHz for fast input (encoder mode) - control type A/B
Processor nameCPU RISC
Configurable filtering time3...12 ms integrator (none/run/stop), 0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 0 ms no filter (none)
Processor frequency333 MHz
Isolation between channelsnone
Discrete output voltage220 V AC (voltage limit: 100...250 V) with relay discrete output(s), 24 V DC (voltage limit: 5...30 V) with relay discrete output(s), 24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete output(s)
Electromagnetic compatibilityradiated emission - test level: 30 MHz...1 GHz conforming to EN 55011, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Power consumption in W15 W
Discrete input voltage24 V DC, discrete input logic: sink or source (positive/negative)
[Us] rated supply voltage24 V (20.4-28.8 V)DC
Analogue input range-10...+10 V or 0...10 V - resolution: 12 bits + sign, input impedance: >= 1 MOhm, 0...20 mA/4...20 mA - resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %)
Immunity to microbreaks10 ms
Connection pitch3.5 mm
Height50.65 mm
Maximum cable distance between devicesunshielded cable: <50 m for digital input, shielded cable: <100 m for digital input, shielded cable: <10 m for fast input
Fixing modeby 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
Analogue input typeRTD at - 200...1300 °C - resolution: 16 bits (thermocouple N), RTD at - 200...900 °C - resolution: 16 bits (thermocouple E), RTD at - 200...400 °C - resolution: 16 bits (thermocouple T), RTD at 0...1600 °C - resolution: 16 bits (thermocouple S), RTD at 200...1800 °C - resolution: 16 bits (thermocouple B), RTD at 0...1600 °C - resolution: 16 bits (thermocouple R), RTD at - 240...1370 °C - resolution: 16 bits (thermocouple K), RTD at - 200...760 °C - resolution: 16 bits (thermocouple J), RTD at - 50...200 °C - resolution: 16 bits temperature probe: Ni 100/Ni 1000, RTD at - 200...600 °C - resolution: 16 bits temperature probe: Pt 100/Pt 1000
Discrete output current50 mA, response time 2 ms for fast output (PWM or PTO mode), 300 mA, response time 2 ms for fast output (normal mode), 2 A 4 A), response time 2 ms with closing contact for digital output, 2 A 4 A), response time 5 ms with opening contact for digital output
Depth102 mm
Sensor power supply15-28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA, 15-28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA
Width128 mm
Local signallingno indicator
Enclosure materialPC/PBT
Discrete input current5 mA for digital, 7.83 mA for fast input
Input impedance4.7 kOhm, 2.81 kOhm
Absolute accuracy error+/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode), +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode), +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode), 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode), +/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode)
Integrated connection typeCANopen master bus - SUB-D 9, 1 USB 2.0 type A, 1 USB 2.0 type mini B, 1 Ethernet TCP/IP - RJ45, 1 serial link - RJ45 - RS232/RS485 (rate: <= 115.2 kbits/s)
Software designationSoMachine
Analogue input number2 for RTDs, 2 for analog input
Isolation between channels and internal logic500 V DC
Net weight0.398 kg
Analogue output range-10...10 V/0...10 V (> 2 kOhm) for short-circuit, 0...20 mA/4...20 mA (> 300 Ohm) for open-circuit
Overvoltage protectionwith overvoltage protection
Operating systemHarmony
Vibration resistance1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27, 147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27
Insulation resistance> 10 MOhm between power supply and earth, > 10 MOhm between the I/O and internal logic
Supplyexternal source
Discrete output number6 digital output, output logic: source, 2 fast output (normal mode), output logic: source
Inrush current30 A
Number of pageslimited by internal memory capacity
Analogue output number2 resistive load for 12 bits + sign
Environment
Relative humidity5-85 % without condensation
Ambient air temperature for storage-20-60 °C
Pollution degree2 conforming to IEC 60664
IP degree of protectionIP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529
MarkingCE
Ambient air temperature for operation0-50 °C
Operating altitude<= 2000 m
NEMA degree of protectionNEMA 4X front panel
Environmental characteristiccorrosive gas free
Maximum pressure800...1114 hPa
Storage altitude0-10000 m
StandardsIEC 61000-6-2, ANSI/ISA 12-12-01, CSA C22.2 No 213 Class I Division 2, EN 61131-2, FCC Class A, UL 508
Product certificationsUKEX, UKCA, KCC, GOST, cULus CSA 22-2 No 142, C-Tick, cUL 1604 Class 1 Division 2, cULus 508
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.000 cm
Package 1 Width19.000 cm
Package 1 Length26.600 cm
Package 1 Weight870.000 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight5.660 kg
