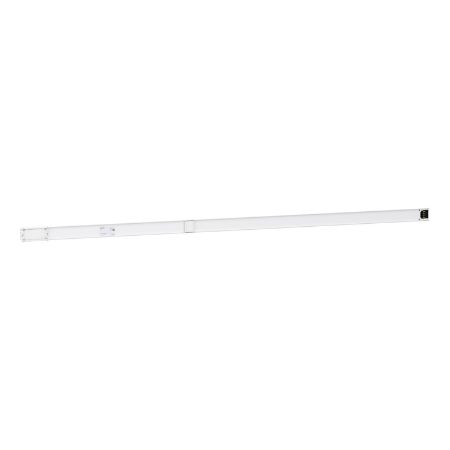

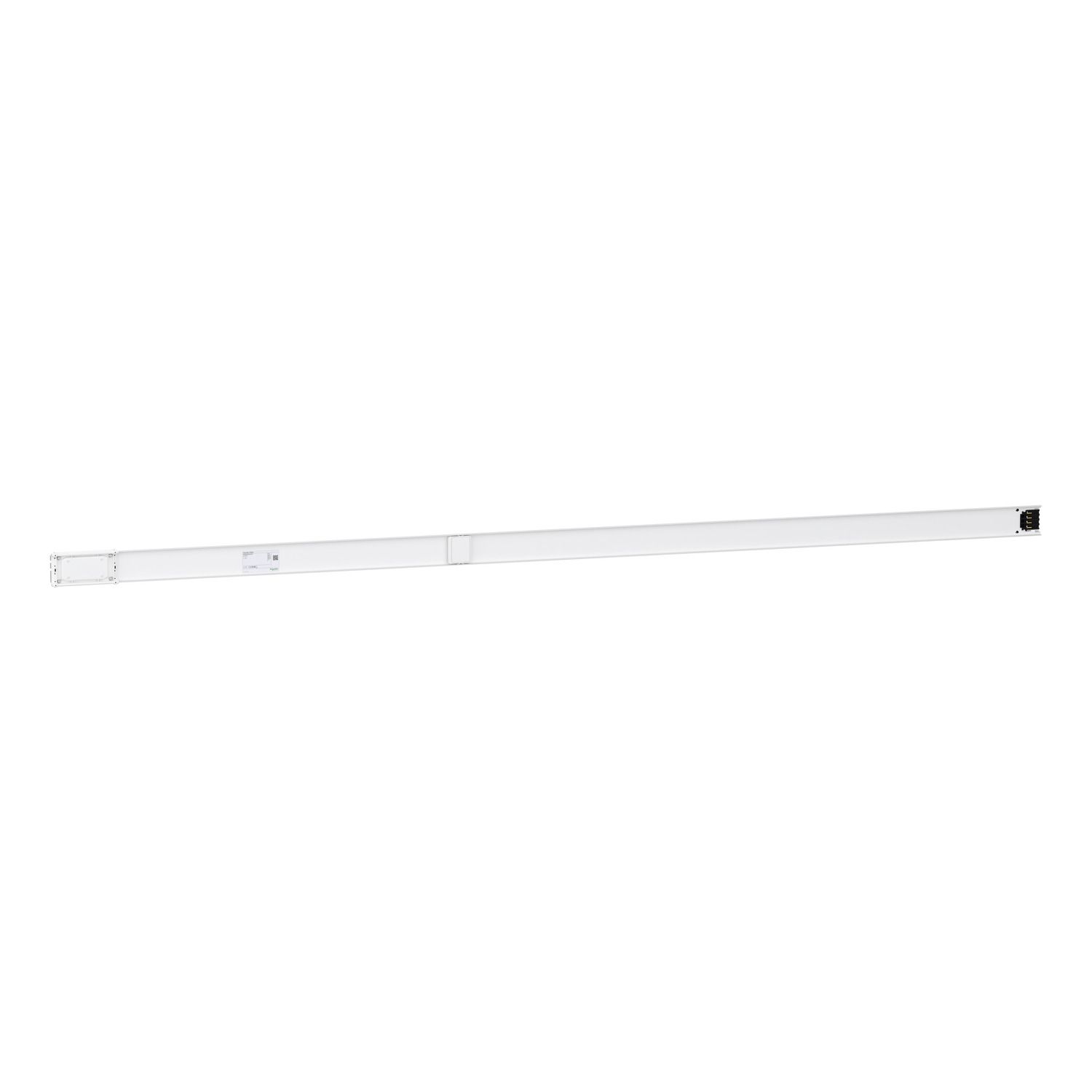

Picture of Straight distribution length, Canalis KN, additional, aluminium, 40A, 3L+N+PE, fixed length 3m, 1 outlet, RAL9001
SKU:

KNA40ED4301

Straight distribution length, Canalis KN, additional, aluminium, 40A, 3L+N+PE, fixed length 3m, 1 outlet, RAL9001

$218.74
Straight distribution length, Canalis KN, additional, aluminium, 40A, 3L+N+PE, fixed length 3m, 1 outlet, RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 16-Jan-2025
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device short nameKNA
Device applicationlow power distribution
Number of tap-off outlets1
[Ie] rated operational current40 A at 35 °C
Busbar trunking polarity3L + N + PE, 3L + PEN
RangeCanalis
Length3 m
Product nameKN
Product or component typestraight length
Range of productCanalis
Complementary
[Ipk] rated peak withstand current6 kA
[Ue] rated operational voltage230...500 V
Depth27.5 mm
Width92 mm
Colourwhite (RAL 9001)
Neutral positionup
Electrical connectionlubricated sliding contact
Mounting modeby screws
Thermal stress limit1980 kA².s
Control typewithout
Maximum voltage drop<0.133 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.147 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.161 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.168 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight5.5 kg
Radiated magnetic field0.039 µT
Number of circuits1
[Ui] rated insulation voltage500 V
Linear resistance0.96 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.78 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.52 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 3.14 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 2.85 mΩ/m Rb0 20 °C impedance method Ph/PE, 3.4 mΩ/m Rb0 20 °C impedance method Ph/N, 3.4 mΩ/m Rb0 20 °C impedance method Ph/Ph, 5.42 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 1.68 mΩ/m X0 20 °C symmetrical components method Ph/PE, 5.15 mΩ/m R0 20 °C symmetrical components method Ph/PE, 7.11 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.56 mΩ/m X0 20 °C symmetrical components method Ph/N, 6.93 mΩ/m R0 20 °C symmetrical components method Ph/N, 1.96 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 1.94 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 1.7 mΩ/m R20 20 °C phase conductor, 0.25 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 1.09 mΩ/m 20 °C protective conductor
THDI33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage6 kV
StandardsIEC 61439-6
Network frequency50/60 Hz
[Icw] rated short-time withstand current1.4 kA
Environment
IP degree of protectionIP55 conforming to IEC 60529
Ambient air temperature for operation50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protectionIK08 conforming to IEC 62262
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.500 cm
Package 1 Width10.000 cm
Package 1 Length310.000 cm
Package 1 Weight5.000 kg
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height11.000 cm
Package 2 Width16.000 cm
Package 2 Length314.000 cm
Package 2 Weight22.000 kg
Unit Type of Package 33
Number of Units in Package 348
Package 3 Height45.400 cm
Package 3 Width68.000 cm
Package 3 Length320.000 cm
Package 3 Weight310.200 kg
