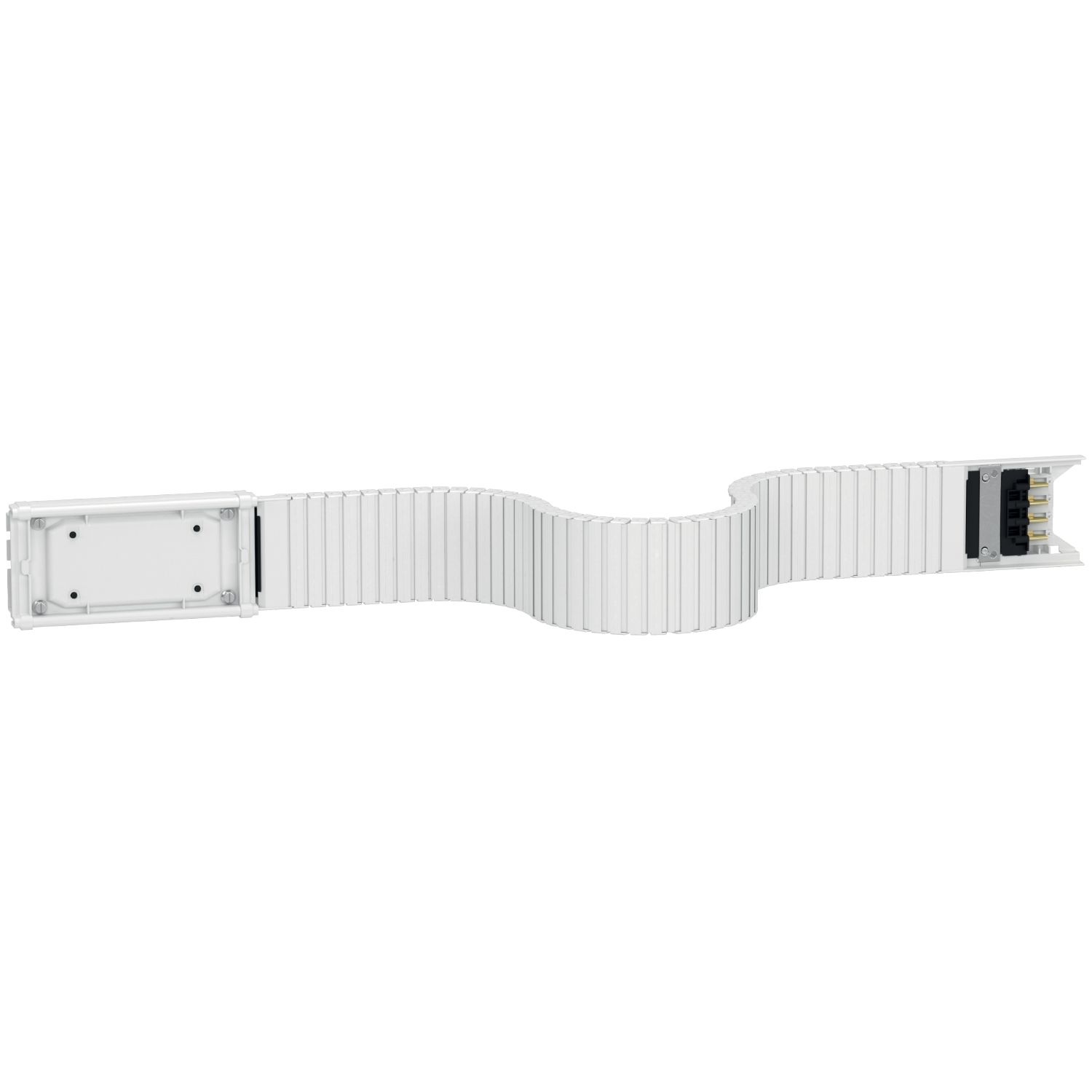

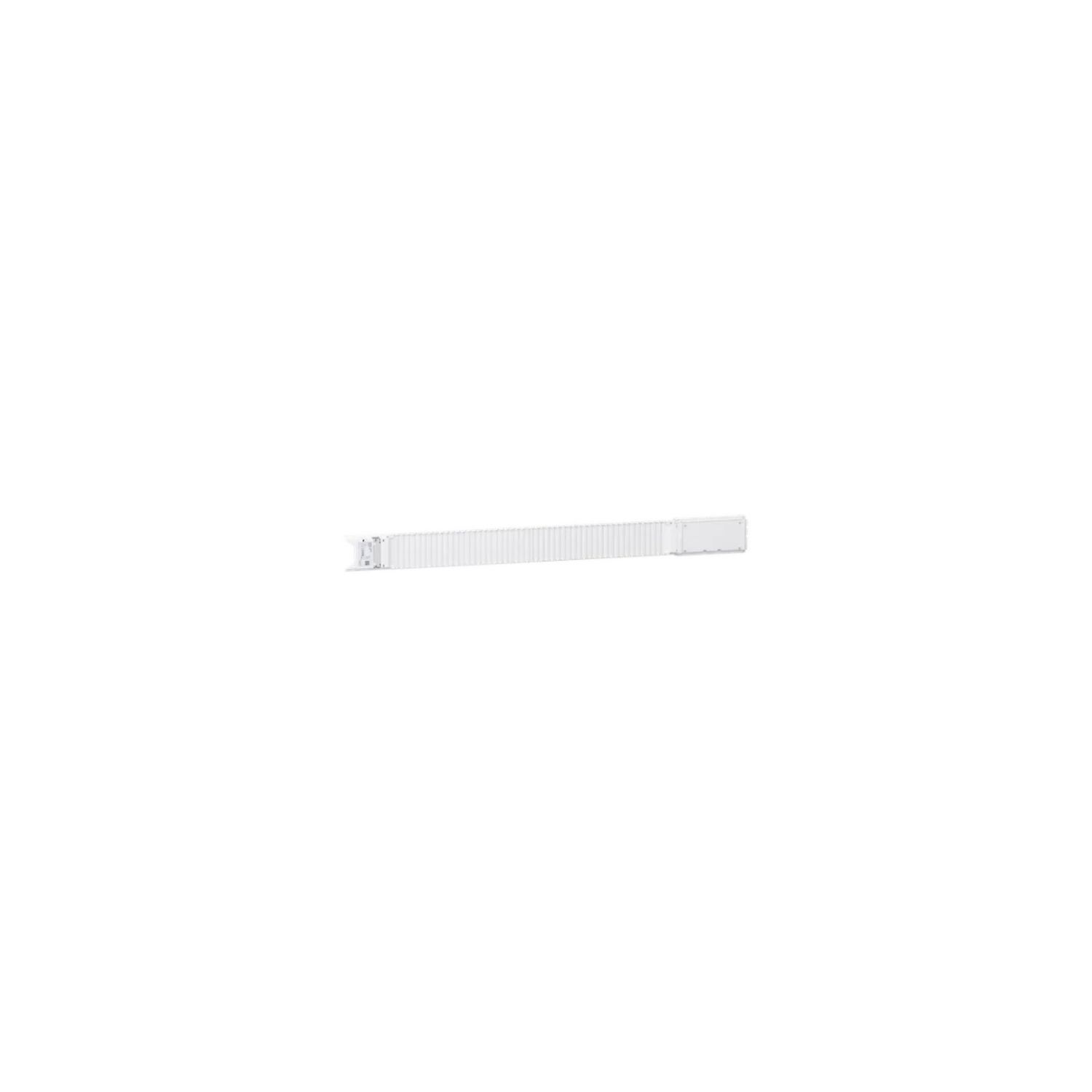

Picture of Flexible length, Canalis KN, 40/63A, edgewise, 3L+N+PE, fixed length 1m, white RAL9001
SKU:

KNA63DF410

Flexible length, Canalis KN, 40/63A, edgewise, 3L+N+PE, fixed length 1m, white RAL9001

$535.37
Available for Shipping : 27-Feb-2025
Flexible length, Canalis KN, 40/63A, edgewise, 3L+N+PE, fixed length 1m, white RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
Part of the Canalis KNA system. It consists of a 1m 63A Flexible elbow. All run components are delivered with a jointing unit.

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...500 V
Device short name KNA
Device application low power distribution
Colour white (RAL 9001)
Busbar description flexible length
[Ie] rated operational current 63 A at 25 °C, 63 A at 35 °C
Control type without
Range Canalis
Direction change type 2 dimensions
Number of circuits 1
Product name KN
Product or component type flexible element
Range of product Canalis
Network frequency 50/60 Hz
Complementary
[Ipk] rated peak withstand current 11 kA
Mounting mode by screws
Thermal stress limit 1980 kA².s
Net weight 2.1 kg
Length 1 m
Maximum radiated magnetic field 0.063 µT
[Ui] rated insulation voltage 500 V
THDI 33-100 % 40 A, 15-33 % 50 A, 0-15 % 63 A
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 61439-6, IEC 61439-1
[Icw] rated short-time withstand current 1.4 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 0-35 °C without derating
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 9.200 cm
Package 1 Length 101.000 cm
Package 1 Weight 2.200 kg
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 50.000 cm
Package 2 Width 62.000 cm
Package 2 Length 119.000 cm
Package 2 Weight 97.000 kg
