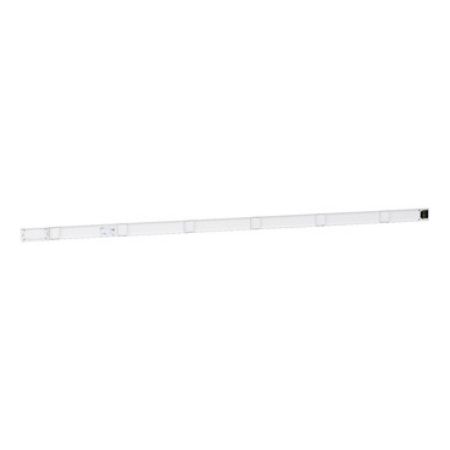

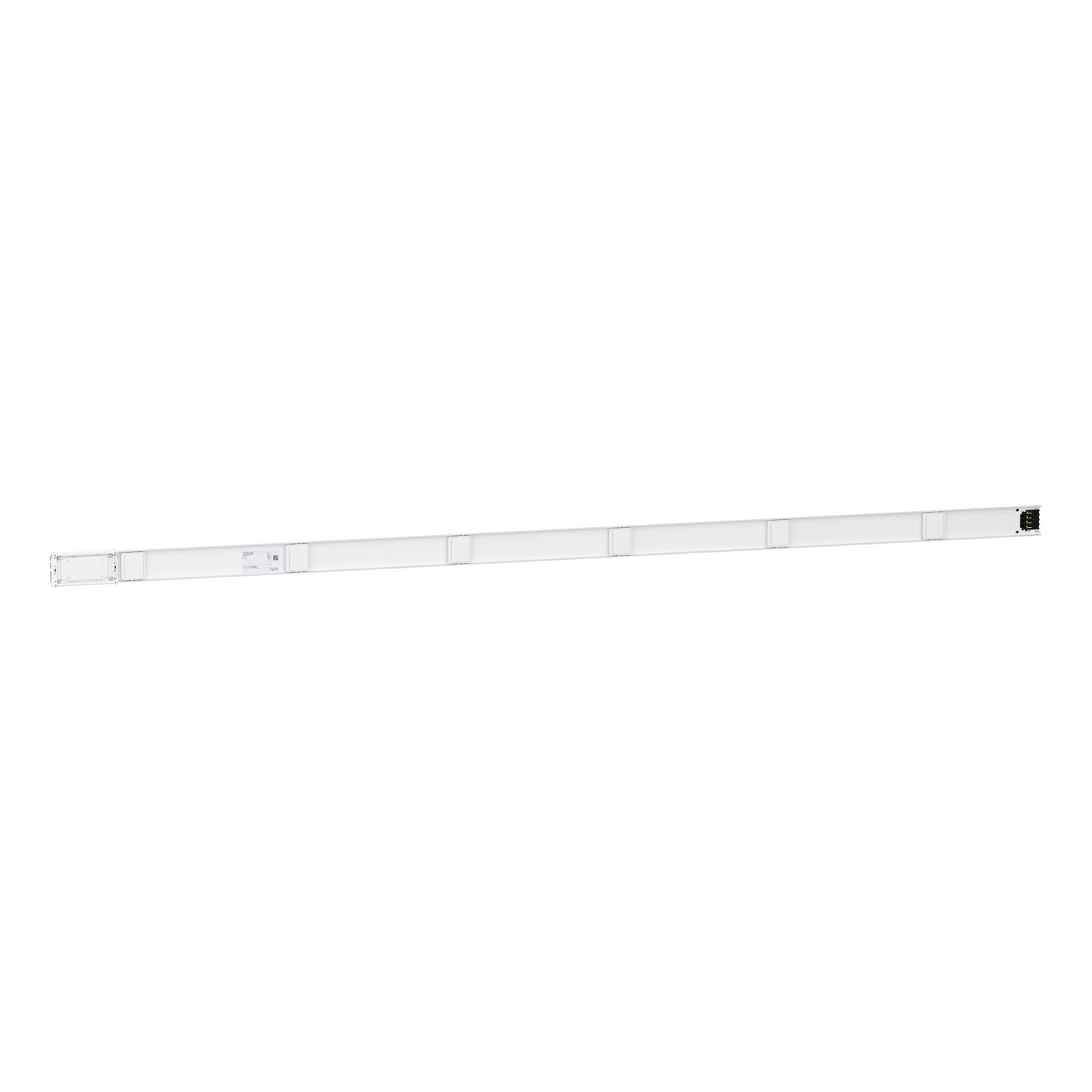

Picture of Straight distribution length, Canalis KN, standard, aluminium, 40A, 3L+N+PE, fixed length 3m, 6 outlets, RAL9001
SKU:

KNA40ED4306

Straight distribution length, Canalis KN, standard, aluminium, 40A, 3L+N+PE, fixed length 3m, 6 outlets, RAL9001

$313.68 INC GST
Available for Shipping : 28-Aug-2025
Straight distribution length, Canalis KN, standard, aluminium, 40A, 3L+N+PE, fixed length 3m, 6 outlets, RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
Part of the Canalis KNA system. It consists of a 3m 40A Distribution element equipped with 6 outlets. All run components are delivered with a jointing unit.

Products specifications

Attribute name Attribute value
Main
Device short name KNA
Device application low power distribution
Number of tap-off outlets 6
[Ie] rated operational current 40 A at 35 °C
Busbar trunking polarity 3L + PEN, 3L + N + PE
Range Canalis
Length 3 m
Product name KN
Product or component type straight length
Range of product Canalis
Complementary
[Ipk] rated peak withstand current 6 kA
[Ue] rated operational voltage 230...500 V
Depth 27.5 mm
Width 92 mm
Colour white (RAL 9001)
Neutral position up
Electrical connection lubricated sliding contact
Mounting mode by screws
Thermal stress limit 1980 kA².s
Control type without
Maximum voltage drop <0.133 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.147 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.161 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.168 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 5.6 kg
Radiated magnetic field 0.039 µT
Number of circuits 1
[Ui] rated insulation voltage 500 V
Linear resistance 0.96 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.78 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.52 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 3.14 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 2.85 mΩ/m Rb0 20 °C impedance method Ph/PE, 3.4 mΩ/m Rb0 20 °C impedance method Ph/N, 3.4 mΩ/m Rb0 20 °C impedance method Ph/Ph, 5.42 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 1.68 mΩ/m X0 20 °C symmetrical components method Ph/PE, 5.15 mΩ/m R0 20 °C symmetrical components method Ph/PE, 7.11 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.56 mΩ/m X0 20 °C symmetrical components method Ph/N, 6.93 mΩ/m R0 20 °C symmetrical components method Ph/N, 1.96 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 1.94 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 1.7 mΩ/m R20 20 °C phase conductor, 0.25 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 1.09 mΩ/m 20 °C protective conductor
THDI 33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 61439-6
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 1.4 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.800 cm
Package 1 Width 10.000 cm
Package 1 Length 310.000 cm
Package 1 Weight 4.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 10.900 cm
Package 2 Width 15.500 cm
Package 2 Length 314.000 cm
Package 2 Weight 20.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 44.500 cm
Package 3 Width 64.000 cm
Package 3 Length 320.000 cm
Package 3 Weight 260.000 kg
