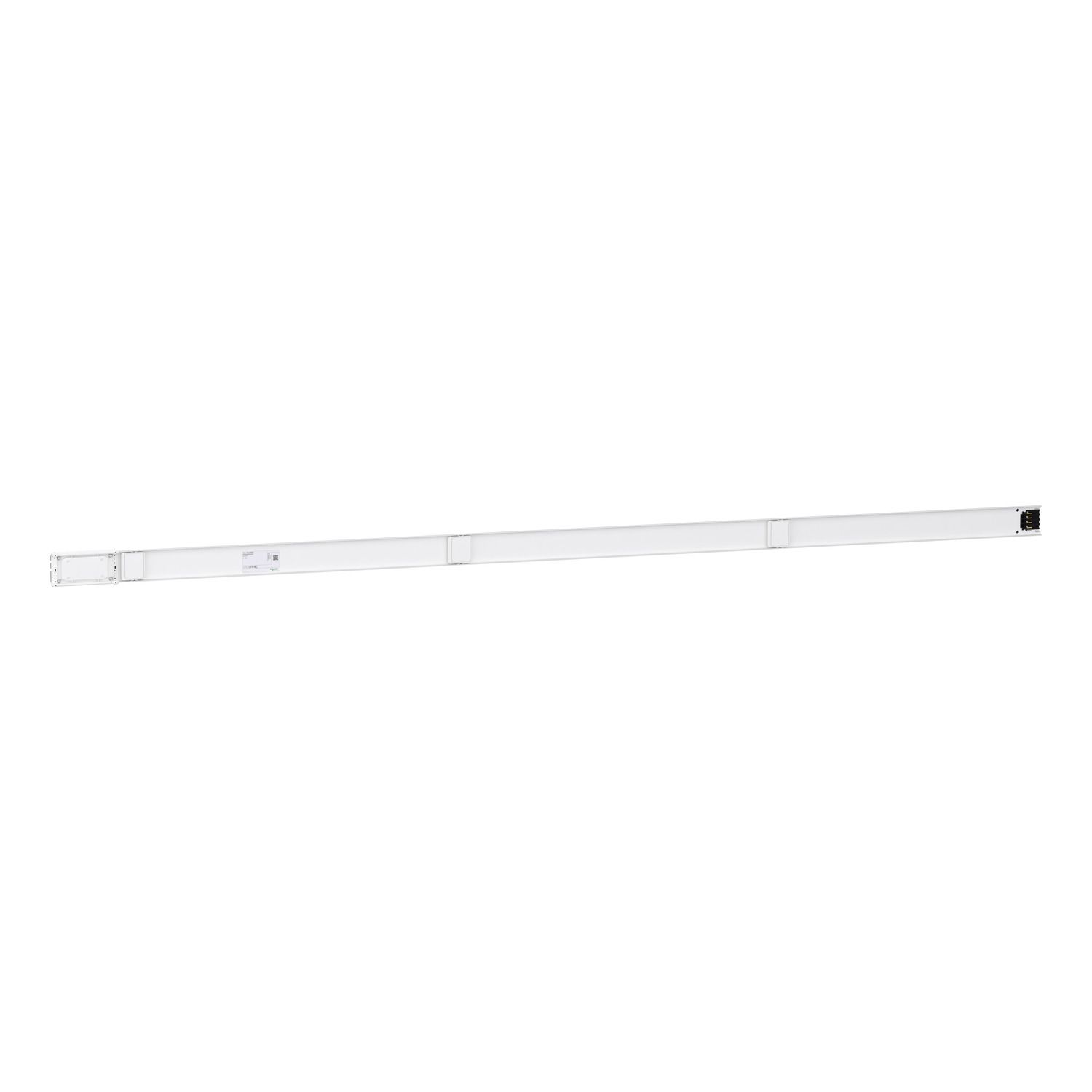

Picture of Straight distribution length, Canalis KN, standard, aluminium, 40A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001
SKU:

KNA40ED4303

Straight distribution length, Canalis KN, standard, aluminium, 40A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

$228.72
Available for Shipping : 27-Feb-2025
Straight distribution length, Canalis KN, standard, aluminium, 40A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
Canalis straight length for KN. It's applied to low power distribution with lubricated sliding contact. The operational voltage is from 230VAC to 500VAC 50/60Hz. The rated operational current is 40A at 35 ℃. It provides white RAL 9001 surface treatment. Mounted by screws with up neutral position. Busbar trunking polarity is 3L + N + PE and 3L + PEN. Designed with 1 circuit allowing and 3 tap-off outlets. It provides 0.039 pT radiated magnetic field. It provides IP55 protection conforming to IEC 60529. IK08 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Device short name KNA
Device application low power distribution
Number of tap-off outlets 3
[Ie] rated operational current 40 A at 35 °C
Busbar trunking polarity 3L + PEN, 3L + N + PE
Range Canalis
Length 3 m
Product name KN
Product or component type straight length
Range of product Canalis
Complementary
[Ipk] rated peak withstand current 6 kA
[Ue] rated operational voltage 230...500 V
Depth 27.5 mm
Width 92 mm
Colour white (RAL 9001)
Neutral position up
Electrical connection lubricated sliding contact
Mounting mode by screws
Thermal stress limit 1980 kA².s
Control type without
Maximum voltage drop <0.133 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.147 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.161 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.168 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 5.6 kg
Radiated magnetic field 0.039 µT
Number of circuits 1
[Ui] rated insulation voltage 500 V
Linear resistance 0.96 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.78 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.52 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 3.14 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 2.85 mΩ/m Rb0 20 °C impedance method Ph/PE, 3.4 mΩ/m Rb0 20 °C impedance method Ph/N, 3.4 mΩ/m Rb0 20 °C impedance method Ph/Ph, 5.42 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 1.68 mΩ/m X0 20 °C symmetrical components method Ph/PE, 5.15 mΩ/m R0 20 °C symmetrical components method Ph/PE, 7.11 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.56 mΩ/m X0 20 °C symmetrical components method Ph/N, 6.93 mΩ/m R0 20 °C symmetrical components method Ph/N, 1.96 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 1.94 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 1.7 mΩ/m R20 20 °C phase conductor, 0.25 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 1.09 mΩ/m 20 °C protective conductor
THDI 33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 61439-6
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 1.4 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 3.500 cm
Package 1 Length 310.000 cm
Package 1 Weight 5.900 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 11.000 cm
Package 2 Width 16.000 cm
Package 2 Length 314.000 cm
Package 2 Weight 24.400 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 45.400 cm
Package 3 Width 68.000 cm
Package 3 Length 320.000 cm
Package 3 Weight 310.200 kg
