Picture of Acti9, Load centre, Acti9, 24 poles, surface mounted, IP40
SKU:

L24S

Acti9, Load centre, Acti9, 24 poles, surface mounted, IP40

$285.07
Acti9, Load centre, Acti9, 24 poles, surface mounted, IP40
  • Acti9 Load centre enclosure with 24 poles capacity and IP40
  • Ensure electrical safety by providing circuit protection and organization
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Product Page Link
Product Data Sheet

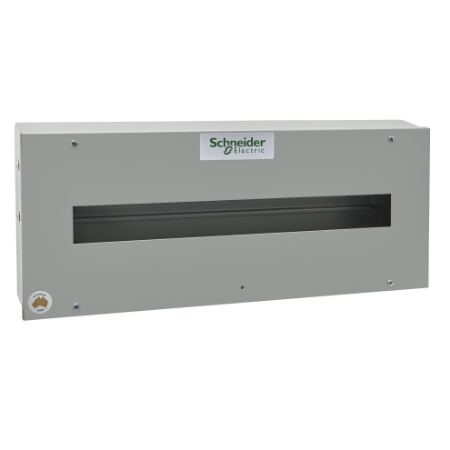

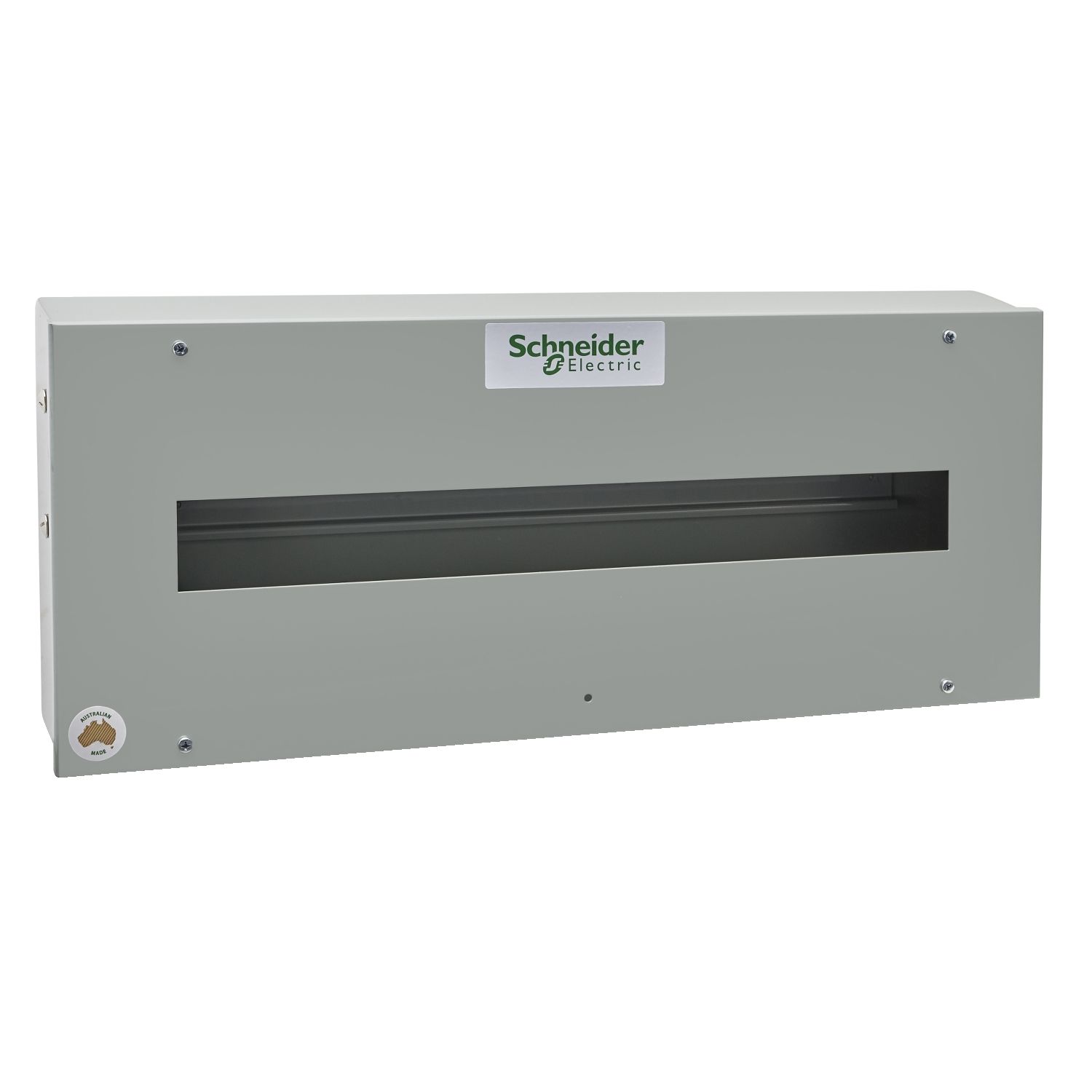

This Acti9 product is a surface mounted distribution load centre. 1 Din rail of 24 modules of 18mm is provided within the enclosure. It is made of steel and its color is grey.

Products specifications

Attribute nameAttribute value
Main
Device applicationdistribution
Provided equipmentenclosure,  DIN rail
RangeActi9
Product or component typeLoad Centre
Complementary
Number of poles24
Mounting plate descriptionwithout mounting plate
Depth66 mm
Width556 mm
Enclosure mountingsurface
Colourgrey
Type of railDIN
Materialsteel
Number of horizontal rows1
Height231 mm
Environment
IP degree of protectionIP40
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.0 cm
Package 1 Width24.0 cm
Package 1 Length58.0 cm
Package 1 Weight4.23 kg
