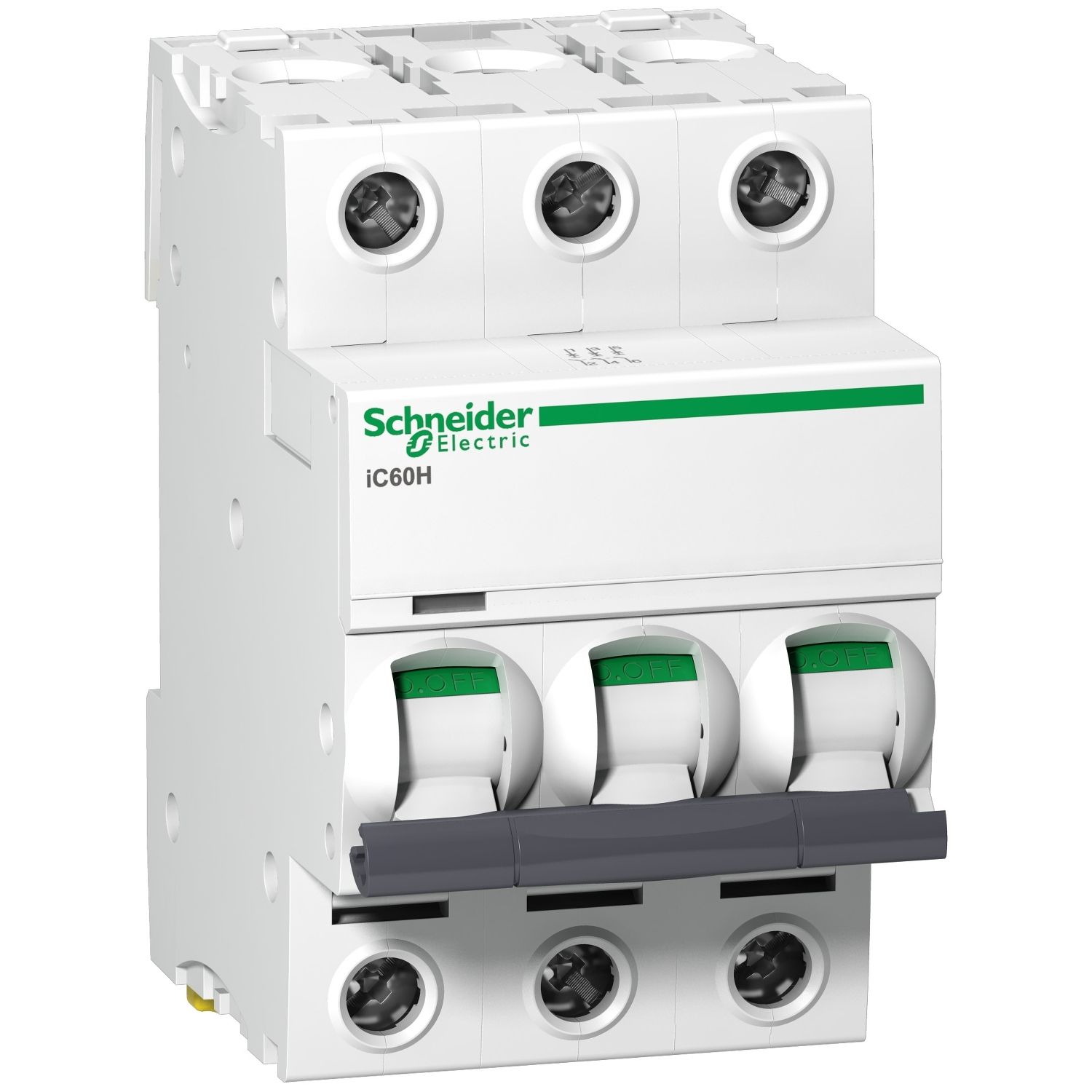

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 16A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

$76.67

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 3P, 16A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Suitability for industrial isolation according to IEC/EN 60947-2 standard

Combine short-circuit and overload currents protection

VisiTrip system for fast detection of faulty outgoers for shorter repair times

VisiSafe system for offering enhanced security when it comes to circuit protection

Option to add auxiliaries, remote monitoring and residual current device (Vigi)

Faster, better and more flexible installation of device thanks to comb busbar

Fast closing independent of the speed of actuation of the toggle

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Declaration of conformity

Product Page Link

Product Data Sheet

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 3P circuit breaker with 3 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 0.375kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Number of protected poles	3
Trip unit technology	thermal-magnetic
Network type	AC/DC
Device short name	iC60H
Breaking capacity	15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2, 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
Range	Acti9
Curve code	C
Range of product	Acti9
Poles description	3P
Utilisation category	category A conforming to EN/IEC 60947-2
Product name	Disbo iC60
Product or component type	miniature circuit-breaker
Breaking capacity code	H
[In] rated current	16 A
Complementary
Provision for padlocking	padlockable
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Compatibility code	iC60
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-16 mm² flexible, single terminal (top or bottom) 1-25 mm² rigid
Earth-leakage protection	separate block
Height	85 mm
[Ics] rated service breaking capacity	20 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V DC, 7500 A 75 % conforming to EN/IEC 60898-1 - 415 V AC 50/60 Hz, 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz, 7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz, 15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 21 kA 50 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Net weight	0.375 kg
Magnetic tripping limit	8 x In +/- 20 %
9 mm pitches	6
Tightening torque	2-2 N.m top or bottom
Colour	white
Connection pitch	18 mm between phases
Mechanical durability	20000 cycles
Power losses per pole	2.4 W
Mounting mode	clip-on
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
Depth	78.5 mm
Width	54 mm
Local signalling	trip indicator
Limitation class	3 conforming to EN/IEC 60947-2
Mounting support	rail
Contact position indicator	yes
Total power losses	7.2 W
Network frequency	50/60 Hz
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to IEC 60068-1
Pollution degree	3 conforming to EN/IEC 60947-2
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-35-70 °C
Standards	EN/IEC 60947-2, EN/IEC 60898-1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.3 cm
Package 1 Width	7 cm
Package 1 Length	9 cm
Package 1 Weight	330 g
Unit Type of Package 2	2
Number of Units in Package 2	4
Package 2 Height	8 cm
Package 2 Width	10 cm
Package 2 Length	22 cm
Package 2 Weight	1.379 kg
Unit Type of Package 3	3
Number of Units in Package 3	44
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	15.927 kg
Unit Type of Package 4	4
Number of Units in Package 4	352
Package 4 Height	50 cm
Package 4 Width	80 cm
Package 4 Length	120 cm
Package 4 Weight	137.248 kg
