SKU:

A9F54120

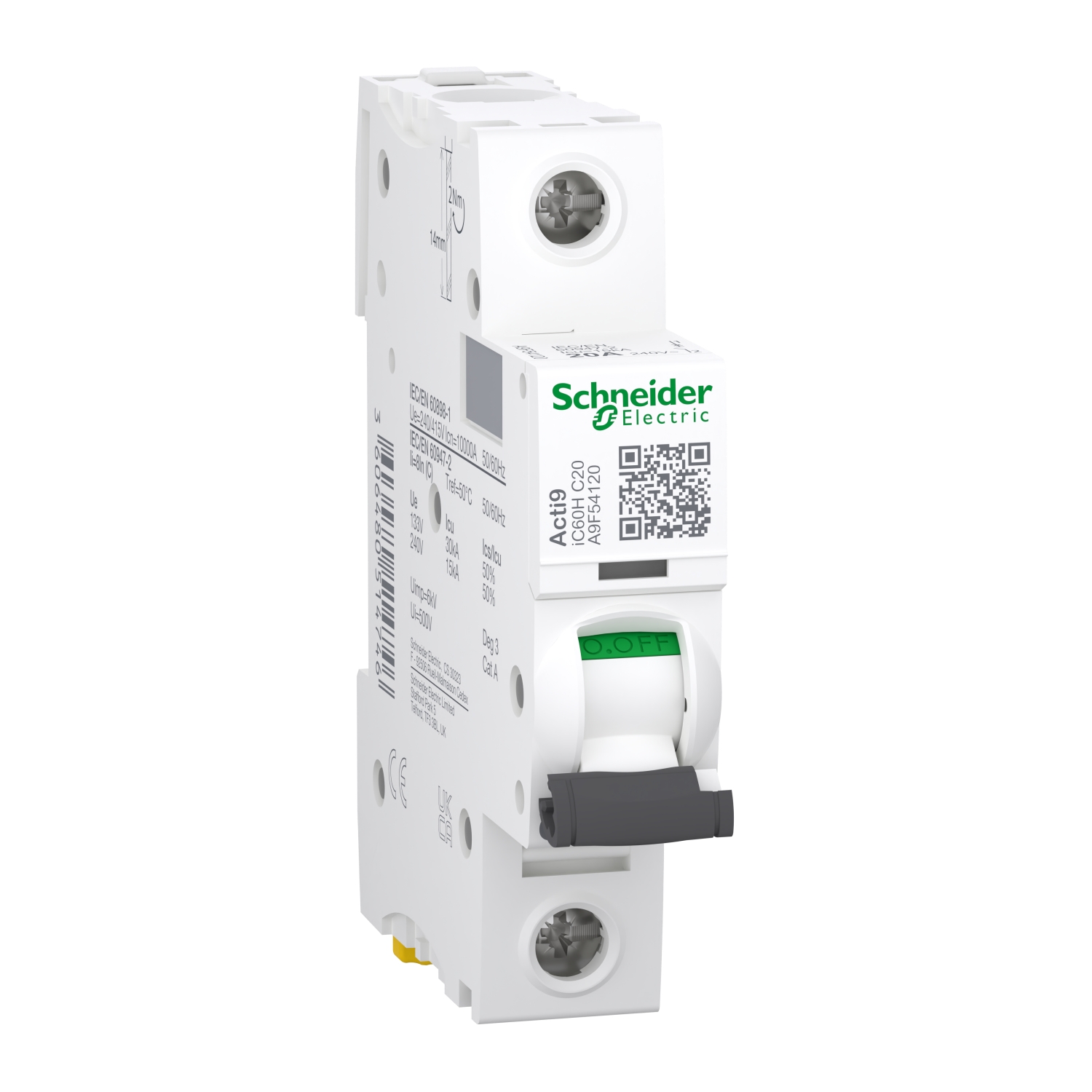

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 1P, 20A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

$24.16

Qty:

Available for Shipping : 08-Dec-2024

Product Selector

Acti9, Miniature circuit breaker (MCB), Acti9 iC60H Disbo, 1P, 20A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Suitability for industrial isolation according to IEC/EN 60947-2 standard

Combine short-circuit and overload currents protection

VisiTrip system for fast detection of faulty outgoers for shorter repair times

VisiSafe system for offering enhanced security when it comes to circuit protection

Option to add auxiliaries, remote monitoring and residual current device (Vigi)

Faster, better and more flexible installation of device thanks to comb busbar

Fast closing independent of the speed of actuation of the toggle

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 1P circuit breaker with 1 protected pole, 20A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 240VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.125kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Number of protected poles	1
Trip unit technology	thermal-magnetic
Network type	AC/DC
Device short name	iC60H
Breaking capacity	15 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 30 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 42 kA Icu at 10...60 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1, 15 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2, 20 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
Range	Acti9
Curve code	C
Range of product	Acti9
Poles description	1P
Utilisation category	category A conforming to EN/IEC 60947-2
Product name	Disbo iC60
Product or component type	miniature circuit-breaker
Breaking capacity code	H
[In] rated current	20 A
Complementary
Provision for padlocking	padlockable
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Compatibility code	iC60
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-16 mm² flexible, single terminal (top or bottom) 1-25 mm² rigid
Earth-leakage protection	separate block
Height	85 mm
[Ics] rated service breaking capacity	10 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC, 20 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 7500 A 75 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 7.5 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 15 kA 50 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 21 kA 50 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Net weight	0.125 kg
Magnetic tripping limit	8 x In +/- 20 %
9 mm pitches	2
Tightening torque	2-2 N.m top or bottom
Colour	white
Connection pitch	18 mm between devices
Mechanical durability	20000 cycles
Power losses per pole	2.4 W
Mounting mode	clip-on
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
Depth	78.5 mm
Width	18 mm
Local signalling	trip indicator
Limitation class	3 conforming to EN/IEC 60947-2
Mounting support	rail
Contact position indicator	yes
Total power losses	2.4 W
Network frequency	50/60 Hz
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to IEC 60068-1
Pollution degree	3 conforming to EN/IEC 60947-2
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-35-70 °C
Standards	EN/IEC 60898-1, EN/IEC 60947-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.800 cm
Package 1 Width	7.400 cm
Package 1 Length	9.000 cm
Package 1 Weight	114.000 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.500 cm
Package 2 Width	9.700 cm
Package 2 Length	21.800 cm
Package 2 Weight	1.422 kg
Unit Type of Package 3	3
Number of Units in Package 3	132
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	16.088 kg
Unit Type of Package 4	4
Number of Units in Package 4	1056
Package 4 Height	45.000 cm
Package 4 Width	80.000 cm
Package 4 Length	120.000 cm
Package 4 Weight	140.328 kg
