LA1KN04

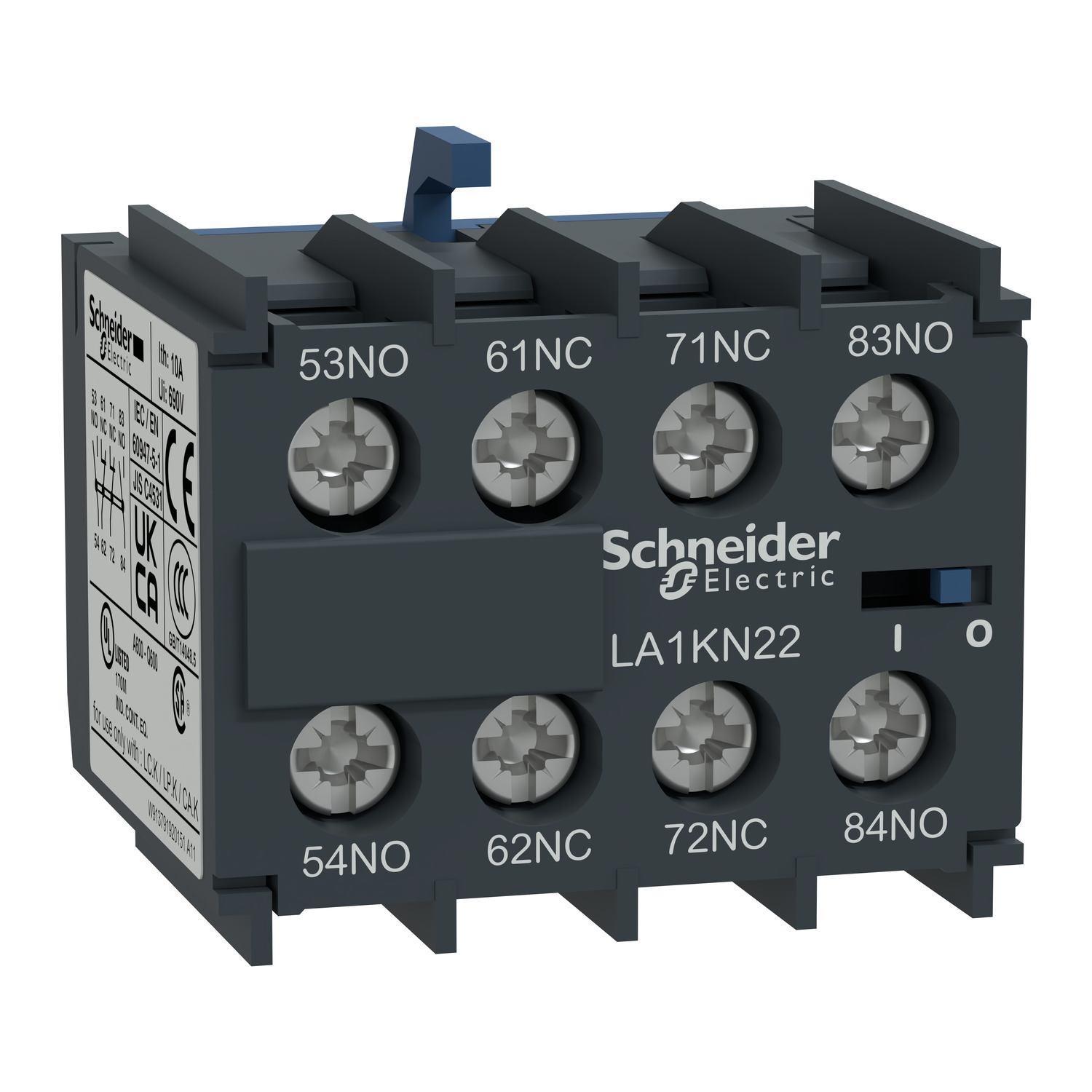

Auxiliary contact block, TeSys K, 4NC, front mounting, screw clamp terminals

$53.00

Qty:

Available for Shipping : 24-Nov-2024

Auxiliary contact block, TeSys K, 4NC, front mounting, screw clamp terminals

Meet the need for more control contact for TeSys K contactor and control relay

Easy choice for simple applications

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Instruction sheet

Product environmental

CAD

Product Page Link

Product Data Sheet

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 4NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LA1
Auxiliary contacts operation	instantaneous
Range	TeSys
[Ith] conventional free air thermal current	10 A (at 50 °C)
Range of product	TeSys K control relay, TeSys K
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-5-1, 600 V conforming to UL 60947-5-1, 690 V conforming to IEC 60947-5-1
Pole contact composition	4 NC
Mounting location	front
Product name	TeSys K
Product or component type	auxiliary contact block
Range compatibility	TeSys K CA3K, TeSys K CA2K, TeSys K LC1K
[Ue] rated operational voltage	690 V AC 25...400 Hz
Standards	JIS C8201-5-1, GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Product certifications	UKCA, CE, CSA, UL, CCC, CB Scheme
Complementary
Compatibility code	LA1
Tightening torque	1.3 N.m - with screwdriver pozidriv No 2, 1.3 N.m - with screwdriver Philips No 2
Minimum switching voltage	17 V
Connections - terminals	screw clamp terminals 2 cable(s) 1.5-4 mm²rigid, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²rigid, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end
Associated fuse rating	10 A gG at <= 690 V conforming to IEC 60947
Irms rated making capacity	110 A at <= 690 V AC conforming to IEC 60947
Height	30 mm
Shielding continuity terminal	without
Depth	35 mm
Width	38 mm
Net weight	0.045 kg
Insulation resistance	> 10 MOhm
Non overlap distance	0.5 mm
Minimum switching current	5 mA
Permissible short-time rating	110 A 100 ms, 60 A 500 ms, 80 A 1 s
Environment
Protective treatment	TC conforming to IEC 60068
Environmental characteristic	normal environment
Ambient air temperature for storage	-50-80 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-25-50 °C
Operating altitude	2000 m
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4 cm
Package 1 Width	3.8 cm
Package 1 Length	4 cm
Package 1 Weight	40 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	3 cm
Package 2 Width	19 cm
Package 2 Length	30 cm
Package 2 Weight	405 g
Unit Type of Package 3	3
Number of Units in Package 3	100
Package 3 Height	15 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	4.535 kg
