LC1K0610B7

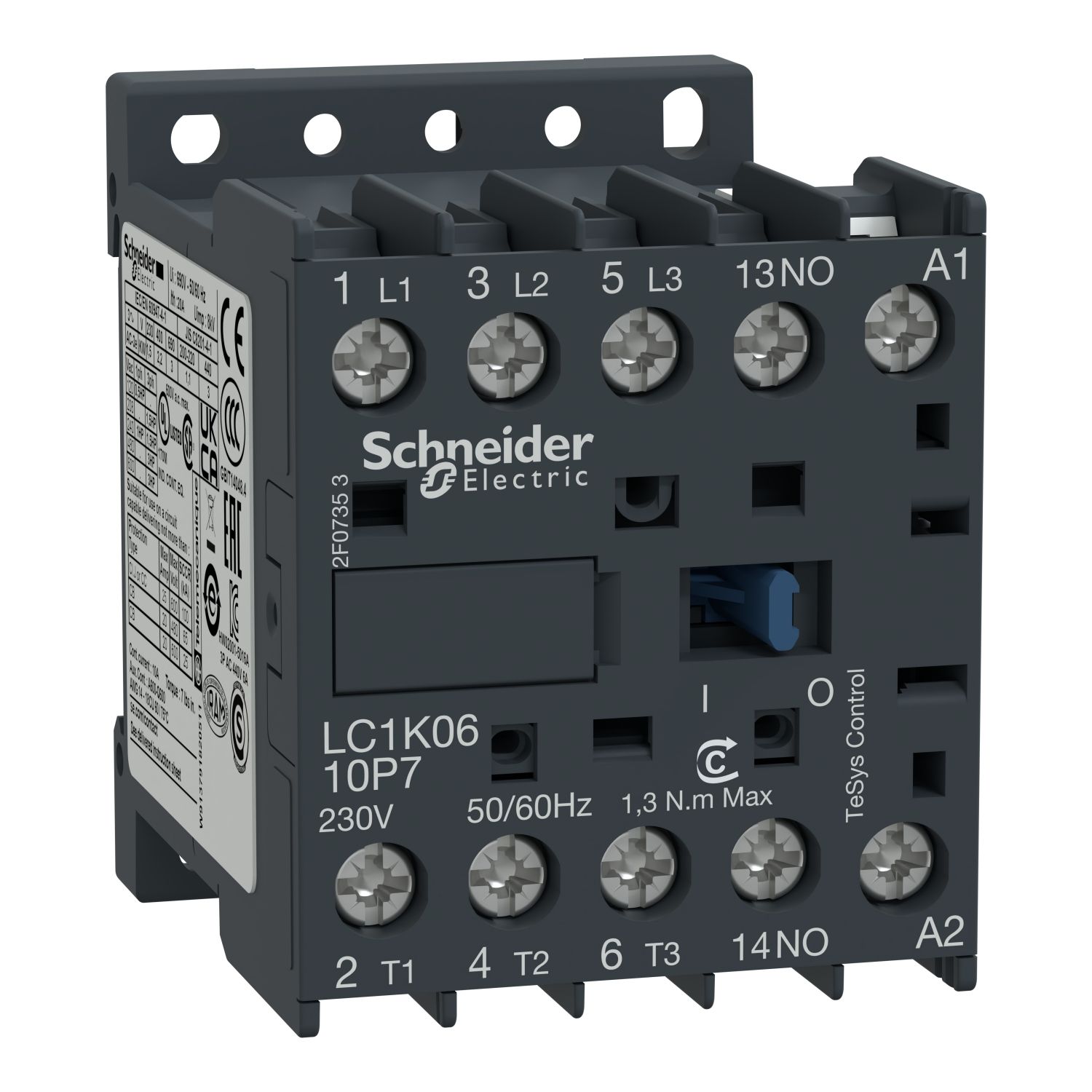

Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, aux. 1NO, 24V AC coil, screw clamp terminals

$54.14
Product Selector
Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, aux. 1NO, 24V AC coil, screw clamp terminals
  • TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
  • The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications.
  • One of the smallest contactor offerings in the market.
  • The range delivers strong performance for its compact size and promises seamless integration in all applications.
  • Widely used for industry, infrastructure and building applications.
  • Designed for simple control systems
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
Instruction sheet
End of life manual
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 24V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute nameAttribute value
Main
Device short nameLC1K
Device applicationcontrol
RangeTeSys
Range of productTeSys K
Product or component typecontactor
Contactor applicationmotor control
Complementary
Heat dissipation1.3-1.3 W
[Icw] rated short-time withstand current110 A - 100 ms for signalling circuit, 90 A - 500 ms for signalling circuit, 80 A - 1 s for signalling circuit, 20 A 50 °C - >= 15 min for power circuit, 40 A 50 °C - 3 min for power circuit, 45 A 50 °C - 1 min for power circuit, 60 A 50 °C - 30 s for power circuit, 80 A 50 °C - 10 s for power circuit, 85 A 50 °C - 5 s for power circuit, 90 A 50 °C - 1 s for power circuit
Compatibility codeLC1K
Mechanical durability10 Mcycles
Electrical durability0.05 Mcycles 36 A AC-4 at Ue <= 440 V, 1.3 Mcycles 6 A AC-3e at Ue <= 440 V, 1.3 Mcycles 6 A AC-3 at Ue <= 440 V
Tightening torque1.3 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2, 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
Signalling circuit frequency<= 400 Hz
Minimum switching voltage17 V for signalling circuit
Motor starter typedirect on-line contactor
Connections - terminalsscrew clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Motor power kW3 kW at 440/690 V AC 50/60 Hz AC-4, 2.2 kW at 380...415 V AC 50/60 Hz AC-4, 1.5 kW at 220...230 V AC 50/60 Hz AC-4, 3 kW at 440/690 V AC 50/60 Hz AC-3e, 2.2 kW at 380...415 V AC 50/60 Hz AC-3e, 1.5 kW at 220...230 V AC 50/60 Hz AC-3e, 3 kW at 440/690 V AC 50/60 Hz AC-3, 2.2 kW at 380...415 V AC 50/60 Hz AC-3, 1.5 kW at 220...230 V AC 50/60 Hz AC-3
Associated fuse rating10 A gG for signalling circuit conforming to VDE 0660, 10 A gG for signalling circuit conforming to IEC 60947, 25 A aM for power circuit, 25 A gG at <= 440 V for power circuit
Irms rated making capacity110 A AC for signalling circuit conforming to IEC 60947, 110 A AC for power circuit conforming to IEC 60947
Rated breaking capacity70 A at 660...690 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947
Safety reliability levelB10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit typeAC at 50/60 Hz
[Ith] conventional free air thermal current10 A (at 50 °C) for signalling circuit, 20 A (at 60 °C) for power circuit
Control circuit voltage limitsdrop-out: >= 0.20 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
Height58 mm
Mechanical robustnessvibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
[Ui] rated insulation voltagesignalling circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to UL 508, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 690 V conforming to IEC 60947-4-1, power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL 508
Depth57 mm
Overvoltage categoryIII
Width45 mm
Operating time10...20 ms coil energisation and NO closing, 10...20 ms coil de-energisation and NO opening
Hold-in power consumption in VA4.5-4.5 VA (at 20 °C)
Poles description3P
Auxiliary contacts typetype instantaneous 1 NO
Maximum operating rate3600 cyc/h
[Ie] rated operational current6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation categoryAC-4, AC-3e, AC-3
Pole contact composition3 NO
[Uimp] rated impulse withstand voltage8 kV
Inrush power in VA30-30 VA (at 20 °C)
Net weight0.18 kg
Power range2.2-3 kW at 480-500 V 3 phases, 1.1-2 kW at 480-500 V 3 phases, 0.55-1 kW at 480-500 V 3 phases, 0-0.5 kW at 480-500 V 3 phases, 2.2-3 kW at 380-440 V 3 phases, 1.1-2 kW at 380-440 V 3 phases, 0.55-1 kW at 380-440 V 3 phases, 0-0.5 kW at 380-440 V 3 phases, 1.1-2 kW at 200-240 V 3 phases, 0.55-1 kW at 200-240 V 3 phases, 0-0.5 kW at 200-240 V 3 phases
Insulation resistance> 10 MOhm for signalling circuit
Contactor coil voltage24 V AC standard
Mounting supportplate, rail
Non overlap distance0.5 mm
Auxiliary contact composition1 NO
Average impedance3 mOhm - Ith 20 A 50 Hz for power circuit
[Ue] rated operational voltagesignalling circuit: <= 690 V AC <= 400 Hz, power circuit: <= 690 V AC <= 400 Hz
[Uc] control circuit voltage24 V AC 50/60 Hz
Minimum switching current5 mA for signalling circuit
Environment
IP degree of protectionIP2X conforming to VDE 0106
Protective treatmentTC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage-50-80 °C
StandardsJIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, GB/T 14048.4, EN/IEC 60947-4-1
Operating altitude2000 m without derating
Flame retardancerequirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Product certificationsUKCA, CE, EAC, CSA, UL, CCC, CB Scheme
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.000 cm
Package 1 Width6.000 cm
Package 1 Length6.500 cm
Package 1 Weight178.000 g
Unit Type of Package 22
Number of Units in Package 250
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight9.143 kg
Unit Type of Package 33
Number of Units in Package 3800
Package 3 Height75.000 cm
Package 3 Width80.000 cm
Package 3 Length60.000 cm
Package 3 Weight154.288 kg
