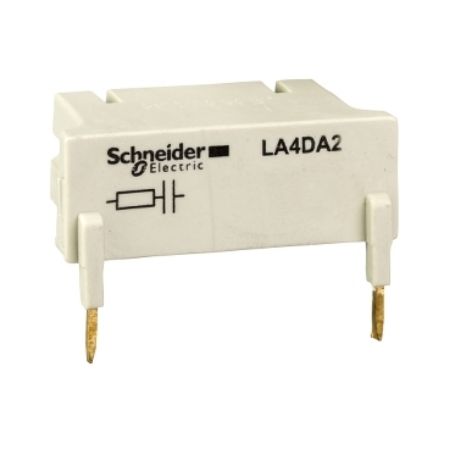

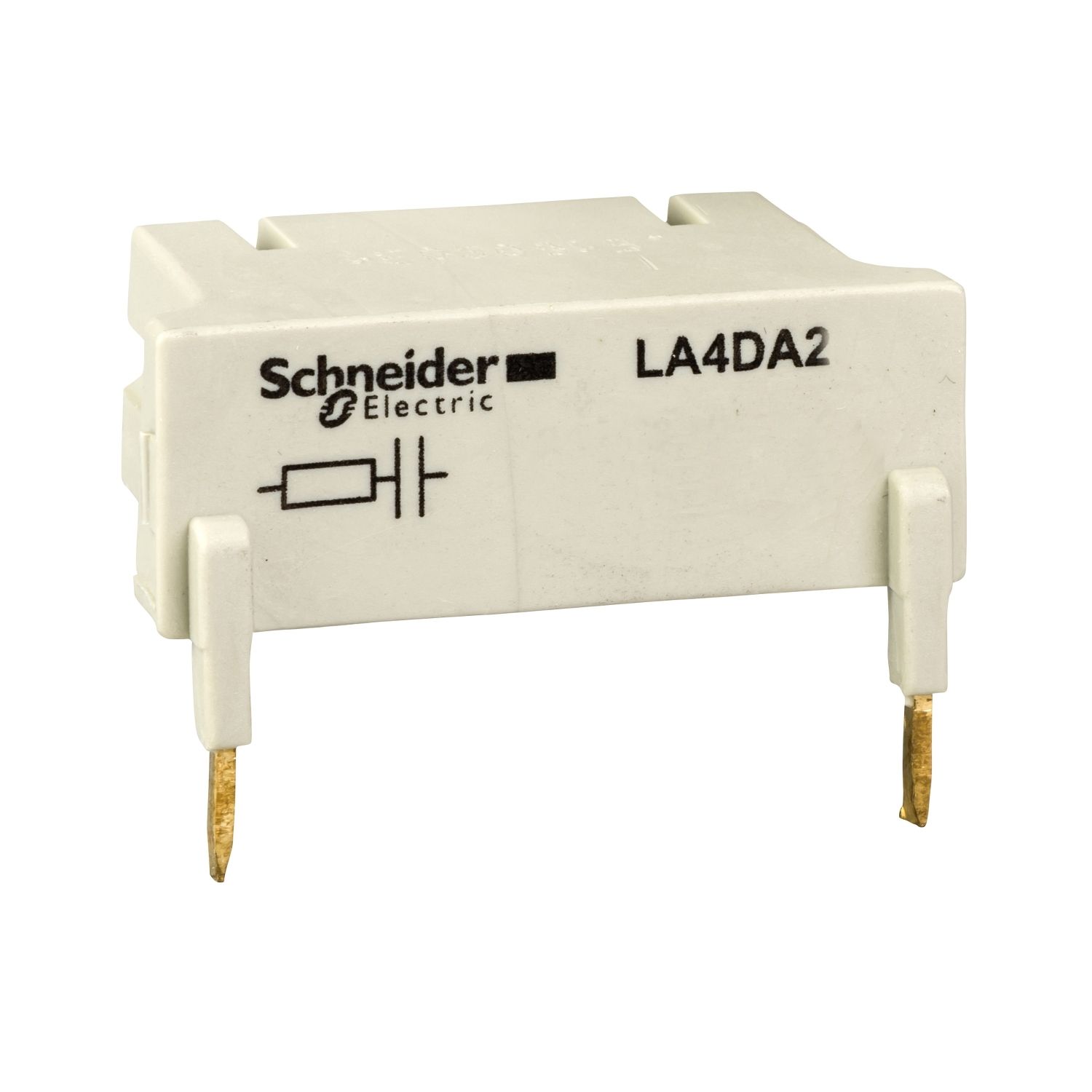

Picture of TeSys; TeSys Deca, suppressor module, RC circuit, 110...240 V AC
SKU:

LA4DA2U

TeSys; TeSys Deca, suppressor module, RC circuit, 110...240 V AC

$89.89
Available for Shipping : 18-Nov-2024
TeSys; TeSys Deca, suppressor module, RC circuit, 110...240 V AC
  • Meet the need for coil protection for TeSys Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys D suppressor module, for LC.D80-D150 (3P), LC.D40-D115 (4P) contactors. To be used with 110-240V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LA4D
Product compatibility 4P LC1D40008...D80008, 4P LC1D80004...D115004, 3P LC1D80...D150
Range TeSys
Product or component type suppressor module
Range of product TeSys Deca
Complementary
Suppressor technology RC circuit
Compatibility code LA4D
Mounting mode by screws
Maximum peak voltage 3 Uc
Mounting location top
Net weight 0.018 kg
[Uc] control circuit voltage 110...240 V AC 50/60 Hz
Environment
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Standards GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN 60947-5-1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 4.200 cm
Package 1 Length 2.700 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 2
Number of Units in Package 2 78
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.870 kg
Unit Type of Package 3 3
Number of Units in Package 3 2496
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 70.612 kg
